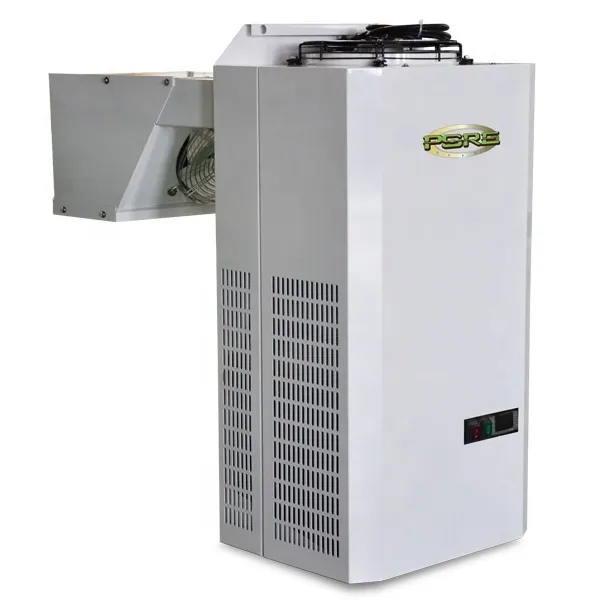

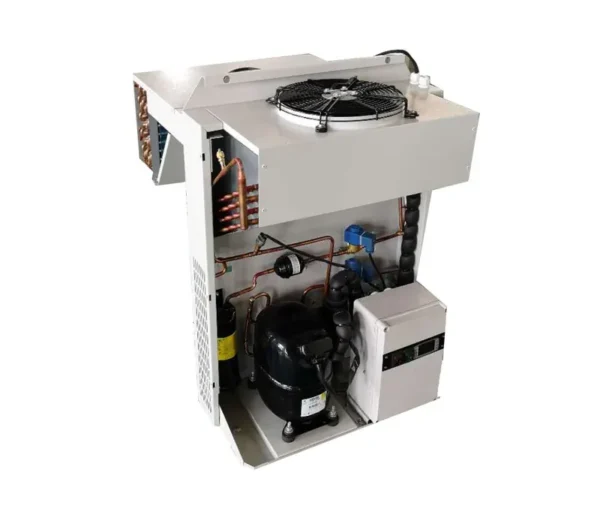

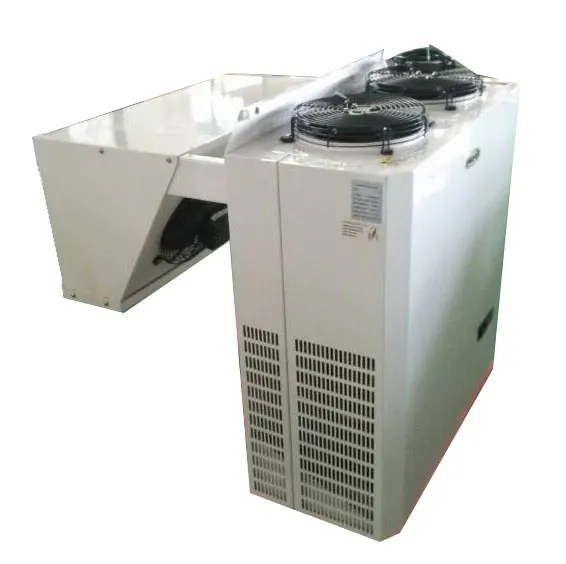

Independent Monoblock Refrigeration Unit, R404a, 1-3HP

Independent monoblock refrigeration unit — refrigerant R404a, type independent monoblock. The complete factory specification follows. Made by Taizhou Nanfeng Cold-Chain Co., Ltd. (18 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Independent Monoblock Refrigeration Unit

• Horse Power: 1-3HP
• Refrigerant: R404a
• Warranty: 1 Year
• Certification: ce
• Place Of Origin: Jiangsu, China
• Type: independent monoblock

Technical Specifications

Product Details

中高温一体机R404A

型号 Model

LY075DGM/H

LY100DGM/H

LY150DGM/H

LY200DGM/H

LY300DGM/H

LY300SGM/H

匹数 Horse Power (HP)

0.75

1

1.5

2

3

电源 Power Sourch

220v-1ph-50hz

220v-1ph-50hz

220v-1ph-50hz

220v-1ph-50hz

220v-1ph-50hz

380v-3ph-50hz

压缩机 Compressor

CAJ9480Z

CAJ9510Z

CAJ4519Z

FH4524Z

(T)FH4531Z

冷凝器 风机condenser fan

直径 Diameter

250mm

250mm

250mm

250mm

250mm

数量 Quantity

1

1

1

2

2

风量 Air Flow

1480m³/h

1480m³/h

1480m³/h

3400m³/h

3400m³/h

功率 Power

50W

50W

50W

100W

100W

蒸发器 风机Evaporator fan

直径 Diameter

250mm

250mm

250mm

250mm

250mm

数量 Quantity

1

1

1

2

2

风量 Air Flow

2600m³/h

2600m³/h

2600m³/h

6600m³/h

6600m³/h

功率 Power

50W

除霜形式 Defrost type			热气化霜 Hot Gas
		充氟量refrigerant charged (kg)			1.2			1.5			1.6
2.2			2.5			Te(℃)	Ta(℃)	Qo(W)	V100(m³)	Qo(W)	V100(m³)
Qo(W)	V100(m³)	Qo(W)	V100(m³)	Qo(W)	V100(m³)	15	30	2998	25
3630	30	6862	57	8253	68		10415	87		40
2648	22	3206	26	6062	50	7291	60	9200	76
7.2	30	2213	18	2700	22	5124	42	6089	50
	7928	66		40	1954	16	2385	19	4527	37
5380	44	7005	58	0	30	1637	12	2009	14.5
3827	28	4443	32		5813	43		40	1446	10.5
1775	13	3380	25	3925	29	5135	38	­10	30

低温一体机R404A

型号 Model			LY100DGL			LY150DGL			LY200DGL			LY300DGL
																LY300SGL
匹数 Horse Power (HP)			1			1.5			2			3
电源 Power Sourch			220v-1ph-50hz			220v-1ph-50hz			220v-1ph-50hz			220v-1ph-50hz
																380v-3ph-50hz
压缩机Compressor			CAJ2446Z			CAJ2464Z			FH2480Z			(T)FH2511Z
冷凝器 风机condenser fan	直径 Diameter	250mm			250mm			300mm			300mm
		数量 Quantity	1			1			1			1
		风量 Air Flow	1480m³/h			1480m³/h			1700m³/h			1700m³/h
		功率 Power	50W			50W			85W			85W
蒸发器 风机Evaporator fan	直径 Diameter	230mm			254mm			300mm			300mm
		数量 Quantity	1			1			1			1
		风量 Air Flow	1400m³/h			1400m³/h			3300m³/h			3300m³/h
		功率 Power	25W			25W			85W			85W
除霜形式 Defrost type			热气化霜 Hot Gas							电加热化霜 Electrical Heater
充氟量refrigerant charged (kg)			1.1			1.2			2.1			2.2
Te(℃)	Ta(℃)	Qo(W)	V100(m³)	Qo(W)	V100(m³)	Qo(W)	V100(m³)	Qo(W)	V100(m³)
-10	30	2333	13	3068	17	4502	25	6339	35
		40	2061	11	2711	15	3977	22	5599	31
-20	30	1449	7.2	1938	9.8	2712	13.6	3867	19
		40	1280	6.4	1712	8.6	2396	12	3416	17
-23.3	30	1216	6	1635	8.2	2224	11	3195	15
		40	1075	5.3	1445	7.2	1965	9.6	2822	14

Products Description

The use of inverter compressors combined together with refrigeration systems is nowadays subject of several studies conducted both from research institutes and refrigeration systems manufacturers worldwide leader in this field. When inverter compressor starts,the compressor is running at high frequency and cooling quickly;when room temperature reachs the setting temperature,the compressor runs at low frequency low speed and low energy,only needed power to maintain the setting temperature,low temperature fluctuation to avoid compressor frequently start to effect compressor life.

Main Feature

Reduce cooling speed faster,small temperature fluctuation range;

Efficient energy saving, reduce the system energy;

Increase in compressors reliability thanks to the significant decrease of compressors startups;

Low noise thanks to the extremely high system flexibility;

Extremely low vibration phenomena.

Certifications

The company has ISO9001:2000, ISO1400, CE, CB, RoHS and other quality, environmental protection system certification and national industrial product production license.

Company Introduction

Taizhou Nanfeng Cold-Chain limited company was set up in 1999, which specializes in the development, manufacture and sales of refrigeration equipment. The company’s core products are DC inverter condensing unit, Danfoss fully equipped condensing unit, High quality condensing unit and so on. The DC inverter condensing unit is very Super Energy Saving (40%-60%), Super Silent( as low as 45dB) and so on. Danfoss fully equipped condensing unit is high reliable, high efficiency, strong durability and other advantages.

The company has a professional R&D team and a group of dedicated employees. It has automated assembly lines, imported leak detection equipment, type labs, and production process management software systems to ensure the quality of all products of the company and also ensure the company’s new product development and production supply ability.

Exhibition

The company’s major markets are Europe, Australia and other developed countries and regions. It is positioned in the high-end refrigeration market and provides OEM and ODM services to customers in developed countries such as the United Kingdom and Australia. Since 2009, the company has settled in the Alibaba International Station platform. It has always upheld the business principles of honesty and trustworthiness in international trade and enjoyed a good reputation among its customers. In 2018, we began to enter the domestic market. We are committed to creating value for customers with truly high-quality refrigeration equipment.

FAQ

Q1: Are you a factory or a trading company?

A1: We are a factory.

Q2: Is a sample available?

A2: Yes, but the sample will be at your charge.

Q3: What is the main market for your products?

A3: Our main market is in North America, Europe and Australian.

Q4: What is your warranty?

A4: We can assure you one year against manufacturing defect.

Q5:Can you provide OEM/ODM service and make OEM logo for us?

A5:Yes,we can provide OEM service and make OEM logo for you.

Ordering and Pricing

• Minimum order quantity: 1 unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this independent monoblock refrigeration unit?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this independent monoblock refrigeration unit carry?

It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Taizhou Nanfeng Cold-Chain Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Taizhou Nanfeng Cold-Chain Co., Ltd. range on HVACR Nexus.
