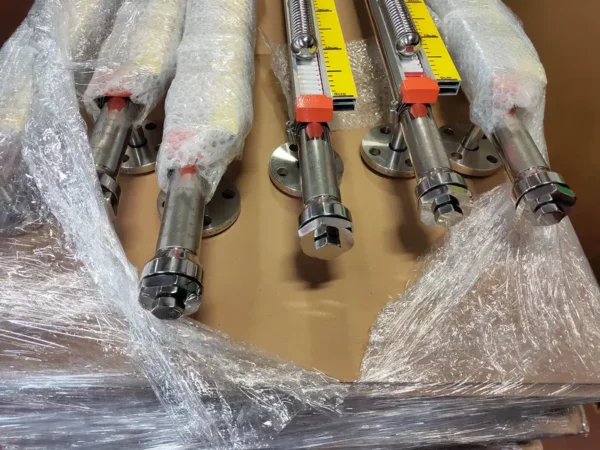

Indicator liquid tanks boilersdiesel — material Stainless Steel, type Magnetic Level Gauge. The complete factory specification follows. Made by TOTALIEN ENDUSTRIYEL URUNLER SANAYI TICARET LIMITED SIRKETI (5 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Indicator Liquid Tanks Boilersdiesel
- Material: Stainless Steel
- Warranty: 3 Years
- Place Of Origin: Istanbul, Turkey
- Type: Magnetic Level Gauge
- Single Gross Weight: 5.0 kg
- Accuracy: ±0.5%
Technical Specifications
| Type | Magnetic Level Gauge |
|---|---|
| Accuracy | ±0.5% |
| Material | Stainless Steel |
| Warranty | 3 Years |
| Customized Support | OEM |
| Brand Name | Totflex |
| Smart App | None |
| Place Of Origin | Istanbul, Turkey |

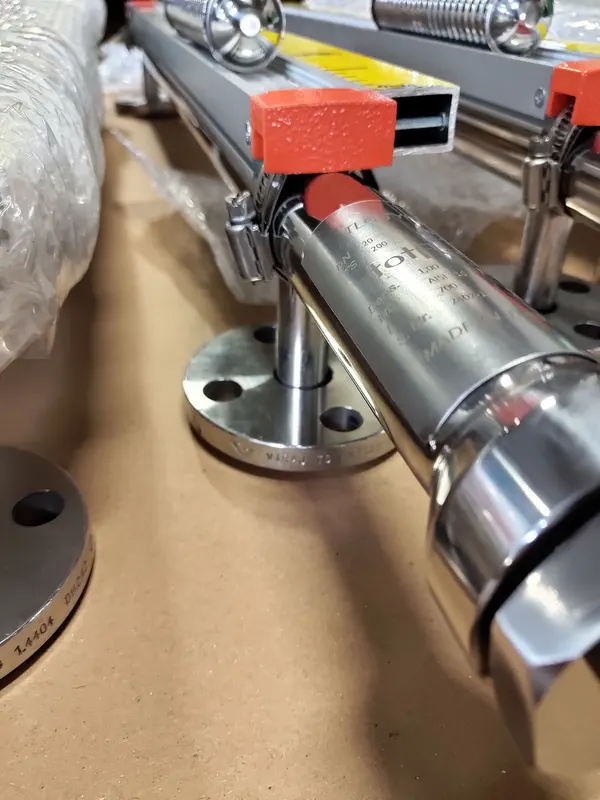

| Body | AISI 304 |
| Connection Flange | S235JR |
| Level Indicator | ALUMINIUM |
| Hose Clamp | AISI 304 |
| Float | AISI 316L |
| Discharge Flange | S235JR |
| Hex. Head Bolt | AISI 304 |
| Spring Washer | AISI 304 |
| Nut | AISI 304 |
| Name Plate | AISI 304 |
| Grade | Diy |
| Mode | Side Mounted |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 5.0 kg |
Product Details

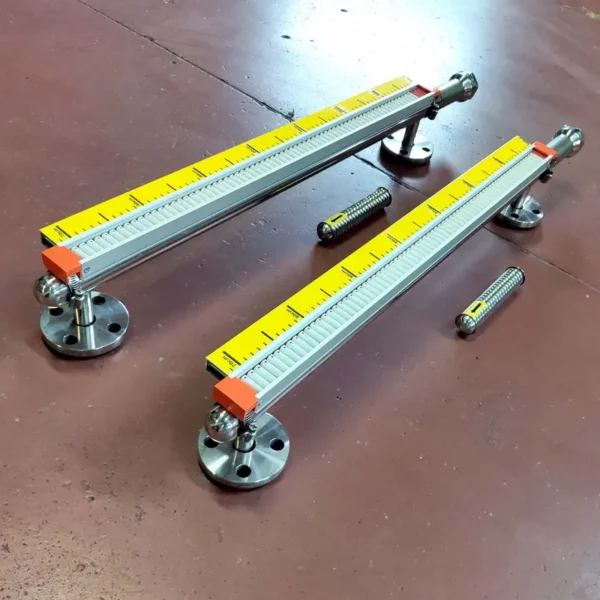

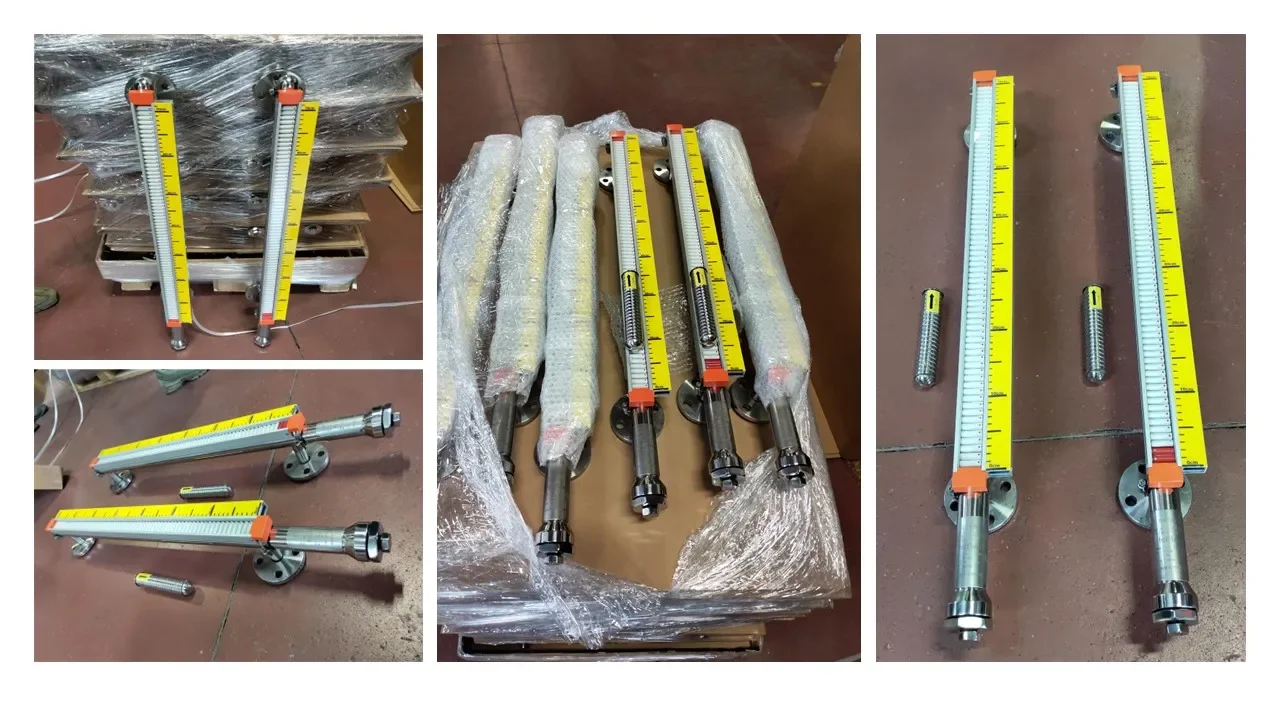

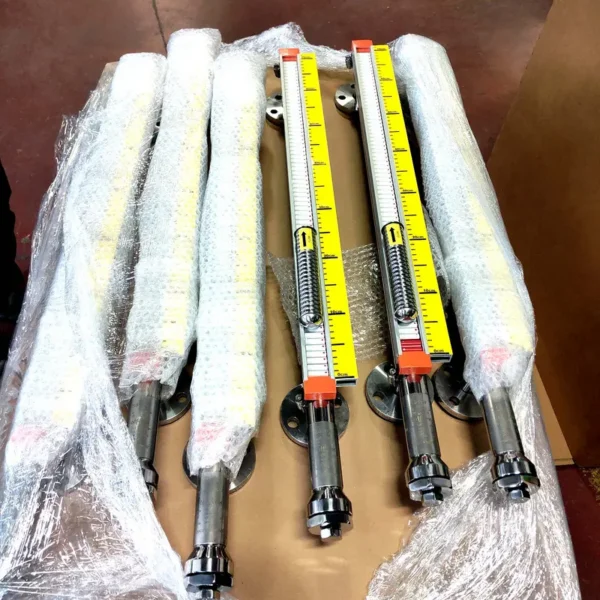

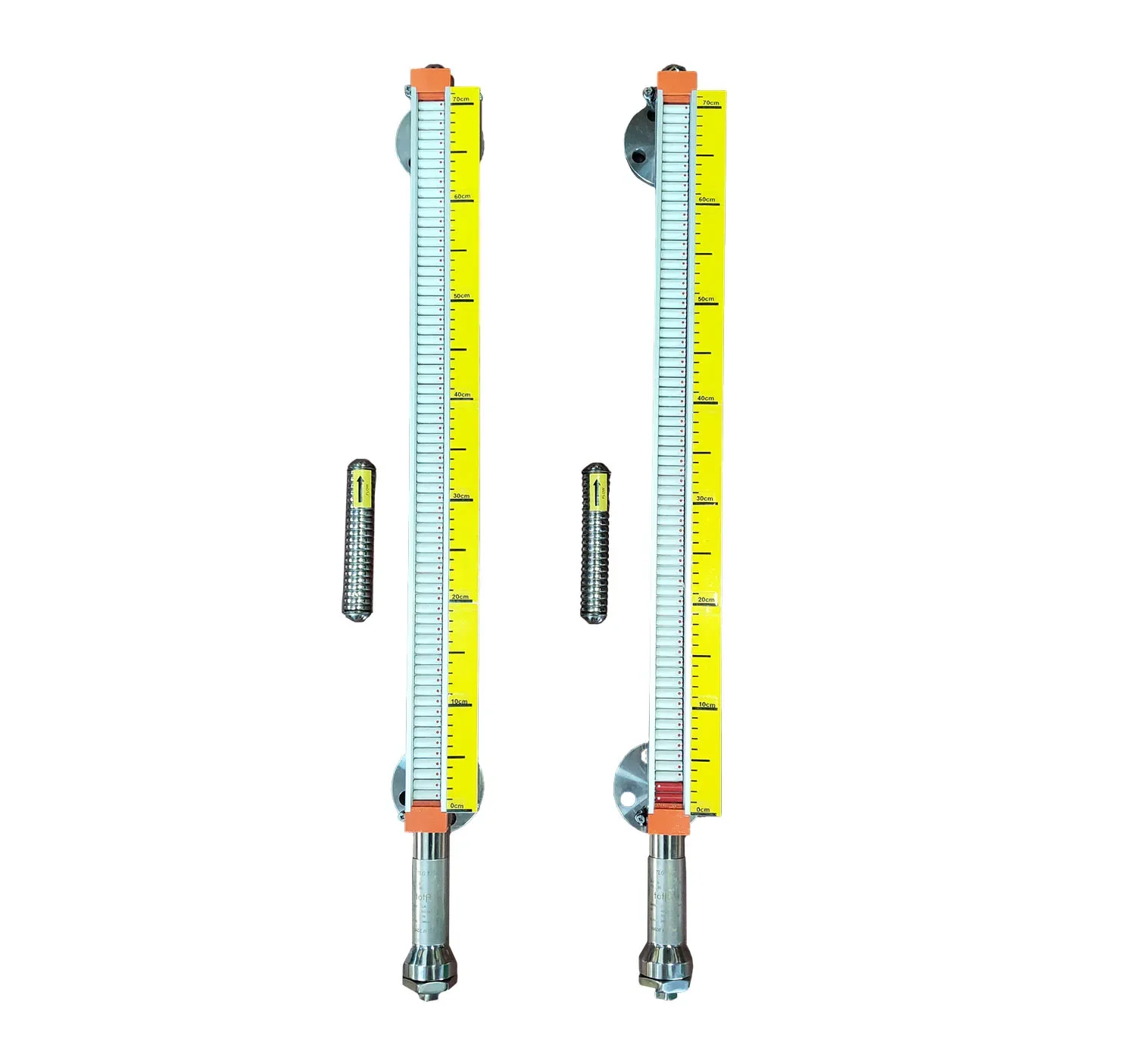

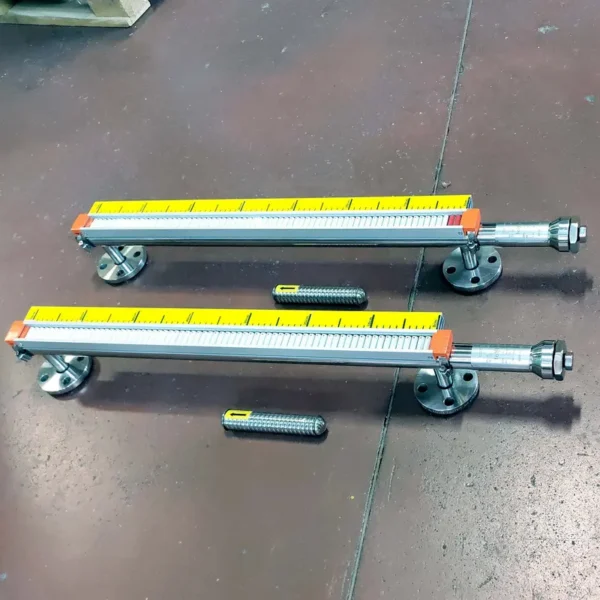

Magnetic liquid level gauges are used for continuous measurement, determination and visualization of the liquid level in a vessel on the principle of communicating vessels. Changes in the tank will result in changes in the magnetic chamber. A magnetic float moving inside the flask rotates the reed rollers 180 degrees. When increasing the volume, the rollers turn side, and when decreasing – white. It uses the principle of magnetically sensitive elements to ensure accurate readings even in high vibration conditions. The Magnetic liquid level gauges for water treatment, petrochemical, boilers, ships and other industries.
Advantage of our products:
Stainless steel structure help us to use in corrosive conditions and variety application areas.
Flanged, threaded, standard or special connection options.
High temperature resistance flaps
Real-time liquid level control
If requested, it is possible to manufacture models with valves and display scale.
Area of use:
All steam and hot water boilers
Waste water systems
Filling and unloading containers
All chemical and petrochemical tanks
Tanks for petroleum and petroleum products
Oil boilers, diesel fuel tanks and generator sets
Submarine, helicopter and ship fuel tanks
| Specifications | Magnetic level Gauges |
| Pressure Class | 10 Bar |
| Temperature ( Tmax ) | 200 °C |
| Connection Material | Carbon Steel St 37.2 / AISI 304 (AISI 316 Op.) Stainless Steel |
| Connection Type | Threaded G1/2” – 3/4” – 1” Flanged DN15 – DN20 – DN25 |
| Float | AISI 316 – Ø34 mm |
| Pipe | AISI 304 (AISI 316 Op.) – Ø38 mm |
| Indicator | Aluminum |
| Magnetic Rollers | Glass-Fiber Heat-Resistant Plastic |
With our experienced logistic team, Totflex can deliver the goods to its customer’s warehouses, project sites, or anywhere that customers requested with optional delivery terms such as CIF, DAP, DDP, EXWORK
On-site service to our customers.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: TR
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this indicator liquid tanks boilersdiesel?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
