The induction micro gear motor listed here carries 110V/220V/380V, 90W/120W, documented exactly as the manufacturer publishes it. Made by Sanmen Taili Motor Co., Ltd. (10 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

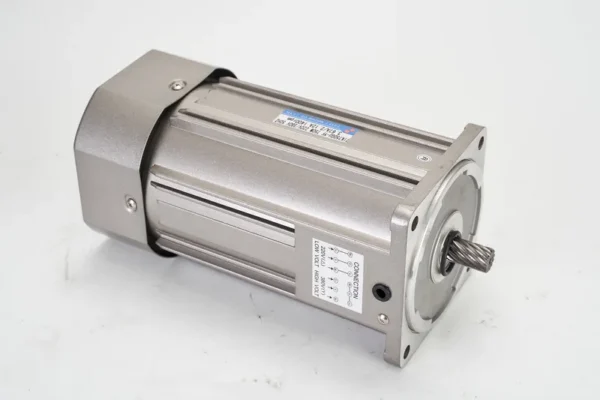

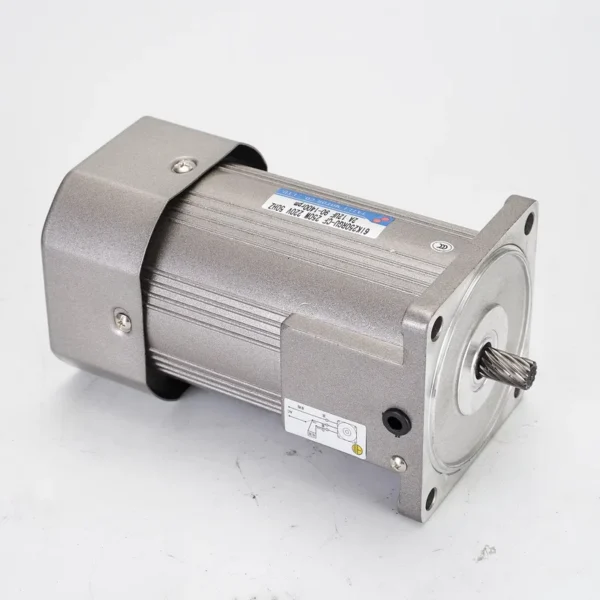

Key Features of This Induction Micro Gear Motor
- Model Number: 5GU 90W/120W
- Rated Power: 90W/120W
- Power: 90W/120W
- AC Voltage: 110V/220V/380V
- Voltage: 110V/220V/380V
- Rated Speed: 1400/1680RPM
Technical Specifications
| Phase | Three-Phase |
|---|---|
| AC Voltage | 110V/220V/380V |
| Rated Power | 90W/120W |
| Rated Speed | 1400/1680RPM |
| Type | Gear Motor |
| Frame | 90MM(3.54in) |
| Motor Mounting Type | Flange |
| Protect Feature | Drip-proof |
| Efficiency | IE 2 |
| Warranty | 18 months |
| Model Number | 5GU 90W/120W |
| Brand Name | Taili |
| Place Of Origin | Zhejiang, China |
| Frequency | 50/60Hz |
| Voltage | 110V/220V/380V |
| Power | 90W/120W |
| Hollow Hole Depth | 95mm |
| Gearbox Ratio | 9K-900K |
| Speed | constant speed/speed control |
| Accessory | terminal box/fan/brake/thermally |
| Certification | CE,ISO9001 and ISO14001 |
| Selling Units | Single item |
| Single Package Size | 36X26X26 cm |
| Single Gross Weight | 5.0 kg |
Product Details
Brand Name | Taili |
Model Number | 5GU RA-C 90W/120W |
Voltage | 110V/220V/380V |
Hollow hole depth | 95mm |
Input frequency | 50/60Hz |
Phase | Single Phase/Three Phase |
60Power | 90W/120W |
Speed | constant speed/speed control |
Gearbox ratio | 9K-900K |
Rated Speed | 1400rpm 4p/2800rpm 2p |
Accessory | terminal box/fan/brake/thermally |
Origin | Zhejiang Province, China |
Certification | CE,ISO9001 and ISO14001 |
Transport Package | Cartons |
Production Capacity | 120000PCS/Year |
High efficiency, large output torque, smooth start, long life.
It can be equipped with AC, continuous reversible motor and torque motor.
Accessories can be added, such as speed regulation, wind blades, electric brakes, etc.
Wide range of deceleration ratio: 5~750, with the middle box up to 7500.
Wide power range: 25W-200W, widely used in food, medical, advertising and other transmission industries.
company has more than 400 sets of production equipments groups,like Japan Makino machining center,Ningjiang 3610IV CNC gearhobbing machine,automatic high-speed gear hobbing machine, automatic three-coordinate, inverter independent SMT, DIP processing,automatic coating machine, automatic PCBA ATE test platform and other advanced production equipment and quality testing equipment.
Our products are widely used in industrial robots, intelligent logistics, new energy and other intelligent industries and
traditional manufacturing fields.We takes "meeting customer requirements" as the sole purpose of the enterprise, and activelyprovides differentiated and cost-effective products for the market.Our products with high efficiency,low noise,long life,lightweight,maintenance-free,excellent quality,reasonable price and perfect after-sales service,are favored by the majority of new andold users.
A:We currently produce Micro AC Gear Motor, Small AC Gear Motor,Hollow/Solid Right Angle Gear Motor,Linear Gear Motor,Torque GearMotor, DC Gear Motor, High Precision Planetary Gearbox PL/WPL/WPF, Stepper Motor,RV Worm Gear Reducer,Servo Motor,Motor Drive,Speed Controller, AC Frequency Inverter etc.
Q2: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q3: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.
Q4:What about your production price and quality?
A:We can make sure that our prices are competetive , Our productions have passed the CCC,CE,ISO9001-2008 Certifications.
Q5:How about the delivery time ?
A:7 -10 days (except the customer-made ones)
Q6:What about your after sale service?
A: One year warranty time for each production(except the demege caused by deliberately damage)
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–99 piece: US $24 / piece
- 100+ piece: US $23 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this induction micro gear motor?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 18 months warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this induction micro gear motor carry?
It is supplied with CE,ISO9001 and ISO14001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the induction micro gear motor be supplied for my local voltage?
The standard configuration is 110V/220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Sanmen Taili Motor Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Sanmen Taili Motor Co., Ltd. range on HVACR Nexus.
