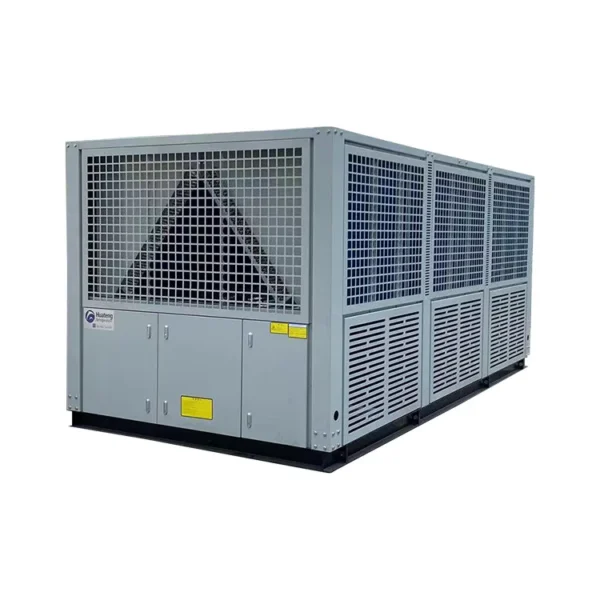

This industrial air chiller is published with the manufacturer’s full specification — 380V/415V/440V/460V/50Hz/60Hz 3Phase, 88kw—980kw. Made by Jiangsu Huazhao Refrigeration Equipment Co., Ltd. (17 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Industrial Air Chiller
- Model Number: HTK—XXF
- Power: 88kw—980kw
- Voltage: 380V/415V/440V/460V/50Hz/60Hz 3Phase
- Refrigerant: R-410A, R134a, R-404A, R-1234yf, R-1234ze
- Warranty: 3 Years
- Place Of Origin: Jiangsu, China
Technical Specifications
| Voltage | 380V/415V/440V/460V/50Hz/60Hz 3Phase |
|---|---|
| Power | 88kw—980kw |
| Refrigerant | R-410A, R134a, R-404A, R-1234yf, R-1234ze |
| Compressor Brand | Bitzer, Copeland, Hanbell |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price, High Productivity, Easy To Operate, Energy Saving |
| Core Components | PLC, Engine, Gearbox, Motor |
| Model Number | HTK—XXF |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 4250 |
| Brand Name | HUATENG(chiller plant) |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Compressor | full closed high efficiency flexible scroll compressor |
| Condenser | inlet temp30℃/outlet temp35℃ |
| Evaporator | inlet temp12℃/outlet temp7℃ |
| Noise | low noise |
| Name | chiller plant |
| Application | Industrial Cooling Solutions |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Huateng chiller plant has two series products, including: Water-cooled screw chiller(mainly is applied in Large and medium-sized central air-conditioning, industrial cooling, supply 12/7℃ cooled water);2.water-cooled acid and alkali screw chiller(designed specifically for electroplating industry, the sour alkali liquor directly into unit cooling, keeping the tank liquor directly into unit cooling, keeping the tank liquor temperature at 20℃, needed or -5℃ necessary. Titanium heat exchange tubes, anti-corrosion).
Unit Feature
Semi-hermetic screw compressor: employ international renowned brands and all new imported one.High efficiency evaporator: high efficiency evaporator and cooling efficiency evaporator and cooling condenser applied, saving more than 30% electric power.
Automatically temperature adjustment energy conservation.
Easy installation: All units have been completed and adjusted well, including frozen oil cooling added, users can be directly put into use by connecting the pipes and circuits, saving debugging time.
Perfect safety protection system and failure electronic signal assure unit operation without damage and run safely.
Refrigeration systems operate independently unit can with one two three or four refrigerating loop circuit, which can be interchangeable and run independently.
Efficient stainless steel tubes and titanium tube applied in acid and alkali refrigeration units ensure the stable operation of the unit.
10 years’ experience: HUATENG has specialized in chiller field for 10 years.
| Model | HTK-180 | HTK-250 | HTK-300 | HTK-350 | HTK-410 | HTK-460 | HTK-520 | HTK-590 | HTK-640 | HTK-710 | HTK-820 | HTK-990 |
| |
| Cooling | KW | 182 | 245 | 296 | 351 | 412 | 464 | 520 | 585 | 644 | 712 | 818 | 985 | |
| Capacity | Kcal/Hr | 156520 | 210700 | 254560 | 301860 | 354320 | 399040 | 447200 | 503100 | 553840 | 612320 | 703480 | 847100 | |
|
| RT | 51.75 | 69.66 | 84.16 | 99.8 | 117.15 | 131.93 | 147.85 | 166.33 | 183.11 | 202.45 | 232.58 | 280.07 | |
| Power | 50HZ | 3P-380V-50HZ |
| |||||||||||
| Input power(KW) | 38.2 | 50.3 | 60.6 | 72.1 | 83.6 | 93.2 | 104.4 | 117.4 | 129.4 | 143 | 167.2 | 198.4 |
| |
| EER | COP | 4.76 | 4.87 | 4.88 | 4.87 | 4.93 | 4.98 | 4.98 | 4.98 | 4.98 | 4.98 | 4.89 | 4.96 |
|
| Freezing medium | R22 |
| ||||||||||||
| control mode | Thermal expansion valve |
| ||||||||||||
| Comprosser | Mode | Semi-closed double screw |
| |||||||||||
| Working style | Y-Δ/Δ-Δ |
| ||||||||||||
| Capacity | 0-25%-50%-75%-100% |
| ||||||||||||
| Condensor | Mode | Efficient external thread shell and tube type |
| |||||||||||
| Cooling water | In 30℃/Out 35℃ |
| ||||||||||||
| Cooling water flow (m³/h) | 39.1 | 52.7 | 63.6 | 75.5 | 88.6 | 99.8 | 111.8 | 125.8 | 138.5 | 153.1 | 175.9 | 211.8 |
| |
| Pressure loss (Kpa) | 55 | 55 | 58 | 58 | 58 | 61 | 61 | 63 | 65 | 65 | 66 | 67 |
| |
| waterpipe | DN80 | DN100 | DN100 | DN125 | DN125 | DN125 | DN125 | DN150 | DN150 | DN150 | DN150 | DN200 |
| |
| Evaporater | mode | Efficient internal thread shell and tube type |
| |||||||||||
| Freeze water | In 12℃/Out 7℃ |
| ||||||||||||
| Freeze water flow (m³/h) | 31.3 | 42.1 | 50.9 | 60.4 | 70.9 | 79.8 | 89.4 | 100.6 | 110.8 | 122.5 | 140.7 | 169.4 |
| |
| Pressure loss (Kpa) | 52 | 55 | 58 | 58 | 58 | 58 | 61 | 61 | 61 | 62 | 64 | 64 |
| |
| waterpipe | DN80 | DN100 | DN100 | DN125 | DN125 | DN125 | DN125 | DN125 | DN150 | DN150 | DN150 | DN200 |
| |
| Safeguard | High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection; |
| ||||||||||||
| high pressure safety valve protection; oil pressure protection; exhaust over heat protection |
| |||||||||||||
| Units Weight | Kg | 980 | 1250 | 1590 | 1720 | 2040 | 2460 | 2780 | 3060 | 3200 | 3850 | 4100 | 4480 |
|
| Size | L(mm) | 2300 | 2300 | 2800 | 3200 | 3200 | 3600 | 3600 | 3800 | 4000 | 4000 | 4100 | 4100 |
|
| W(mm) | 1100 | 1100 | 1250 | 1250 | 1360 | 1360 | 1360 | 1400 | 1480 | 1480 | 1500 | 1500 |
| |
| H(mm) | 1420 | 1420 | 1530 | 1620 | 1620 | 1760 | 1760 | 1780 | 1820 | 1820 | 1900 | 1900 |
| |
| Noise(dB) | 72 | 72 | 73 | 74 | 74 | 75 | 75 | 76 | 77 | 77 | 78 | 81 |
| |
Above parameters refrigerating capacity are based on the condensation temperature 40℃, evaporation temperature 2℃, Dry evaporator, R22 refrigerant, single compressor.
Our standard refrigerant is R22 and the environmental refrigerant such as R407c R134a or R410a are also available.
Water flooded type screw refrigeration unit can be supplied.
Multi-system chiller unit with 2.3 or 4 piece of compressors can be acceptable.
The specific parameters for non-standard products, welcome consulting our technical department.
This form is for reference only. We provide customized solutions based on customer's parameter requirements, providing each customer with one-to-one, more accurate parameter tables.
Model Description:
| For more product information, please click | CONTACT US > |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $11800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial air chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial air chiller be supplied for my local voltage?
The standard configuration is 380V/415V/440V/460V/50Hz/60Hz 3Phase. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
