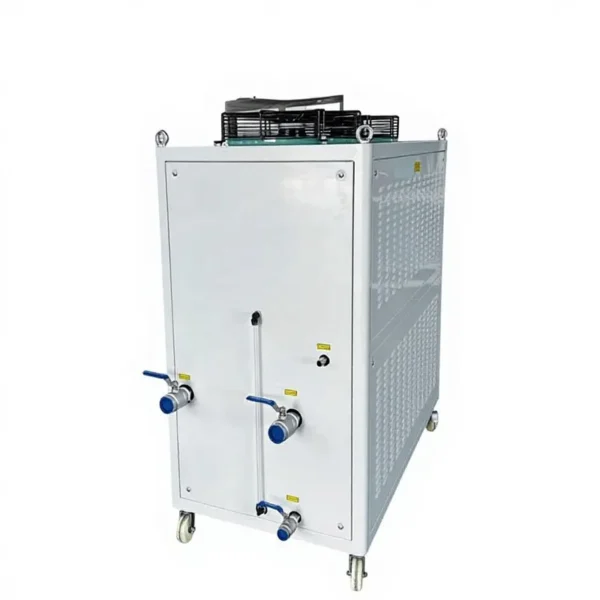

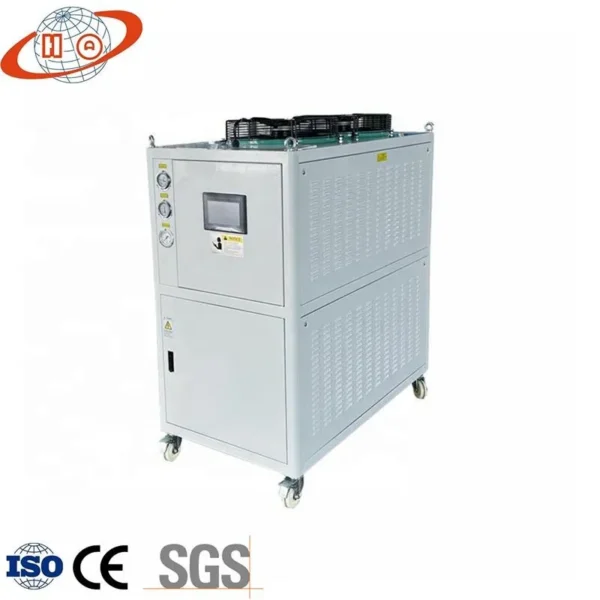

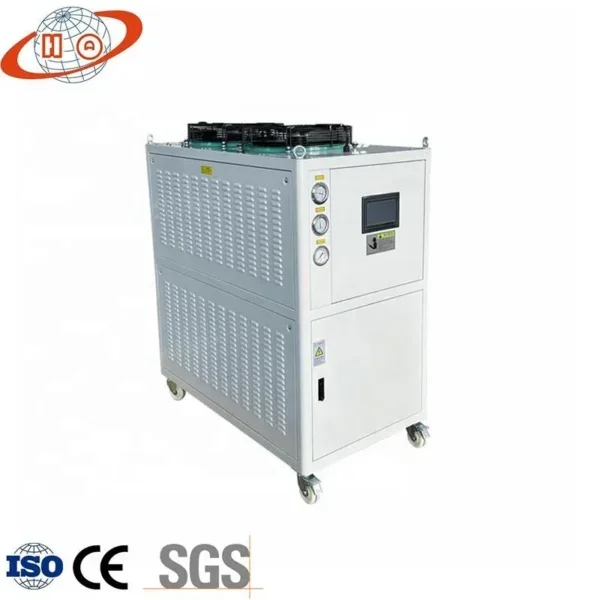

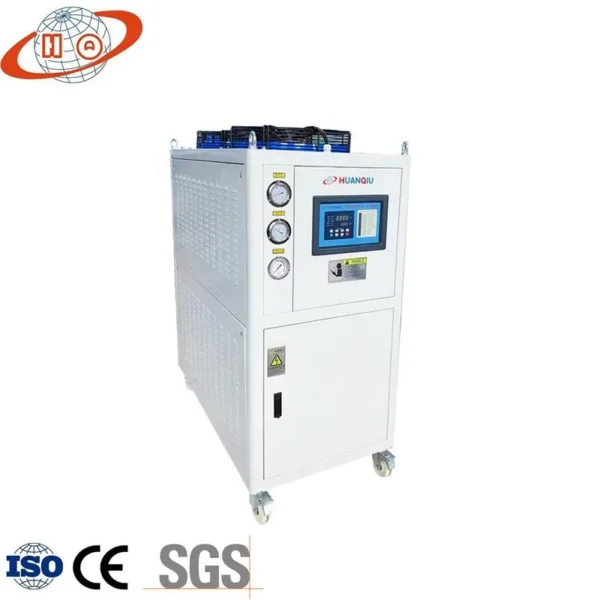

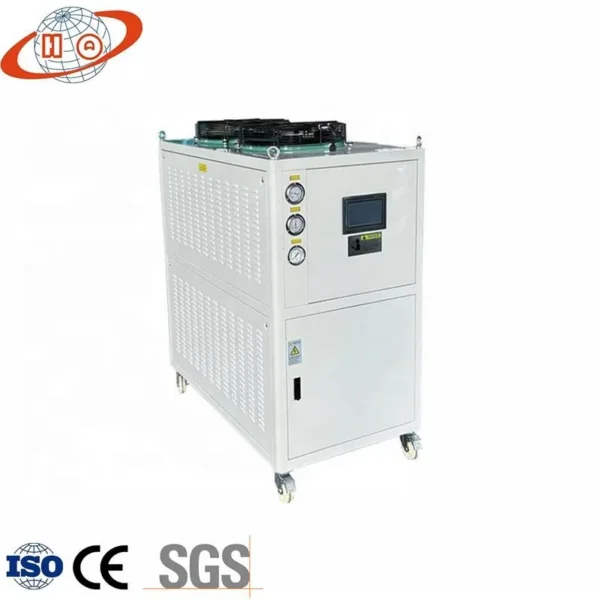

Industrial air-cooled water chiller — 3 kW, refrigerant R407C/R22/R32/R134A. The complete factory specification follows. Made by Zhangjiagang Rihong Machinery Co., Ltd. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Industrial Air-Cooled Water Chiller
- Model Number: SML-3F
- Power: 3 kW
- Compressor Power: 3.0 Hp
- Pump Power: 0.75KW
- Voltage: Customized
- Refrigeranting Capacity: 9000Kcal/h
Technical Specifications
| Voltage | Customized |
|---|---|
| Power | 3 kW |
| Refrigerant | R407C/R22/R32/R134A |
| Compressor Brand | Copeland |
| Warranty | 2 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Automatic |
| Core Components | Pump, Compressor |
| Model Number | SML-3F |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 220 |
| Brand Name | HUANQIU |
| Dimension(L*W*H) | 1200*600*1400mm |
| Refrigeranting Capacity | 9000Kcal/h |
| Compressor Power | 3.0 Hp |
| Pump Power | 0.75KW |
| Pump Flow Rate | 100L/min |
| Water Tank | 100L SUS 304 |
| Controller | Microcomputer |
| Evaporator Type | Stainless Steel 316 Shell Tube |
| Keyword | industrial chiller |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
CE Certified 220V 380V 415V 440V 480V 3HP Industrial Air-Cooled Water Chiller for Injection Molding Machine
Application Range.
Plastic industry: Accurately control the mold temperature of various plastic processing.
Electronics industry: Stabilizing the molecular structure inside the production line of electronic components.
Electroplating industry: Control plating temperature, increase the density and smoothness of the plated parts.
Machinery industry: Control the pressure oil temperature of the oil pressure system.
Construction industry: chilled water for concrete.
Vacuum coating: Control the temperature of the vacuum coating machine.
Food industry: Controlling the temperature of fermented foods.
2.Alarm for pump overload
3.Alarm for compressor overload
4.Alarm for anti-freezing
5.Alarm for compressor high pressure
6.Alarm for compressor low pressure
7.Protection for low water flow velocity
8.Protection for the shutdown due to blower delay
SML-F Series Air-cooled Industrial Chiller.
SML-S Series Water-cooled Industrial Chiller.
Packaging & Shipping | ||
Delivery Time | Shipped in 15 days after payment | |
Zhangjiagang Rihong Machinery Co.,Ltd. factory is located at Zhangjiagang. All the products embrace the strict quality asurance system,with high technology content and goog quality,which are sold to everywhere nationwide smoothly and exported to many counties and regions including the Southeast Asia,America and Russia etc.Our company implements the normalized management,and stengthens our technology development and perfects product quality and provides the quality products and high-quality honest serveces for our extensive customers;
>>> Legend.
One belief leads one small step forward every day
Looking back to two decades' history, Rihong Machinery has been stepping forward among trials and hardships in a course through both spring of policy environment and winter of financial crisis. It is all obstacles that help create a monument for Rihong Machinery.
>>> Power.
100% efforts create brilliantness
Based on two decades of accumulated strength, with all staff of Rihong Machinery having been working hand in hand with solidarity, Rihong Machinery has rised up taking shape and become the industry leader in equipment, resources, R&D, manufacturing, market coverage and user reputation.
>>> Success.
Centuries foundation based on innovation
Two decades are long, but also short when Rihong Machinery has been always planning ahead, adhering to the constant initiative to change, and actively exploring new technologies and models to become the industry pioneer.
>>> Certificates.
– Famous brand in Jiangsu
– High-tech Industry
– BV & CE & ISO9001 System certification
– Energy-saving Products
– Excellent Foreign Invested Enterprise
– AAA-level Credit Enterprise
If you want to know more details , do not hesitate to contact us now !
THE AFTER-SALE SERVICE OF RIHONG MACHINERY!
● After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
● After the commissioning, we will package the equipment by standard export package for shipment.
● According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
SEE RIHONG MACHINERY HOW TO ENSURE THE QUALITY!
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strictly control by inspecting personnel.
● Each assembly is in charged by a master who has working experience for more than 5 years
●After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
HOW TO GUARANTEE YOUR FUNDS TO BE SAFE AND DELIVERY TO BE ON TIME?
● Through Alibaba letter guarantee service, it will ensure the on time delivery and the quality of the equipment you want to buy.
● By letter of credit, you can lock the delivery time easily.
● After the factory visit, You can ensure the facticity of our bank account.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–1 set: US $1600 / set
- 2+ set: US $1500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial air-cooled water chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial air-cooled water chiller be supplied for my local voltage?
The standard configuration is Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhangjiagang Rihong Machinery Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhangjiagang Rihong Machinery Co., Ltd. range on HVACR Nexus.
