Industrial axial fan — 220v, 380v, power source Electric. The complete factory specification follows. Made by Xiamen Topfan General Equipment Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Axial Fan
- Model Number: TOPF-5GWF
- Power Source: Electric
- Power: 0.75KW/0.55KW
- Voltage: 220v, 380v
- Rated Voltage: 220v/380v
- Blade Material: Aluminum Alloy
Technical Specifications
| Voltage | 220v, 380v |
|---|---|
| Type | High-Temperature Axial Fan |
| Blade Material | Aluminum Alloy |
| Mounting Type | Duct Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM |
| Place Of Origin | Fujian, China |
| Brand Name | TOPFANS |
| Model Number | TOPF-5GWF |
| Blade Diameter | 500mm |
| Rated Voltage | 220v/380v |
| Power | 0.75KW/0.55KW |
| Fan Blades | 4/6 pieces aluminum alloy |
| Full Pressure | 115-150/140-170Pa |
| Insulation Class | Class F(120℃), Class H(180℃) |
| Motor | single speed/Double speed Motor/ Explosion-proof Motor |
| Relative Humidity | ≤98% |
| Frame | aluminum alloy |
| Protection Class | IP55 |
| Selling Units | Single item |
| Single Package Size | 55.0X48.0X55.0 cm |
| Single Gross Weight | 28.000 kg |
Product Details
| High temperature high humidity axial fan |
| GKW/GWF series drying kiln special high temperature high humidity axial ventilator fan,is special designed for drying kiln,which ventilator equipment.It has remarkable characteristic of resistant to high temperature,resistant to high humidity,large air volume,high efficiency,energy saving,and convenient installation.The axial fan is used in the ventilation system for wood drying kiln and other drying equipment.As the blades diameter is different,there are 7 model,No.4,5,6,7,8,9,10.The angle of fan can be adjusted according to the clients' requirements. |
| The fans blades can be direct connected with the motor.The circumferential velocity of the impeller does not exceed the condition,there are three different rotational speed:2900 r/min,1450 r/min,960r/min. Since the frame size and the blades diameter are different,the installation angle of the blades,speed of main shaft is different.Air ,air pressure and motor output are different.The air pressure from 60Pa to 400Pa,the air from 1000 cbm/h to 60000cbm/h.(details as per performance table). |
| Applied conditions:Max. Temp:<130℃,Rellative humidity:<98%,in the of weak alkali,vapor and no flammable gas,the motor can be also used in the vacuum drying equipment according to the speicific conditions. |

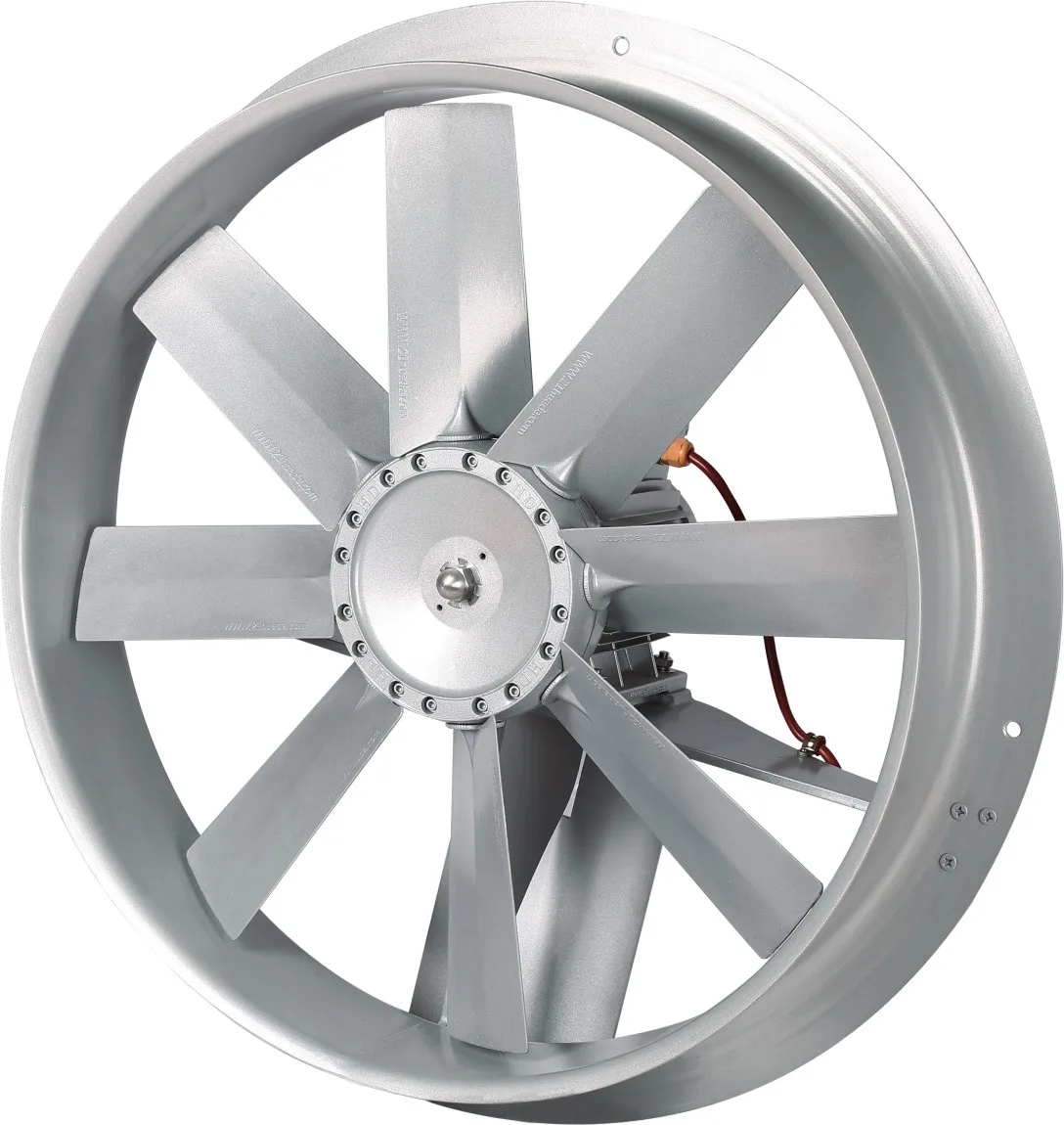

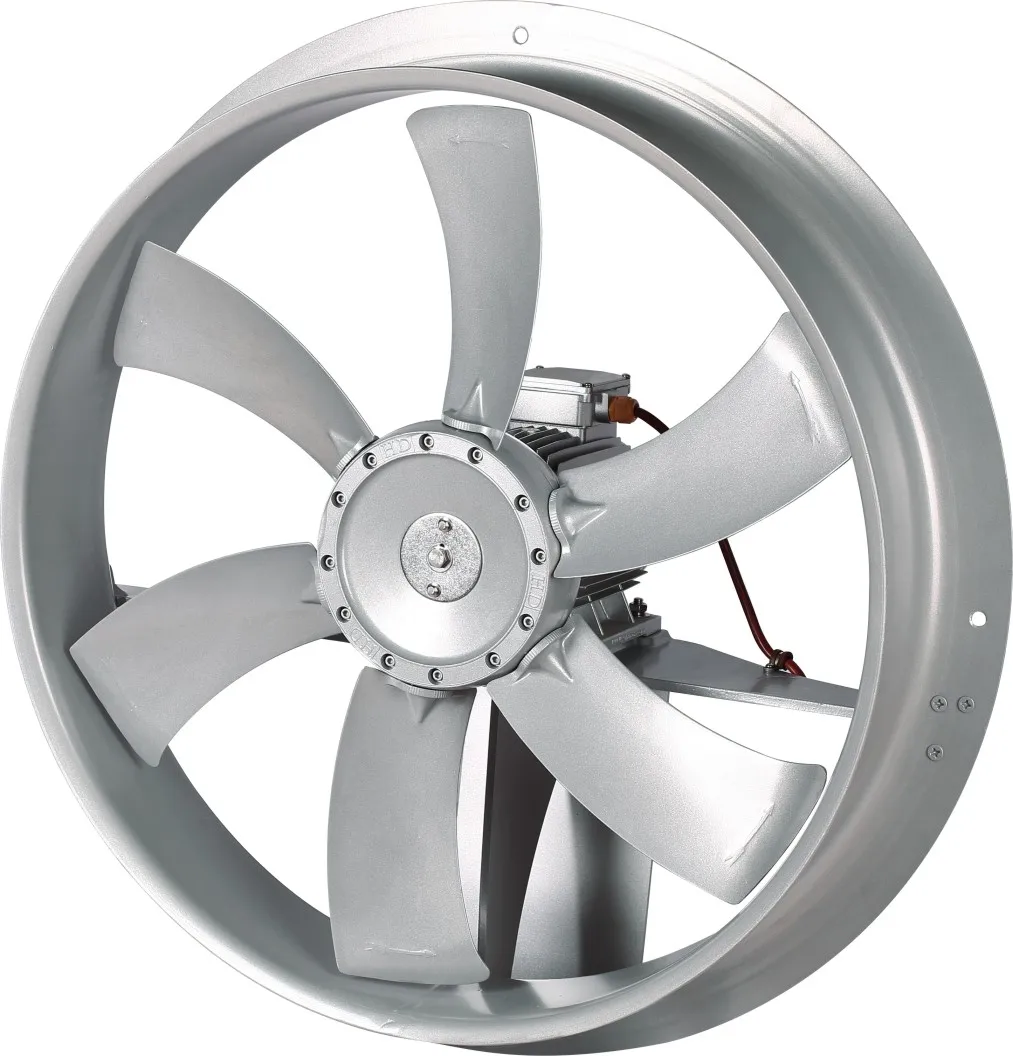

| Product Pictures |
| Tech data |
| Item No. | Speed (rpm) | Air(m³/h) | Power (KW) | pressure (Pa) | Hydrostatic(Pa) | Air Volume(m³/h) | Noise(dB) | No. of blades |
| 4 | 2900 | -5500 | 230-300 | 145-250 | 712-2 | 0.55 | ≤73 | 4 |
| 4000-6500 | 250-330 | 145-270 | 801-2 | 0.75 | ≤74 | 4 | ||
| 5000-7500 | 270-380 | 150-320 | 802-2 | 1.1 | ≤75 | 6 | ||
| 1450 | 2500-4300 | 80-106 | 40-80 | 711-4 | 0.25 | ≤66 | 4 | |
| 2800-5000 | 100-120 | 50-95 | 712-4 | 0.37 | ≤68 | 6 | ||
| 3200-5200 | 110-130 | 70-90 | 801-4 | 0.55 | ≤68 | 6 | ||
| 5 | 1450 | 5000-7500 | 115-150 | 75-120 | 801-4 | 0.55 | ≤70 | 4 |
| 5400-8700 | 140-170 | 80-137 | 802-4 | 0.75 | ≤74 | 6 | ||
| 6 | 1450 | 7500-12000 | 195-220 | 130-180 | 90S-4 | 1.1 | ≤76 | 4 |
| 9000-14500 | 250-280 | 160-230 | 90L-4 | 1.5 | ≤78 | 6 | ||
| 7 | 1450 | 11000-18000 | 170-250 | 100-210 | 90L-4 | 1.5 | ≤78 | 4 |
| 1-20500 | 200-275 | 120-230 | 100L1-4 | 2.2 | ≤80 | 4 | ||
| 8 | 1450 | 16000-25000 | 200-320 | 100-280 | 100L1-4 | 2.2 | ≤80 | 6 |
| 20000-29000 | 220-340 | 110-290 | 100L2-4 | 3 | ≤82 | 8 | ||
| 22000-32000 | 300-400 | 170-340 | 112M-4 | 4 | ≤86 | 8 | ||
| 960 | 14500-21000 | 130-175 | 75-150 | 100L-6 | 1.5 | ≤78 | 8 | |
| 16500-24000 | 140-190 | 78-155 | 112M-6 | 2.2 | ≤80 | 8 | ||
| 9 | 1450 | 20000-34000 | 240-340 | 160-320 | 112M-4 | 4 | ≤86 | 8 |
| 24000-37000 | 300-450 | 180-370 | 132S-4 | 5.5 | ≤88 | 8 | ||
| 960 | 15000-26500 | 170-205 | 105-150 | 112M-6 | 2.2 | ≤82 | 6 | |
| 18000-29000 | 180-230 | 110-180 | 132S-6 | 3 | ≤83 | 8 | ||
| 10 | 1450 | 34000-42000 | 330-470 | 200-400 | 132S-4 | 5.5 | ≤90 | 8 |
| 38000-46000 | 350-480 | 210-410 | 132M-4 | 7.5 | ≤91 | 8 | ||
| 960 | 21000-3 | 200-230 | 130-180 | 132M1-6 | 4 | ≤85 | 8 | |
| 27000-40000 | 260-290 | 160-250 | 132M2-6 | 5.5 | ≤85 | 8 |
| Installation dimension |
| Packing Details |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $139 / set
- 20–49 set: US $136 / set
- 50+ set: US $132 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial axial fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial axial fan be supplied for my local voltage?
The standard configuration is 220v, 380v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
