Industrial centrifugal suction blower — voltage 220/380/415/440/450V customized, blade material Galvanized Steel. The complete factory specification follows. Made by Kaifeng Hyde Machinery Co., Ltd. (11 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Industrial Centrifugal Suction Blower
- Model Number: T4-72, TY-GF, 6-30
- Voltage: 220/380/415/440/450V customized
- Blade Material: Galvanized Steel
- Noise Level: Low noise
- Warranty: 2 Years
- Place Of Origin: Henan, China
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 220/380/415/440/450V customized |
| Blade Material | Galvanized Steel |
| Electric Current Type | AC |
| Warranty | 2 Years |
| After-Sales Service Provided | Video Technical Support |
| Place Of Origin | Henan, China |
| Brand Name | Hyde-MAOSHENG |
| Model Number | T4-72, TY-GF, 6-30 |
| Product Name | Industrial suction fan |
| Application Of High Pressure Fan | Pneumatic conveying of powder and granular materials |
| Application Of Middle Low Pressure Fan | Ventilation, Dust removal, Grain drying, etc. |
| Impeller | Static and Dynamic balanced |
| Fabrication | CNC machining, Lase cutting, Molding |

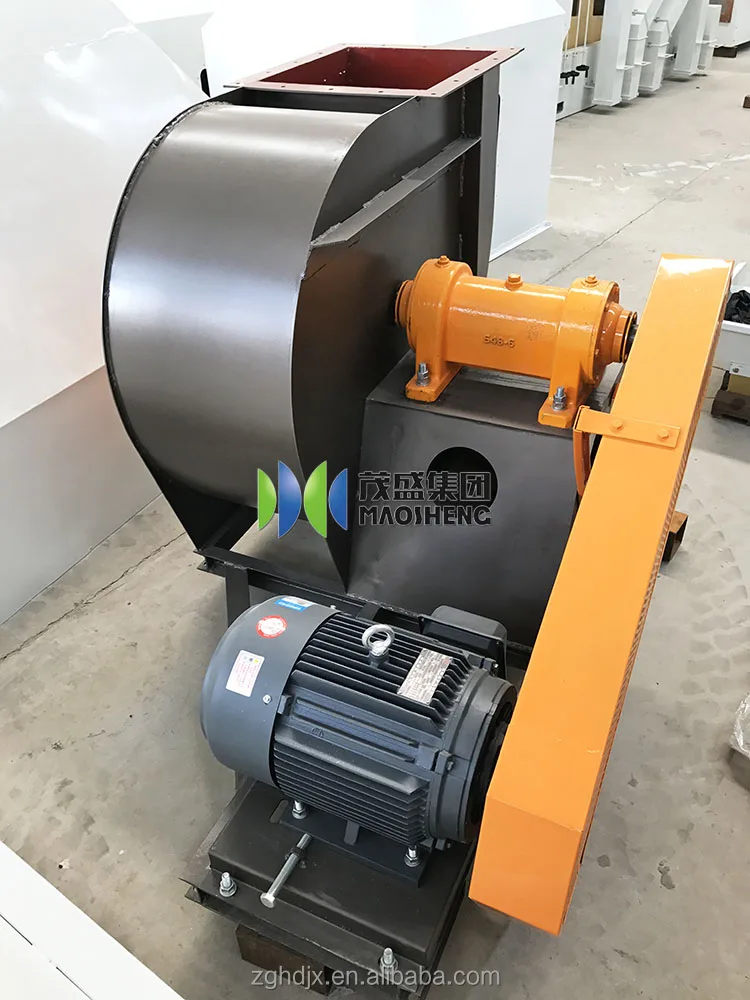

| Driving Mode | A-Direct Driving and C-Belt Driving |
| Direction Of Inlet, Outlet | 0, 45, 90, 135, 180, 225, 270, 315 degree |
| Noise Level | Low noise |
| Order Please Specify | Model, Speed, Outlet angle, Rotating direction |
| Supply Scope | Grain cleaning, seed processing plant |
| Type | Centrifugal Fan |
| Applicable Industries | Food & Beverage Factory, Farms, Construction works , Energy & Mining, Food & Beverage Shops |
| Selling Units | Single item |
Product Details
6000CFM big 4-72 C industrial centrifugal suction blower, Dust exhaust fan price, High temperature boiler fan
Hyde Machinery (Maosheng Group)
– Seed processing plant: 1~15 t/h
– Flour mill plant: 40~1000 t/d
– Manufacturer since 1976
High, Medium, Low Pressure Centrifugal Fan
Classification according to pressure level:
Low pressure centrifugal fan: 0-1000Pa (0-100mmH2O)
Medium pressure centrifugal fan: 1000-3000Pa (100-300mmH2O)
High pressure centrifugal fan: 3000-15000Pa (300-1500mmH2O)
Our T4-72 low pressure and medium pressure fans, and TY-GF, 6-30 high pressure fans
6000CFM big 4-72 C industrial centrifugal suction blower, Dust exhaust fan price

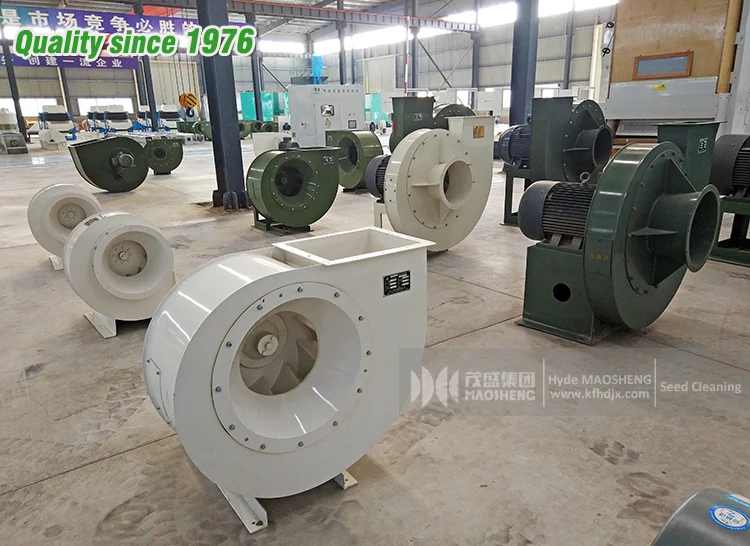

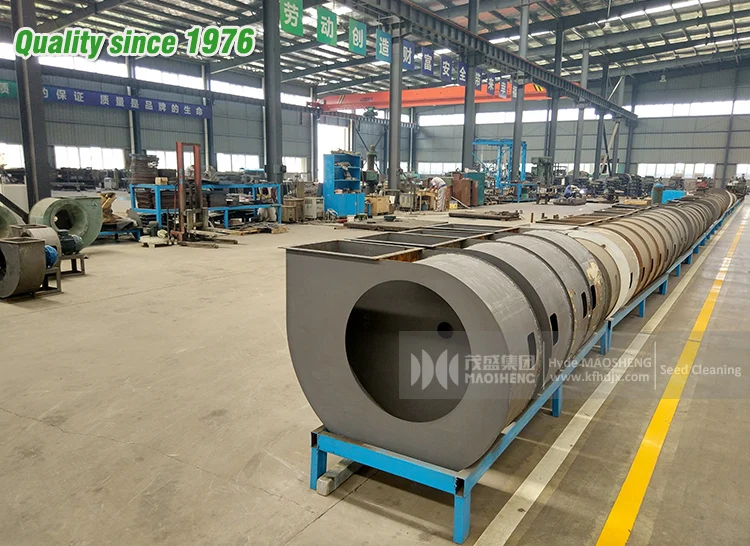

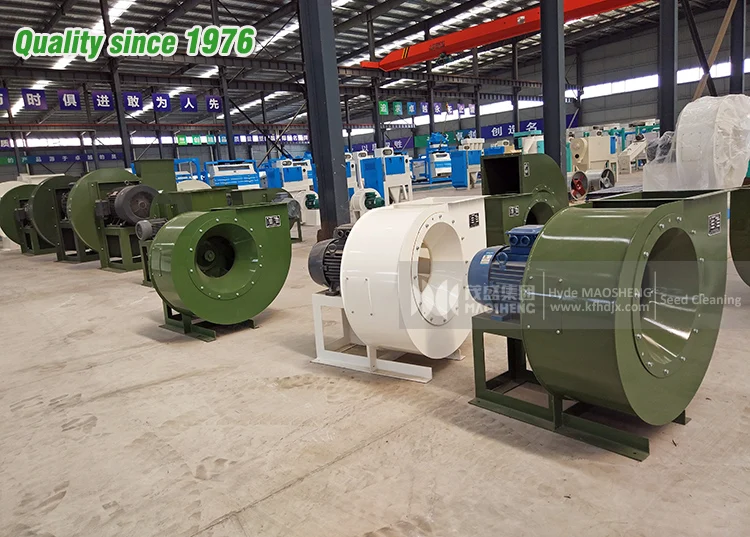

Assembly Workshop of Centrifugal Fan
Features of Centrifugal Fan
T4-72 series low and medium pressure fans are high efficient, widely used for ventilation and dust removal, grain drying, cooling and cleaning, gravity de-stoner suction, and flour purifier suction in grain processing plants.
1. High efficiency, low power consumption.
Optimized design for all components, flat performance curve, max efficiency up to 91%.
2. Stable running, low noise.

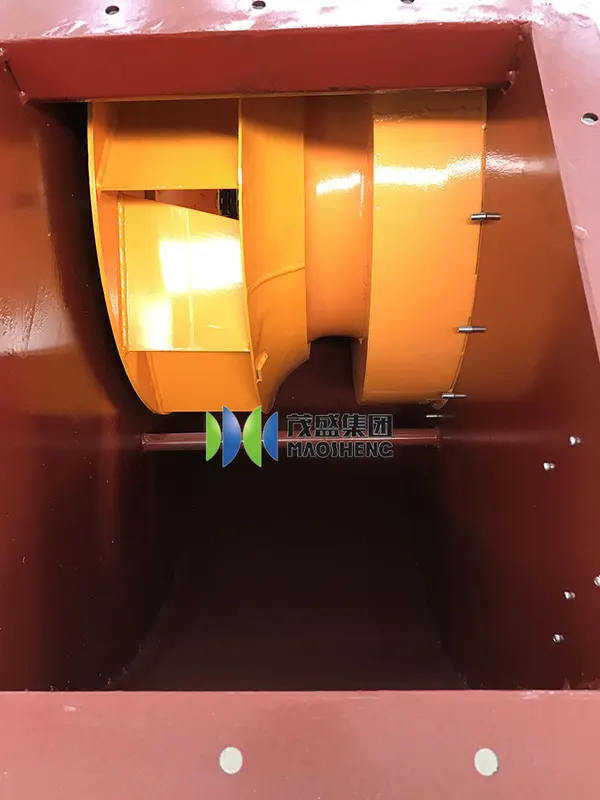

Backward large-circle-arc blades with good aerodynamic performance.
Impellers are all calibrated for precise static and dynamic balance.
Fan blades are laser-cut to ensure accurate shape, whole body robust, stable, safe and reliable.
Lower noise compared with peers.
Environmentally friendly.
3. Robust and durable structure, easy maintenance.
Maintenance window available for easy clean.

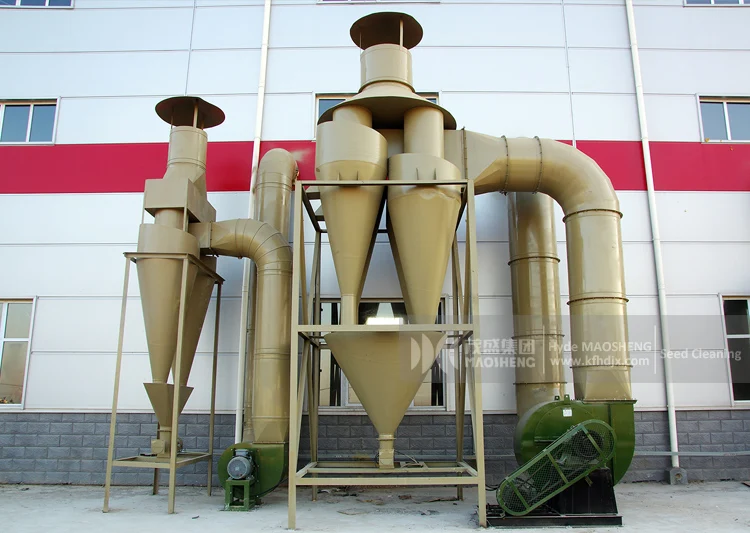

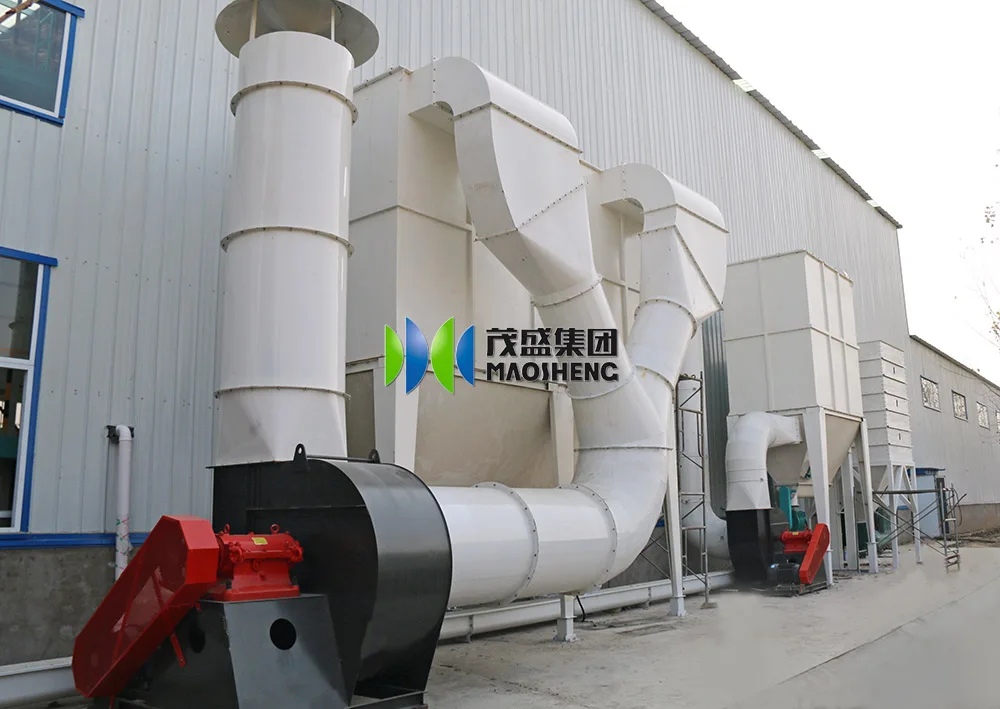

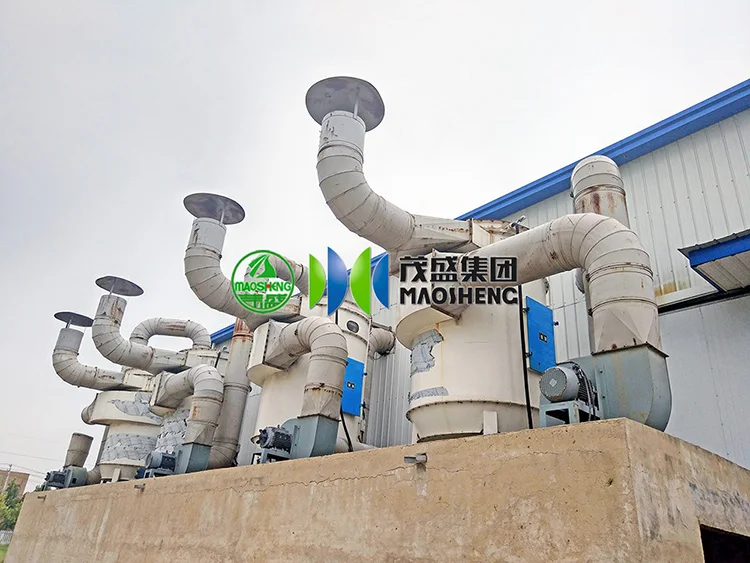

Dust suction fan installed with dust collecting cyclones, bag filters
TY and 6-30 high pressure centrifugal fans are widely used for high pressure forced ventilation and materials pneumatic conveying.
Features: large capacity(air volume), high pressure, relatively flat performance curve, applicable for high-building multi-pipe pneumatic conveying air pipes.
Customize Service of Dust Removal Fans Blowers
Direction of Inlet, Outlet can be customized to 0, 45, 90, 135, 180, 225, 270, 315 degree according to site situation.
Contact us
Technical Specification of Centrifugal Fan
| Model | Air Volume (m3/h) | Full Pressure (mmH2O) | Power (kW) | Speed (r/min) |
| 6-30-6# | 7667-3499 | 373-642 | 11-18.5 | 2900-2500 |
| 6-30-7# | 12385-8607 | 342-904 | 11-37 | 2900-2500 |
| 9-19-5A | 3488-1610 | 518-581 | 7.5-11 | 2900 |
| 9-19-6.3A | 6078-3220 | 831-933 | 18.5-30 | 2900 |
| TY-GF7.7-1.5 | 14620-7840 | 1018-1064 | 45 | 2970 |
| TY-GF8.2-2 | 19113-8916 | 1223-1285 | 75 | 2970 |
| TY-GF8.4-2 | 20813-11755 | 1115-1238 | 75 | 2970 |
| T4-72-4A | 7160-3800 | 112-208 | 5.5 | 2900 |
| T4-72-4.5A | 10700-5820 | 167-264 | 7.5 | 2900 |
| T4-72-5A | 14710-8010 | 210-340 | 11 | 2900 |
| T4-72-6A | 22180-9828 | 215-410 | 22 | 2900 |
| T4-72-6C | 4000-20426 | 30-281 | 1.5-15 | 900-2240 |
| T4-72-7C | 6261-24038 | 38-213 | 3-18.5 | 900-1800 |
| T4-72-8C | 9631-36234 | 61-325 | 4-30 | 900-1800 |

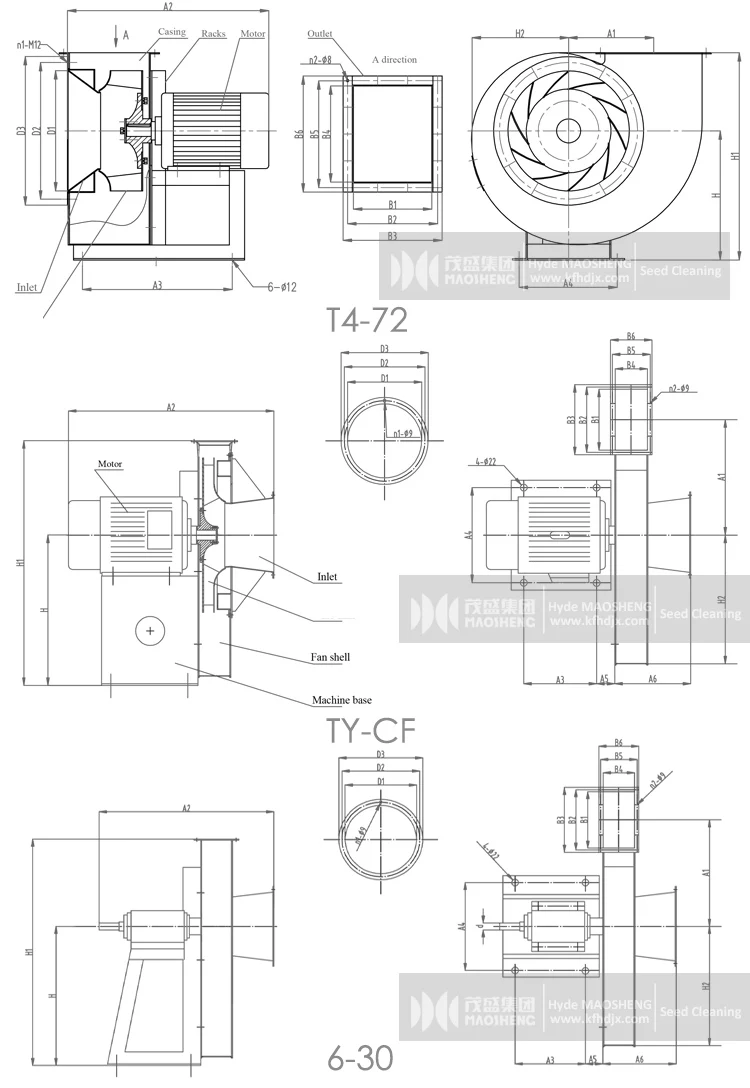

Structures of Centrifugal Fans

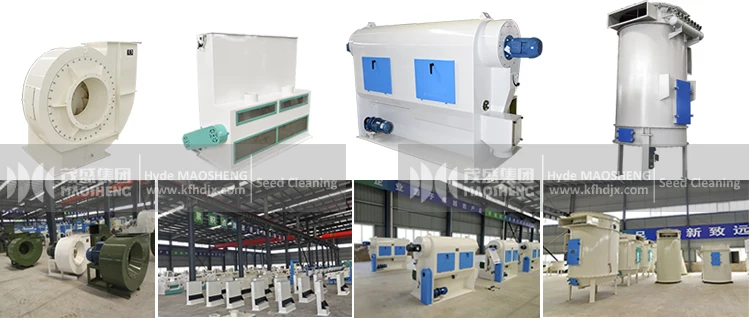

Various dust cleaning equipment such as dust blower, cyclone, air aspiration channel, air aspirator, dust fliters:
Dust Blower Dust Aspiration Channel Air-recycling Aspirator Dust Filter
Grain and seed cleaning machines:
Pre-cleaners, fine cleaners, rotary cleaners, seed graders, seed gravity separators, indented cylinder, wheat paddy de-awner, destoner, vibration cleaner, rotary cleaner, air aspirator, cyclone dust collector, seed treater, seed dryers, elevators and conveyors, auto-packing scales.
Air Screen Fine Cleaner Seed Gravity Separator Indented Cylinder Separator
Stone Separator Vibration Screen Cleaner Separator Rotary Cleaner

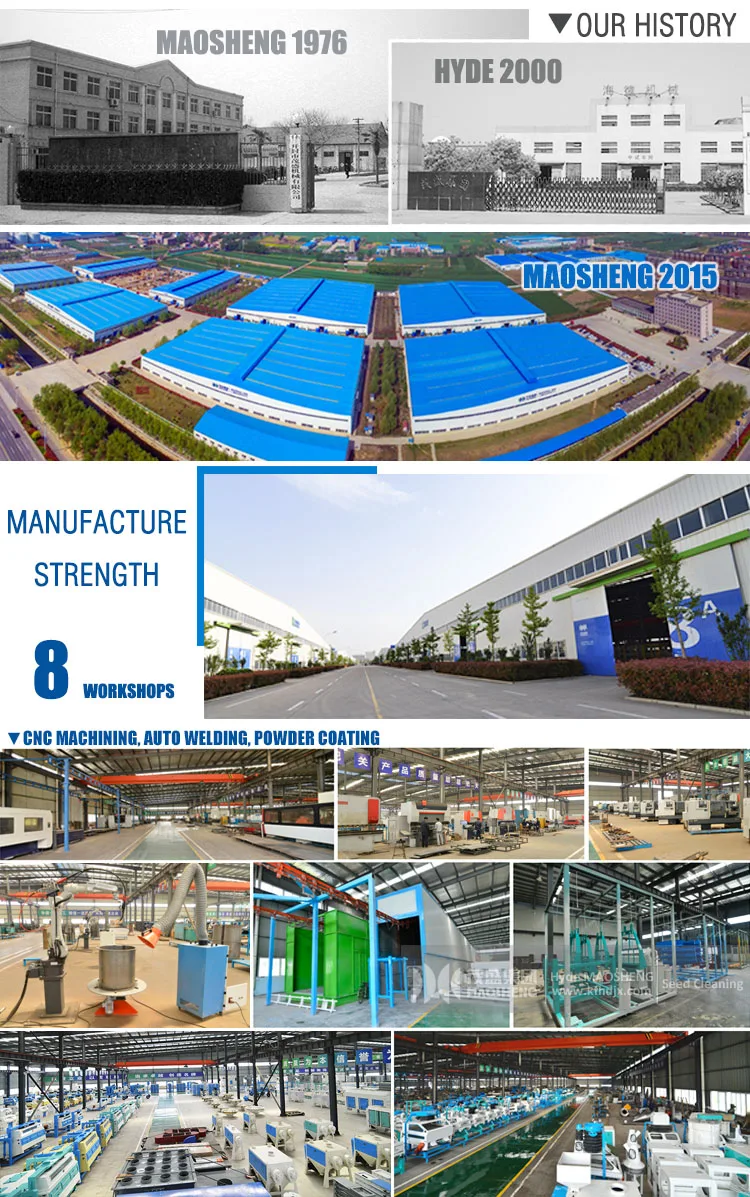

Kaifeng Hyde Machinery is a branch company of Henan Maosheng Group, which is formerly known as Kaifeng 2nd Grain and Oil Machinery and has specialized in engineering and equipment manufacturing for grain handling, storage, flour milling and seed processing since 1976.
With 40 years' growth, Maosheng Group company has become one of CHINA TOP 10 Grain Processing Machinery Manufacturer. In addition, Maosheng is the host of CHINA National Grain Processing Technology Research Center.
Kaifeng Hyde Machinery, separated in 2000 as a branch company, mainly manufactures a full range of advanced grain and seed processing machines.
Seed Processing Machines from Hyde Machinery
Cooperation of Maosheng Group Hyde Machinery
To better serve our clients, Maosheng Group not only imports high-end manufacturing facility to improve product quality and manufacturing productivity, but also keeps on looking for international communication and cooperation. We successfully signed agreement with Italy for machine development in 2009 and established joint venture with WESTRUP Denmark in 2013 and NoroGard Sweden in 2016.
Our partners and clients in China:
Honors of Maosheng Group Hyde Machinery
With decades of our effort, our machines have obtained China Top 10, China Famous Brand and enjoyed high reputation in domestic and oversea markets.
Member of 13 China national standards DRAFTER in grain industry. 75 patents including 4 inventions (till 2017).
Why choose us?
-
40 YEARS manufacturing experience since 1976.
-
CHINA TOP 10 Grain Processing Machinery Manufacturing Company.
-
Member of 13 China national standards DRAFTER in grain processing industry.
-
75 PATENTED technologies and products.
-
600,000 square meter production area.
-
Over 100 experienced engineers, research staff and technicians.
-
State-of-the-art facilities. Advanced imported CNC machines for function parts.
-
Full range of service, from single machine to turnkey systems in grain and flour industry.
-
Machinery and equipment quality tested by domestic and global market, rich installation and trouble-shooting experience.
Pre-sales Service
1. Technical Consulting Service
Our wide product range enables us to provide most flexible, efficient and reliable equipment configurations or complete solutions for customers according to different requests and budgets.
2. Company and Production Line Visit
Before placing orders, customers are warmly welcome to visit Hyde and our facility. We can also arrange the visit to our existing customers to learn the operation condition of our machines and complete plant.
In-sales Service
1. Reliable delivery time.
2. Strict quality control by in-production 100% check and test.
3. User manual and spare parts provided for free.
After-sales Service
1. Fast technical guidance for construction, installation and commissioning.
2. Necessary training for daily maintenance on site.
3. 12 months warranty.
4. Lifelong regular technical service.
5. Timely solutions to problems.
Q: What do you need to know for fast communication and quotation?
A: It would be highly appreciated if you can provide details of your required model, speed, outlet angle, rotating direction, and other working conditions.
Q: Can you make the machines as per our special requirement?
A: Yes, OEM/ODM service available.
Q: What about the lead time?
A: 5~15 workdays, depending on the type of machine and parts availability.
Q: What is your payment terms?
A: T/T, L/C, Western Union, Cash accepted.
30% deposit with purchase order, 70% balance paid before shipment.
Q: How can you guarantee the quality of Dust suction centrifugal fan?
A: Quality control by incoming material inspection, 100% in-production check and random check after packaging.
Spare parts and technical solutions provided timely for machine failure.
Q: How do we visit your company?
A: Hyde Machinery is located in Kaifeng City, Henan Province, China.
1 hour drive from nearest Zhengzhou airport.
Welcome your inquiry about our Industrial Centrifugal Air Blowers!
Check below information, or just fill in the form and click "Send".
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2+ set: US $2500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial centrifugal suction blower?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial centrifugal suction blower be supplied for my local voltage?
The standard configuration is 220/380/415/440/450V customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Kaifeng Hyde Machinery Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Kaifeng Hyde Machinery Co., Ltd. range on HVACR Nexus.
