This industrial commercial small tube is published with the manufacturer’s full specification — 380V/3P/50Hz/Customized, capacity 500KG/day. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Commercial Small Tube
- Power: 5.3KW(7.11hp)
- Voltage: 380V/3P/50Hz/Customized
- Ice Storage Capacity: 300 kg(661.39lb)
- Ice Making Capacity: 5 Ton
- Capacity: 500KG/day
- Material: 304# Stainless Steel
Technical Specifications
| Ice Shape | Tube Ice |
|---|---|
| Ice Storage Capacity | 300 kg(661.39lb) |
| Voltage | 380V/3P/50Hz/Customized |
| Power | 5.3KW(7.11hp) |
| Refrigerant | R507, R404A |
| Compressor Brand | Bitzer, Other |
| Key Selling Points | Automatic |
| Application | Commercial |
| Warranty | 1 Year |
| Core Components | PLC |
| Video Outgoing-Inspection | Provided |
| Machinery Test Report | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 800 |
| Brand Name | KINGWELL |
| Dimension(L*W*H) | 1790*1080*2270mm(70.47*42.52*89.37in) |
| Material | 304# Stainless Steel |
| Ice Making Capacity | 5 Ton |
| Cooling Ways | Water |
| Product Name | tube ice machines ice plant machinery |
| Keyword | 5 tons tube ice machine price |
| Capacity | 500KG/day |
| After Warranty Service | Online support |
| Selling Units | Single item |
| Single Package Size | 200X200X200 cm |
| Single Gross Weight | 50.0 kg |
Product Details

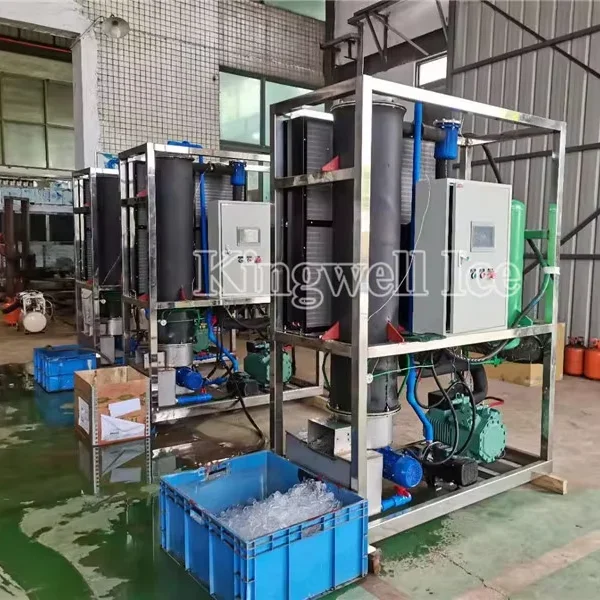

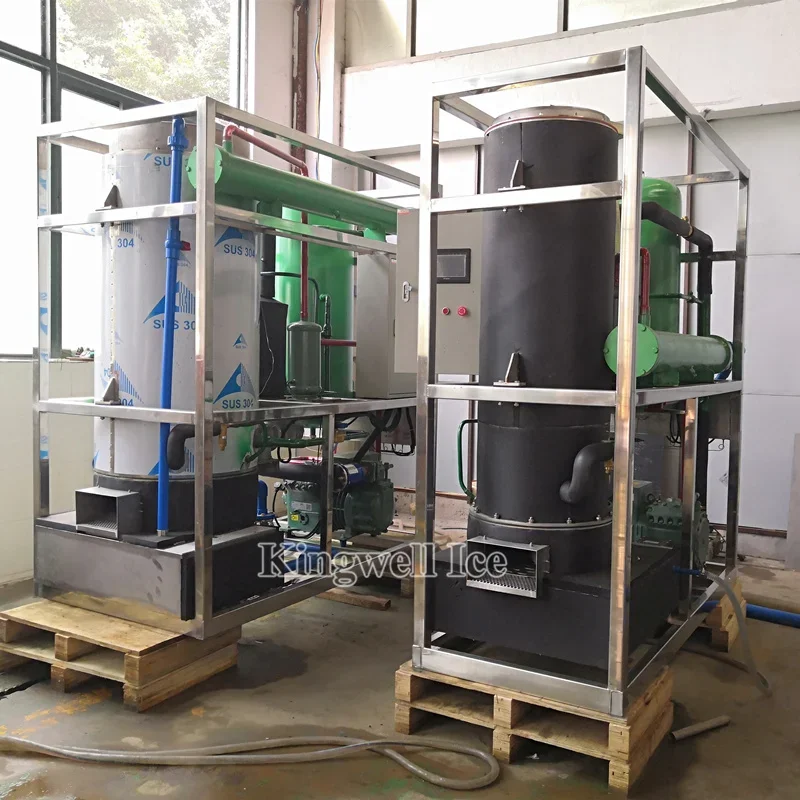

1-50 tons industrial tube ice making machine for philippines ice plant
(Water Cooling)
SPECIFICATIONS OF 5 TONS ICE TUBE MACHINE | ||||||
Compressor | Brand | Bitzer | ||||
Origin | Germany | |||||
Power(HP) | 25 | |||||
Ice Cutter Motor(KW) | 0.37 | |||||
Circulating Water Pump(KW) | 0.75 | |||||
Cooling Water Pump(KW) | 1.1 | |||||
Cooling Tower Motor(KW) | 0.25 | |||||
Capacity per Day | 5Tons/24Hours | |||||
Inlet Water Temp. | 5℃~35℃ | |||||
Ambient Temp. | 5℃~40℃ | |||||
Machinery Unit Dimension(L*W*H,MM) | 1650*1090*2300 | |||||
Machinery Unit Weight (Kg) | 1400 | |||||

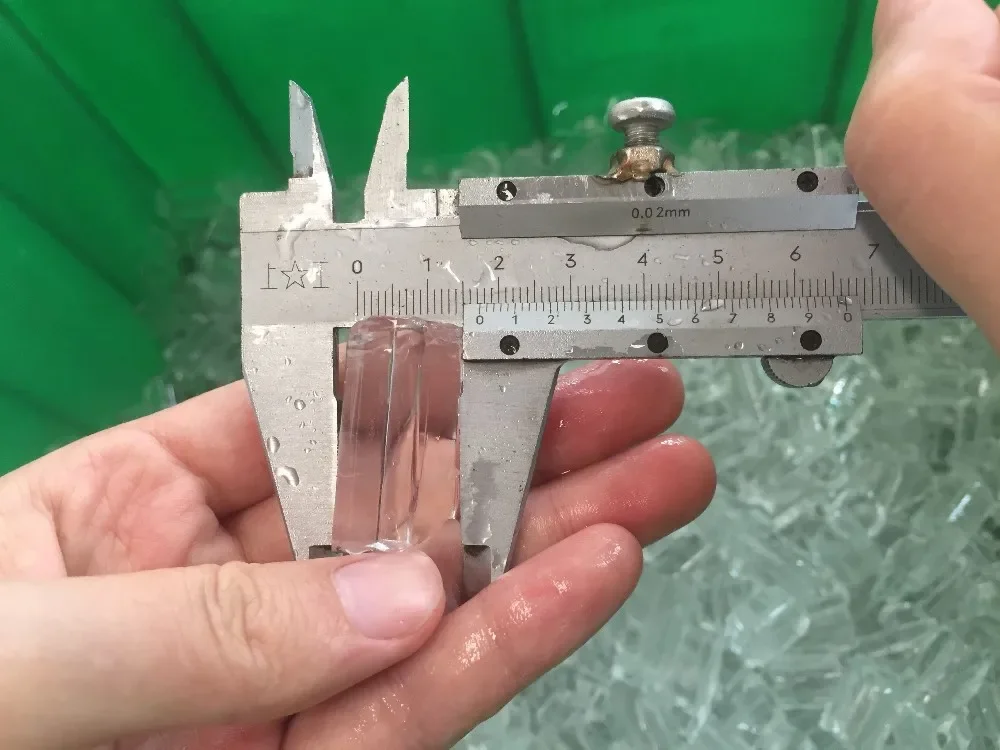

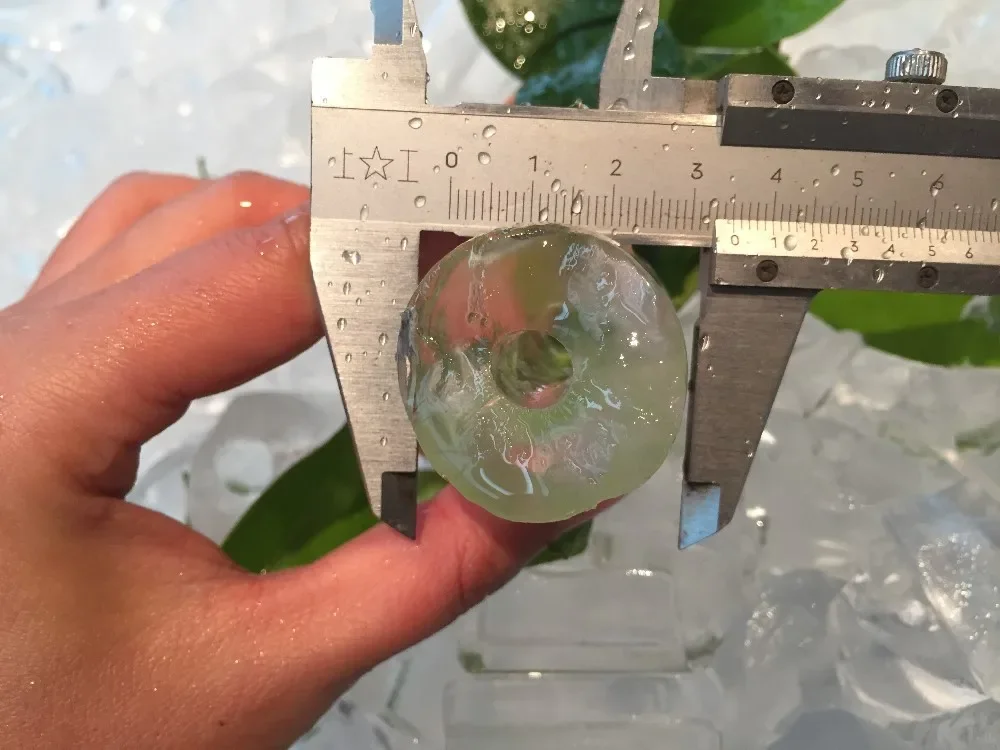

Ice tube Size as option:

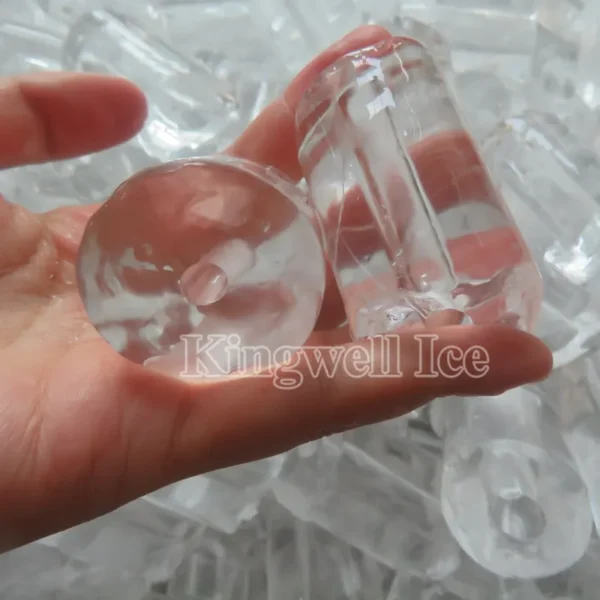

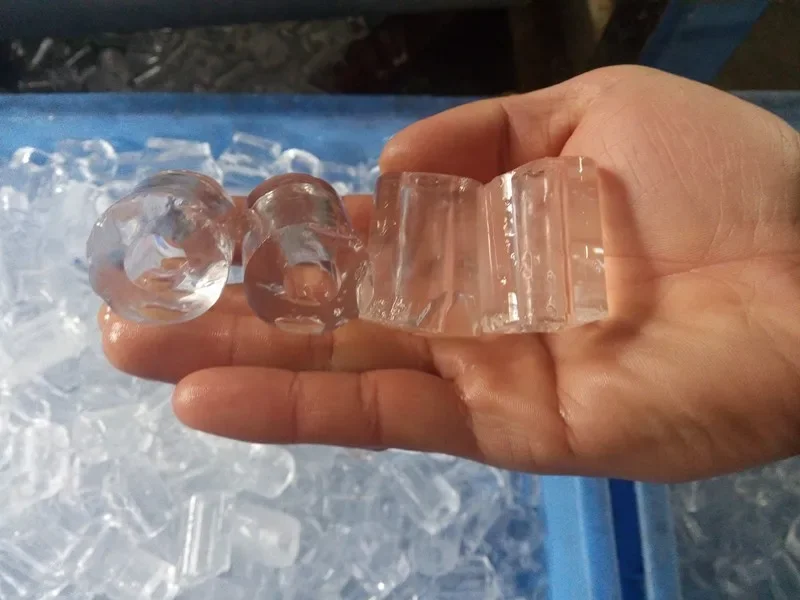

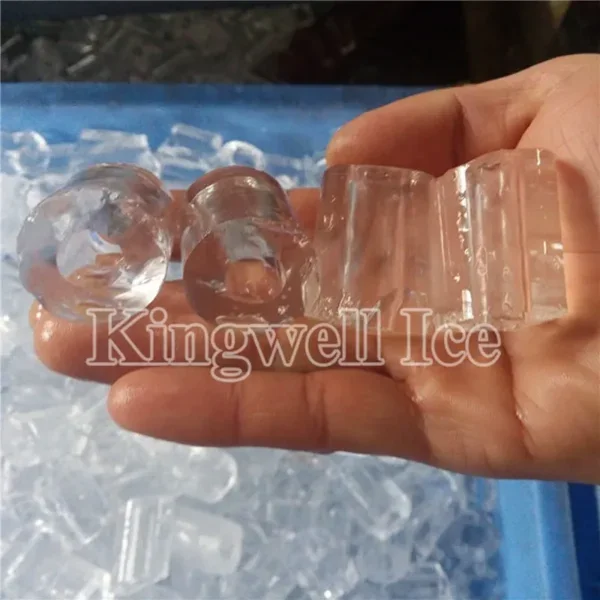

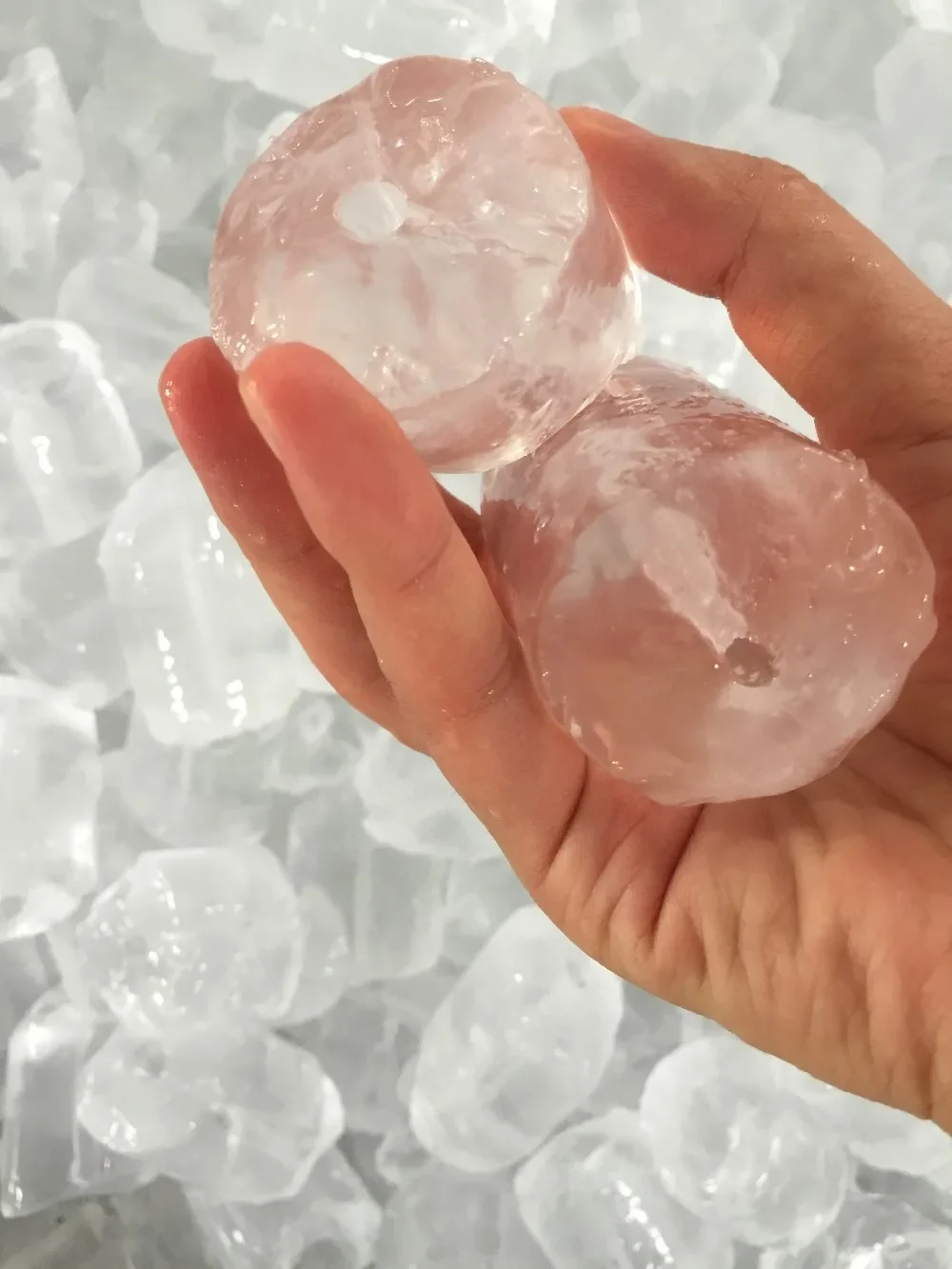

Tube ice outer diameter is 16mm,22mm, 28mm, 34mm, 40mm; The inner diameter can be adjusted according to the ice making time. Usually it's between 5~10mm.
External diameter | Standard length | Freezing time/circle |
16mm | 25mm | 14minutes |
22mm | 30mm | 16minutes |
28mm | 35mm | 18minutes |
34mm | 45mm | 22minutes |
40mm | 55mm | 25minutes |
Features of Kingwell tube ice machine:
1) The tube ice is thick and transparent.
2) Under the control of PLC system,ice discharge automatically:hygienic and labor-saving

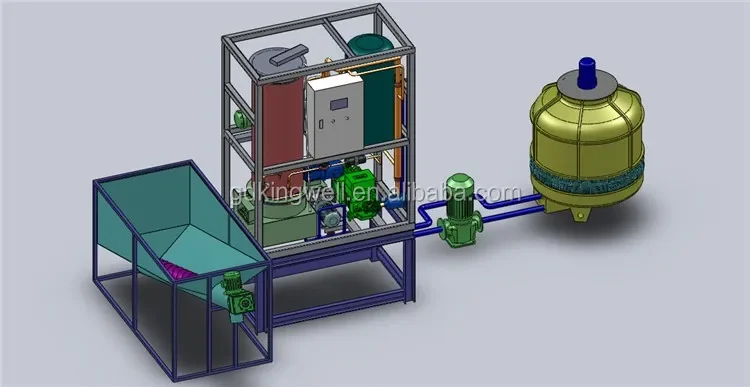

3) Semi-automatic packaging: When you step on the pedal switch, the ice will come out by screw conveyor on the bottom of ice storage bin, jump into the plastic bags directly. Then you can complete the packing process.
Kingwell Tube Ice Machine Technical Parameter:
Item | Capacity(tons/day) | Refrigerant | Compressor Brand | Compressor(HP) | Cooling Way | Dimension (L*W*H, mm) |
KW-T1 | 1 | R22/R404A | Bitzer | 4 | Water/Air | 1600*1350*2010 |
KW-T2 | 2 | R22/R404A | Bitzer | 9 | Water/Air | 1650*1090*2300 |
KW-T3 | 3 | R22/R404A | Bitzer | 14 | Water/Air | 1700*1400*2430 |
KW-T5 | 5 | R22/R404A | Bitzer | 25 | Water | 1790*1080*2270 |
KW-T10 | 10 | R22/R404A | Bitzer/Bock | 2*25 | Water | 2200*1900*2550 |
KW-T20 | 20 | R22/R404A | Bitzer/Bock | 2*50 | Water | 4530*1800*3000 |
KW-T30 | 30 | R22/R404A | Bitzer/Bock | 3*50 | Water | 2200*1900*6200 |
KW-T50 | 50 | R22/R404A | Bitzer/Bock/Hanbell | 200 | Water | 2000*1800*6800 |

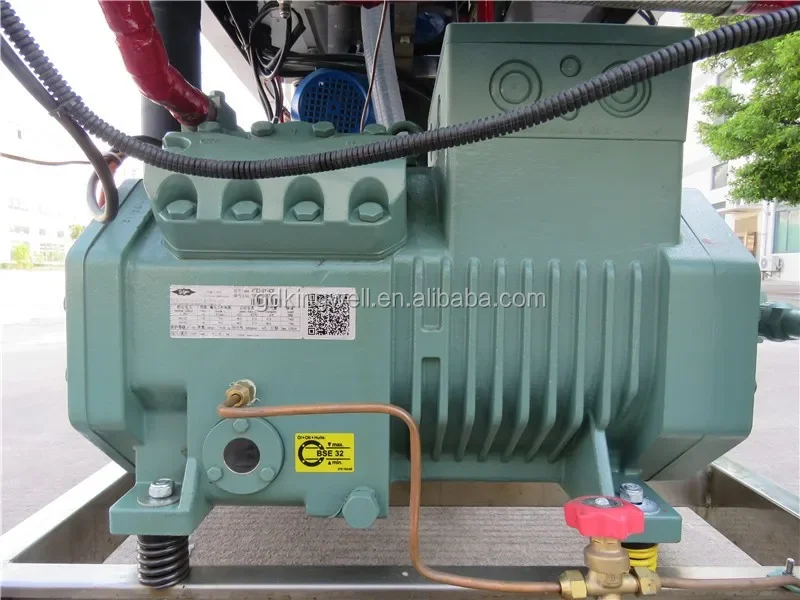

Compressor
Brand: Bitzer
Original: Germany
The compressor is the most important part of the ice machine,like the heart of the human,it can work with high efficiency and stable performance.

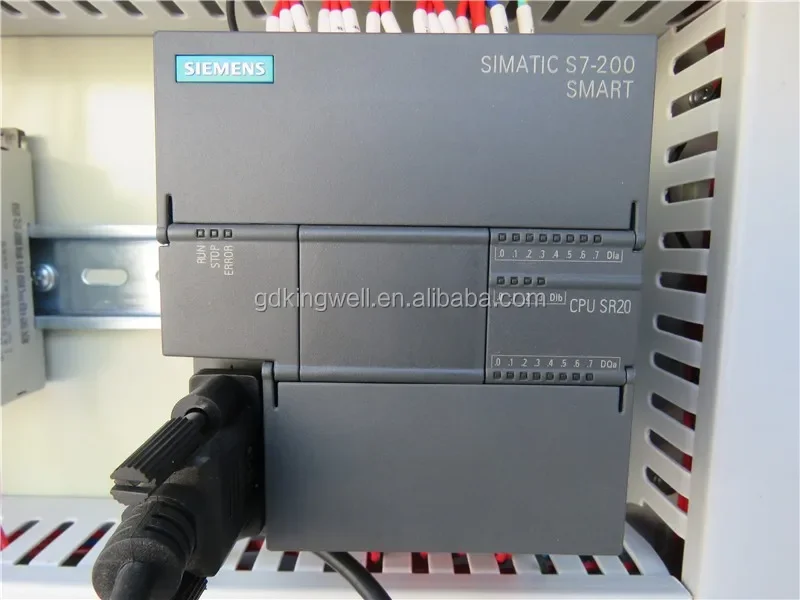

PLC System
Brand Name:Simens
Original: Germany
The Simens PLC control system: Ice discharge automatically hygienic and labor-saving
Like the brain of the human being to control the machine do the proper work in the right time.

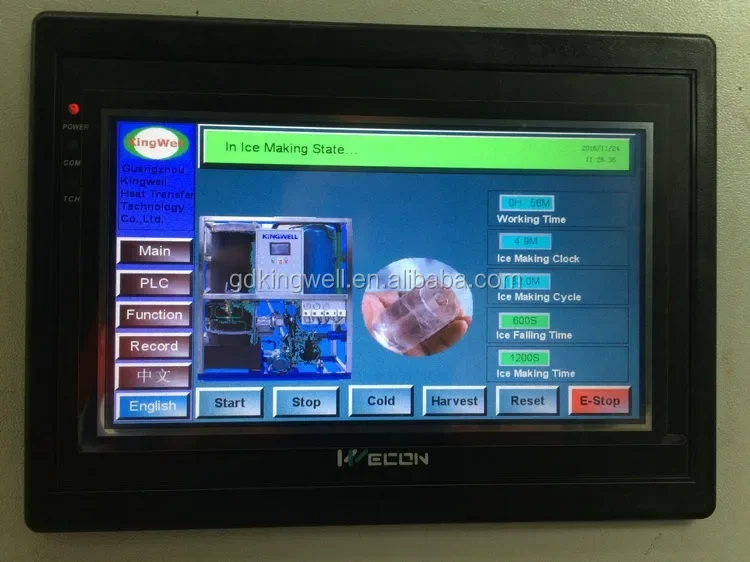

Brand: Wecon
Orginal: Taiwan
(1) The ice thickness can be adjusted.
(2) Record the history of machine work
(3) Set the operating parameters of the machine
(4) Easy to find fault causes in the event of a machine failure

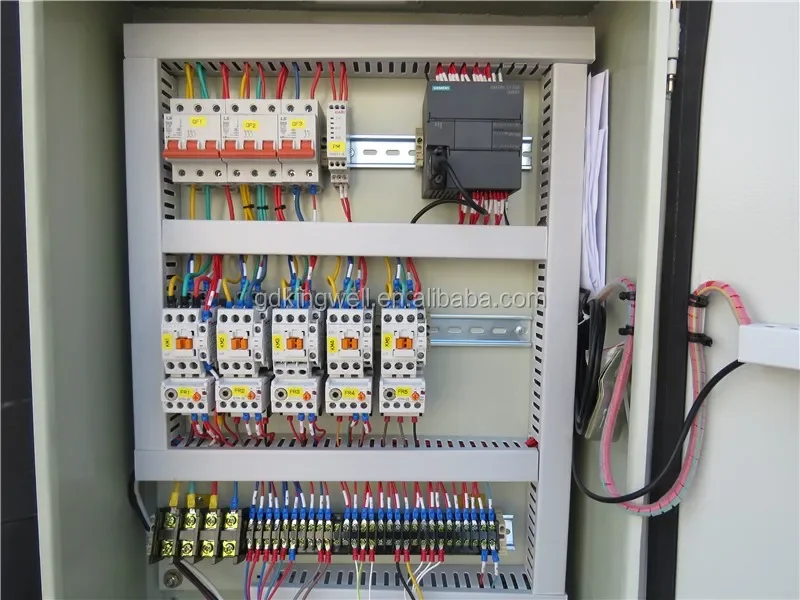

Electrical Box
Switch Brand: LS (South Korea)
PLC Brand: Simens (Germany)
Contactor Brand: LS (South Korea)
Overload Brand: LS (South Korea)
Guangzhou KINGWELL Heat Transfer Technology Co., Ltd.
A professional manufacturer which specialized in researching, designing, producing and selling various refrigeration equipments, such as ice making machines, cold storage rooms and heat transfer equipments etc.
We have a professional Research & Development team, works in refrgeration area for more than 12 years. The professional engineers can provide the tailored and scientific refregeration technical projicts to our clients.
Good Quality Attracts Customers!!!!
1) Superior Supplier
Quality is the first life of our products
2) Customer-centric,Innovative Design
3) One Package Service
A Package of services:Design-Production-Installation-After-sale Service.
Please contact us for more detail
Guangzhou KINGWELL Heat Transfer Technology Co,. Ltd
Add: No.102 Yongshan Village South Road,Shiqi Town,Panyu District,Guangzhou,China
FAX:+86-2031136694
Website: www.gdkingwell.com
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $8000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial commercial small tube?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial commercial small tube be supplied for my local voltage?
The standard configuration is 380V/3P/50Hz/Customized. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Kingwell Heat Transfer Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Kingwell Heat Transfer Technology Co., Ltd. range on HVACR Nexus.
