Industrial Custom In-line Heater, 50KW, 110V-600V, Electric

This industrial custom in-line heater is published with the manufacturer’s full specification — 110V-600V, power source Electric. Made by Yancheng Xinrong Electronic Industries Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Industrial Custom In-Line Heater

• Power Source: Electric
• Power: 5KW-1000KW
• Voltage: 110V-600V
• Voltages Available: 110V-600V
• Material: Stainless Steel
• Sheath Material: Carbon Steel or stainless steel

Technical Specifications

Product Details

Product Description

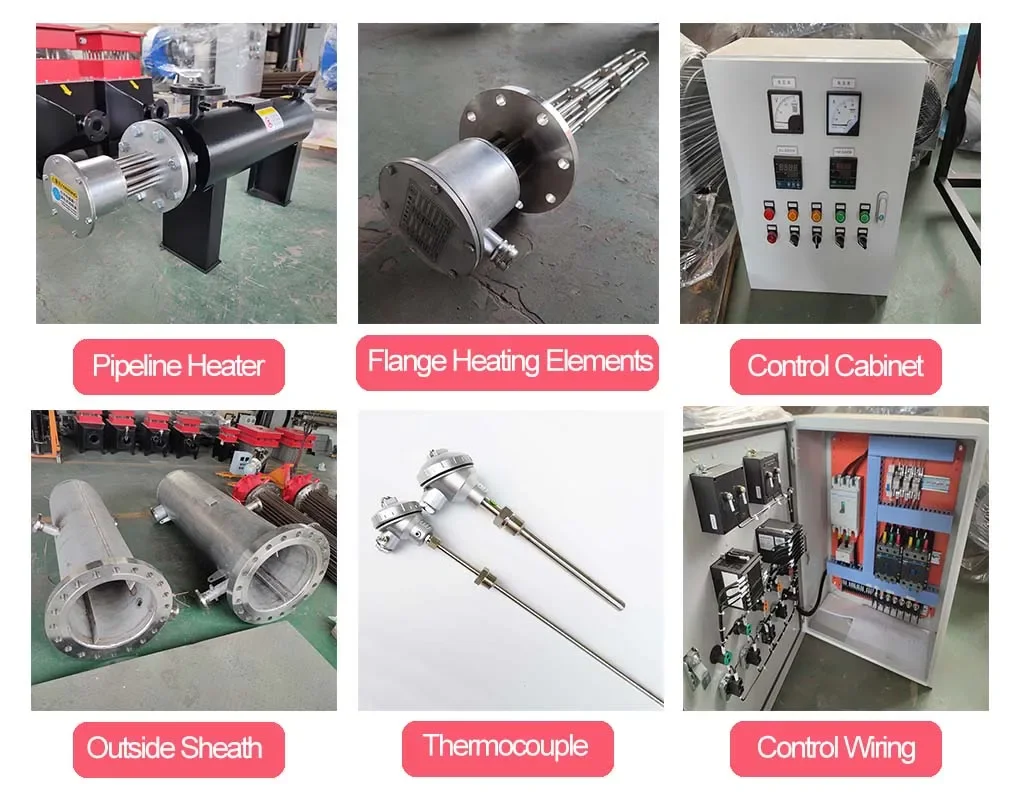

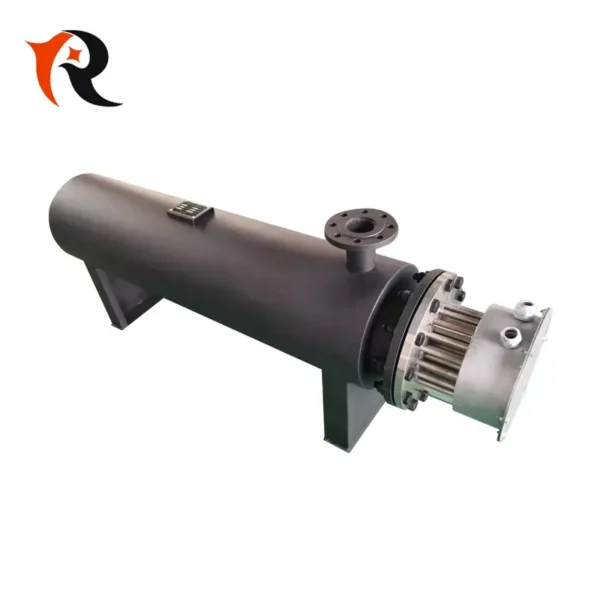

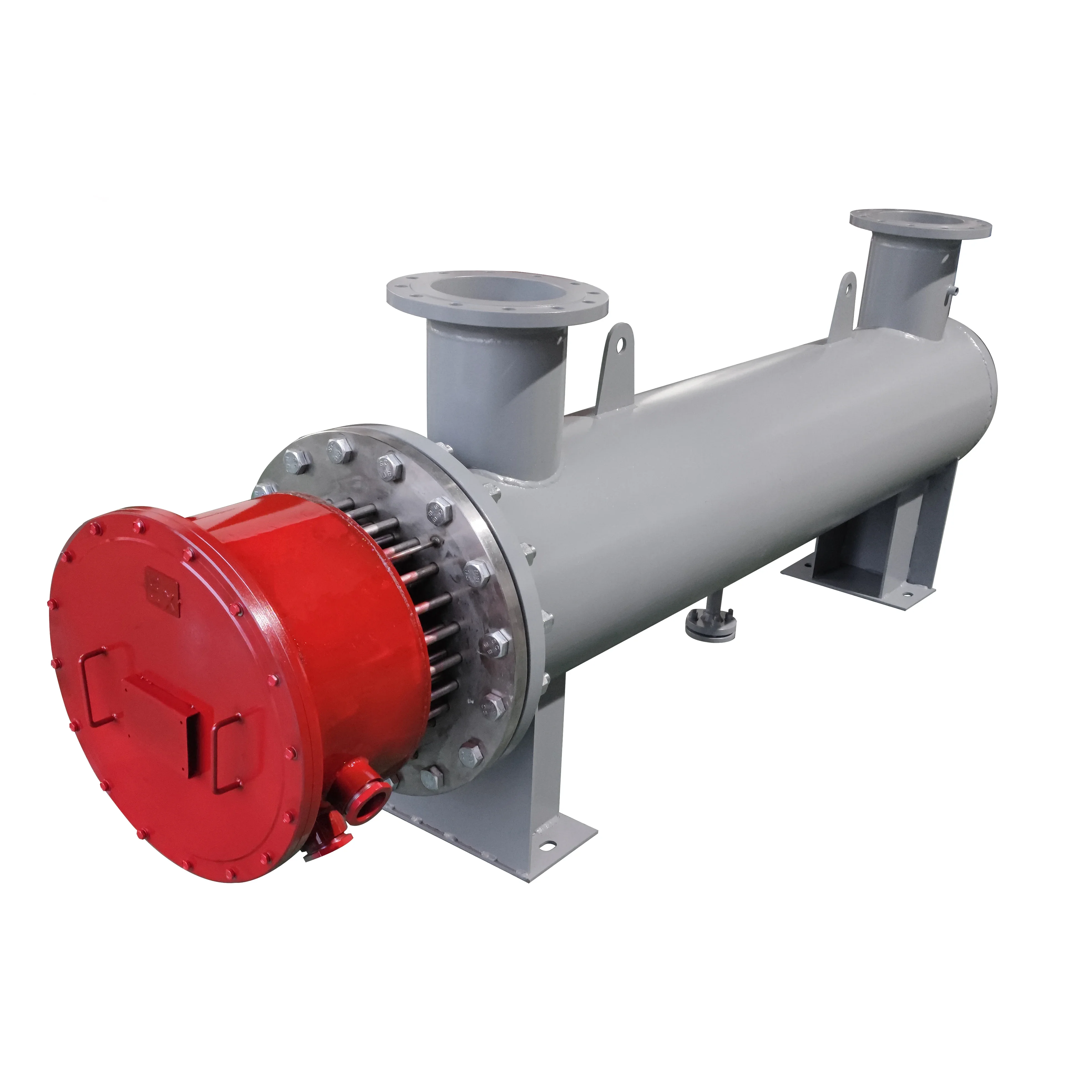

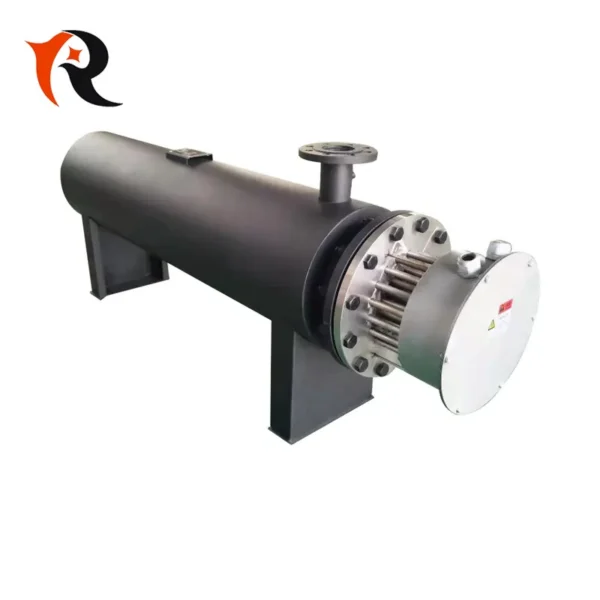

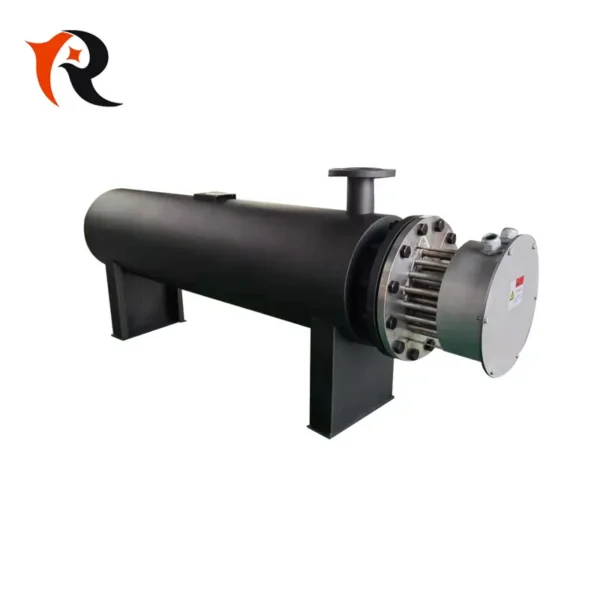

The pipeline heater is an energy-saving equipment that preheats the heating medium. It is installed before the heating medium equipment to directly heat the medium, so that it can circulate heating at high temperatures, and finally achieve the purpose of saving energy. It is widely used in the pre-heating of fuel oil such as heavy oil, asphalt, and clear oil. The pipeline heater is composed of a body and a control system. The heating element is made of seamless stainless steel pipe as a protective sleeve, high temperature resistance alloy wire and high-purity crystalline magnesium oxide powder, processed by a compression process, and the control part adopts advanced digital Circuits, integrated circuit triggers, etc. constitute an adjustable temperature measurement and constant temperature system to ensure the normal operation of the electric heater.

Features: 1. Heat efficient is more than 95% 2. Vertical type pipeline heater covers a small area but has a height requirement. The horizontal type covers a large area but has no height requirement. 3. The materials of pipeline heater are: carbon steel, stainless steel SUS304, stainless steel SUS316L, stainless steel 310S, etc. Choose suitable materials according to different heating process requirements. 4. Pipeline heaters are heated by flanged electric tubes and equipped with professionally designed deflectors to ensure that the electric heating tube generates heat evenly and the heating medium fully absorbs heat. 5. For high temperature requirements (the temperature of the air outlet is greater than 600 degrees), use a high temperature resistant stainless steel 310S electric radiation heating tube for heating, and the temperature of the air outlet can reach 800 ℃.

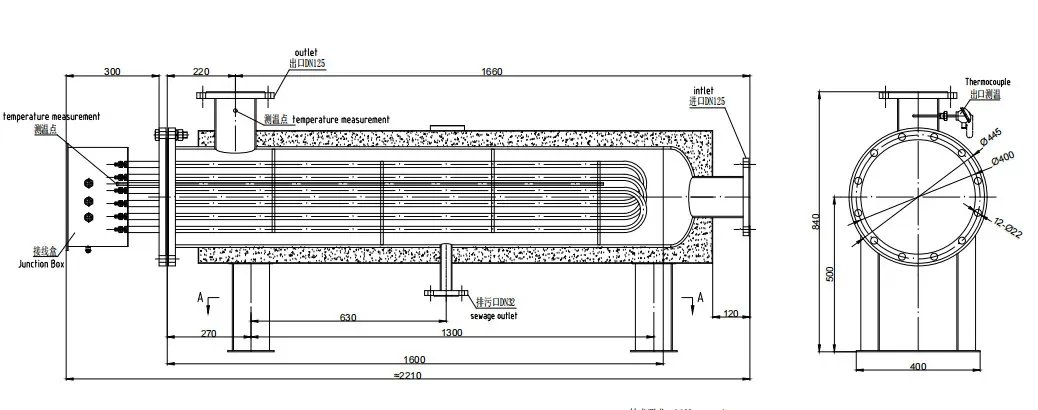

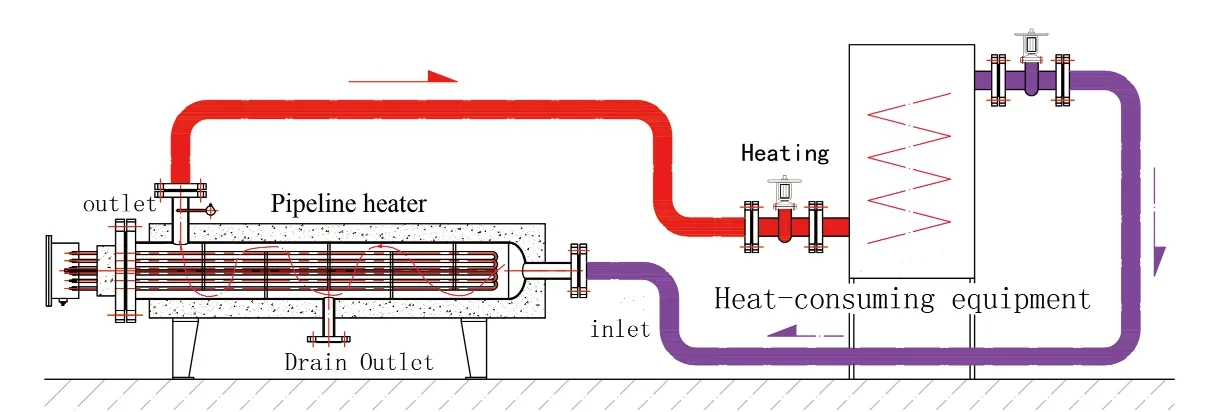

Structure

Specification

Material	Carbon steel/ SS304/ Titanium
Rated Volatge	≤660V
Rated Power	5-1000KW
Processing Temperature	0~800 degree celsius
Design Pressure	0.7Mpa
Heating Medium	Air, water, heavy oil, asphalt etc.
Heating Element	Stainless steel immersion heater

Advantage

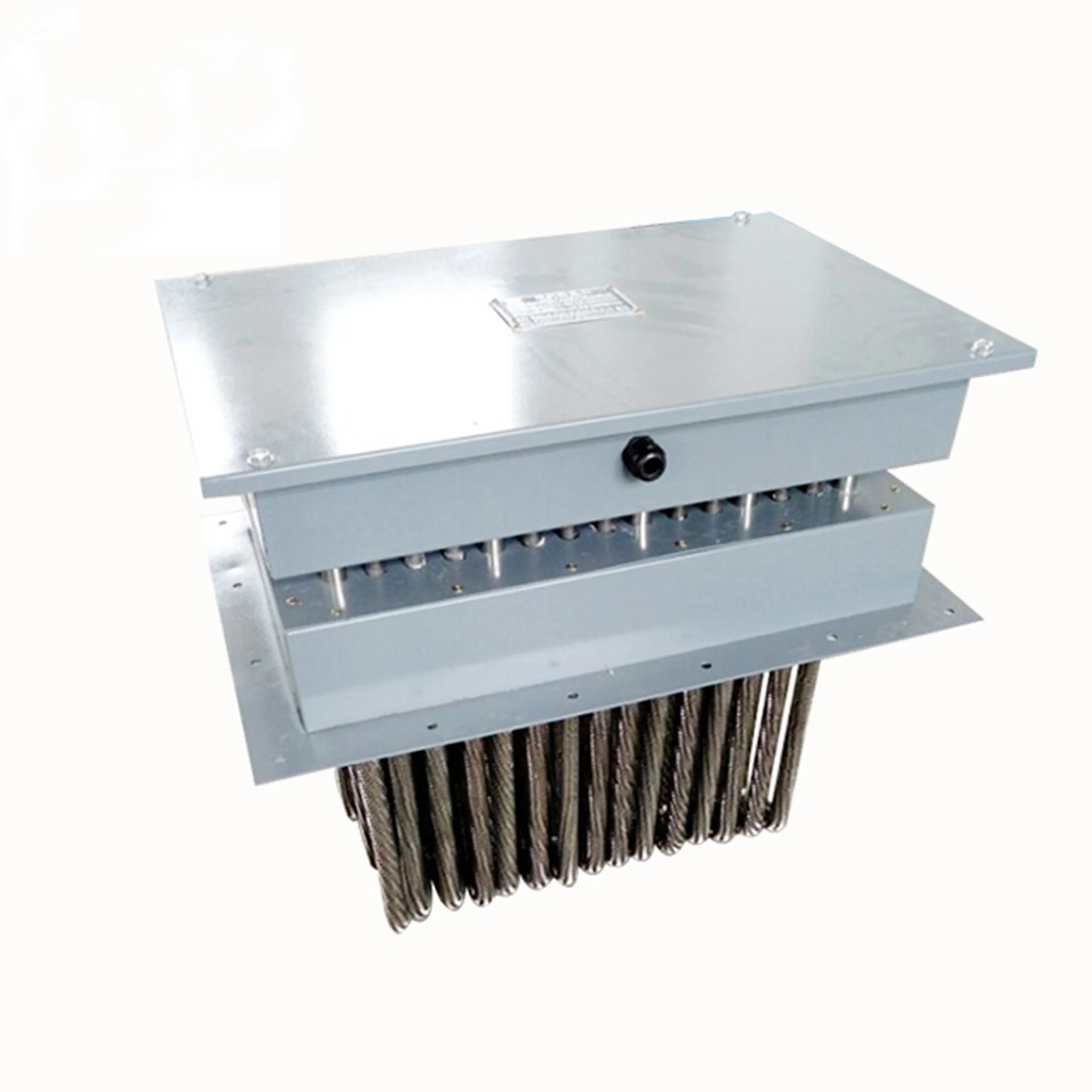

* Flange-form heating core;

* The structure is advanced ,safe and guaranteed;

* Uniform, heating,thermal efficiency up to 95%

*Good mechanical strength;

* Easy to install and disassemble

* Energy saving power saving,low running cost

* Multi point temperature control can be customized

* The outlet temperature is controllable

Buying Guide

The key questions before ordering a pipeline heater are:

1. What Type do you need? Vertical type or horizontal type? 2. What’s your using environment? For liquid heating or air heating? 3. What wattage and voltage will be used? 4. What is your required temperature? What’s the temperature before heating? 5. What material do you need? 6. How long required to reach your temperature?

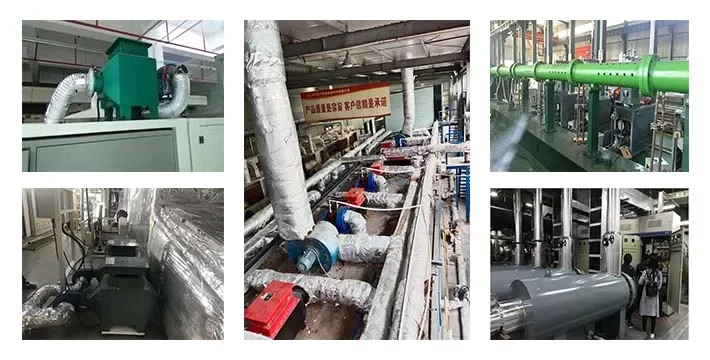

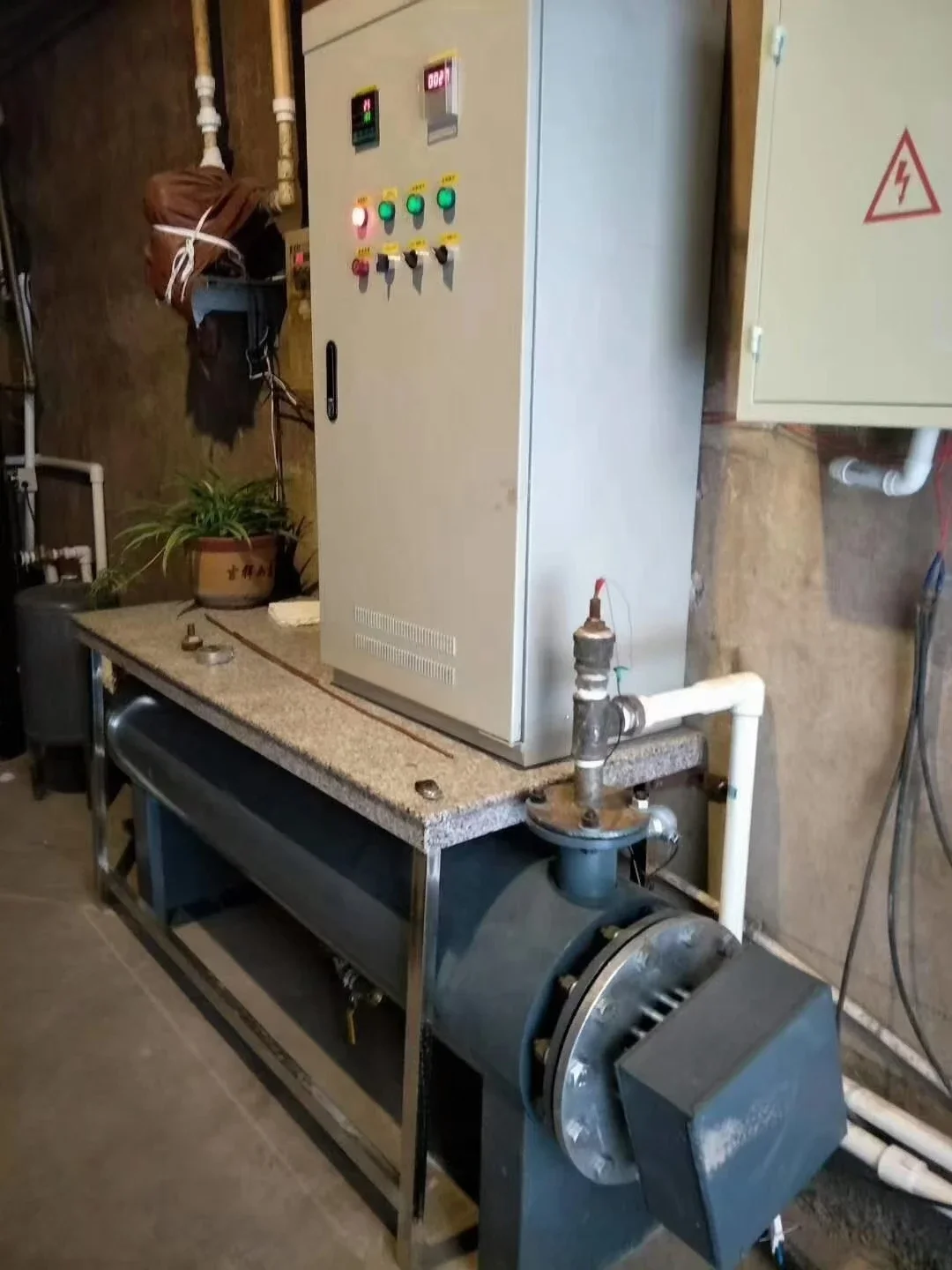

Application

Pipeline heaters are widely used in automobiles, textiles, printing and dyeing, dyes, papermaking, bicycles, refrigerators, washing machines, chemical fiber, ceramics, electrostatic spraying, grain, food, pharmaceuticals, chemicals, tobacco and other industries to achieve the purpose of ultra-fast drying of the pipeline heater. Pipeline heaters are designed and engineered for versatility and are capable of meeting most applications and site requirements.

Company Profile

Yancheng Xinrong Electronic Industries Co.,Ltd have been engaged in design and manufacturing of industrial heating system, Our company have advanced production lines and testing equipment, who supply clients high quality goods, as well as professional R&D department and service team, who provide customers best heating solutions. Our products have been exported to Europe, America, Asia, Mid East etc. more than 200 countries. We supply different heating element, heating equipment, and temperature measurer.

Adhering to "Quality Best, Customer First and Honesty" business philosophy, the company and domestic and foreign partner make progress together to create a better future.

Recommend Products

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–4 set: US $780 / set
  • 5–19 set: US $730 / set
  • 20+ set: US $700 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this industrial custom in-line heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the industrial custom in-line heater be supplied for my local voltage?

The standard configuration is 110V-600V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
