Industrial Exhaust Blower, 4-72, Copper, Cast Iron, 220 V

$58.00

Industrial Exhaust Blower. Key specification: 220 V, power source type Corded Electric. Ships factory-direct with the manufacturer’s data sheet. Blade Material: Cast Iron. Model Number: 4-72 2A.

Category: Tags: , , , , , , , Brand:
Mounting
Free Standing
Voltage
220 V
Blade Material
Cast Iron
Power Source Type
Corded Electric
Warranty
1 Year
Place Of Origin
Zhejiang, China
Request a Quote Ask a Technical Question
  • Reply within one working day
  • Factory-direct pricing, OEM & ODM accepted
  • Full specification and test reports supplied

Get Factory Pricing

Price, MOQ and lead time direct from the manufacturer. Free, no account needed.

Enquiring about Industrial Exhaust Blower, 4-72, Copper, Cast Iron, 220 V

Industrial exhaust blower — 220 V, power source type Corded Electric. The complete factory specification follows. Made by Taizhou Qiou Mechanical And Electrical Co., Ltd. (3 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Industrial Exhaust Blower

  • Model Number: 4-72 2A
  • Power Source Type: Corded Electric
  • Voltage: 220 V
  • Blade Material: Cast Iron
  • Noise Level: 40 dB and above
  • Warranty: 1 Year

Technical Specifications

Mounting Free Standing
Voltage 220 V
Blade Material Cast Iron
Power Source Type Corded Electric
Warranty 1 Year
After-Sales Service Provided Online support
Customized Support OEM, ODM, OBM
Noise Level 40 dB and above
Place Of Origin Zhejiang, China
Brand Name QIOU
Model Number 4-72 2A
Product Name AC Centrifugal Blower,Backward Curved Centrifugal Fan,Blower Fan
Application Industrial Exhaust Ventilation
Feature High Efficiency Low Noise Power Saving
Usage Dusty Air Ventilation

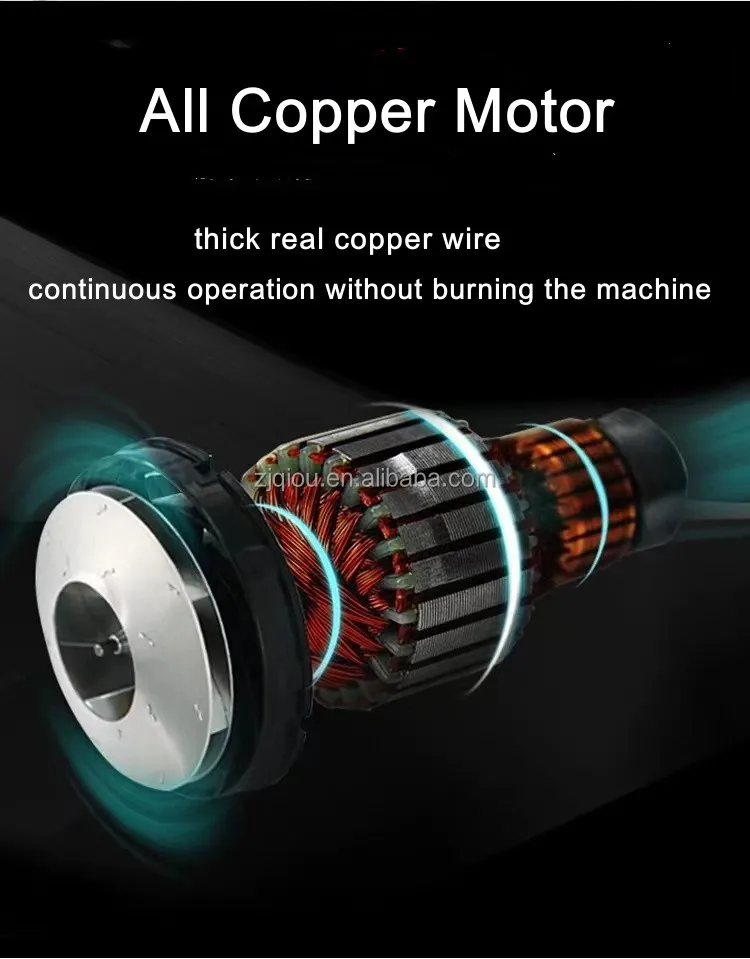

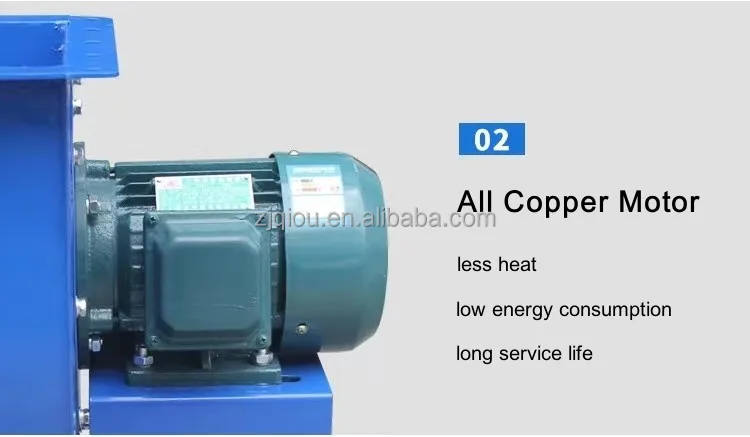

Motor Copper Motor
Keyword Centrifugal Blower Ventilation Fan Industrial Exhaust Fan
Selling Units Single item
Single Package Size 42X52X40 cm
Single Gross Weight 25.000 kg

Product Details

Product Description

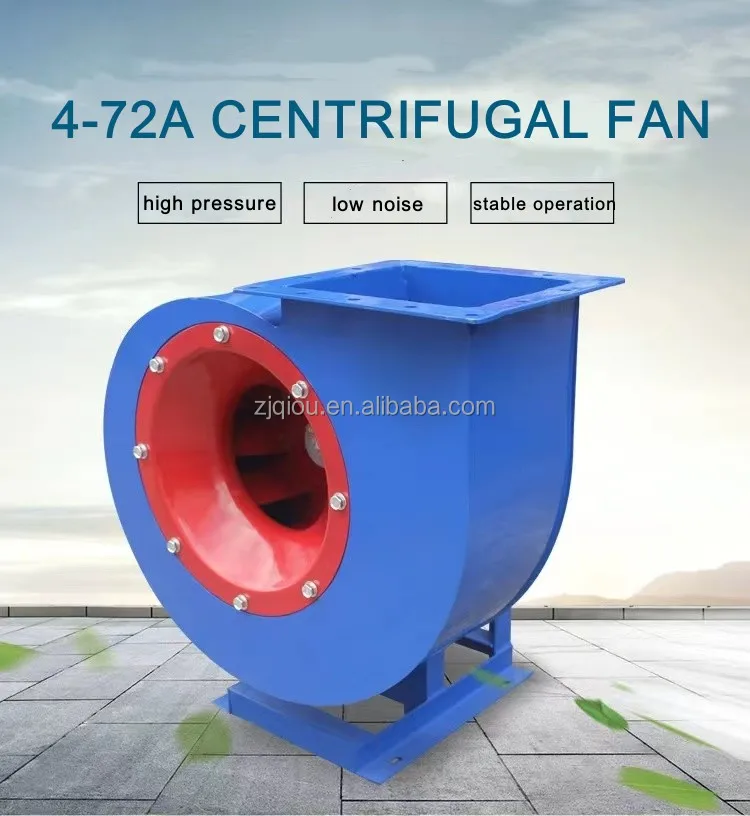

Wholesale Industrial Exhaust Blower 4-72 Series Belt Drive Large Air Flow Dust Suction Ventilation Centrifugal Fan

4-72 series centrifugal fan can transport air and other non-spontaneous, harmless, non-corrosive gases to steel. Viscous substances are not allowed in the gas, and the dust and hard particles contained in it are not more than 150mg/m3.The temperature must not exceed 80°C. The fan has the characteristics of good aerodynamic performance, stable operation, small vibration, high efficiency and long life.
It is widely used for indoor ventilation in industrial and mining enterprises, large buildings, hotels and restaurants.
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 1Industrial Exhaust Blower, 4-72, Copper, Cast - detail 2
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 3Industrial Exhaust Blower, 4-72, Copper, Cast - detail 4
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 5Industrial Exhaust Blower, 4-72, Copper, Cast - detail 6

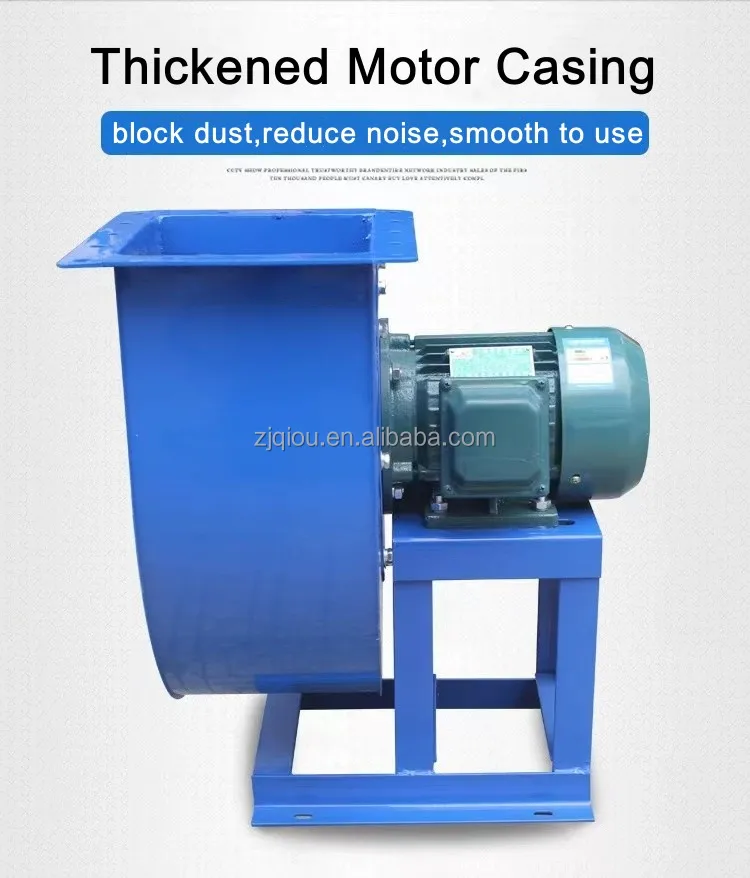

Industrial Exhaust Blower, 4-72, Copper, Cast - detail 7Industrial Exhaust Blower, 4-72, Copper, Cast - detail 8
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 9Industrial Exhaust Blower, 4-72, Copper, Cast - detail 10
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 11Industrial Exhaust Blower, 4-72, Copper, Cast - detail 12
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 13Industrial Exhaust Blower, 4-72, Copper, Cast - detail 14
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 15Industrial Exhaust Blower, 4-72, Copper, Cast - detail 16

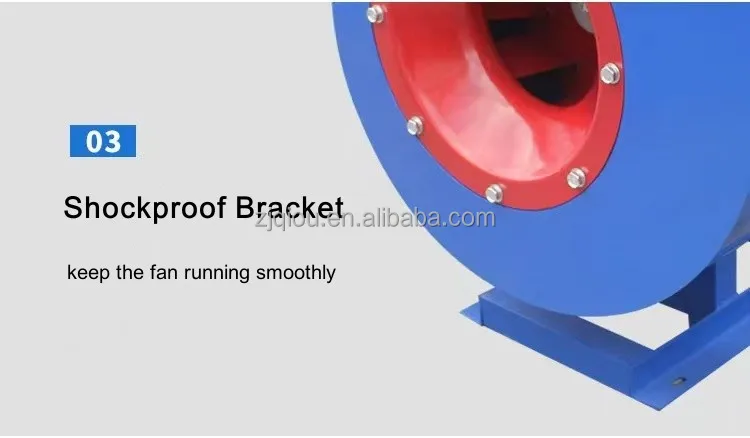

Industrial Exhaust Blower, 4-72, Copper, Cast - detail 17Industrial Exhaust Blower, 4-72, Copper, Cast - detail 18
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 19Industrial Exhaust Blower, 4-72, Copper, Cast - detail 20
Specification
Model
Power
Speed(r/min)
Air Volume (m3/h)
Pressure(Pa)
2A
0.75KW-2
2900
412-859
507-309
2.5A
0.75KW-2
2900
805-1677
792-483
2.8A
1.5KW-2
2900
1131-2356
994-606
3.2A
2.2KW-2
2900
1688-3517
1300-792
3.2A
1.1KW-4
1450
844-1758
324-198
3.6A
3KW-2
2900
2664-5268
1578-898
3.6A
1.1KW-4
1450
1332-2634
393-247
Packing & Delivery
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 21Industrial Exhaust Blower, 4-72, Copper, Cast - detail 22
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 23Industrial Exhaust Blower, 4-72, Copper, Cast - detail 24
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 25Industrial Exhaust Blower, 4-72, Copper, Cast - detail 26
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 27Industrial Exhaust Blower, 4-72, Copper, Cast - detail 28
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 29Industrial Exhaust Blower, 4-72, Copper, Cast - detail 30
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 31Industrial Exhaust Blower, 4-72, Copper, Cast - detail 32
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 33Industrial Exhaust Blower, 4-72, Copper, Cast - detail 34
Industrial Exhaust Blower, 4-72, Copper, Cast - detail 35Industrial Exhaust Blower, 4-72, Copper, Cast - detail 36
Taizhou Qiou Mechanical and Electrical Co., Ltd. is engaged in the field of electric motor, axial fan, blower,centrifugal fan,industrial fan, exhaust fan and other fans. With over 10 years of experience in the design,development,and manufacture of the fans and motors,we export to over 30 countries and regions. High quality, prompt delivery, superior service and competitive prices are always assured. Developing business based on the quality is the tenet we have always held. Besides the products listed in our catalogs, we also offer OEM services. Feel free to reach us for any customized fans and motors solutions. We sincerely wish to cooperate with clients and friends worldwide to build a brilliant future together!
FAQ
Q: How about the quality guarantee period? A: One year. Q: What tests do your products need to go through? A: Air pressure flow test – Flame retardant test of plastic shell – High temperature resistance test – Low temperature test -Noise test – Stacked – Water proof – Drop destructive test. Q: Can you provide samples? A: After price confirmed, you can require for samples to check quality. If you need the samples, we will charge for the sample cost. But the sample cost can be refundable. Q: Do you accept OEM or ODM orders? A: Yes, we accept OEM and ODM from customers. Q: How long is your delivery time? A: Small quantity is around 5-7 working days after receiving the prepayment. Large quantity orders need to negotiate the delivery time. Q: How are you going to ship my order? A: Usually, for sample order we will ship by express like EMS, DHL, FedEx, UPS, special-line logistic. For bulk order, we will ship by sea or air to your destination sea port or airport. If you have own freight forwarder, we can deliver the goods to them as well.    Q: When can I get the quotation? A: We usually quote within 12 hours after we get your inquiry. If you are urgent to get the price, please send the message on other chat tools or call us directly.   Q : What are your terms of payment? A : Generally, 30% T/T in advance, 70% balance before shipment.The common way is by T/T. We can also accept other payments.

Ordering and Pricing

  • Minimum order quantity: 1 piece
  • Volume pricing:
    • 1–99 piece: US $65 / piece
    • 100–499 piece: US $63 / piece
    • 500+ piece: US $58 / piece
  • Ships from: China
  • Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this industrial exhaust blower?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the industrial exhaust blower be supplied for my local voltage?

The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
