Industrial Fan, Centrifugal, 380V, Stainless Steel

Industrial fan — 380V/220V/415V/240v, blade material Stainless Steel. The complete factory specification follows. Made by Qingzhou Gongle Electric Fan Co., Ltd. (18 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Industrial Fan

• Model Number: 9FJ-900mm/1000mm/1100mm/1250mm/1400mm
• Voltage: 380V/220V/415V/240v
• Blade Material: Stainless Steel
• Material: galvanised/ stainless steel / Alu.
• Warranty: 2 Years
• Place Of Origin: Shandong, China

Technical Specifications

Product Details

Product Description

Lower cost factory supplier 800/1000/1380 industrial fan push pull centrifugal fans exhaust ventilation ventilator air blower

Advantages of Lower cost factory supplier 800/1000/1380 industrial fan push pull centrifugal fans exhaust ventilation ventilator air blower :

1) Blade is made of the stainless steel, molded, big air volume, no distortion, no broken.
2) Fan house adopt double-mesh design, light weight, elegant appearance, easy to install.
3) Round protection grill, heavy duty, protect fan blades, safety and steady.
4) Adopt the handle as new inset design from our engineer, easy for carry, transport and installation. Also it has no effect on the appearance.

Main Features of Lower cost factory supplier 800/1000/1380 industrial fan push pull centrifugal fans exhaust ventilation ventilator air blower : 1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust. 2) 95% of the parts are produced by ourselves, reducing the cost of processing ,sharing profits with customers, ensuring quality , utmost cost-effective globally 3) Complete CNC production line, the accuracy of assembling holes is 100%, easy to assemble, quality assured. 4) Wall-Mounting fan , easy installation and maintenance 5) Belt Drive, Big airflow

6)baume mercier

Heavy Hammer Fan

Size :1380*1380*400mm,

Thickness is 400mm, when motor works , the shutters open by hammer

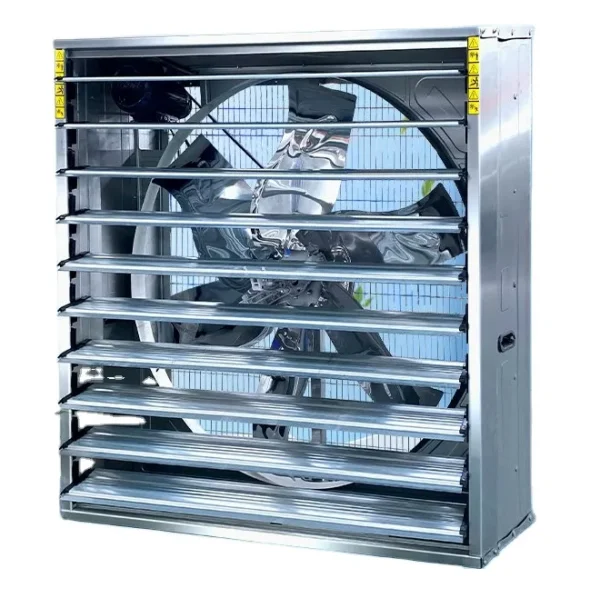

Push-Pull Centrifugal Exhaust Fan

Size :1380*1380*450mm

Thickness is 450mm, when motor works , the shutters open by push-puller

Specification

Model	Blade diameter (mm)	Blade speed (rpm)	Air flow (m3/h)	Total pressure (pa)	Noise (db)	Voltage (v)	Motor speed (rpm)	Size(mm)
9FJ-710	710	700	23500	75	≤70	380	1400	800*800*450
9FJ-900	900	650	28000	70	≤70	380	1400	1000*1000*450
9FJ-1000	1000	600	35000	70	≤70	380	1400	1100*1100*450
9FJ-1100	1100	480	38000	73	≤70	380	1400	1220*1220*450
9FJ-1250	1250	440	44500	65	≤70	380	1400	1380*1380*450
9FJ-1400	1400	440	55800	60	≤70	380	1400	1530*1530*450

Frame with Plastic Handle

1. Frame: Hot Galvanized sheet with zinc thickness of 275g/m2, high anti-corrosion performance
2. Plastic Handle, easy to carry , Convenient to load

Advantage:
GONGLE has the advanced complete CNC machine and laser cutting machine. Auto punching and bending, the accuracy of the hole is 100%,
easy to assemble.

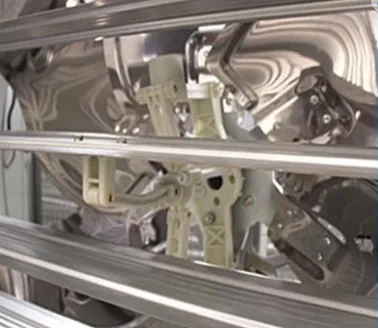

push pull centrifugal system

easy to open shutters, energy saving
Material: High quality Nylon PA66

Advantage:
It open shutters automaticly by less power, high efficiency.

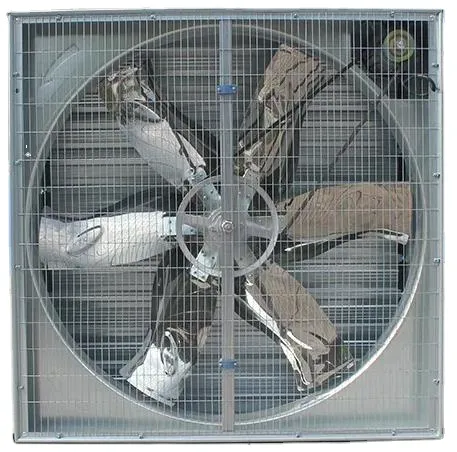

Fan blades

1. Material : Krupp 430 stainless steel or 304 S.S, thickness 1.2mm
2. Diameter: 1250mm or 1270mm

3.the blades has two types

Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:Blade material also have galvanized sheet, aluminum alloy for option

Motor

1. Brand: Chinese famous motor, XIZI /NOSCH motor,Siemens motor, ABB motor and WEG motor or Laoyite brand
2. Motor Protection Grade: IP55
3. Insulation Class: F grade

4.100% copper wire

Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when
shortage of electricity.

Motor Fixed Nuts and Washer

1. Hexagon Nuts
2. Stainless Steel Washer

Advantage:
More firmly, never loosen. Not rust, Easy to change Motor.

Belt pulley and angle

1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability

Advantage:
Light weight, Low vibration ,attractive appearance.

Bearing

Imported double-row bearing with special waterproof design.

Advantage:
High strength, low noise, free maintenance and long service life.

Belts

Brand: Three powers belt (usa)
Type: B type, B88

Advantage:
B type belt is 3 times longer service life than A type belt, maintenance free.

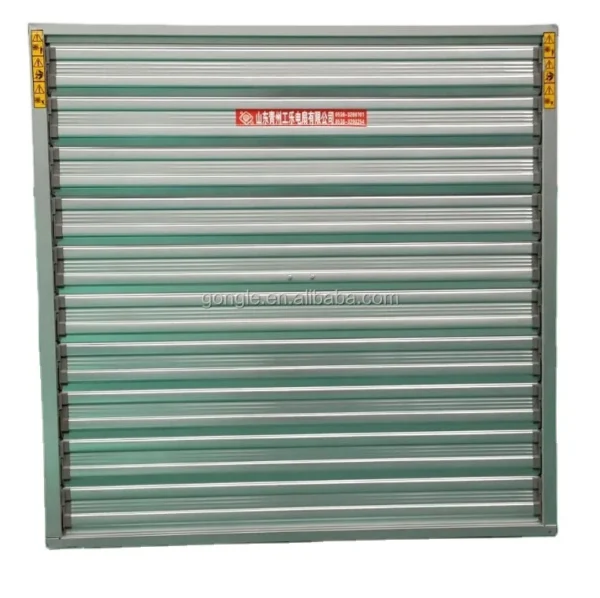

Shutters

1. Material: Hot Galvanized sheet with zinc thickness of 275g/m2
2. Shutter Fixed Parts: High quality nylon.

Advantage:
High anti-corrosion performance, open flexibly, long service life, no deformation ,no rust, running stable.

Safe nets

1.Material: Hot-dip galvanized wire is coated with Plastic

2.can also be two parts

Advantage:
Double Protection to ensure never rust.

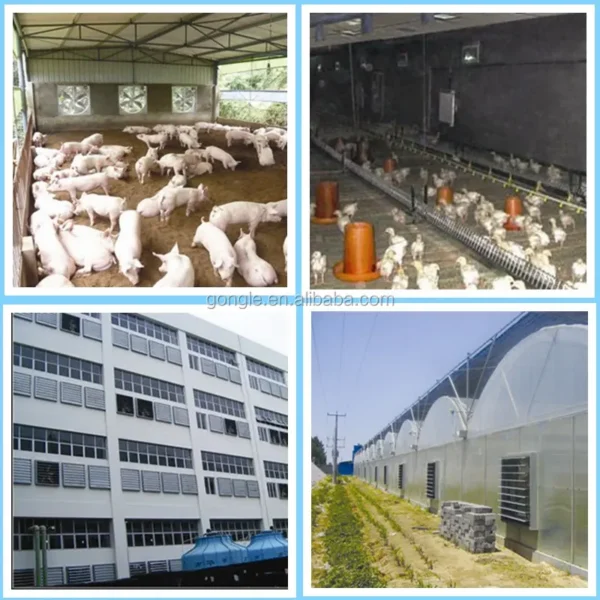

Application

1-Agriculture use: farm greenhouse, garden greenhouse, fruit/ vegetable greenhouse, agricultural greenhouse
2-Poultry use: chicken house, poultry house, bird house, cow house.
3-Industrial use: Industrial workshop, warhouse etc for clear and cooling air.

Packing & Delivery

Package by pallet for LCL delivery

Package assembly by full cartons for FCL

Package by cartons disassembly by FCL

Company Profile

★ Qingzhou Gongle Electric Fan Co., Ltd. founded in 1978, is a private enterprise from primary Qingzhou City Electric Fan Company in No.1388 Industrial Road, Qingzhou City, Shandong Province, China.
★ Our company is a professional manufacturer that specializes in making ventilation fans, axial exhaust fans, industrial wall fans,standing fans,industrial air cooler, industrial ceiling fans ,air heater and so on.
★ They are widely used in many fields such as enterprise workshops, textile mills, garment production workshops, animal husbandry, closed poultry houses, and greenhouses, etc
★ The company possesses the strong technical power and the perfect test method. The quality of product always comes out top in previous assessments.

Relevant products

50 inch box shape Heavy hammer fan

$50~$210 for one set

Push pull centrifugal exhaust fan

$50~$230 for one set

Light trap for chicken shed

$76~$120 for one set according to size

With nylon blade shutters cone fan

$180~$280 for one set

Industrial air conditioners

$111~$396 for one set

Industrial ceiling fan

$345~$1581 for one set

Evaporative cooling pad

$50~$80 for one cbm

Cow house hanging fan

$60~$200 for one set

FRP fiberglass cone fan

$58~$200 for one set

Hanging circulation ventilation fan

$48~$80 for one set

No power wind driven roof fan

$10~$95 for one pcs

Air inlet for poultry farm

$3~$6 for one set

FAQ

1. who are we?
We are based in Shandong, China, start from 2000,sell to Mid East(25.00%),Africa(25.00%),Southeast Asia(15.00%),South America(10.00%),Oceania(8.00%),Eastern Asia(5.00%),Eastern Europe(5.00%),North America(5.00%),Western Europe(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
cooling pad,heater stove,9FJ-1250B exhaust fan,9FJ-1000B exhaust fan

4. why should you buy from us not from other suppliers?
null

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Contact us

Ordering and Pricing

• Minimum order quantity: 5 set
• Volume pricing:
  • 5–99 set: US $230 / set
  • 100+ set: US $120 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this industrial fan?

The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the industrial fan be supplied for my local voltage?

The standard configuration is 380V/220V/415V/240v. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Qingzhou Gongle Electric Fan Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Qingzhou Gongle Electric Fan Co., Ltd. range on HVACR Nexus.
