Industrial heating equipment — 220V/380V, model number JRF. The complete factory specification follows. Made by Jiangsu Zhenxing Drying Equipment Co.,ltd. (12 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Heating Equipment
- Model Number: JRF
- Voltage: 220V/380V
- Warranty: One Year
- Place Of Origin: Jiangsu, China
- Feature: Efficient
- Single Gross Weight: 0.0 kg
Technical Specifications
| Voltage | 220V/380V |
|---|---|
| Warranty | One Year |
| Place Of Origin | Jiangsu, China |
| Model Number | JRF |
| Brand Name | ZHENGAN |
| Dimension(L*W*H) | customized |
| Feature | Efficient |
| Packaging Details | Seaworthy Packing The goods will be packed with steel racks and fixed to the inner wall of the container with nylon strap or steel cable depends on the machine weight |
| Port Of Dispatch | Shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 100 units per Month |
Product Details
Specifications
The furnace uses the high temperature resistant method so that its life is long.
Product Introduction

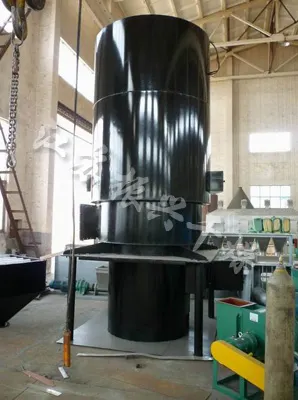

Working Principle
The furnace combines the combustion with the heat exchange, using the latest indirect heating technology that the heat exchange is taken place at the position of the high temperature in the furnace. The smoke and the air go into the dierent channels, without any pollution for the heating. The heat efciency rate is high (up to 60-75%).The temperature increase is fast. The furnace is small in s ize, easy in the installation, reliable in the operation and low in the price(making a comparison with one ton boile r, the price of this system is only half price of the heating system for the boiler).
Characteristics
The furnace uses the high temperature resistant method so that its life is much longer than the life of the pipe arrangement hot a ir furnace. The furnace uses the smoke and air longitudinal splashing heat radiation sheets and the negative pressures smoke elimination mode. There is no dust collected on the heat exchange position. There is no need to carry out the cleaning. The heat feature is stable. V arious coal and wood can be used as the fuel. The furnace is equipped with the air leading device and the combustion is complete. All the technical and economic indexes of the furnace have reached the advanced level at home.
Material to be dried
The furnace is the versatile hot air equipment. It is used with other equipment for drying various materials. The furnace is widely used for the heating and moisture removing for the grain, s eed,feed, fruit, de-watering vegetable. mushroom, edible fungus, tremella, tea, tobacco leaf, other farming products, food, medicine, chemical raw material ,light and heavy industry products.
Technical Parameter
| NameSpec | JRF-15 | JRF-20 | JRF-30 | JRF-40 | JRF-60 | JRF-80 | JRF-100 |
| Diametral of interior barrel | 760 | 760 | 1170 | 1170 | 1470 | 1670 | 1870 |
| Diametral of exterior barrel | 1280 | 1280 | 1840 | 1840 | 2200 | 2460 | 2700 |
| Total height | 3500 | 3500 | 4260 | 4760 | 4810 | 5110 | 5310 |
| Total weight of equipment | 3.15T | 3.65T | 6.8T | 7.5T | 9.8T | 11.7T | 13.5T |
| Diameter of hot air outlet opening | 300 | 300 | 500 | 500 | 500 | 600 | 600 |
| Height of hot air outlet opening | 1585 | 1585 | 1670 | 1670 | 1670 | 1770 | 1770 |
| Diameter of flue outlet opening | 250 | 250 | 250 | 250 | 250 | 300 | 320 |
| Height of flue outlet opening | 2050 | 2050 | 2220 | 2220 | 2220 | 2385 | 2385 |
| Specification of angle head | XZD/G 578 | XZD/G 810 | |||||
| coal consumption per hour | 43kg | 57kg | 85kg | 115kg | 170kg | 230kg | 286kg |
| combustion value of coal | 5000kcal/h | ||||||
| Heat efficiency | 70-78% | 75-80% | |||||
| Suction fan flue | Y5-47-3.15C -1.5KW |
Y5-47-4C -2.2KW |
Y5-47-4C -3KW |
Y5-47-4C -4KW |
Y5-47-5C -7.5KW |
Y5-47-5C -7.5KW |
|
Cautions
1.The environmental datum temperature standard takes 18 ±2℃. The thermal value for the coal takes 5000kca/kg for the calculation.
2.The hot air temperature in the table is decided according to the air output. The maximum hot air temperature for JRF4 spec hot air furnace can be up to more than 200 ℃ . The maximum hot air temperature for JRF5 and JRF6 specs can be up to more than 300 ℃ (for the special manufacturing furnace, the maximum temperature can be up to more than 500 ℃). The temperature can be adjusted according to the demand.
3.Hot air furnace chimney height: for JRF 4 spec, it is 3-5m; and for JRF5 and JRF6 specs, they are 5-8m.
4.For the overall dimension corresponding positions in the above table, please see the diagram for installing the hot air furnace. The re-resistant layer on the internal wall at the low section of the furnace hearth begins at the furnace wall. Its height: for
5.JRF 4-4, it is 0.5; The re-resistant layer can be installed on site .
6.JRF6 spec is the chain-furnace arrangement-spec combustion device.
If you are interested to learn more about our products, please feel free to contact us:
| Contact Information | |
| Company Name | Jiangsu Zhenxing Drying Equipment Co.,Ltd. |
| Contact Person | Carol Ding |
| carol(at) zxdrying.com | |
| Mob/WhatsApp | 0086-159-6129-8220 |
| TEL | 0086-519-85257376 |
| FAX | 0086-519-88670178 |
| Website | www.drying-equipment.cn |
Ordering and Pricing
- Minimum order quantity: 1 unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial heating equipment?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a One Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial heating equipment be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Zhenxing Drying Equipment Co.,ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Jiangsu Zhenxing Drying Equipment Co.,ltd. range on HVACR Nexus.
