This industrial heating equipment is published with the manufacturer’s full specification — voltage Based on Local, 60kw. Made by Linhai Changhe Coating Equipment Co., Ltd. (3 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Industrial Heating Equipment
- Power(W): 60kw
- Voltage: Based on Local
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Type: powder coating oven
- Machine Type: Drying Oven, Curing oven, Coating Equipment
Technical Specifications
| Substrate | Steel |
|---|---|
| Coating | Painting |
| Type | powder coating oven |
| Voltage | Based on Local |
| Core Components | PLC, Engine, Motor |
| Key Selling Points | Easy To Operate |
| Machine Type | Drying Oven, Curing oven, Coating Equipment |
| Warranty | 1 Year |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Not Available |
| Power(W) | 60kw |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 1500 |
| Brand Name | Changhe |
| Dimension(L*W*H) | 1500*1900*2000mm |
| Size | customized |
| Heating Energy | electric/gas/diesel/LPG |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

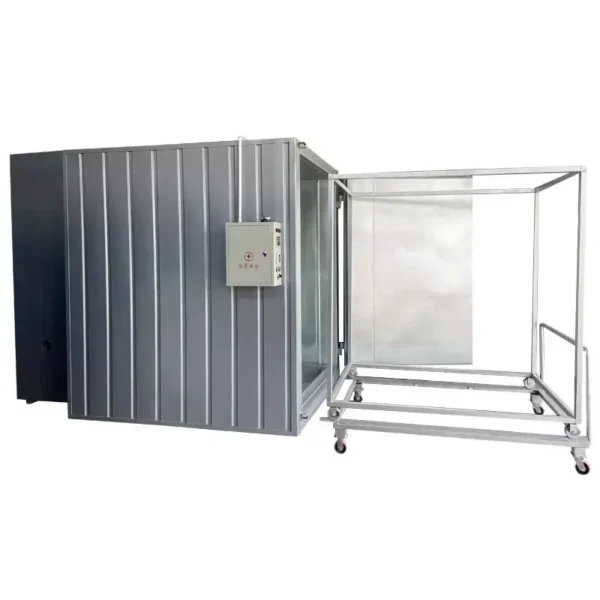

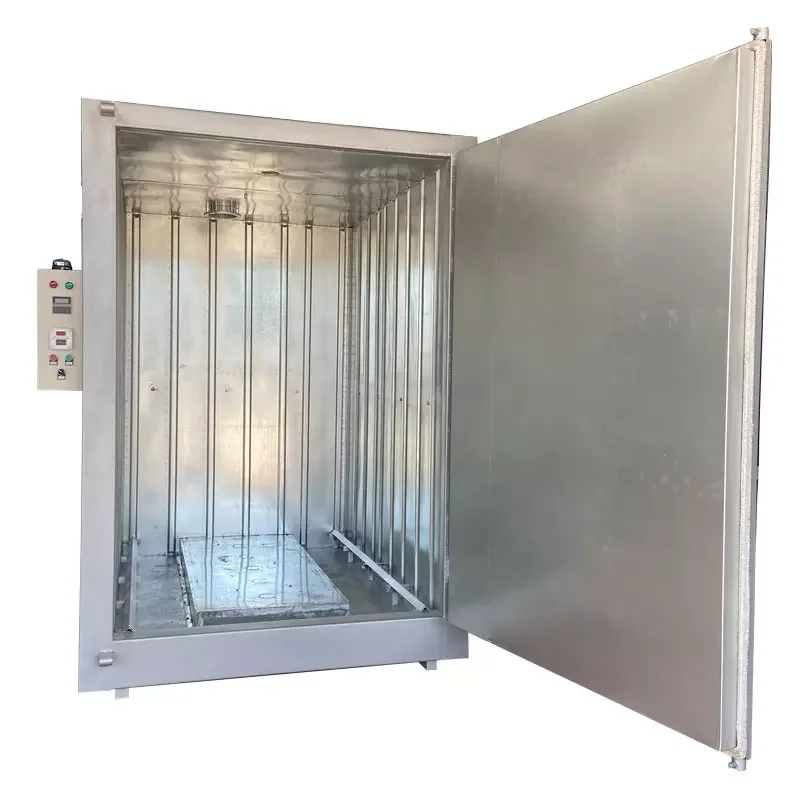

Diesel Heating Powder Coating Curing Oven For Sale
Working Size: Length1500 *Width1900*Height2000 mm
Heating source: could be Electric or Gas / Diesel / LPG
After powder spraying in the spray booth, the workpiece will be placed in the oven for powder curing. The powder is cured by high temperature baking and leveling, and becomes the final coating with different effects.
Heating source: could be Electric or Gas / Diesel / LPG
After powder spraying in the spray booth, the workpiece will be placed in the oven for powder curing. The powder is cured by high temperature baking and leveling, and becomes the final coating with different effects.
Excellent Features
*Suitable for curing powder or paint on the metal surface
*Size can be customized as your workpiece size and needs
*Multi-layer design, galvanized sheet+2 layers of rock wool+skeleton
*Hot air circulate, the temperature is even and consistent.
*Equipped with a trolley, strong bearing capacity, move smoothly
Products Specification
Oven is directly heated by diesel source. Hot air circulation system is by "Bottom blowing-in and top side air-returning" mode, uniform adjustable air outlets are set up for direct air-pressure bearing duct , which makes the uniform temperature of inner oven.
Model | CH-151920C | |
Working Size (LxWxH)mm | 1500 x 1900 x2000 | |
Heating Source | Diesel oil | |
Wall Insulation | 100% new rock wool board with 100 mm thickness | |
Heating Temperature & Time | 180° C (15-30min) | |
Temperature Stability | < ± 3-5°C | |
Voltage/ Frequency | 415V/380V (50-60hz) , customized as local | |
Circulation / Air Flow | Vertical ,Variable through holes on the walls | |
Transportation | Trolley | |
The size, color and specifications can be customized all according to your needs. | ||
Details Images

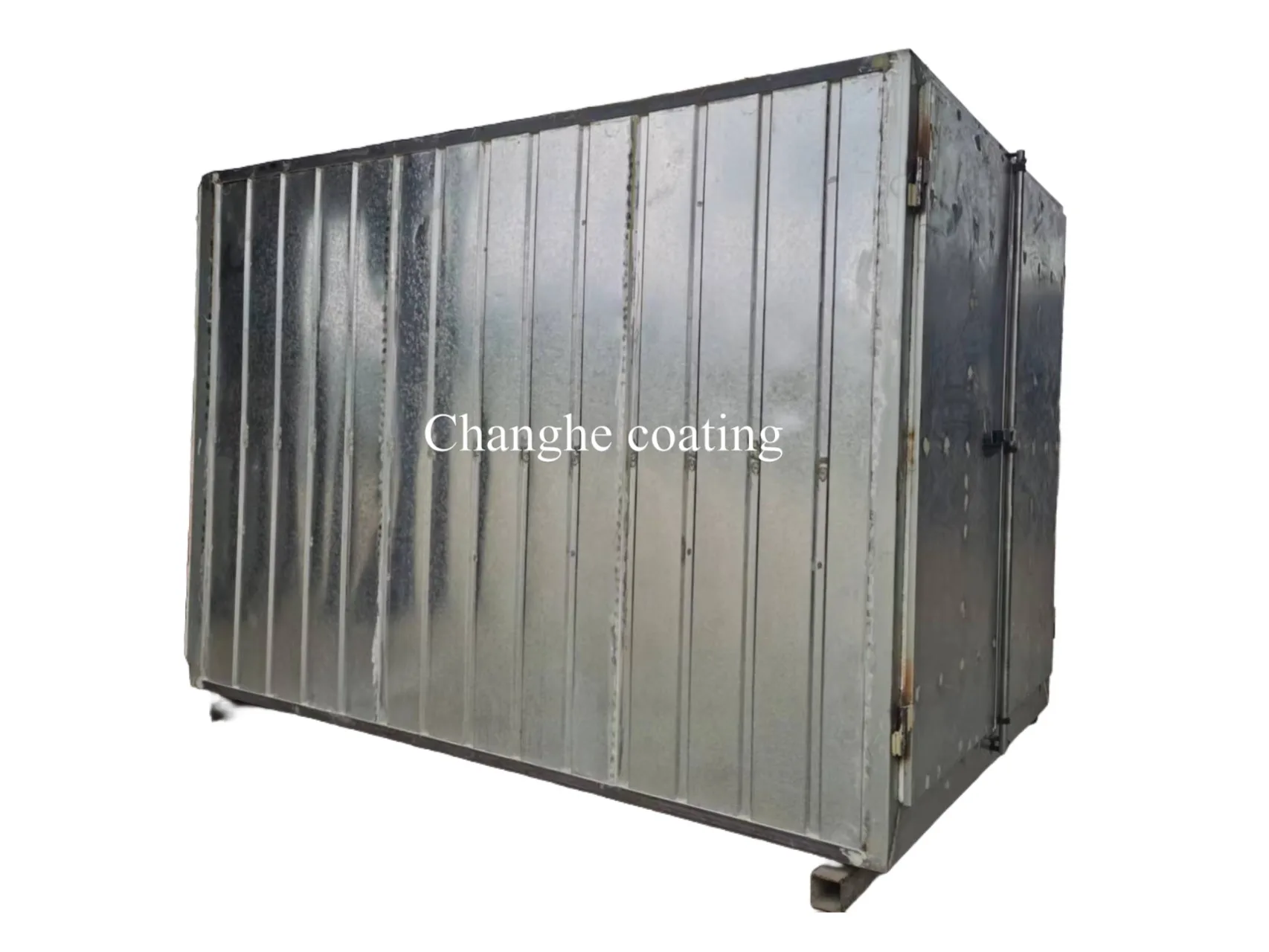

The process of making the oven in our factory
① The outer layer of the oven is formed by folding the edges and corners of galvanized sheet, increasing the firmness.

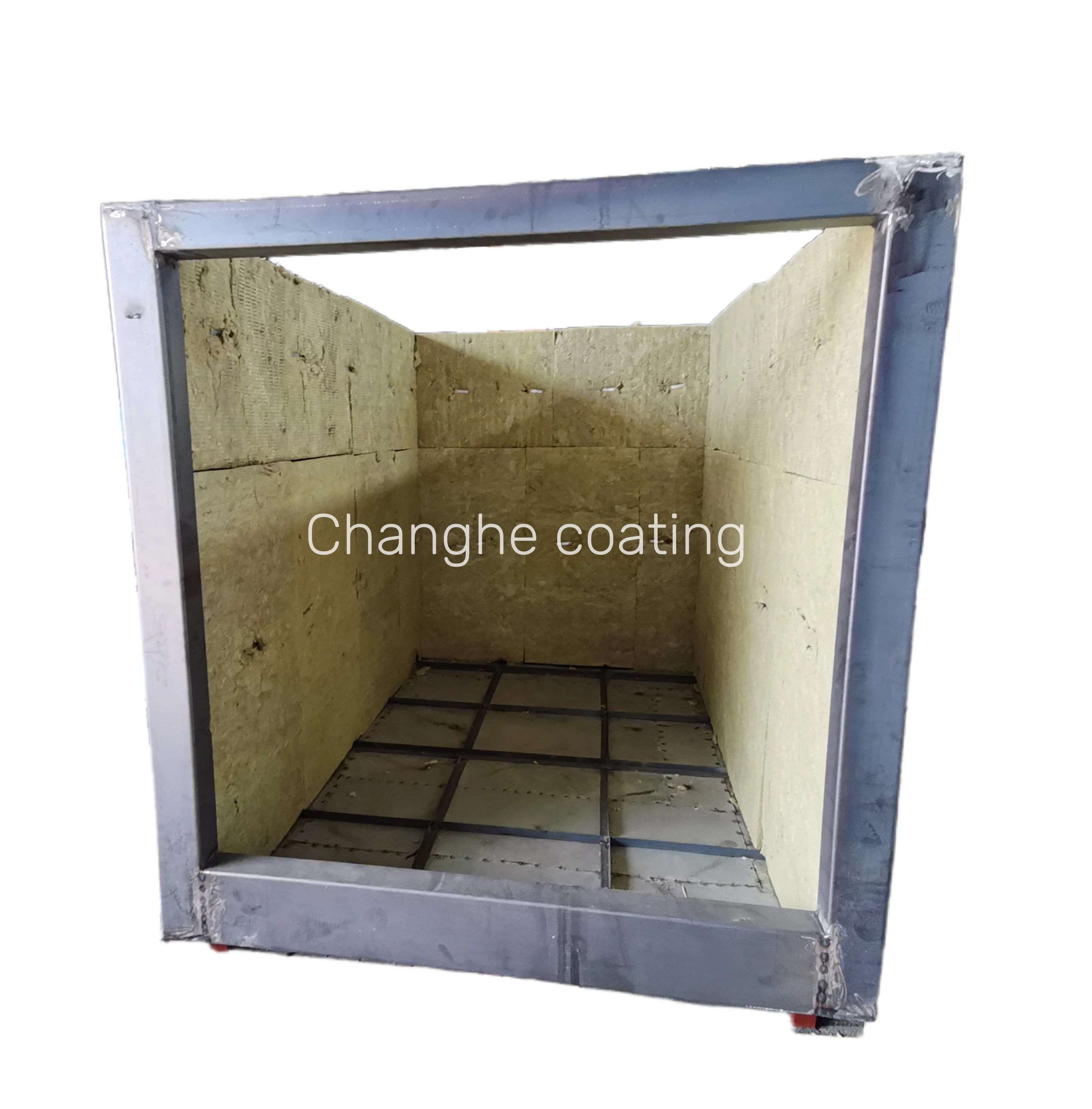

② Fill in the middle with 2 layers of rock wool, getting a thickness of 100mm.

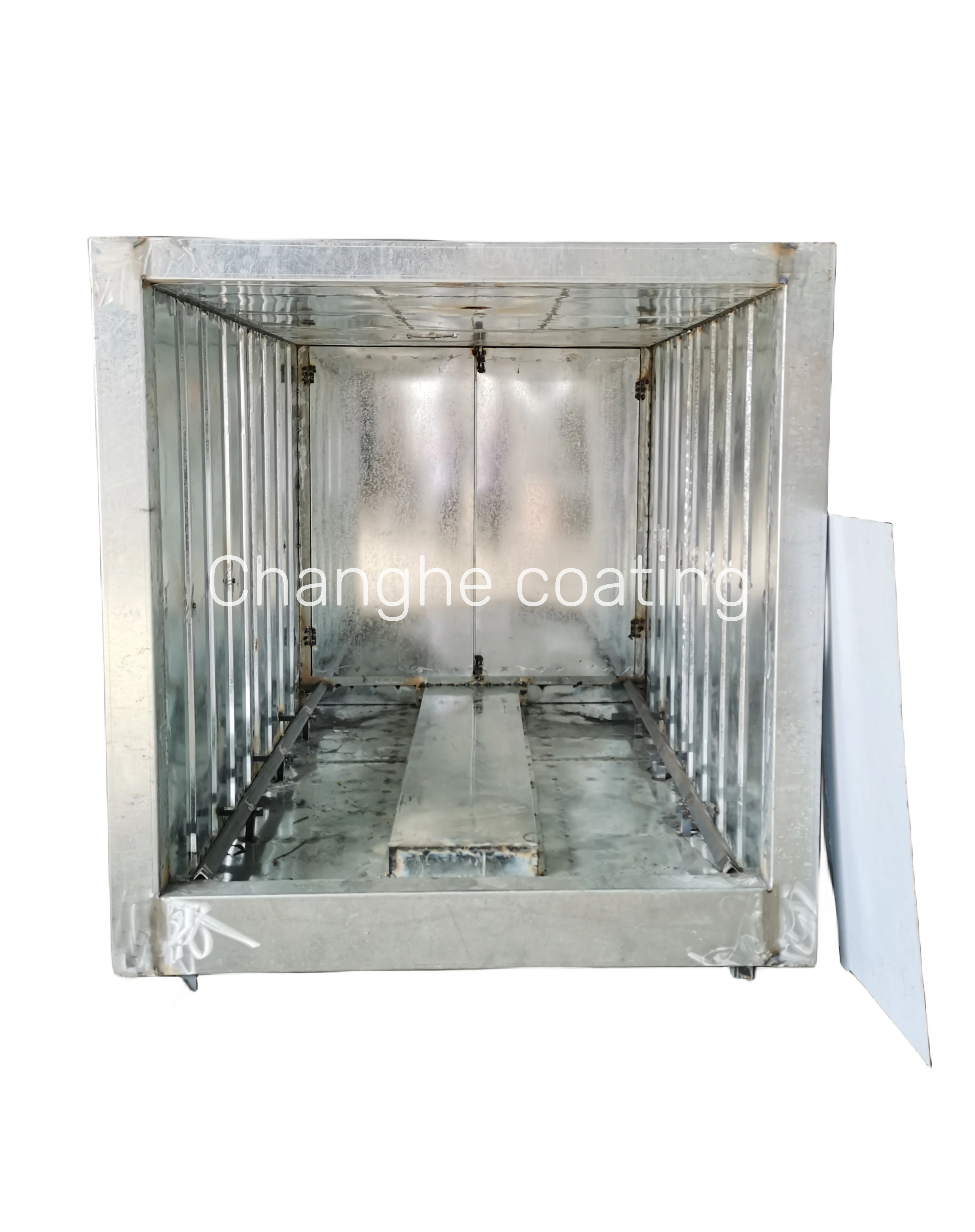

③ Make the inner layer the oven

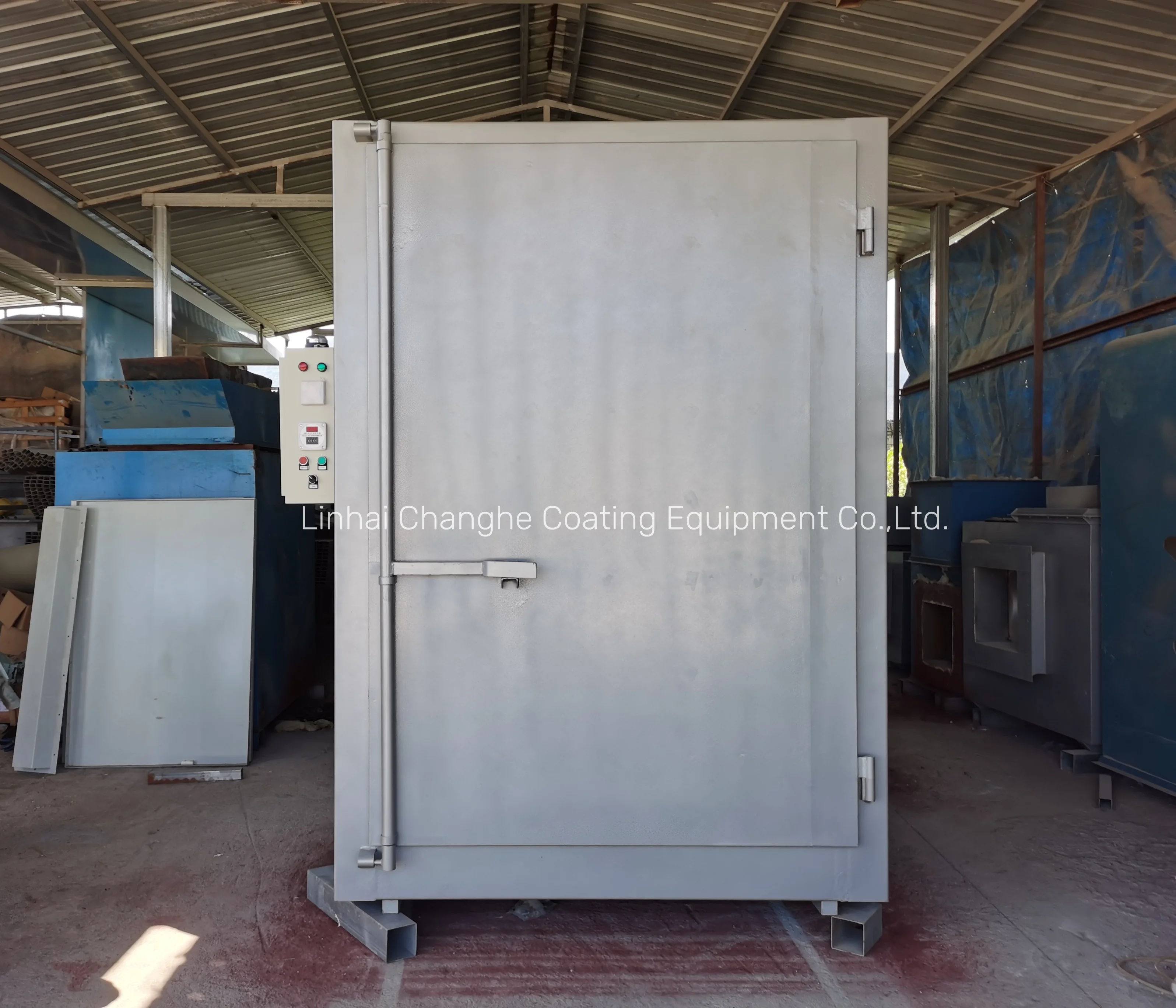

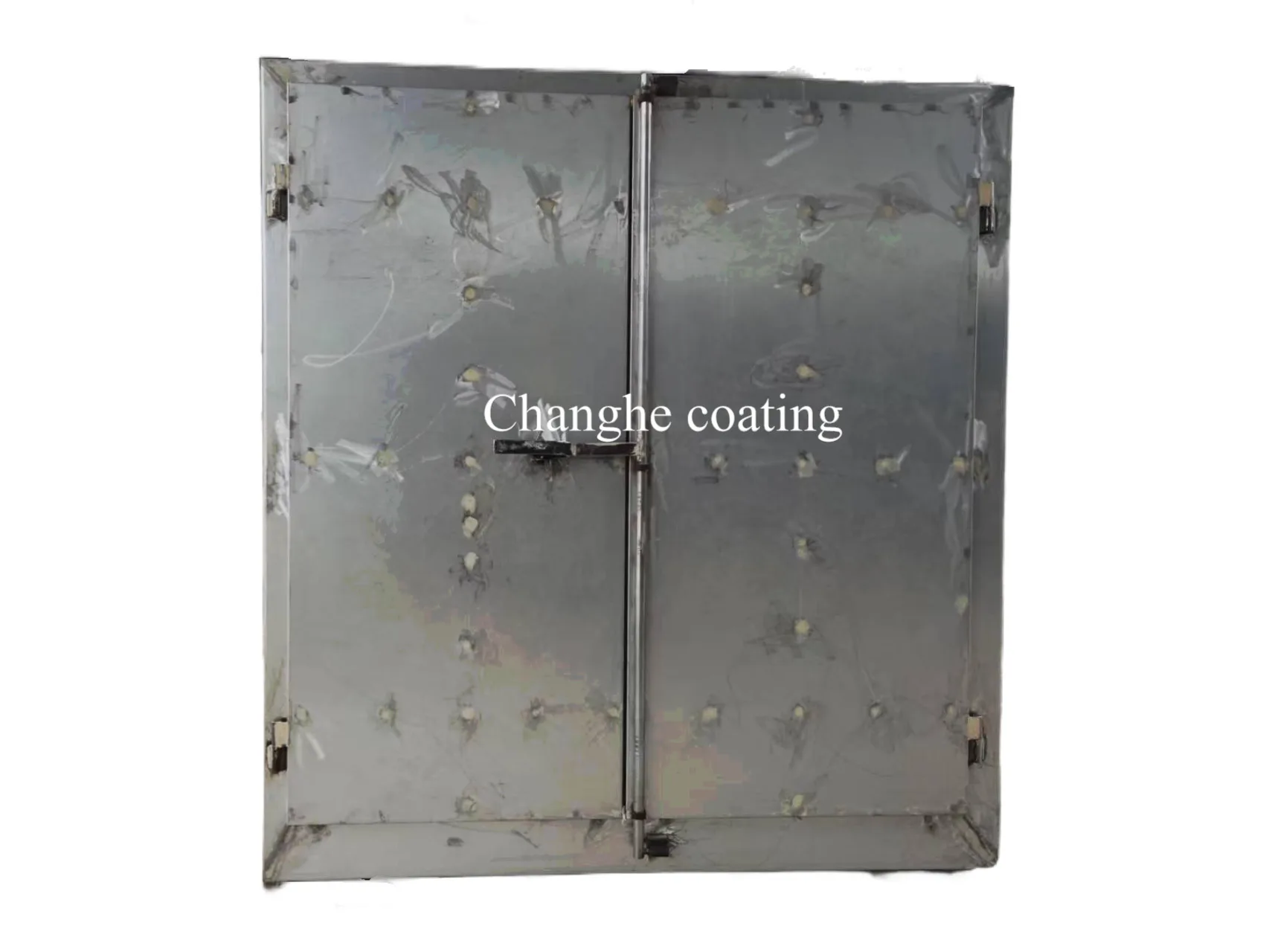

④ The door frame is made of bent 2.5 mm iron plate.
③ Make the inner layer the oven
④ The door frame is made of bent 2.5 mm iron plate.
Oven Component

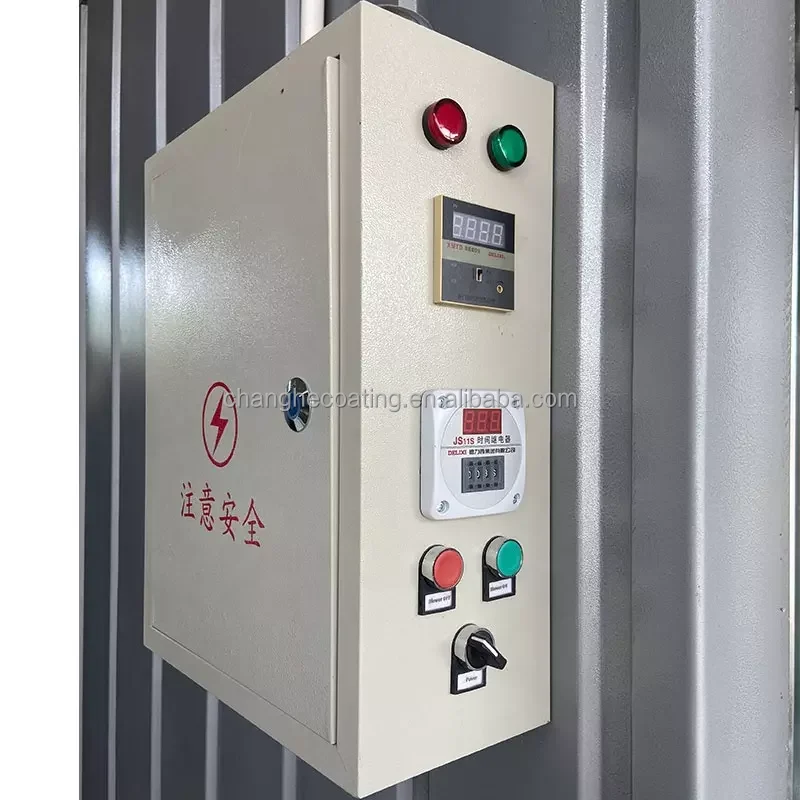

Controller Panel
The user-friendly panel gives you an easy access to set heating temperature, time and working of fan. Once the curing time arrives, the oven will stop heating automatically.

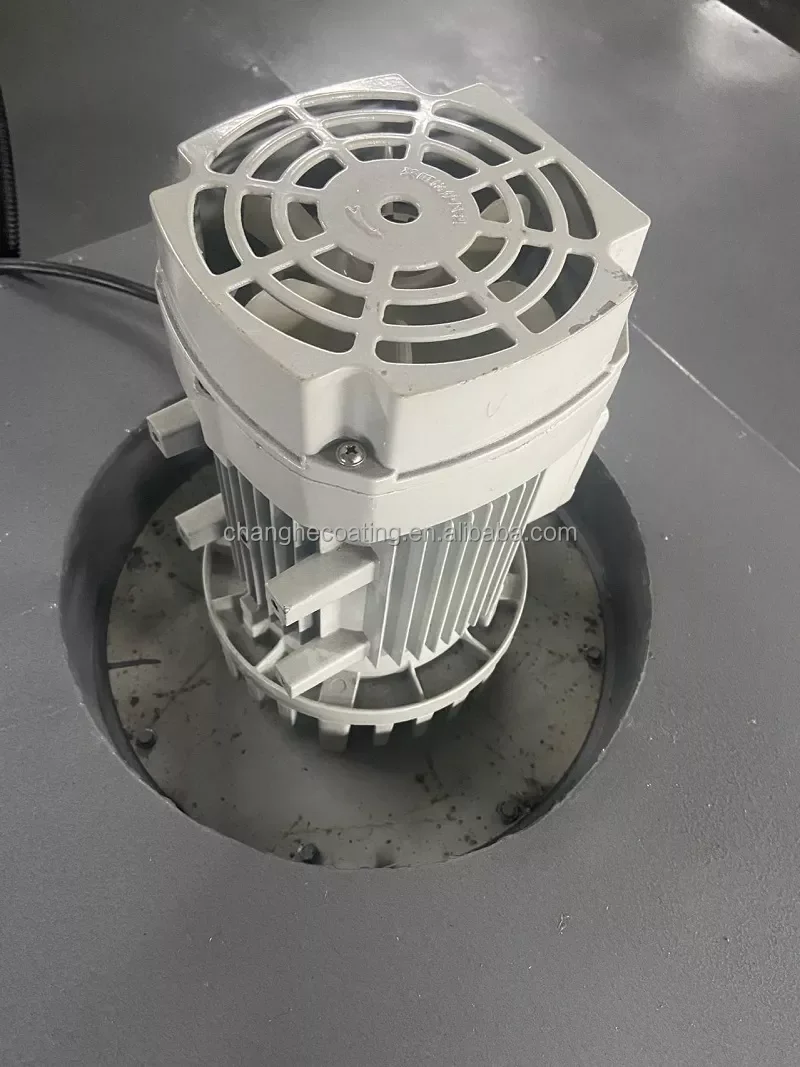

Circulation Fan
Powerful fan circles hot air in the oven chamber, ensures uniform heat distribution with temperature stability less than 3 degree.

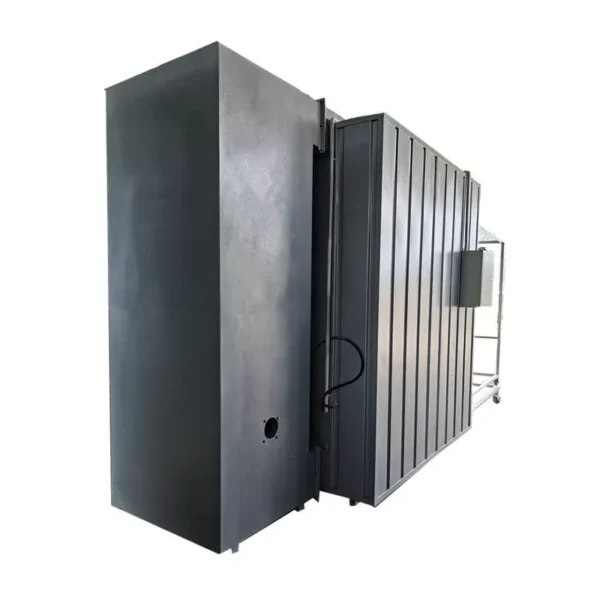

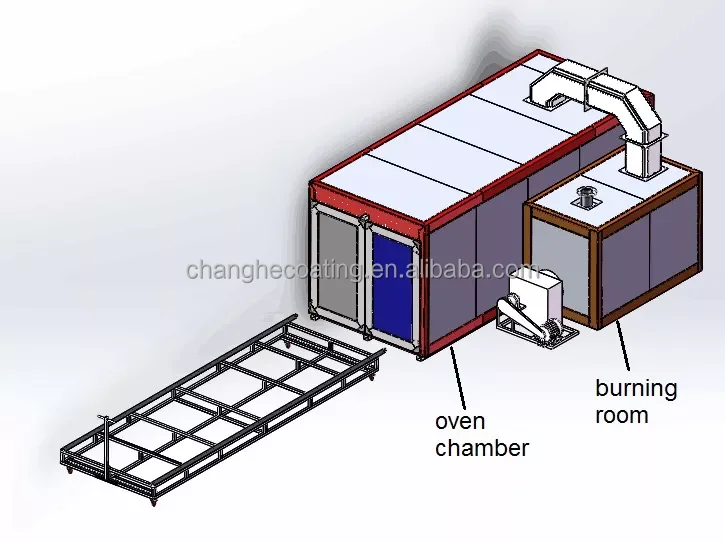

Burning System
-The heating system consists of heating chamber, circulating fan, automatic temperature control probe, etc.

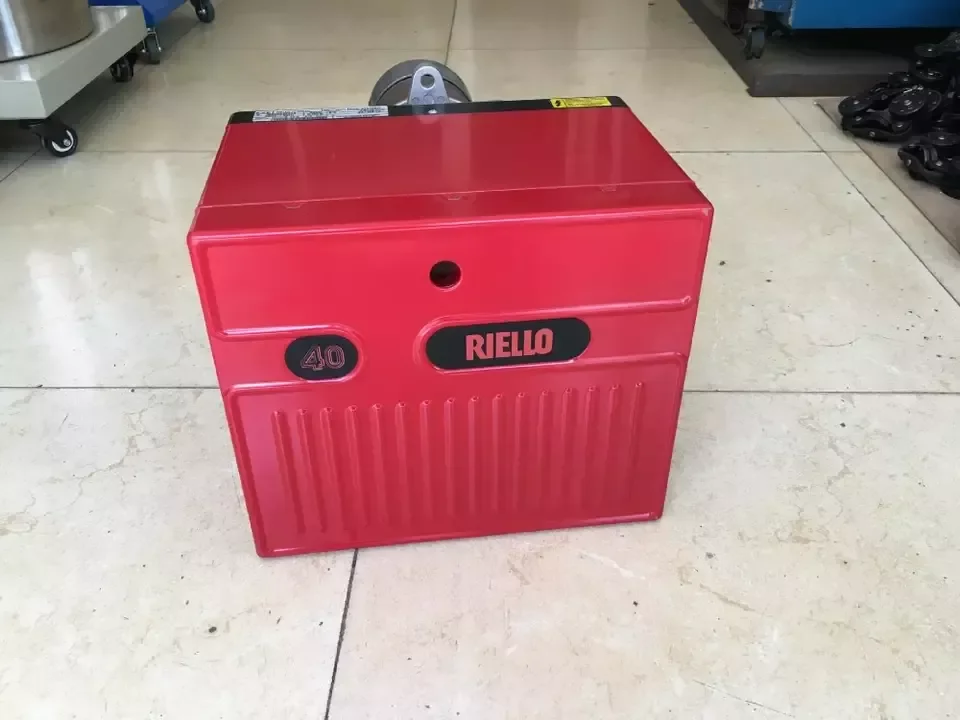

-Imported RIELLO burner, takes full utilization of fuels,making chamber rapidly and raise to required, temperature.
-The heating chamber is directly transferred to the inside of the oven through the circulating fan, and the circulating fan continuously circulates to make the internal temperature of the oven Continue to rise to the set temperature, the distribution is even and consistent.

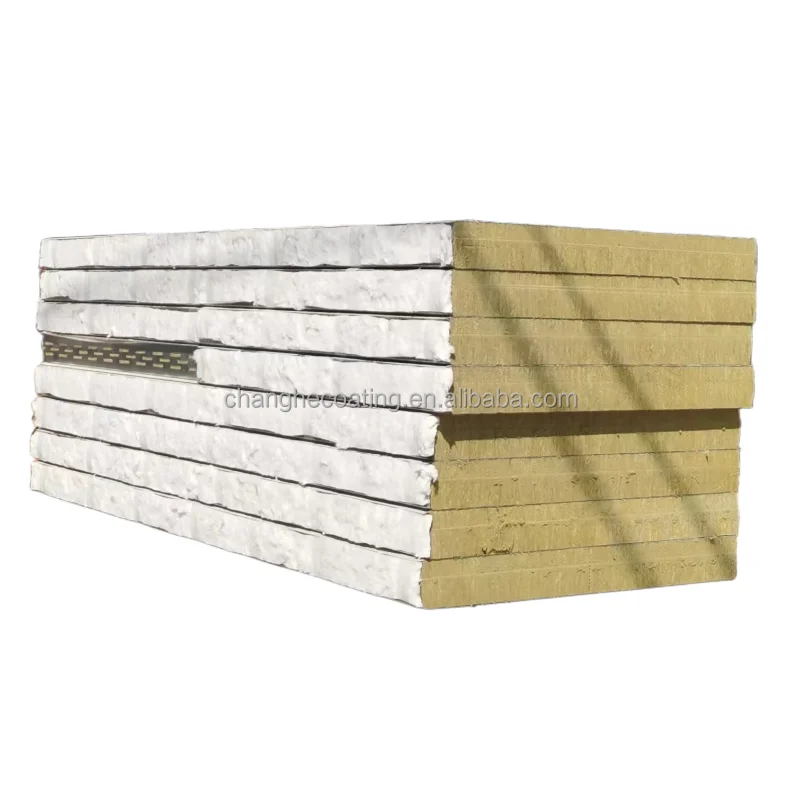

100mm Rockwool

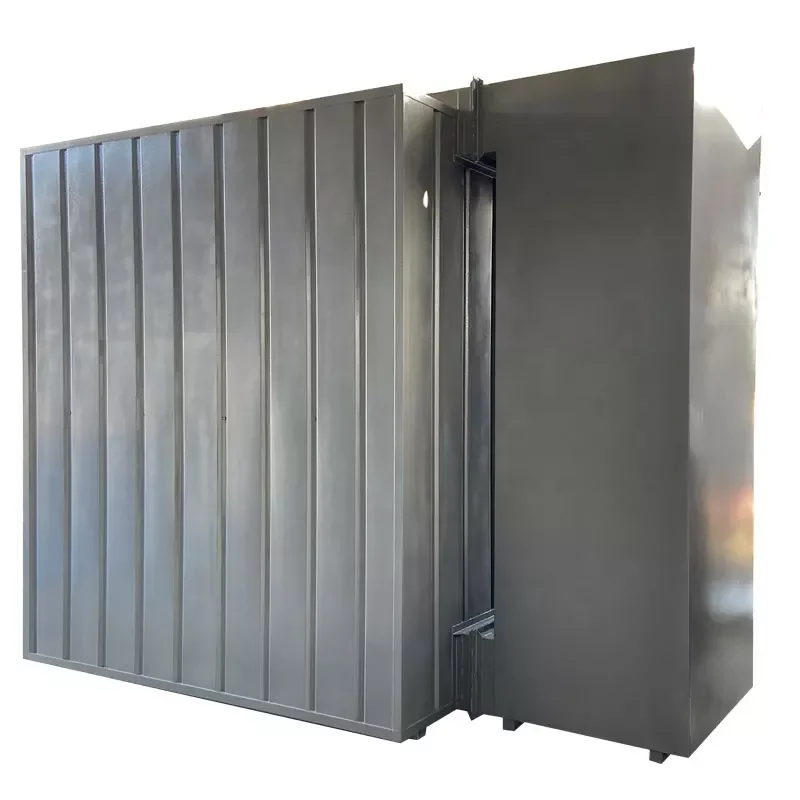

The oven utilizes a sandwich panel design. Rock wool insulation of at least 100mm is inserted between galvanized inner wall and color-steel external skins, effectively minimums temperature dropping.

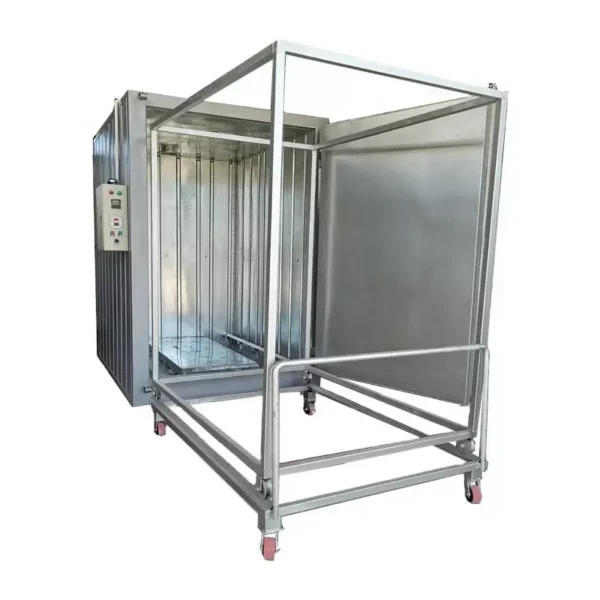

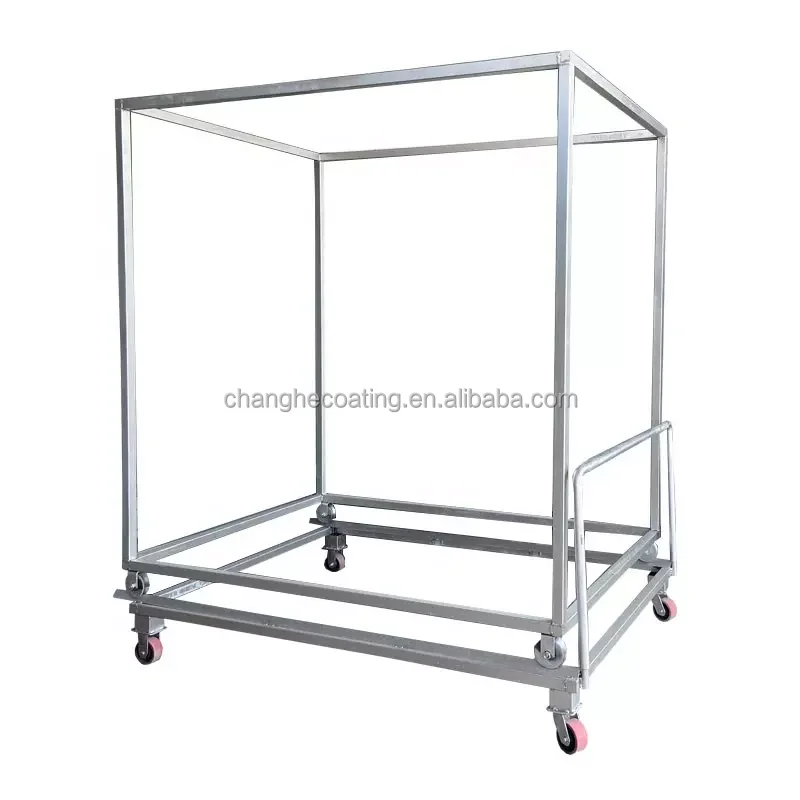

Transportation Trolley
Product hang on the metal shelf, the metal shelf
will be into the oven. By using the trolley, trolley moving across the hall does not contaminate the inside of the oven, which provides high purity
painted elements.
will be into the oven. By using the trolley, trolley moving across the hall does not contaminate the inside of the oven, which provides high purity
painted elements.
Recommend Products

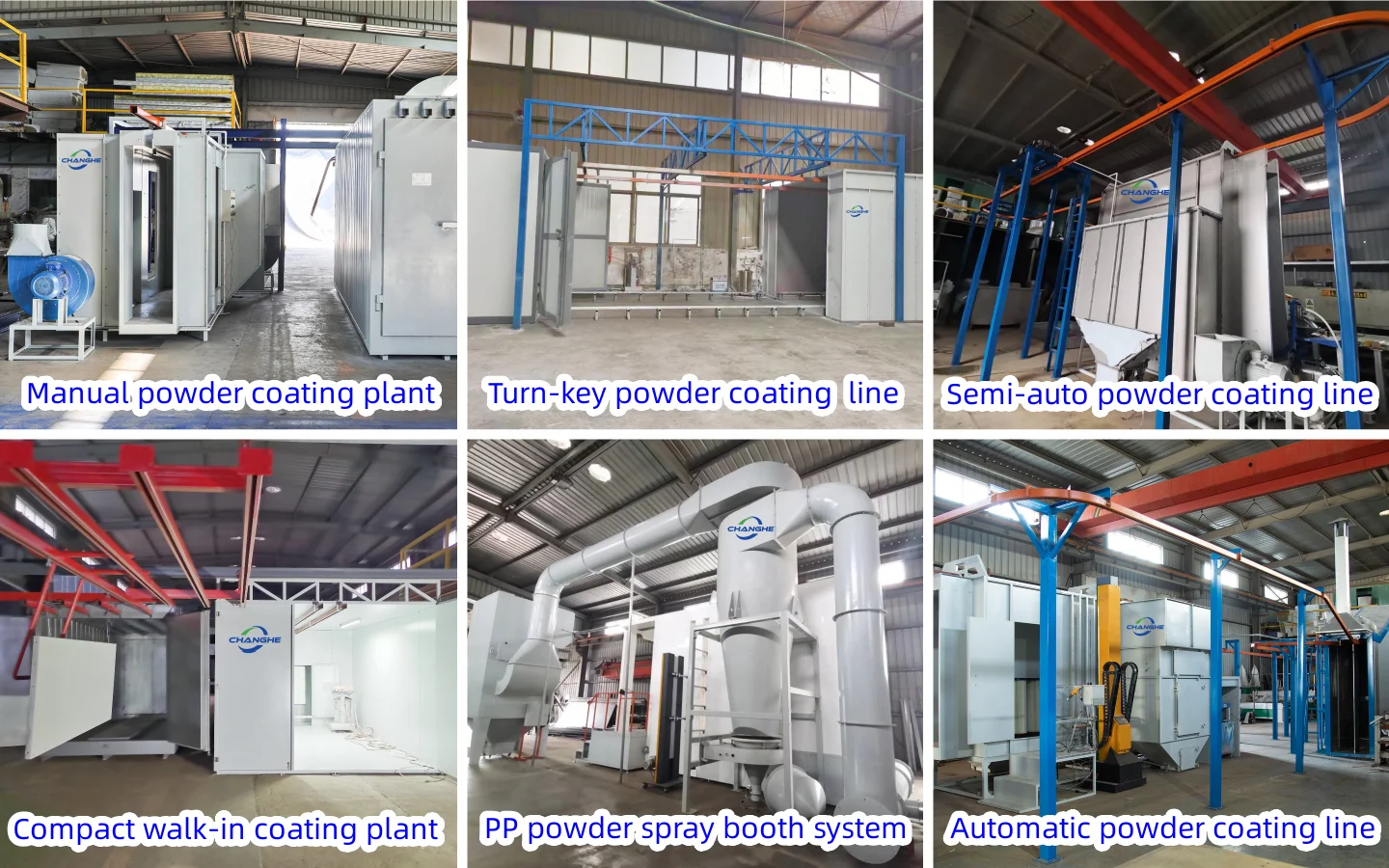

Project Case

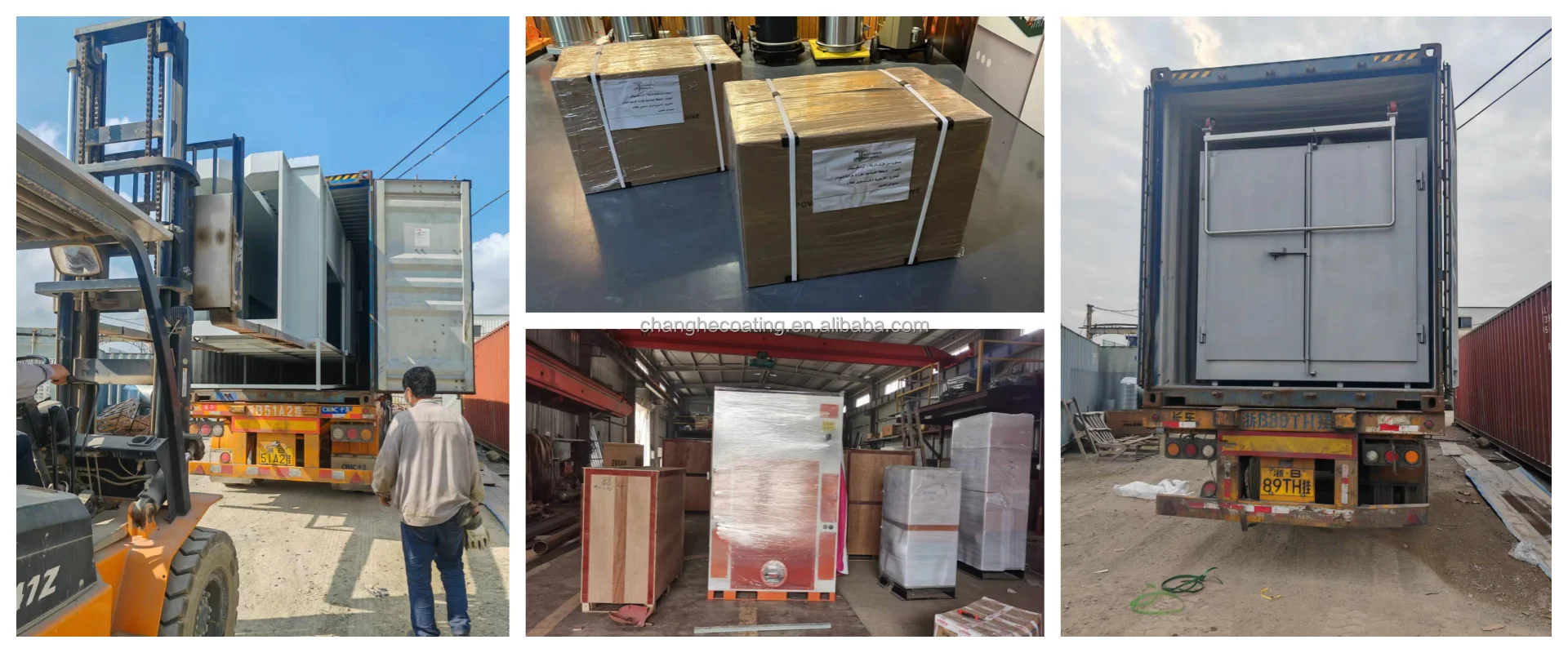

Package & Delivery

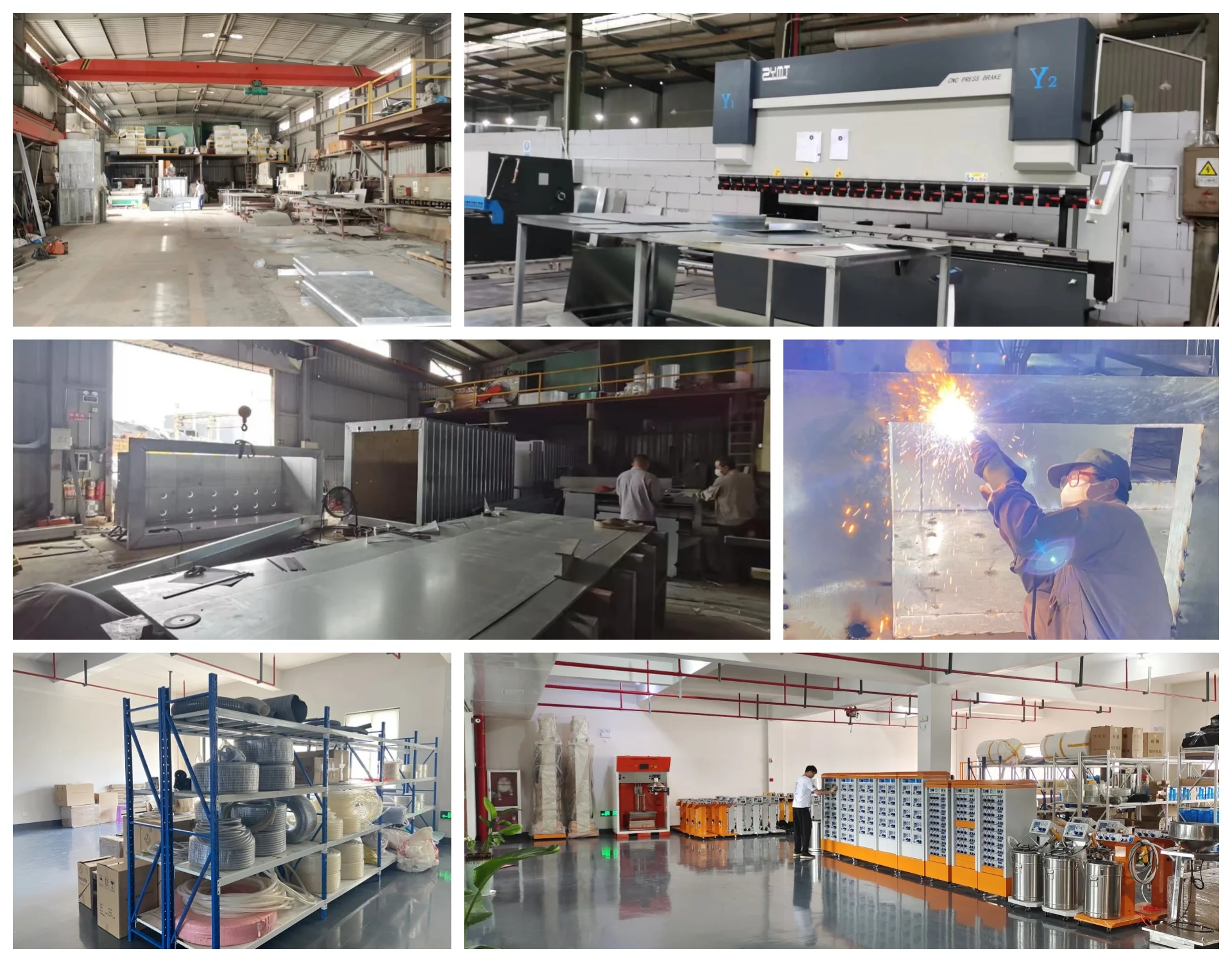

Company Profile
Linhai Changhe Coating Equipment Co.,Ltd.
Changhe, an experienced manufacturer of electrostatic powder coating equipment since year 2010. Changhe can provide you with innovative, rational and economical powder coating equipment one stop solution. Our team has more than 20 years of experience in coating equipment design, manufacture, installation, commissioning and on-going support. Changhe’ s products apply to aluminum profiles, car wheels, distribution cabinets, metal furniture, hardware, crafts and other metal surface treatment.
FAQ
Q1: Are you a factory ?
Yes, we are manufacturer. We have more than 20 years experience coating equipment industry engineers.
Q2: What kind of coating equipment can you supply?
Most products which are related to the coating industry. Our product is non-standard customized. Our experienced engineer will design the drawing for you according to your needs, product and factory situation.
Q3: I don’t know how to choose the suitable equipment.
Don‘t worry. We have professional technicians who can tailor products for you. Please don’t hesitate to contact us for any questions, we will provide you with the best solution.
Q4: Can you install for us?
Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation, meals and transport charges are on the buyers.
Q5: What about the payment?
We accept T/T, Credit Card, Apple Pay, Google Pay, Paypal,etc.
Q6: What about the lead time?
Generally, 5-7 days for powder coating machine and its spare parts. 15-30 days for powder spray booth and curing oven. 45-60 days for powder coating line.
Yes, we are manufacturer. We have more than 20 years experience coating equipment industry engineers.
Q2: What kind of coating equipment can you supply?
Most products which are related to the coating industry. Our product is non-standard customized. Our experienced engineer will design the drawing for you according to your needs, product and factory situation.
Q3: I don’t know how to choose the suitable equipment.
Don‘t worry. We have professional technicians who can tailor products for you. Please don’t hesitate to contact us for any questions, we will provide you with the best solution.
Q4: Can you install for us?
Yes, we can install overseas for you. But the engineers overseas installation cost, round trip air tickets, accommodation, meals and transport charges are on the buyers.
Q5: What about the payment?
We accept T/T, Credit Card, Apple Pay, Google Pay, Paypal,etc.
Q6: What about the lead time?
Generally, 5-7 days for powder coating machine and its spare parts. 15-30 days for powder spray booth and curing oven. 45-60 days for powder coating line.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $4999 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial heating equipment?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial heating equipment be supplied for my local voltage?
The standard configuration is Based on Local. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Linhai Changhe Coating Equipment Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Linhai Changhe Coating Equipment Co., Ltd. range on HVACR Nexus.
