Key specification for this industrial ventilator: 220V, 110V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Foshan Yitong Ventilation Co., Ltd. (11 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

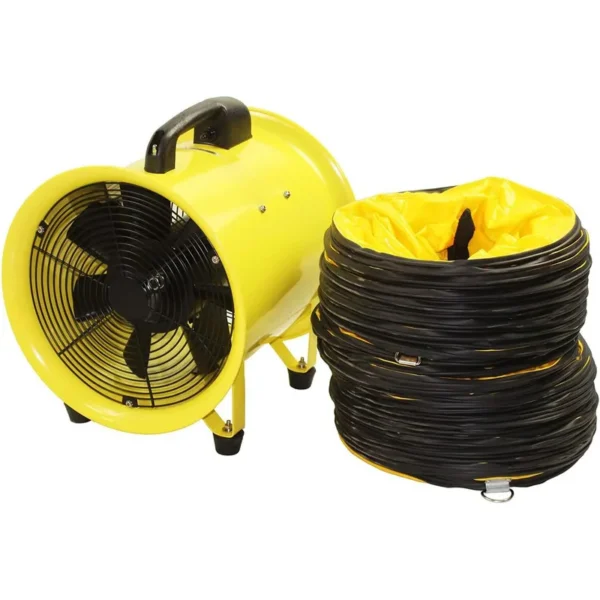

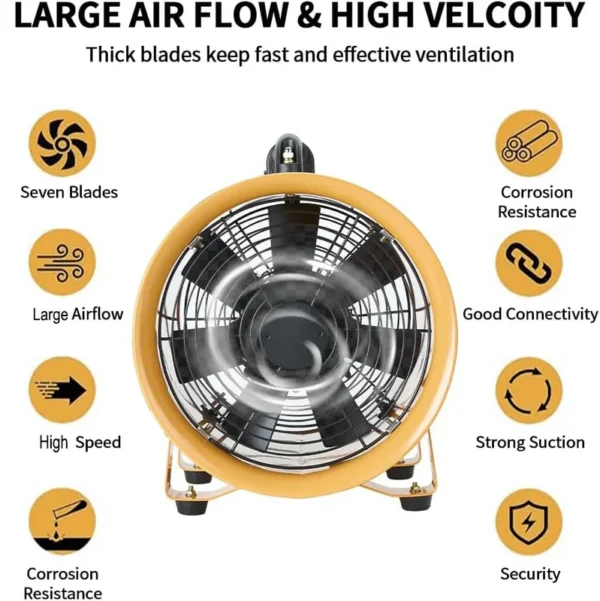

Key Features of This Industrial Ventilator
- Model Number: SHT+YT-5
- Power Source: Electric
- Voltage: 220V, 110V
- Material: Aluminum Alloy
- Blade Material: Aluminum
- Warranty: Other
Technical Specifications
| Voltage | 220V, 110V |
|---|---|
| Type | Duct Axial Fan |
| Material | Aluminum Alloy |
| Blade Material | Aluminum |
| Mounting Type | Duct Fan |
| Bearing Type | hydraulic bearing |
| Power Source | Electric |
| Warranty | Other |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | YITONG |
| Model Number | SHT+YT-5 |
| Function | Air Blow |
| Noise | LOW |
| PACKAGE | Carton |
| Application | Industrial Equipment |
| Fan Type | Aixal Fan |
| Installation | Free-standing |
| Feature | Low Noise Power Saving |
| Selling Units | Single item |
| Single Package Size | XX cm |
| Single Gross Weight | 0.0 kg |
Product Details
Model | Spec (mm) | Voltage (V~) | Frequency (Hz) | Power (W) | Speed (r/min) | Capacity (m3/min) | Static Pressure (Pa) | Noise dB (A) |
SHT-20 | 200(8″) | 220/110 | 50/60 | 230 | 2800/3300 | 25/35 | 245 | 60 |
SHT-25 | 250(10″) | 220/110 | 50/60 | 320 | 2800/3300 | 43/53 | 294 | 68 |
SHT-30 | 300(12″) | 220/110 | 50/60 | 520 | 2800/3300 | 65/75 | 373 | 71 |
SHT-35 | 350(14″) | 220/110 | 50/60 | 750 | 2800/3300 | 82/90 | 598 | 76 |
SHT-40 | 400(16″) | 220/110 | 50/60 | 1100 | 2800/3300 | 96 | 700 | 80 |
SHT-45 | 450(18″) | 220/110 | 50/60 | 750 | 1450 | 160 | 224 | 78 |
SHT-50 | 500(20″) | 220/110 | 50/60 | 1100 | 1450 | 166 | 270 | 84 |
SHT-60 | 600(24″) | 220/110 | 50/60 | 2200 | 1450 | 290 | 300 | 90 |
Application

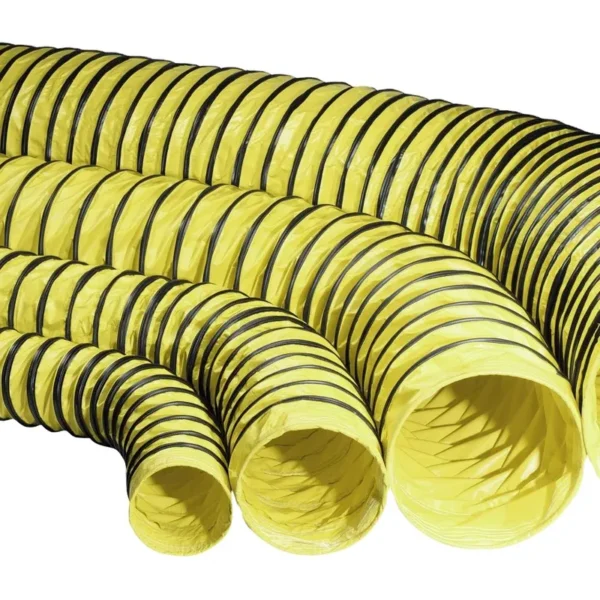

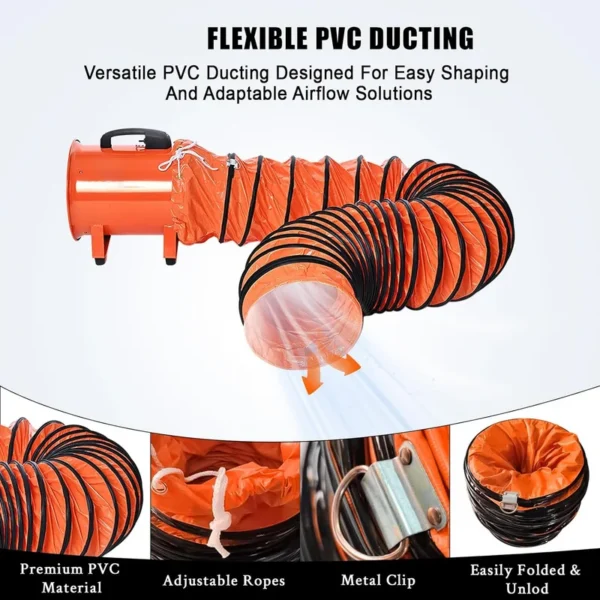

Item | Flexible air duct/Heat resistant duct/Portable blower |
Caliber | Conventional 100mm-1500mm, can be customized |

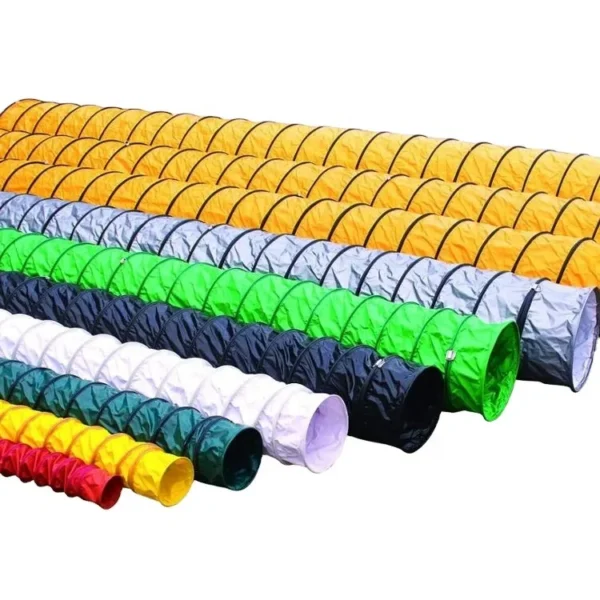

Color | Yellow, Orange, Red, Black, White, Blue, Green, etc.(Customized) |
Material | Made of fire-retardant PVC material |
Length | Conventional 5 meters or 10 meters, can be customized |
Thickness | 0.28mm, 0.35mm, 0.38mm, etc. |

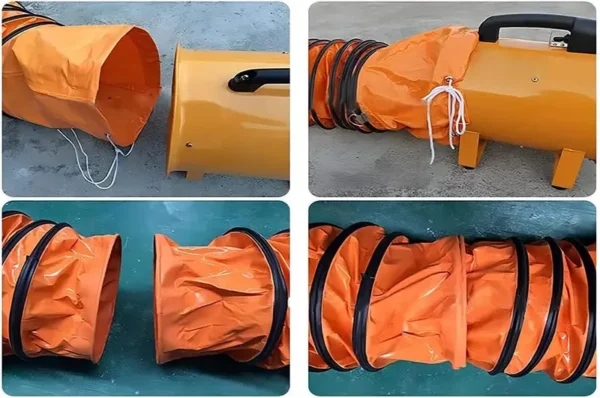

Feature | Flexible duct made of PVC flam-resistant, static-free fabric withsteel wire reinforced. it is able toendure acid, alkali, oleic acid ect. It is easily to turn, connect and move. Temperature range: from -20°C upto +100°C Diameter:6" to 40" standard length:5m or 10m; Keep save and effectively during working.With the strap or pp rope can conveniently connect to the portable ventilator to use together. |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial ventilator?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Other warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial ventilator be supplied for my local voltage?
The standard configuration is 220V, 110V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
