Industrial Wall-mounted Axial Panel, 114-Inch, Aluminum

Industrial wall-mounted axial panel — voltage 380-460V, max airflow 300000m³/h (176000CFM). The complete factory specification follows. Made by Goodwind LLC (2 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Industrial Wall-Mounted Axial Panel

• Model Number: XXX114110BA
• Power Source: Electric
• Input Power: 7500W
• Power: 3PH/380-460V/50-60HZ
• Voltage: 380-460V
• Max Airflow: 300000m³/h (176000CFM)

Technical Specifications

Product Details

BONAWIND PANEL FAN

KEY UPGRADES AND FEATURES

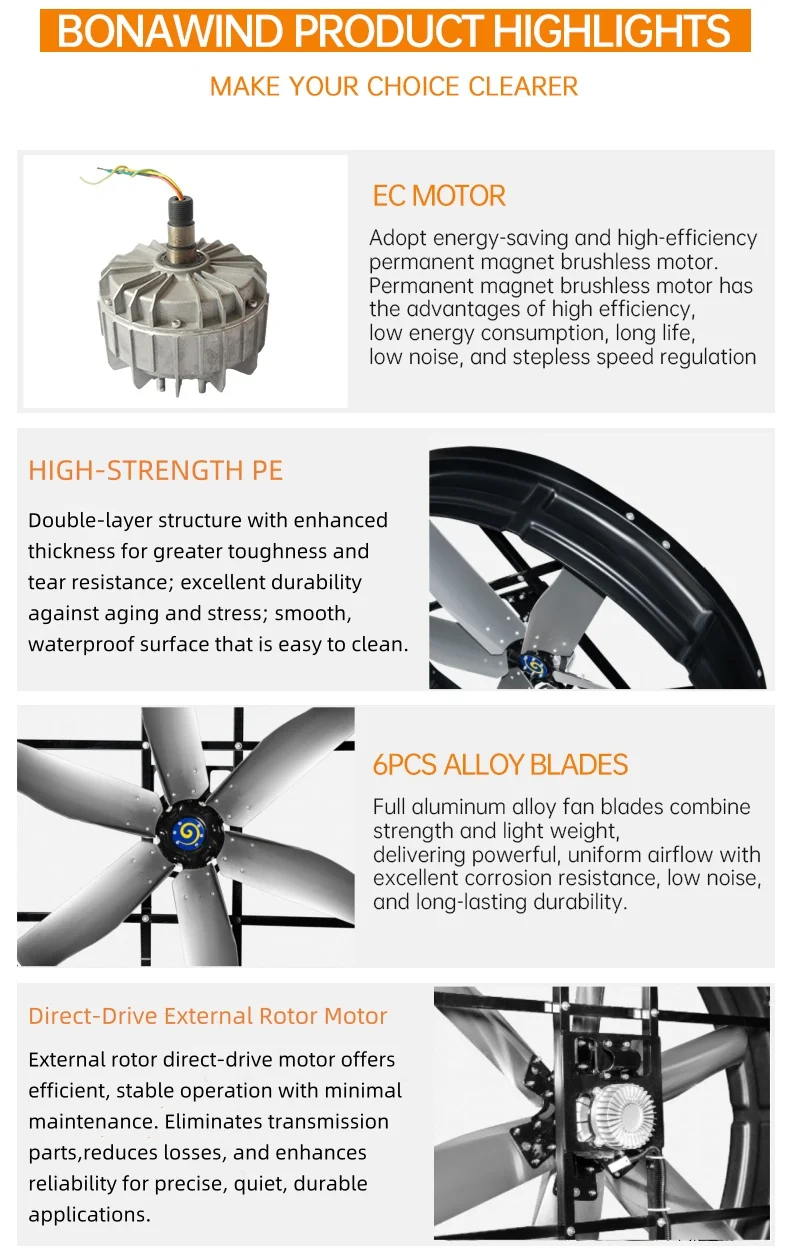

1.Design: High-strength double-layer PE housing, corrosion-resistant, durable, and structurally robust. 2.Motor Performance: Outer rotor permanent magnet brushless DC motor, highly efficient, energy-saving, low-noise, and reliable. 3.Blade Material: Full aluminum alloy panel blades, lightweight yet robust, ensuring uniform airflow and extended service life. 4.Control System: Supports Bonawind IoT APP for intelligent speed control, real-time monitoring, and easy operation. 5.Installation: Wall-mounted or chain-suspended for flexible setup and convenient maintenance.

Product Name	Power	Air Flow@0.00″SP	Rotation Speed	CFM/Watt	Remote Contral
114″Panel Fan	7500W / 10.2HP@3PH 460V	176000 CFM	285 RPM	23	RS485/0-10v MoonetAPP
98″Panel Fan	5000W / 6.8HP@3PH 460V	134000 CFM	300 RPM	27	RS485/0-10v MoonetAPP
86″Panel Fan	3300W / 4.5HP@3PH 460V	91100 CFM	320 RPM	28	RS485/0-10v MoonetAPP
78″Panel Fan	2400W / 3.3HP@3PH 460V	79460 CFM	310 RPM	33	RS485/0-10v MoonetAPP
72″Panel Fan	2000W / 2.7HP@3PH 460V	70630 CFM	345 RPM	35	RS485/0-10v MoonetAPP
63″Panel Fan	1700W / 2.3HP@3PH 460V	52980 CFM	444 RPM	31	RS485/0-10v MoonetAPP
55″Panel Fan	1200W / 1.6HP@3PH 460V	38860 CFM	460 RPM	32	RS485/0-10v MoonetAPP
48″Panel Fan	700W / 0.9HP@3PH 460V	26490 CFM	460 RPM	38	RS485/0-10v MoonetAPP
45″Panel Fan	500W / 0.7HP@3PH 460V	20580 CFM	680 RPM	41	RS485/0-10v MoonetAPP
38″Panel Fan	300W / 0.4HP@3PH 460V	15890 CFM	750 RPM	53	RS485/0-10v MoonetAPP
72″Louver Fan	2000W / 2.7HP@3PH 460V	70630 CFM	345 RPM	35	RS485/0-10v MoonetAPP
45″ Square Panel Fan	600W / 0.8HP@3PH 460V	23960 CFM	610 RPM	40	RS485/0-10v MoonetAPP
38″ Square Panel Fan	410W / 0.6HP@3PH 460V	16070 CFM	750 RPM	39	RS485/0-10v MoonetAPP

1.Can be equipped with the Bonawind Internet of Things APP system. 2.Insulated and Rust-Free Housing. 3.Outer rotor permanent magnet brushless EC motor. 4.Full alloy fan blades ensure the strength of the blades while providing strong and uniform airflow. 5.To quickly expel indoor stale air and enable fresh air to circulate inside, creating a continuous indoor airflow.

With Bonawind’s versatile design, our Panel Fan can be customized to meet your specific requirements, including single-phase or three-phase motors configured for the appropriate voltage in your region, as well as blade materials and installation options. Please contact us to tell us your needs, and we will gladly provide the best solutions.

''Bonawind'' brand established in 2002, recognized for high-quality industrial ventilation solutions.The advantages can be summarized as follows:

Fair Price All products are sold directly from the manufacturer, eliminating middlemen and giving customers maximum cost-effectiveness. Stable Quality With over 23 years of experience, Bonawind has an expert technical team, mature production processes, and reliable suppliers to ensure consistent product quality. Professional Service Our enthusiastic sales team is available 24/7, with responsive after-sales staff ready to provide efficient and comprehensive support. Independent Spare Parts Support Bonawind operates its own spare parts service, offering fast and comprehensive parts procurement to save your time. 100% full inspection of every fan, 23 quality inspection processes, which include noise, vibration, blade speed, air volume, concentric performance, efficiency, etc.

Good heat dissipation, high efficiency, large torque, and more durable.

Driven by innovation, we hold over 20 patents and serve customers in more than 110 countries. Our commitment to excellence is reinforced by a rigorous in-house quality management system, ensuring top-tier standards in every product.

Goodwind has actively participated in exhibitions in the USA, Germany, and other European countries. We are committed to serving all esteemed industries all over the world.

We sincerely hope to work together with you and establish a win-win cooperation in the future. Thank you very much for visiting our website, and we hope you find products you like. When you contact us, we will provide the following professional and enthusiastic services:

Q: Are your fans manufactured by the original factory? A: Yes, Bonawind is the official leading manufacturer of high-quality industrial and commercial fans in the USA. Q: What is the delivery time? A: Delivery is usually made within 30 working days after receiving the deposit. Q: What payment terms are acceptable? A: Typically, we accept a 30% advance payment by T/T, and the remaining 70% is payable after the fan is completed. Q: What is the transportation method? A: Our fans are mainly transported by sea or land, depending on your location and order quantity. Q: Why should I purchase from Bonawind instead of other suppliers? A:We are a factory, reducing intermediary costs and lowering your procurement expenses. We continuously innovate, adopt new technologies, and develop new fan models to meet market demands. Bonawind products are recognized for high quality and reliability, with many models certified by CE and ISO.

Our fans have been sold globally, covering Europe, North America, South America, and Southeast Asia, and are widely trusted by customers. Q: What is the warranty period? A: 3-year warranty. Q: Do you accept customized fans? A: Yes, we accept customized fans, including options for size, voltage, motor type, blade material, and OEM/ODM branding.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1+ piece: US $6385 / piece
• Ships from: US
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this industrial wall-mounted axial panel?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the industrial wall-mounted axial panel be supplied for my local voltage?

The standard configuration is 380-460V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
