Industrial water chiller — 380V/50hz as standard, others available, 80KW. The complete factory specification follows. Made by ShenChuangYi Refrigeration Co., Ltd. (6 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Industrial Water Chiller
- Power: 80KW
- Voltage: 380V/50hz as standard, others available
- Refrigerant: R-404A, R407C, R-22, R134a
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Pump Type: Vane Pump, Gear Pump, Screw Pump
Technical Specifications
| Voltage | 380V/50hz as standard, others available |
|---|---|
| Power | 80KW |
| Refrigerant | R-404A, R407C, R-22, R134a |
| Compressor Brand | Fusheng, Bitzer, Hanbell |
| Pump Type | Vane Pump, Gear Pump, Screw Pump |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Productivity |
| Plug Type | Us Plug |
| Core Components | PLC, Motor, Compressor, Evaporator, Condenser |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 2250 |
| Brand Name | SCY |
| Dimension(L*W*H) | 3200x1900x1800mm |
| Working Temperature Range | 0deg C ~35deg C |

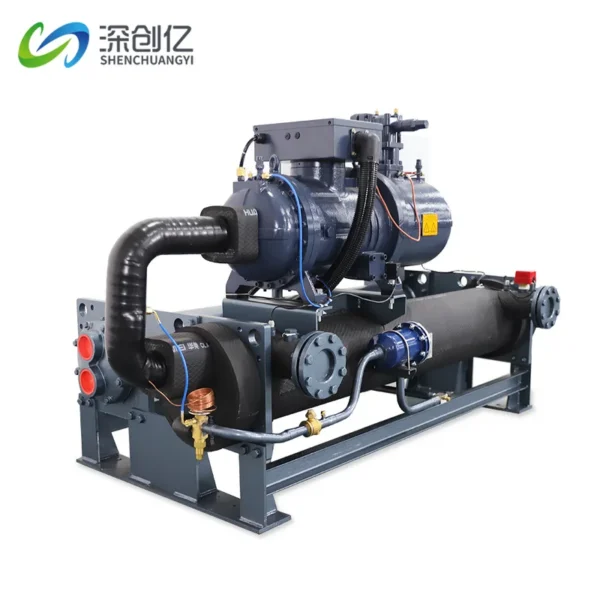

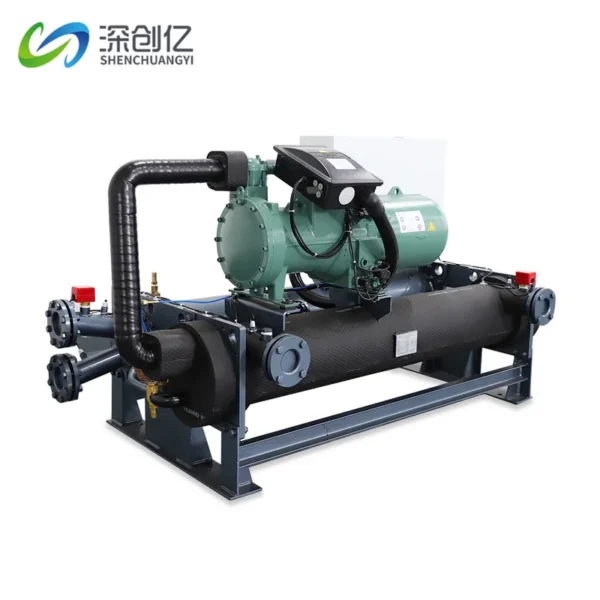

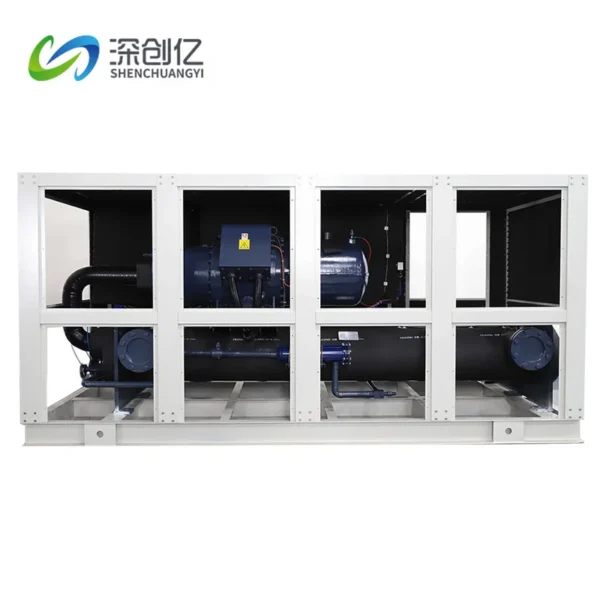

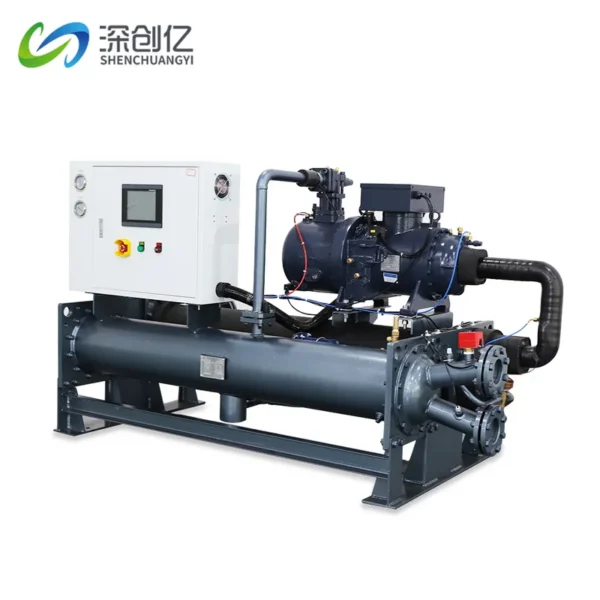

| Product Name | Water cooled screw chiller |
| Compressor Type | Semi-hermetic Screw |
| Condenser | Shell and tube |
| Evaporator | Shell and tube |
| Solenoid Valve | Danfoss |
| Expansion Valve | Danfoss |
| Control System | PLC/ Microcomputer |
| Working Industry | Plastic,rubber, chemical, Metal working |
| Selling Units | Single item |
| Single Package Size | 210X90X180 cm |
| Single Gross Weight | 800.0 kg |
Product Details
Product Overview
Extruding PVC Line Cooling System 50 Tons Industrial Water Chiller 200KW Semi-hermetic Water Cooled Screw Chiller
Optional PLC control system, VFD Inverter
Water cooled screw chiller are widely used in many industries like plastic and rubber manufacturing, electronics productions, electroplating medical chemistry, ultrasonic cooling and printing business etc. It could accurately provide needed temperature for modern industrial manufacturing and largely improve efficiency and product quality.SCY industrial chiller are with simple operation reasonable design and superior quality for more than one hundred different models ,which are the best choice for modern industries. This industrial water chiller can automatically alternate operation according to load changes, balancing the operating load of the compressor, greatly extending the service life of the chiller unit, with trouble-free operation of more than 45,000 hours.Screw type chiller adopts screw compressor, high efficiency, low noise, durable service, reliable operation.
FEATURES AT A GLANCE
1) Air cooled screw chiller cooling capacity : 108kW~3500kW /30Ton~1000Ton
2) Adopt reliable screw compressor, brand Bitzer/ Hanbell/Fusheng
3) Temperature control: 5deg C~35deg C, ULTRA low temperature -80C, glycol chiller to -30C – 0C
4) Shell and tube condenser, connect to tower
5) Closed shell and tube evaporator
6) Modbus485 or Ethernet internet interface
7) High COP, low power consumption;
8) One or two compressor combination according to cooling capacity.
Right elevation
Left elevation
Front elevation
PRODUCT CONFIGURATION
Water-cooled screw chiller-compressor features: 1. Screw Compressor(Bitzer/RefCOmp/Hanbell) which is 20-30% more energy efficient than the general compressor.
2. This industrial chiller unit has obtained patents from many countries in Europe and America and has passed the ISO9001, CE, UL international quality certification.
3. Applied Variable frequency driver ( VFD/ Inverter ) to save electricity and extend the compressor serving life greatly.
4. Capacity control can be four-stage (100%-75%-50%-25%) or three-stage (100%-66%-33%) and non-stage control system.
5. Work with different kind of refrigerant such as R513A/ R448A/R407C/R22/R134A
2. This industrial chiller unit has obtained patents from many countries in Europe and America and has passed the ISO9001, CE, UL international quality certification.
3. Applied Variable frequency driver ( VFD/ Inverter ) to save electricity and extend the compressor serving life greatly.
4. Capacity control can be four-stage (100%-75%-50%-25%) or three-stage (100%-66%-33%) and non-stage control system.
5. Work with different kind of refrigerant such as R513A/ R448A/R407C/R22/R134A
Bitzer Compressor
Germany Imported brand Bizter compressor
Hanbell Compressor
China Taiwan brand Compressor
Evaporator
1) Highly efficient closed loop shell and tube type heat exchanger as evaporator
2) made of reinforced copper pipe with threads on both sides, and the copper pipe has a good heat dissipation.
3) Insulated with a 25mm thick PE insulation board. No condensation is produced and less cooling loss.
Water cooled Condenser
1) Closed shell and tube type condenser, to be connected with cooling tower to dissipate heat out.
2) The condenser uses German and Japanese original copper pipes, which are processed into trapezoidal low rib pipes to improve the heat transfer capacity. The inner surface of the copper tube is smooth, which reduces the water pressure and is easy to clean and maintainace.
Big LED Touch Screen;
With temperature display and status running inquiry
Schneider electricals. PC-level computer control system, remote monitoring and control, simple operation. Low failure rate, high safety.
Water flow switch, to monitoring whole water system flow rate, protection both chiller and production process run smoothly.
PRODUCT SPECIFICATIONS
Single Screw Type Water-cooled Chiller | ||||||||||
Model | SCY-80S | SCY-90S | SCY-100S | SCY-120S | ||||||
Power supply | 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase | |||||||||
Cooling capacity | kw | 260 | 293 | 335 | 409 | |||||
tons | 73.93 | 83.31 | 95.25 | 116.29 | ||||||
Kcal/h | 223600 | 251980 | 288100 | 351740 | ||||||
Power consumption | kw | 51.2 | 56.5 | 64.8 | 78.5 | |||||
Freeze water flow | m³/h | 46 | 50 | 54 | 68 | |||||
Cooling water flow | m³/h | 55 | 62 | 68 | 82 | |||||
Compressor | Type | Semi-hermetic screw type | ||||||||
Start method | Y-△start | |||||||||
Quantity(pcs) | 1 | |||||||||
Volume control(%) | 0-25-50-75-100 | |||||||||
Input power(kw) | 56 | 61 | 70 | 85 | ||||||
Refrigerating oil | Type | SUNISO-4GS | ||||||||
Filling volume(L) | 12 | 16 | 16 | 16 | ||||||
Refrigerant | Type | R22, R134a, R407c | ||||||||
Control method | External balanced thermostatic expansion valve | |||||||||
Filling volume(kg) | 42 | 48 | 54 | 64 | ||||||
Evaporator | Type | Shell and tube | ||||||||
Pipe diameter(in) | 4” | 5” | ||||||||
Condenser | Type | Shell and tube | ||||||||
Pipe diameter(in) | 4" | 5” | ||||||||
Safty protector | Dual pressure switch, frost-proof protection, soluble pin/safety valve, overload protective device, coil over-heating protection system, temperature automatic protection switch. | |||||||||
Dimension | Length(mm) | 2600 | 2800 | 2800 | 3200 | |||||
Width(mm) | 850 | 850 | 850 | 900 | ||||||
Height(mm) | 1700 | 1700 | 1800 | 1800 | ||||||
Weight(kg) | 1680 | 1800 | 1930 | 2250 | ||||||
Water Cooled Screw Chiller ( Double Compressors) | ||||||||||
Model | SCY-400D | SCY-440D | SCY-480D | SCY-520D | ||||||
Power supply | 3PH-50Hz-380V | |||||||||
Cooling capacity | kW | 1276 | 1430 | 1610 | 1732 | |||||
TONS | 362.81 | 406.60 | 457.78 | 492.47 | ||||||
Kcal/h | 1097360 | 1229800 | 1384600 | 1489520 | ||||||
Power consumption | kw | 243 | 274.2 | 309 | 330 | |||||
Freeze water flow | m³/h | 212 | 242 | 268 | 290 | |||||
Cooling water flow | m³/h | 258 | 295 | 32 | 352 | |||||
Compressor | Type | Screw | ||||||||
Start method | Y-△start | |||||||||
Quantity(pcs) | 2 | |||||||||
Volume control(%) | 0-100(8 levels volume control) | |||||||||
Input power(kw) | 264 | 296 | 334 | 360 | ||||||
Refrigerating oil | Type | SUNISO-4GS | ||||||||
Filling volume(L) | 46 | 56 | 56 | 56 | ||||||
Refrigerant | Type | R22, R134a, R407c | ||||||||
Control method | External balanced thermostatic expansion valve | |||||||||
Filling volume(kg) | 206 | 230 | 244 | 260 | ||||||
Evaporator | Type | Shell and tube | ||||||||
Pipe diameter(in) | 12" | 16" | ||||||||
Condenser | Type | Shell and tube | ||||||||
Pipe diameter(in) | 12" | 16" | ||||||||
Safty protector | Dual pressure switch, frost-proof protection, soluble pin/safety valve, overload protective device, coil over-heating protection system, temperature automatic protection switch. | |||||||||
Dimension | Length(mm) | 4000 | 4000 | 4350 | 4350 | |||||
Width(mm) | 1420 | 1420 | 1420 | 1420 | ||||||
Height(mm) | 1960 | 2080 | 2080 | 2080 | ||||||
Weight(kg) | 5530 | 5600 | 5850 | 6280 | ||||||
If the models above can not meet your cooling requirement, please contact with us for more details. We have cooling capacity from 3Ton to 1000Ton and temperature control : +50deg C to -60deg C
Water Tank, double layer sus304 with 50-100mm insulation sheet
Water cooling tower, both circle and square available on request
Circulation Water Pump, chilled pump for chiller and cooling pumps for tower
Successful Project
Product packaging
Water cooled chiller will be packed by PE foam and plastic film, then fix into the wood case for sea transportation.
Before pack chiller, it will be fill in the refrigerant and tested well, then to be clean up.
Company Profile
FAQ
Q1: Could you help us to recommend the model for our project? A1: Yes, we have professional engineer to check the details and choose the correct model for you. Based on the following: 1). Voltage: _phase_V_HZ; 2). Cooling capacity, If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part; 3). Application industry; 4). Environment temperature; 5). Refrigerant type, R22, R407c or other, pls clarify; 6). Pump flow and pressure requirements; 7). Any other special requirements. Q2: How to ensure your product with good quality? A2: All our products with CE certificate and our company Strictly comply with CE,ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, SANYO, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components. The units will be fully tested before package and The packing will be carefully checked. Q3: What's the warranty? A3: 1 year warranty for all parts; Whole life labor free! Q4: Are you a manufacturer? A4: Yes, we have more than 13 years in industrial refrigeration business and we give factory direct sale price .Our factory located in Dongguan; Welcome to visit us at anytime.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $2990 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial water chiller?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial water chiller be supplied for my local voltage?
The standard configuration is 380V/50hz as standard, others available. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
