Water Cooler, 20Ton, 25HP, 70kW, Plastic

This water cooler is published with the manufacturer’s full specification — voltage 3PH-380V/50hz as usual, others available, 70KW. Made by ShenChuangYi Refrigeration Co., Ltd. (6 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Water Cooler

• Power: 70KW
• Voltage: 3PH-380V/50hz as usual, others available
• Refrigerant: R22, R407C, R410A, R134A
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Application: Injection molding, extrusion, blowing

Technical Specifications

Product Details

Product Overview

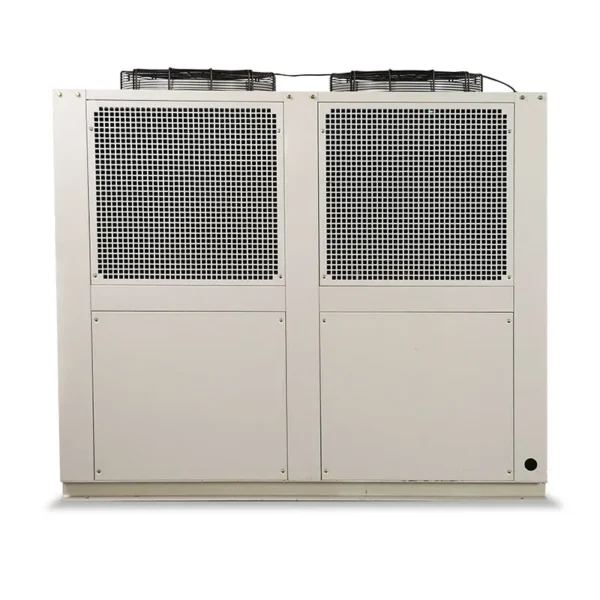

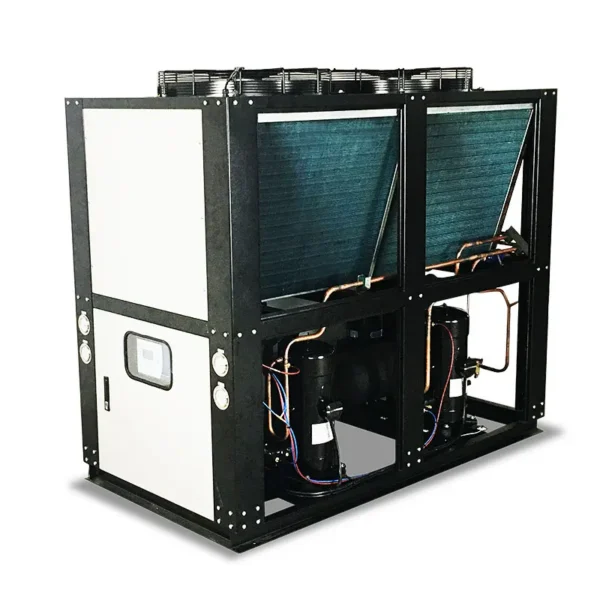

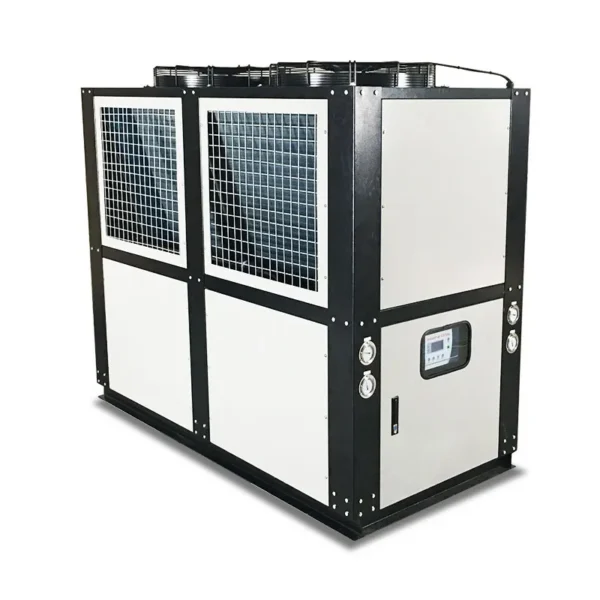

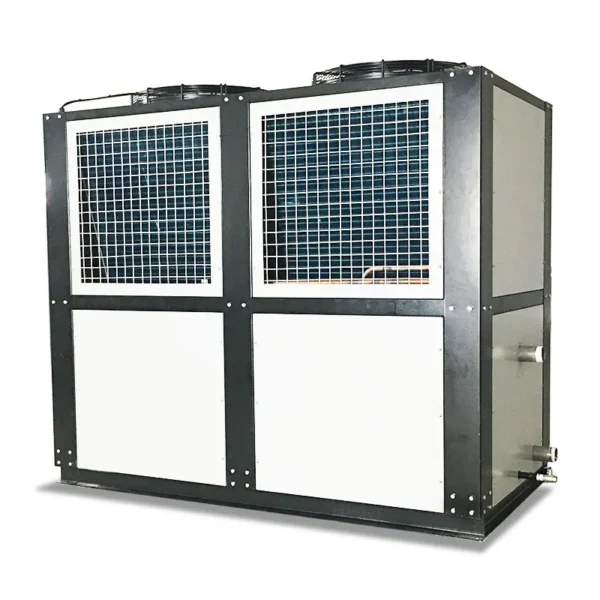

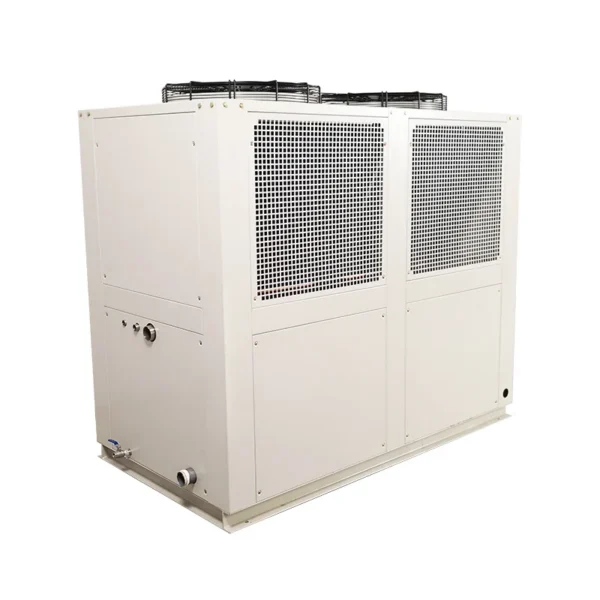

20Ton 25HP 70kW Water cooler machine plastic injection mould cooling system air cooled chiller

Air cooled water chiller is mainly applied to a cooling process in molding of plastic film and PE plastics bag or other industries. The chiller will greatly improve quality of molded products and shorten period of injection molding cycles. The max different is the way of heat radiation by fans with water cooled chiller. There are three main interrelated systems: refrigerant circulation system, water circulation system, electrical control system. Refrigerant circulation system: The liquid refrigerant in the evaporator absorbs the heat in the water and begins to evaporate. Finally, a certain temperature difference is formed between the refrigerant and the water. The liquid refrigerant also completely evaporates into the gas phase, and is then inhaled and compressed by the compressor (pressure and temperature increase). After being throttled through the expansion valve , low temperature and low pressure refrigerant enters the evaporator to complete the refrigerant circulation process.

FEATURES AT A GLANCE

Industrial Air Cooled Water Chiller

Air cooled industrial chiller is a kind of most popular sale chillers, easy installation, it can start to work by water pipeline and power connected, no need to apply with cooling tower, and convenient to install and move in the factory.

1. Using Panasonic from Japan, COPELAND from the United States and other brand compressors DANFOSS/ BITZER, low noise and power saving, More durable; 2. With high efficiency V type shape condenser, easy for heat discharge out； 3.World famous brand parts: such Danfoss/ ALCO expansion valve, Schneider electrical components; 4. Chiller have 3 type evaporator work for different circuit: Closed shell and tue/ Plate, and Open tank coil ; 5.Stable quality, long using life. 6.Strong unit base frame ensured the equipment stable operation 7.Refrigerant is R407C,R22,but R410A,R134A also available. 8.Power and frequency supply:380V-3PH-50HZ as standard;othes 220~480V-3PH, 50/60HZ available; 9.Chilled water range: 5°C to 30°C

Optional functions: 1) Both Cooling and heating in one chiller can be customized. 2) RS485 communication, which can realize automation management. 3) Two kinds different outlet temperature control can be customized. 4) Explosion proof design of electric control cabinet and wire pipeline.

5) Soft starter for motor to reduce effect on electricity

PRODUCT CONFIGURATION

Temperature Control System

1. Micro-computer control system include program board and operation panel;

2. Display current actual temperature and also show set temperature, detail running parts status can be inquired and errors show with full system protections.

Electrical Components

1. Schneider electrical parts as regularly, and other Simens, Chnt, ABB available with UL CSA certified.

2. Include air switch, AC Contactors, Thermal relay, to match for each motor capacity.

3. Reliable and safe

Emerson Copeland Compressor

Panasonic Compressor

Water Flow Switch

Coil in Tank type Evaporator.

1. Stainless steel water tank, internal with SUS304 tube, no rust on water system.

2. with water level sensor and ball valve for auto-filling water.

Plate type evaporator

1. Smart space , copper welding and stainless steel plates material.

2. much higher cooling efficiency and easy for built one buffer tank

Shell and tube type evaporator

1. Closed loop, shell and tube type, , compared to open tank type, more stable system.

2. suitable for cooling multiple plastic moulding machines.

Axial Fans

Circulation Water Pump.

High/low Pressure Controller

PRODUCT SPECIFICATIONS

Model			SCY-10A	SCY-12A	SCY-15A	SCY-20A	SCY-25A
Power supply			3Φ-50Hz-380V(208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase)
Cooling capacity	kw	28.5	35.7	40.5	58.8	70
		tons	8.10	10.15	11.52	16.72	19.90
		Kcal/h	24510	30702	34830	50600	60200
Power consumption	kw	9.35	11.25	14.1	18.4	21.7
Running current	A	18.1	21.7	27.2	35.5	41
Freeze water flow	m³/h	4.8	6	7.8	10.8	12.6
Compressor	Type	Scroll
		Input power(kw)	7.5	9	11.25	15	18
Pump	Power(kw)	0.75	0.75	1.5	1.5	2.2
Refrigerant	Type	R22, R134a, R407c, R410a
		Control method	External balanced thermostatic expansion valve
		Filling (kg)	6	7	8	12	13
Evaporator	Type	Shell and tube, Plate, Coil in Tank
		Pipe size(in)	1-1/2"			2"			2-1/2"
Condenser	Type	High efficient Finned Copper Tube
Fan	Type	Axial-flow Fan
		Air volume(m³/h)	10000	12000	15000	20000	25000
		Power(kw)	1.1	1.35	1.35	1.5	1.5
Safty protector			Dual pressure switch, frost-proof protection, soluble pin/safety valve, overload protective device, coil over-heating protection system, temperature automatic protection switch.
Dimension	Length(mm)	1300	1450	1600	1900	1900
		Width(mm)	780	790	900	990	990
		Height(mm)	1530	1530	1640	1660	1860
Weight(kg)			400	450	540	760	810

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PRODUCT PICTURE

Successful Project

Industrial Air Cooled water chiller widely work for many different industries, in particular for the plastic field, such as :
injection molding, extrusion(sheet & profile), blow molding, PET, plastic film, and other industrial field : electroplating
(surface treatment), chemical, hydraulic system, leaser, shoe-making, electronic, printing,food, beverage, dairy, etc.

Grinding industry

Ice Rink Chiller

Plastic indsutry

Chemical industry

Plastic industry

Food Industry

FAQ

Q1: Could you help us to recommend the model for our project? A1: Yes, we have engineer to check the details and choose the correct model for you. Based on the following: 1) Cooling capacity; 2) If you don’t know, you can offer the flow rate to your machine, temperature in and temperature out from your using part; 3) Environment temperature; 4) Refrigerant type, R22, R407c or other, pls clarify; 5) Voltage; 6) Application industry; 7) Pump flow and pressure requirements; 8) Any other special requirements. Q2: How to ensure your product with good quality? A2: All our products with CE certificate and our company Strictly comply with ISO900 quality management system. We use the worldwide famous brand accessories, such as DANFOSS, COPELAND, PANASONIC, BITZER, HANBELL compressors, Schneider electrical components, DANFOSS/EMERSON refrigeration components. The units will be fully tested before package and The packing will be carefully checked. Q3: What’s the warranty? A3: 1 year warranty for all parts; Whole life technial service free! Q4: Are you a manufacturer? A4: Yes, we have more than 13 years in industrial refrigeration business. Our factory located in Shenzhen; Welcome to visit us at anytime. Also have patent on the chillers’ design.

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–4 unit: US $4800 / unit
  • 5+ unit: US $4320 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this water cooler?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the water cooler be supplied for my local voltage?

The standard configuration is 3PH-380V/50hz as usual, others available. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
