Industrial water cooled chiller — 380V/ 415V / 440V /460V/50Hz or 60Hz, 18KW~4000KW. The complete factory specification follows. Made by Jiangsu Huazhao Refrigeration Equipment Co., Ltd. (17 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Industrial Water Cooled Chiller
- Power: 60kw—998kw
- Power Supply: 3PH-380V/415V/440V/460V/480V-50HZ/60HZ
- Voltage: 380V/ 415V / 440V /460V/50Hz or 60Hz
- Cooling Capacity: 18KW~4000KW
- Refrigerant: R134a/R407c/R410a
- Warranty: 3 Years
Technical Specifications
| Voltage | 380V/ 415V / 440V /460V/50Hz or 60Hz |
|---|---|
| Power | 60kw—998kw |
| Warranty | 3 Years |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Competitive Price, High Productivity, Easy To Operate, Energy Saving |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 2480 |
| Brand Name | HUATENG |
| Dimension(L*W*H) | customized |
| After-Sales Service Provided | Engineers available to service machinery overseas |
| Application | Industrial Cooling Solutions |
| Cooling Capacity | 18KW~4000KW |
| Evaporator | Shell-and-Tube |
| Condenser | Shell Tube Condenser |
| Compressor Type | Screw Semi-hermetic |
| Function | CHILLING |
| Refrigerant | R134a/R407c/R410a |
| Power Supply | 3PH-380V/415V/440V/460V/480V-50HZ/60HZ |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

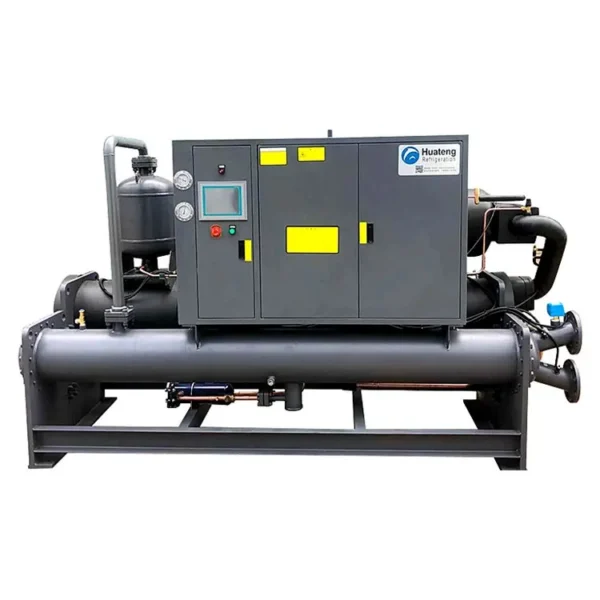

Industrial Water Cooled Chiller for cooling 5c cooled water for Concrete Batching Plant
| Model | HTK-M200 | HTK-M220 | HTK-M250 | HTK-M270 | HTK-M300 | HTK-M350 | HTK-M400 | HTK-M470 | HTK-M530 | HTK-M600 | HTK-M660 | HTK-M750 | |
| Cooling | KW | 195 | 220 | 250 | 265 | 297 | 350 | 400 | 466 | 530 | 598 | 662 | 748 |
| Capacity | Kcal/Hr | 167700 | 189200 | 215000 | 227900 | 255420 | 301000 | 344000 | 400760 | 455800 | 514280 | 569320 | 643280 |
| RT | 55.44 | 62.55 | 71.08 | 75.35 | 84.45 | 99.52 | 113.73 | 132.5 | 150.7 | 170.03 | 188.23 | 212.68 | |
| Power | 50HZ | 3P-380V-50HZ | |||||||||||
| Input power(KW) | 41.4 | 46.1 | 51.6 | 55.4 | 58.9 | 67.8 | 78.3 | 90.9 | 103 | 116.2 | 128.7 | 145.3 | |
| EER | COP | 4.71 | 4.77 | 4.84 | 4.78 | 5.04 | 5.16 | 5.11 | 5.13 | 5.15 | 5.15 | 5.14 | 5.15 |
| Freezing medium | R134a | ||||||||||||
| control mode | Thermal expansion valve | ||||||||||||
| Comprosser | Mode | Semi-closed double screw | |||||||||||
| Working style | Y-Δ/Δ-Δ | ||||||||||||
| Capacity | 0-25%-50%-75%-100% | ||||||||||||
| Condensor | Mode | Efficient external thread shell and tube type | |||||||||||
| Cooling water tempreture | In 30℃/Out 35℃ | ||||||||||||
| Cooling water flow (m³/h) | 41.9 | 47.3 | 53.8 | 57 | 63.9 | 75.3 | 86 | 100.2 | 114 | 128.6 | 142.3 | 160.8 | |
| Pressure loss (Kpa) | 55 | 55 | 58 | 58 | 58 | 61 | 61 | 63 | 65 | 65 | 66 | 67 | |
| waterpipe | DN80 | DN80 | DN100 | DN100 | DN100 | DN100 | DN125 | DN125 | DN125 | DN150 | DN150 | DN150 | |
| Evaporater | mode | Efficient internal thread shell and tube type | |||||||||||
| Freeze water tempreture | In 12℃/Out 7℃ | ||||||||||||
| Freeze water flow (m³/h) | 33.5 | 37.8 | 43 | 45.6 | 51.1 | 60.2 | 68.8 | 80.2 | 91.2 | 102.9 | 113.9 | 128.7 | |
| Pressure loss (Kpa) | 52 | 55 | 58 | 58 | 58 | 58 | 61 | 61 | 61 | 62 | 64 | 64 | |
| waterpipe | DN80 | DN80 | DN100 | DN100 | DN100 | DN100 | DN125 | DN125 | DN125 | DN150 | DN150 | DN150 | |
| Safeguard | High and low pressure protection; overload protection; anti-phase protection, compressor over temperature protection; | ||||||||||||
| high pressure safety valve protection; oil pressure protection; exhaust over heat protection | |||||||||||||
| Units Weight | Kg | 980 | 1250 | 1590 | 1720 | 2040 | 2460 | 2780 | 3060 | 3200 | 3850 | 4100 | 4300 |
| Size | L(mm) | 2300 | 2300 | 2800 | 3200 | 3200 | 3600 | 3600 | 3800 | 4000 | 4000 | 4100 | 4100 |
| W(mm) | 1100 | 1100 | 1250 | 1250 | 1360 | 1360 | 1360 | 1400 | 1480 | 1480 | 1500 | 1500 | |
| H(mm) | 1420 | 1420 | 1530 | 1620 | 1620 | 1760 | 1760 | 1780 | 1820 | 1820 | 1900 | 1900 | |
| Noise(dB) | 72 | 72 | 73 | 74 | 74 | 75 | 75 | 76 | 77 | 77 | 78 | 79 | |
Note:
1.Above cooling capacity parameters are all based on the conditions of condensation temperature 40℃,evaporation temperature 2℃.
2.We can make order according to your requirement.
3.Please indicate the hot recycled if needed,as the recycle rate can be up to 25%-30% of the unit refrigerating capacity,the temperature can be up to 55℃.
This form is for reference only. We provide customized solutions based on customer's parameter requirements, providing each customer with one-to-one, more accurate parameter tables.
Model Description:
1.The series water chiller used the efficient screw compressor from European, with its own superiority: high energy efficiency, low noise, high reliability, small footprint, easy installation, simple operation and high flexibility.
2.It is widely used in surface engineering, medicine, chemical industry, metallurgy, leather, laser, electronics, plastic injection molding, printing and other industries.
3.The series water chillers have too many models. It can achieve a perfect match for industrial applications.
| For more product information, please click | CONTACT US > |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $15800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industrial water cooled chiller?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the industrial water cooled chiller be supplied for my local voltage?
The standard configuration is 380V/ 415V / 440V /460V/50Hz or 60Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Huazhao Refrigeration Equipment Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Huazhao Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
