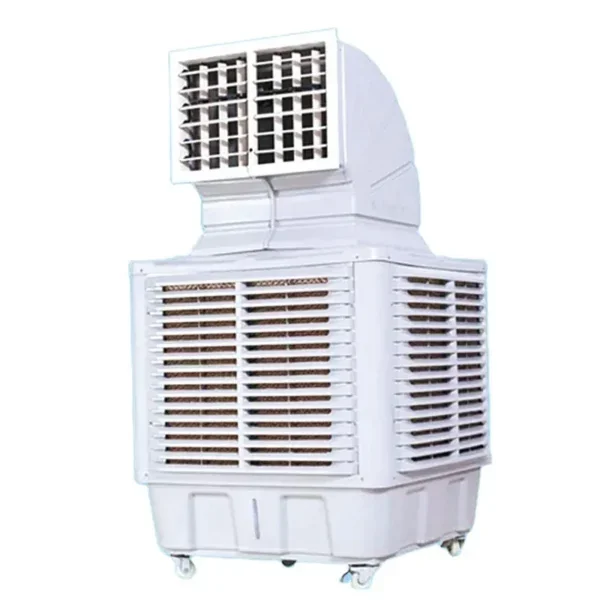

This industry evaporative air cooler is published with the manufacturer’s full specification — voltage 110/220/380 VAC, type EVAPORATIVE AIR COOLER. Made by Shandong Erbang Agricultural Technology Co., Ltd. (6 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Industry Evaporative Air Cooler
- Operating Voltage: 110/220/380 VAC
- Voltage: 110/220/380 VAC
- Airflow: 18000m³/h-30000m³/h(635664ft3/h-1059440ft3/h)
- Warranty: 1 Year
- Certification: CE
- Place Of Origin: Shandong, China
Technical Specifications
| Type | EVAPORATIVE AIR COOLER |
|---|---|
| Airflow | 18000m³/h-30000m³/h(635664ft3/h-1059440ft3/h) |
| Operating Voltage | 110/220/380 VAC |
| Mounting Type | Wall / Window Mount |
| Key Selling Points | Long Service Life |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |

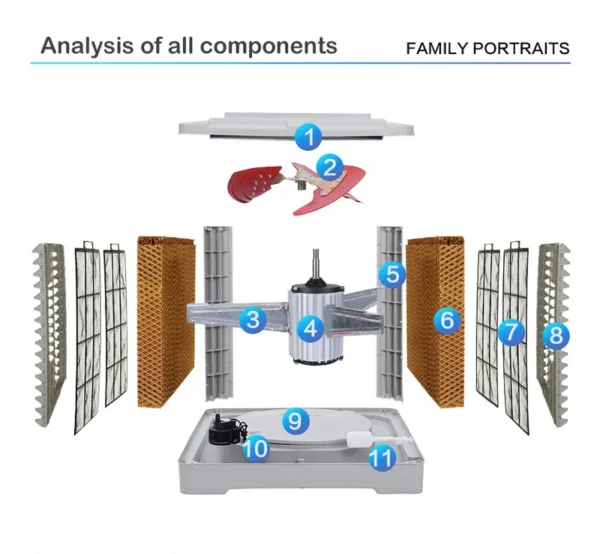

| Core Components | Motor, Gear, Pump |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 50 KG(110.23lb) |
| Brand Name | erbang |

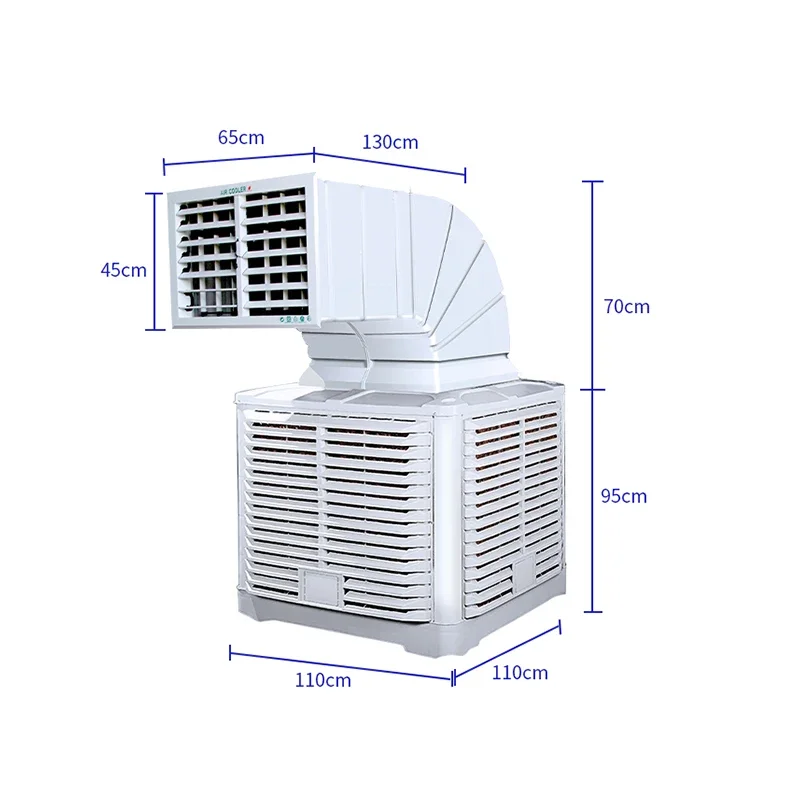

| Dimension(L*W*H) | 1100*1100*950mm~1280*1280*1280mm |
| Product Name | 18000m3/h 12000 cmh 25000 m3/h 30000cmh Powerful Airflow Industry Evap |
| After-Sales Service | Online support |
| Voltage | 110/220/380 VAC |
| Certification | CE |
| Application | Construction works Breeding plant Greenhouse chicken Pig farm |
| Size | 1100*1100*950mm~1280*1280*1280mm |
| Color | box |
| PAYMENT | T/T |
| After-Sales Service Provided | Video technical support |
| Function | Air cooling |
| Packaging Details | Customer request |
| Port Of Dispatch | Qingdao/shanghai |
| Selling Units | Single item |
| Single Package Size | 100X100X100 cm |
| Single Gross Weight | 50.0 kg |
| Supply Ability | 100 sets per Day |
Product Details

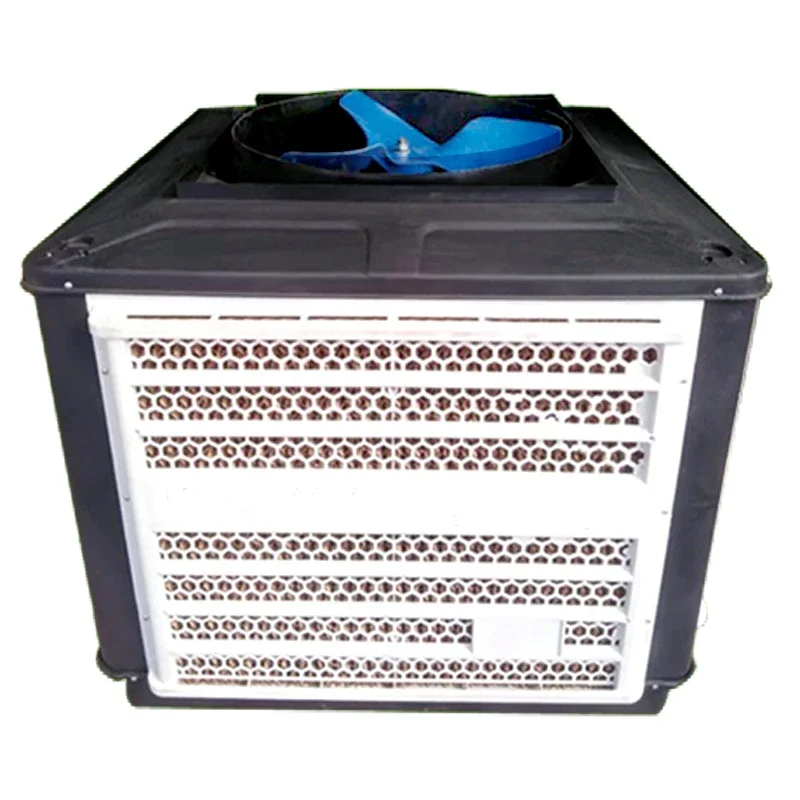

EB-A1
18000-22000m³/h
Honeycomb（black）
with a split fitting

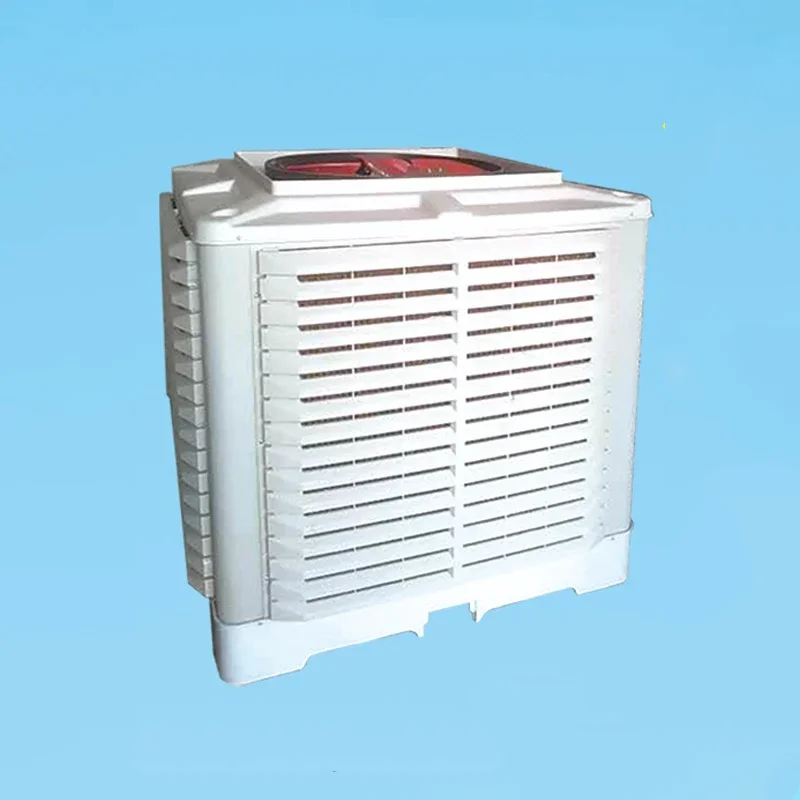

EB-A2
18000-22000m³/h
Honeycomb（White）
with a split fitting
with a split fitting

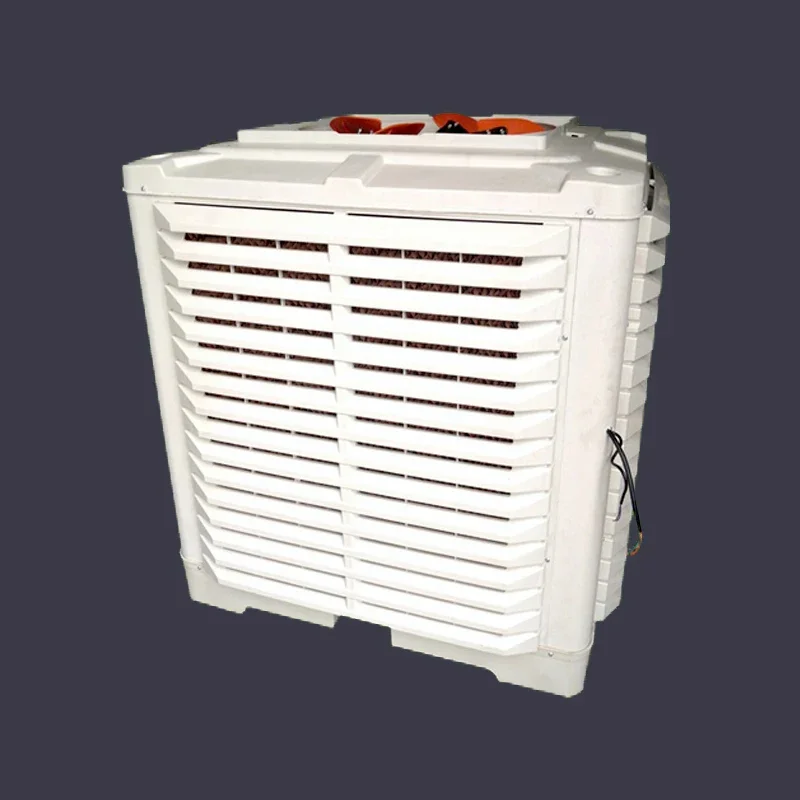

EB-A3
18000-22000m³/h
Standard（White）
with a split fitting
EB-A4
18000-22000m³/h
upgrade（White）
with a split fitting

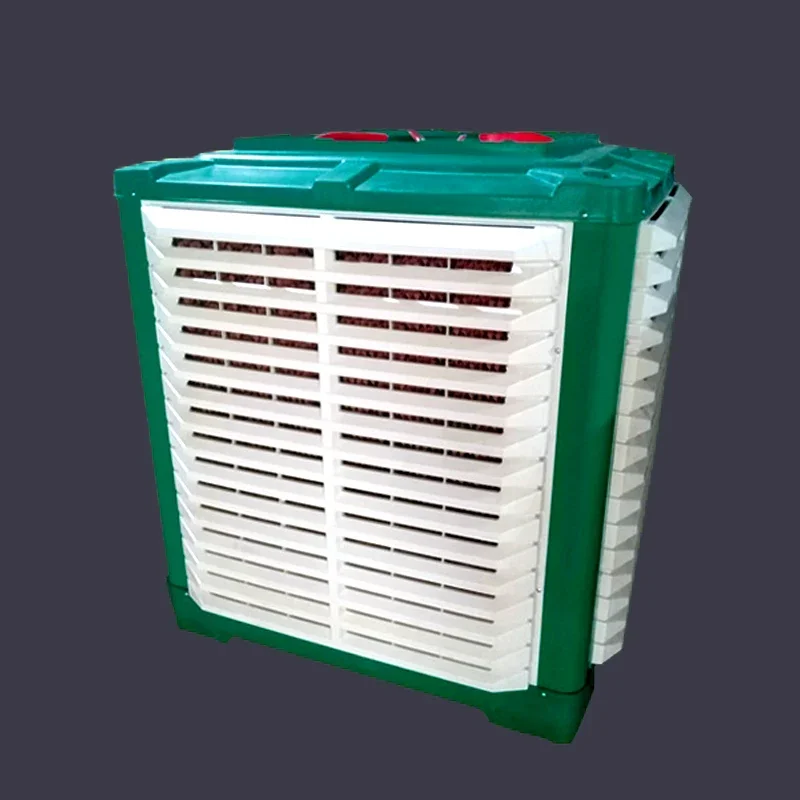

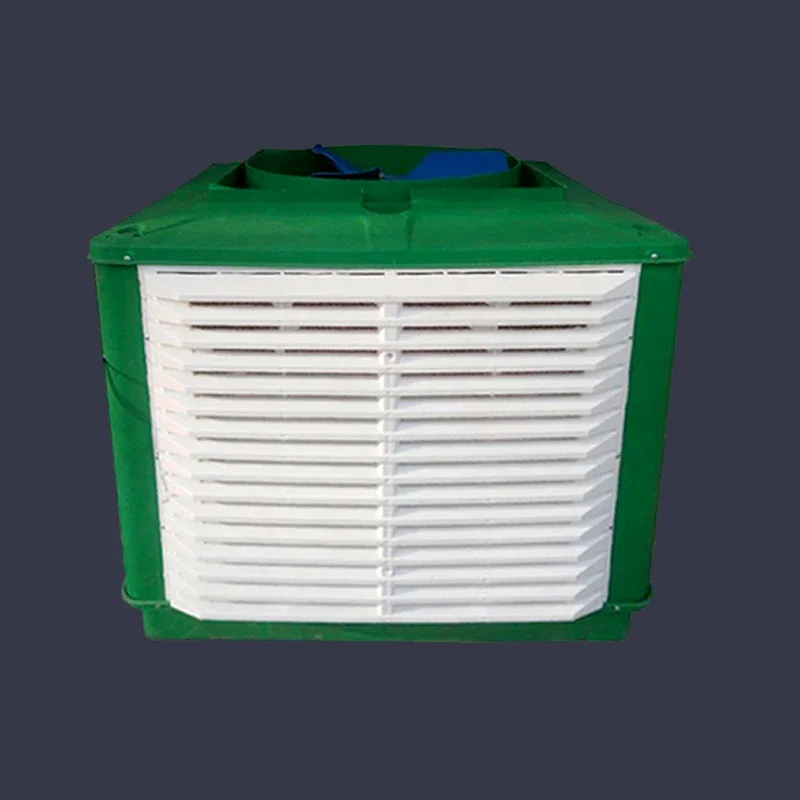

EB-A5
18000-22000m³/h
upgrade（green）
with a split fitting
EB-A?
18000-22000m³/h
Under development
split fitting

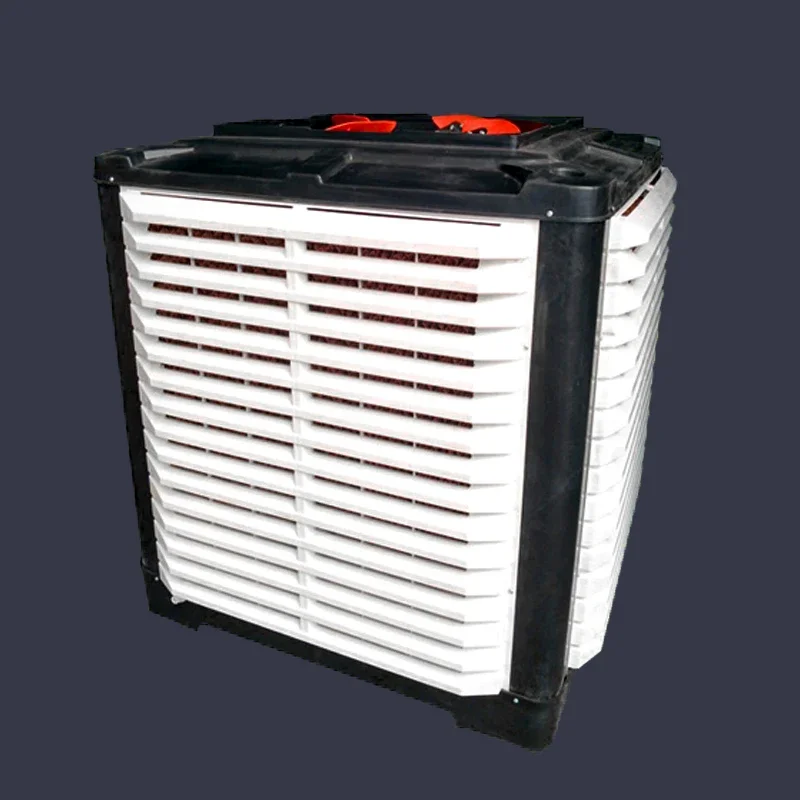

EB-AA1
25000m³/h
Large air volume（black）
with a split fitting
EB-AA2
25000m³/h
Large air volume（White）
with a split fitting
EB-AA3
25000m³/h
Large air volume（green）
with a split fitting
EB-M
30000m³/h
MAX（White）
with a split fitting
EB-P
18000-22000m³/h
move Unidirectional

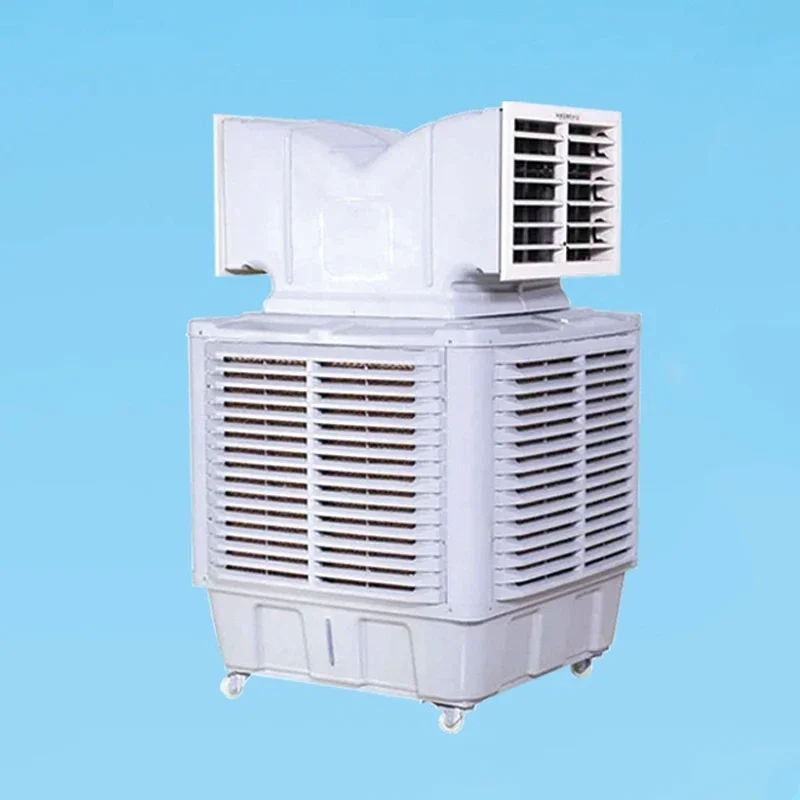

EB-Y
18000-22000m³/h
move Bidirectional
move Bidirectional
Product Description
Large negative pressure fan
Exhaust air for ventilation, generally used in greenhouses, breeding farms, and workshops

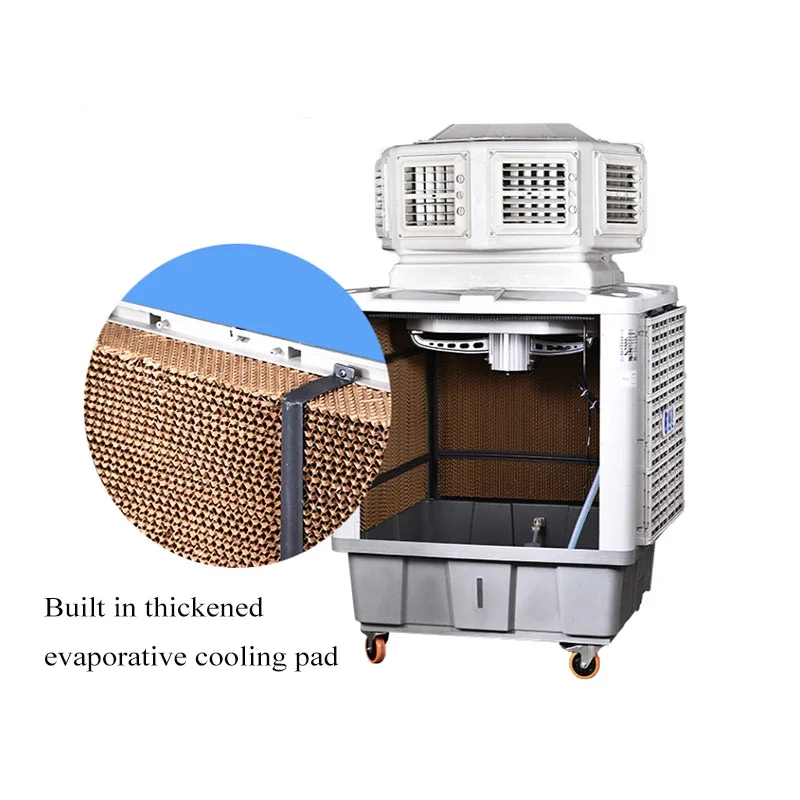

Evaporative cooling pad
With negative pressure fan for cooling and humidification, generally used in greenhouses and breeding farms
Axial fan
Circulating air is used to speed up air flow, generally used in factories, warehouses, and greenhouses
FRP fan Corrosion
resistance, used for ventilation, cooling and exhaust, generally used on the roofs of breeding farms, mines and factories
Fuel heater/dryer It is used for heating
drying and disinfection, generally used in greenhouses and disinfection houses.
Fogging machine
Widely used for cooling, humidification and disinfection
Products Description

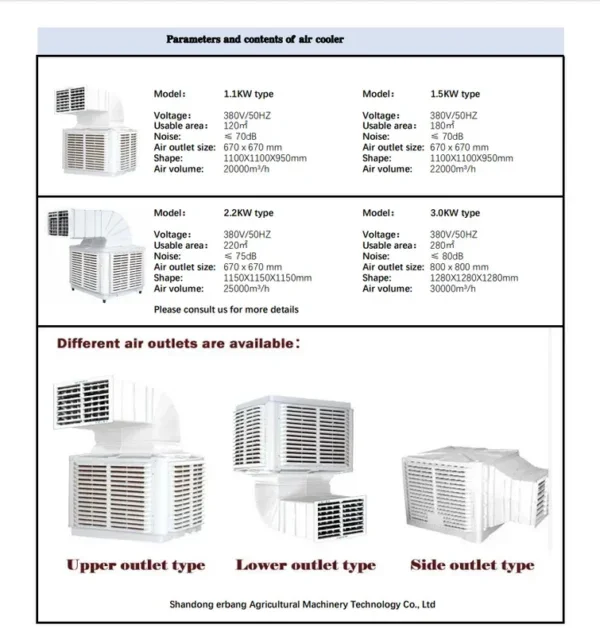

Technical Parameters | Model | power | Style |
Air volume 18000-22000m³/h Dimensions 1100*1100*950mm Water Consumption 12-20L/h Application area 100-180m³ noise ≤70（db） Electric current 380v/50HZ 220v/50HZ | EB-A1 | 1.1KW | Three-phase |
1.5kw | Three-phase | ||
1.5kw | Single-phase | ||
EB-A2 | 1.1KW | Three-phase | |
1.5kw | Three-phase | ||
1.5kw | Single-phase | ||
EB-A3 | 1.1KW | Three-phase | |
1.5kw | Three-phase | ||
1.5kw | Single-phase | ||
EB-A4 | 1.1KW | Three-phase | |
1.5kw | Three-phase | ||
1.5kw | Single-phase | ||
EB-A5 | 1.1KW | Three-phase | |
1.5kw | Three-phase | ||
1.5kw | Single-phase | ||
Air volume 25000m³/h Dimensions 1150*1150*1150mm Water Consumption ≤25L/h Application area 200m³ noise ≤75（db） Electric current 380v/50HZ | EB-AA1 | 2.2kw | Three-phase |
EB-AA2 | 2.2kw | Three-phase | |
EB-AA3 | 2.2kw | Three-phase | |
Air volume 30000m³/h Dimensions 1280*1280*1280mm Water Consumption 25-30L/h Application area 260m³ noise ≤75（db） Electric current 380v/50HZ | EB-M | 3.0kw | Three-phase |
Air volume 18000-22000m³/h Water Consumption 12-20L/h Application area 100-180m³ noise ≤70（db） Electric current 380v/50HZ 220v/50HZ | EB-P | 1.1KW | Three-phase |
1.5kw | Three-phase | ||
1.5kw | Single-phase | ||
EB-Y | 1.1KW | Three-phase | |
1.5kw | Three-phase | ||
1.5kw | Single-phase |
Recommend Products
Centrifugal Fan
The centrifugal push-pull exhaust fan is a high-end fan series. It is widely used in agriculture, industry and other busy or closed places for cooling, such as greenhouses (flowers, vegetables and plants), poultry houses (livestock, breeding, cattle/chicken houses), factory workshops (textiles, electricity), restaurants and Supermarket. It has the characteristics of low noise and long service life.
FRP Fiber Glass Fan
Fiber glass reinforced plastic fan refers to glass fiber reinforced plastic (FRP) material fan, its appearance and size are exactly the same as steel fan, just the shell, blade and the impeller for glass fiber reinforced plastic material, its biggest characteristic is corrosion resistant, resistant to acid and alkali, belongs to a kind of anti-corrosion fan.
Kraft Paper Cooling Pad
Wet curtain cooling system cooling process is in the core-DLF paper pad to complete. In the corrugated fiber paper surface layer of thin water film, when the outdoor dry hot air passing by the window, water turns to be moisture. This is the natural process is seemed like the wind blowing over the water. "Wet-Curtain-fan" ventilation cooling combination is the most economical and effective greenhouse summer cooling measure. It is widely used at poultry farm house, commercial outdoor water cooling fan, parking area etc.
Outdoor Air Cooler
Industrial cooling fan is no compressor, no fuel, no pollution of environmentally friendly products, It uses of evaporative cooling of fresh outdoor air passing through the water curtain to cool down and exchange convection with indoor air to achieve the purpose of indoor ventilation and cooling.
Company Profile
Shandong Erbang Agricultural Machinery Technology Co., Ltd. is a professional manufacturer of ventilation equipment, cooling equipment, heating equipment and environmental control equipment. We focus on quality and service, and sell our products all over the world. We are looking forward to in-depth cooperation with friends all over the world.
Why Choose Us?
We focus on details, service and product quality, after-sales time up to 5 years, with a positive attitude towards global suppliers, for win-win cooperation！

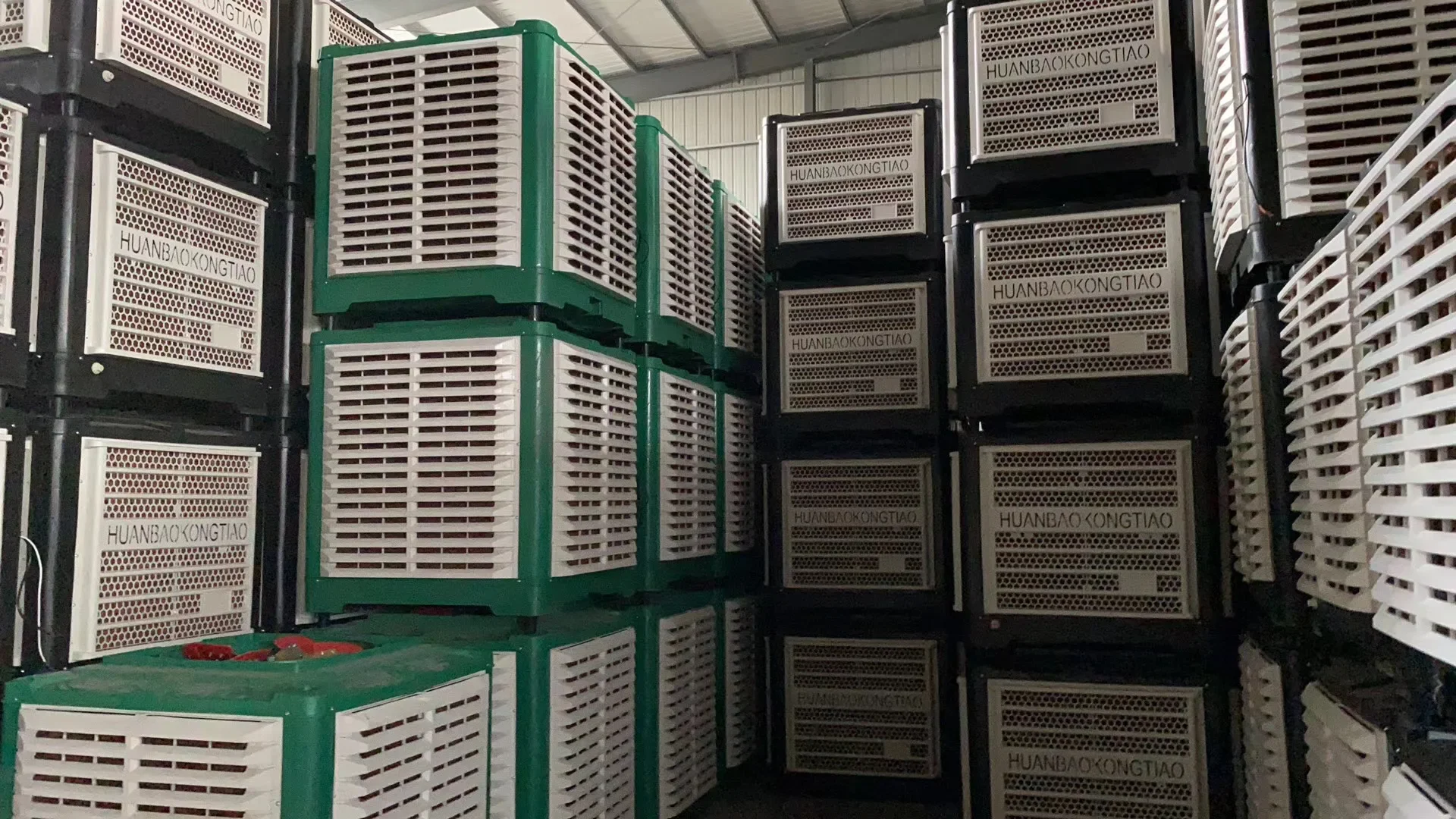

Factory Photos
Certificate
Our Advantages
Major Market
Payment & Delivery
Ordering and Pricing
- Minimum order quantity: 4 set
- Volume pricing:
- 4–39 set: US $127 / set
- 40–99 set: US $120 / set
- 100–499 set: US $110 / set
- 500+ set: US $105 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this industry evaporative air cooler?
The standard minimum order quantity is 4 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this industry evaporative air cooler carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the industry evaporative air cooler be supplied for my local voltage?
The standard configuration is 110/220/380 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
