This inline duct fan is published with the manufacturer’s full specification — 230V/50Hz, material ABS resin material. Made by Suzhou Mia Intelligent Technology Co., Ltd. (7 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Inline Duct Fan
- Voltage: 230V/50Hz
- Material: ABS resin material
- Speed: Low/ high
- Warranty: More Than 5 Years
- Certification: CE, ERP, LVD, SAA, RoHS
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Ventilation |
|---|---|
| Application | Villa, Apartment, Office Building, Kitchen, Bathroom, Home Office, Living Room, Bedroom, Dining, Babies and Kids |
| Warranty | More Than 5 Years |
| After-Sale Service | Online Technical Support, Free Spare Parts, Return and Replacement, Other |
| Design Style | Traditional, Modern |
| Project Solution Capability | Others |
| Place Of Origin | Jiangsu, China |
| Brand Name | MIA Ventilation |
| Name | Mixed flow inline duct fan |
| Certification | CE, ERP, LVD, SAA, RoHS |
| Material | ABS resin material |
| Function | Exhaust Air |
| Feature | Motor protection rating with IP44 |
| Installation | Tandem mounting or parallel mounting |
| Speed | Low/ high |
| Voltage | 230V/50Hz |
| Current | 0.19~0.28A |
| Selling Units | Single item |
| Single Package Size | 120X120X60 cm |
| Single Gross Weight | 50.000 kg |
Product Details
NOTE:

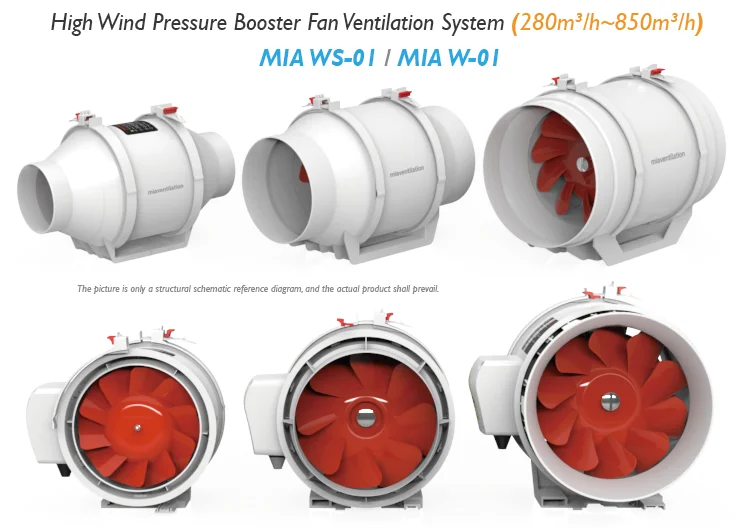

High wind pressure booster fan matching HVAC system

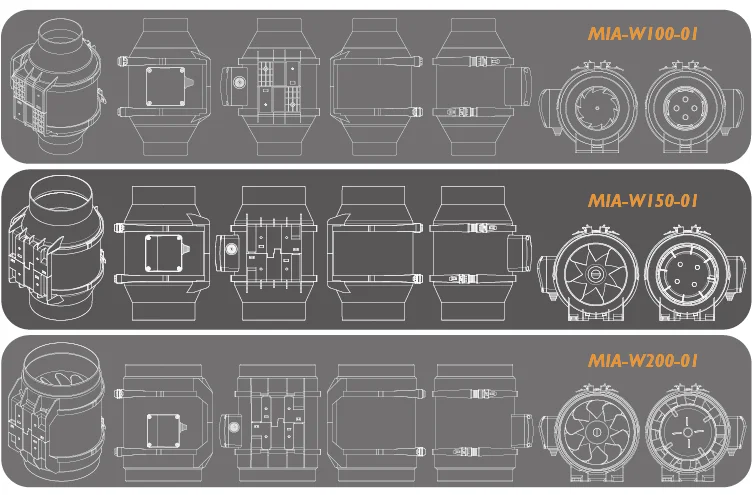

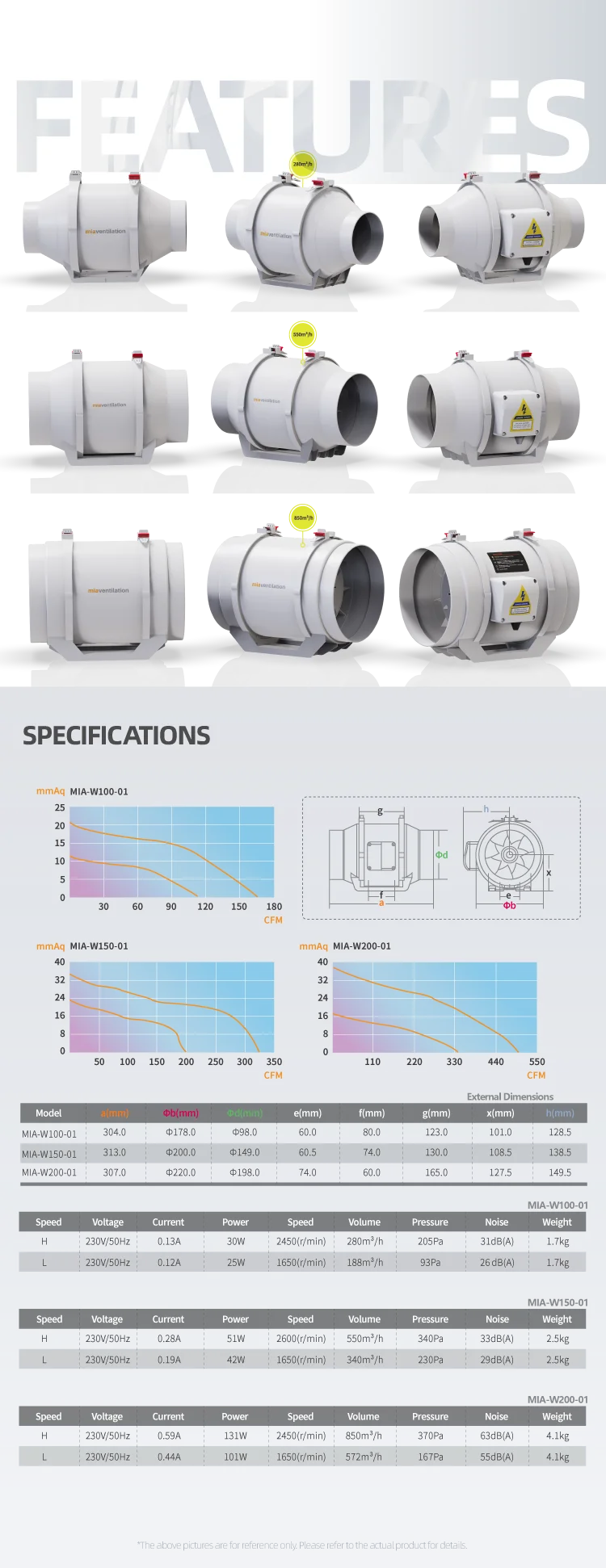

Model | MIA-W100-01 | MIA-W150-01 | MIA-W200-01 |
a(mm) | 304.0 | 313.0 | 307.0 |
Φb(mm) | Φ178.0 | Φ200.0 | Φ220.0 |
Φd(mm) | Φ98.0 | Φ149.0 | Φ198.0 |
e(mm) | 60.0 | 60.5 | 74.0 |
f(mm) | 80.0 | 74.0 | 60.0 |
g(mm) | 123.0 | 130.0 | 165.0 |
x(mm) | 101.0 | 108.5 | 127.5 |
h(mm) | 128.5 | 138.5 | 149.5 |
Model | MIA-W100-01 | MIA-W150-01 | MIA-W200-01 | ||
In high speed | Current | 0.13A | 0.28A | 0.59A | |
Power | 30W | 51W | 131W | ||
Revolving speed | 2450 r/min | 2600 r/min | 2450 r/min | ||
Volume | 280 m3/h | 550 m3/h | 850 m3/h | ||
Pressure | 205Pa | 340Pa | 370Pa | ||
Noise | 31dB(A) | 33dB(A) | 63dB(A) | ||
In low speed | Current | 0.12A | 0.19A | 0.44A | |
Power | 25W | 42W | 101W | ||
Revolving speed | 1650 r/min | 1650 r/min | 1650 r/min | ||
Volume | 188 m3/h | 340 m3/h | 572 m3/h | ||
Pressure | 93Pa | 230Pa | 167Pa | ||
Noise | 26dB(A) | 29dB(A) | 55dB(A) | ||
Voltage | 230V/ 50Hz | 230V/ 50Hz | 230V/ 50Hz | ||
Weight | 1.7Kg | 2.5Kg | 4.1Kg | ||

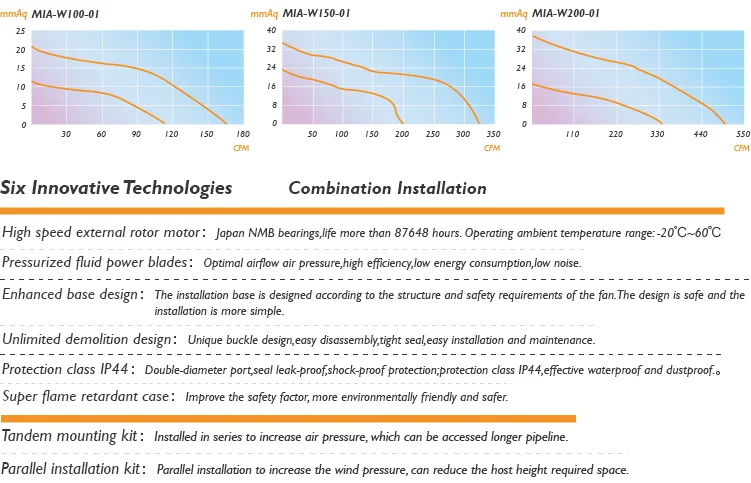

Combination Installation
Six Innovative Technologies
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this inline duct fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this inline duct fan carry?
It is supplied with CE, ERP, LVD, SAA, RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the inline duct fan be supplied for my local voltage?
The standard configuration is 230V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Suzhou Mia Intelligent Technology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Suzhou Mia Intelligent Technology Co., Ltd. range on HVACR Nexus.
