Key specification for this air handling unit: 380V, 4.5kw. Everything below is reproduced from the factory data sheet. Made by Suzhou Mia Intelligent Technology Co., Ltd. (7 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Air Handling Unit

• Model Number: MIA-AHE900N
• Power: 4.5kw
• Voltage: 380V
• Material: Galvanized Steel
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

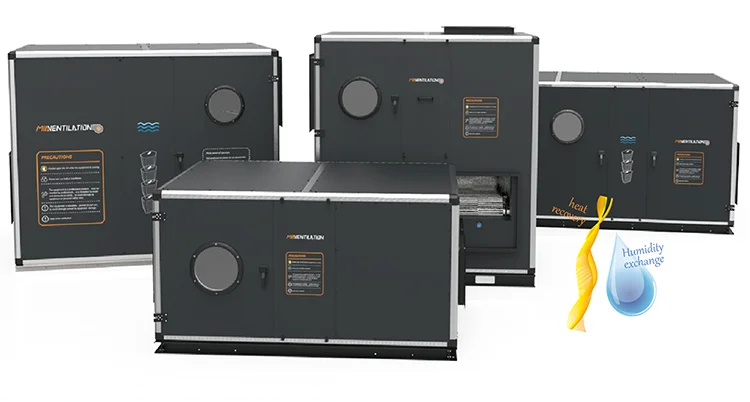

Product Display

Tips: Pls contact us to confirm the order details before payment. TEL/WA/Wechat:008618915401178

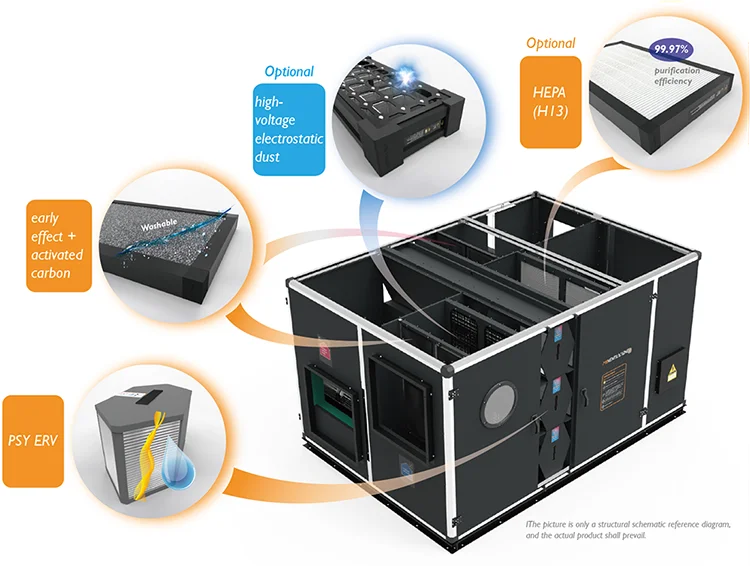

Energy Recovery Ventilation Unit (9000m³/h~50000m³/h)

Super Heat-insulating Double-layer Plate Aluminum Frame ERV Unit Series

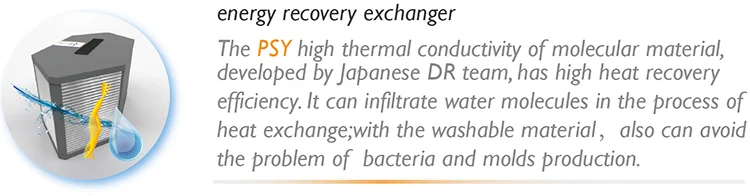

The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange; with the washable material, also can avoid the problem of bacteria and molds production.

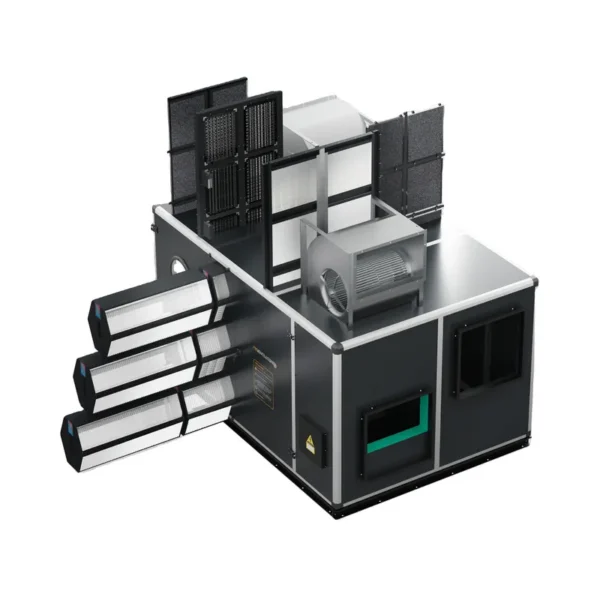

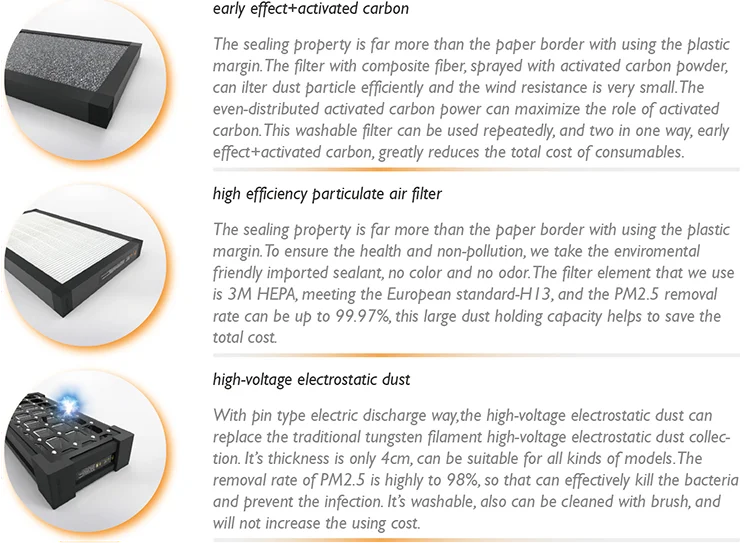

Early Effect Activated Carbon filter

The sealing property is far more than the paper border with using the plastic margin. The Filter with composite fiber, sprayed with activated carbon powder, can filter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon powder can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.

High Efficiency Particulate Filter H13

The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the environmental friendly imported sealant, no color and no odor. The filter element that we use is 3M
HEPA, meeting the European standard- H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.

High-voltage Electrostatic Precipitator

With pin type electric discharge way, the Ion Dust Collection Sterilization can replace the traditional tungsten filament high-pressure electrostatic dust collection. It’s thickness is only 4cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. It’s washable, also can be cleaned with brush, and will not increase the using cost.

Energy Recovery Exchange Principle

Model and corresponding configuration instructions

MIAVENTILATION Energy Recovery Ventilation Unit (9000m³/h~50000m³/h)
Super Heat-insulating Double-layer Plate Aluminum Frame ERV Unit Series

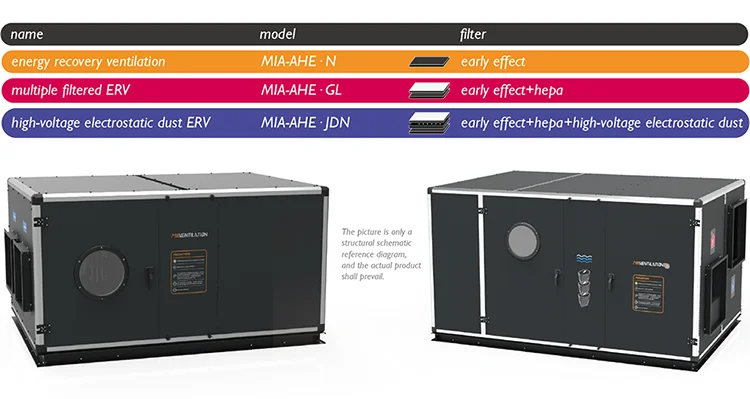

In our Model, "AHE" means the double-flow mechanical ventilation fan with Heat Exchanger;
MIA-AHE·N: Energy recovery ventilator includes one piece of Early Effect Activated Carbon filter(20mm) and AC inner rotor fan;
MIA-AHE·GL: Energy recovery ventilator includes one piece of HEPA-H13 filter(30mm), one piece of Early Effect Activated Carbon filter(20mm) and AC inner rotor fan;
MIA-AHE·JDN: Energy recovery ventilator includes one piece of Electrostatic precipitator(40mm), one piece of HEPA-H13
filter(30mm), one piece of Early Effect Activated Carbon filter(20mm) and AC inner rotor fan.

Model	MIA-AHE900N	MIA-AHE900GL	MIA-AHE900JDN
Voltage	380V	380V	380V
Power	4.5KW	4.68KW	4.68KW
Volume	9000m³/h	9000m³/h	9000m³/h
Pressure	365Pa	365Pa	365Pa
Efficiency	83%~90%	83%~90%	83%~90%
Motor	AC inner rotor motor	AC inner rotor motor	AC inner rotor motor
Noise	67dB(A)	67dB(A)	67dB(A)
Filter	Early effect activated carbon filter	HEPA-H13, Early effect activated carbon filter	Electrostatic precipitator, HEPA-H13, Early effect activated carbon filter

Applicable Scenarios

Company Profile

Production & Delivery Process

Certifications

Contact Us

Ordering and Pricing

• Minimum order quantity: 1 set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this air handling unit?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the air handling unit be supplied for my local voltage?

The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
