Ip65 panel — model number DLRP6060-40-IP65. The complete factory specification follows. Made by Sin-Light Industrial Co., Ltd. (8 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ip65 Panel
- Model Number: DLRP6060-40-IP65
- Input Voltage(V): 220-240
- Lamp Body Material: Steel
- Warranty(Year): 5-Year
- Warranty: 5 years
- Place Of Origin: Anhui, China
Technical Specifications
| Input Voltage(V) | 220-240 |
|---|---|
| IP Rating | IP65 |
| Color Temperature(CCT) | 3000K-6000K |
| Warranty(Year) | 5-Year |
| Lamp Body Material | Steel |
| Lighting Solutions Service | Lighting And Circuitry Design, Auto Cad Layout, Project Installation |
| Light Source | LED |
| Place Of Origin | Anhui, China |
| Model Number | DLRP6060-40-IP65 |
| Brand Name | DL |
| Lamp Luminous Flux(Lm) | 4600 |
| Working Temperature(℃) | -20 – 55 |
| Product Name | 40W Clean Room Recess Lights 60X60 IP65 Panel LED |
| Installation | Recessed mounting |
| Warranty | 5 years |
| CCT | 3000K-6000K |
| Beam Angle | 160° |
| Dimmable | optional |
| Size | 595*595*100mm |
| Driver | Chinese led driver |
| Life Time | 50000hrs |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

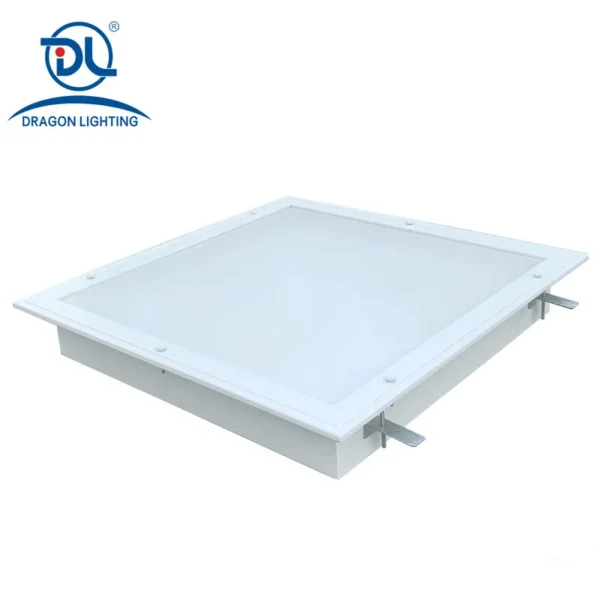

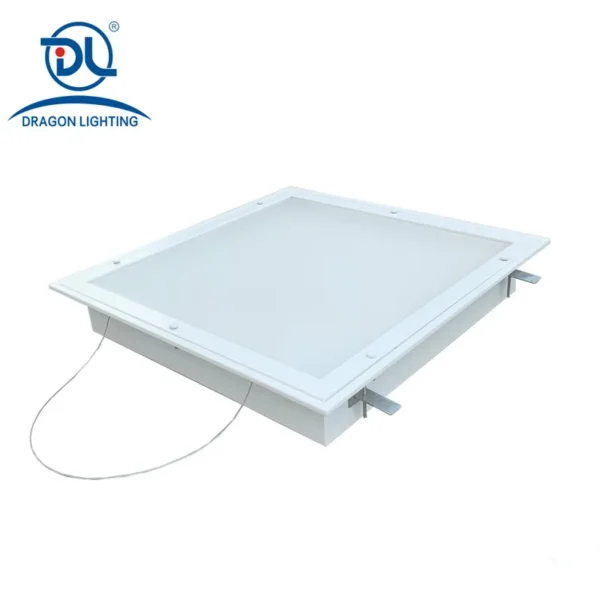

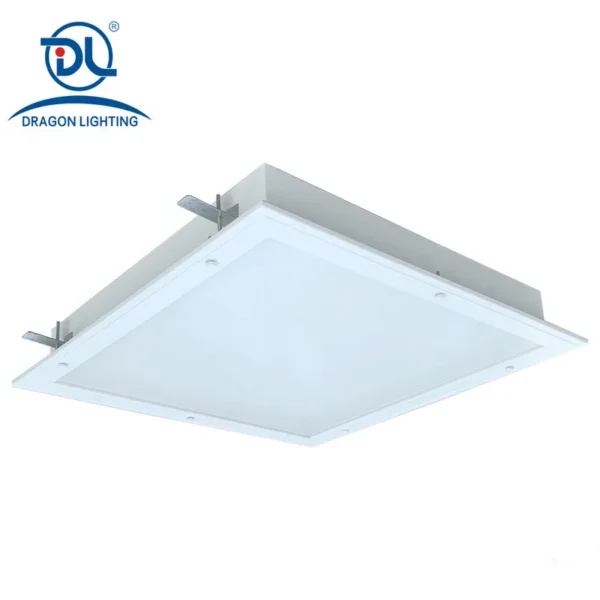

40W Clean Room Recess Lights 60X60 IP65 Panel LED
Technical data:
| Model: DLRP6060-40-IP65 Fixture Demension: 595*595*100mm Output power: 40W Luminous Flux: 4600lm Light efficiency: 115lm/W LED: LED SMD 2835 Driver:Chinese LED driver | CRI: >80 CCT: 3000k-6000k Rated input: 220-240V Beam Angle: 160° Certification: CE/ROHS/SAA Warranty: 50000 hours Grade:IP65 Dimmable or Dali driver is available on request |
Housing for LED ip65 panel light:
Light and frame is made of high quality iron, rust and oil removed, under anti-rust treated and rust proof for 8-10 years under normal application, with white powder coating.
Diffuser for LED ip65 panel light:
Prismer Diffuser for LED.
LED type for LED ip65 panel light:
It uses LED SMD 2835.
Electrical for LED ip65 panel light:
Lifud or famous logo standard driver or dali/dimmable driver.
Mounting for LED ip65 panel light:
Recessed mounting.
Main applications:
Hospital /food factory/decontamination chamber.
High efficiency saves energy:
The light from the LED light is released through the diffuser directly, which isn't absorbed and reflected from other media. So the utilization of the light is relatively high, and the overall luminious efficiency of light is quite high. Energy saving, it saves 65% than the traditional lights at the same brightness.
Save cost:
The components of direct light panel is simpler than ordinary panel, it will save the guide-plate and overall cost will be more effective.
Luminous uniformity:
Direct light panel is designed to use the LED luminescence to make a reasonable LED distance, with the diffusion and the height of the light fixtures to achieve the ideal blend of light. Because the light SMD is arranged in a matrix, the reasonable distance between the LED SMD and the PC diffuser, so that the light doesn't have a dark zone, and it improves the brightness uniformity when it's been lighted up.
Long life:
When direct light panel is compared with the side light panel, it has a certain distance between the LED SMD and the diffuser.The heat dissipation provides enough space to ensure its 50000hrs long lifespan.
Specifications:
| Power | Leds | Luminous Flux(lm) | Efficiency (lm/w) | CRI | CCT | |
| DLRP6060-36-IP65 | 36 | 2835 | 4500 | 105 | >80 | 3000K–6000K |
| DLRP6060-40-IP65 | 40 | 2835 | 5000 | 115 | >80 | 3000K–6000K |
| DLRP1230-36-IP65 | 36 | 2835 | 4500 | 105 | >80 | 3000K–6000K |
| DLRP1230-40-IP65 | 40 | 2835 | 5000 | 115 | >80 | 3000K–6000K |
| DLRP1260-60-IP65 | 50 | 2835 | 6250 | 115 | >80 | 3000K–6000K |
| DLRP1260-65-IP65 | 60 | 2835 | 7500 | 115 | >80 | 3000K–6000K |
Packing details:
| Model | Dimension (L*W*H)(mm) | Packing size (mm) | Qty/ctn |
| DLRP6060-36-IP65 | 595*595*100 | 615*615*210 | 2 |
| DLRP6060-40-IP65 | 595*595*100 | 615*615*210 | 2 |
| DLRP1230-36-IP65 | 1195*295*100 | 1215*315*210 | 2 |
| DLRP1230-40-IP65 | 1195*295*100 | 1215*315*210 | 2 |
| DLRP1260-60-IP65 | 1195*595*100 | 1215*615*110 | 1 |
| DLRP1260-65-IP65 | 1195*595*100 | 1215*615*110 | 1 |
It is with 0.6-1.0mm steel and prismer diffuser, Overall design for IP65,steel plate with powder
UGR can be lower than 19 and easy to water coating process,internal enough space to solve
and dust proof. the problem of heat dissipation LED.It has quake
proof and EPDM.
Adjustable screw designs can be fit for all kind of height ceiling.
It has been concentrated in quality of products and service for customer as principle, innovation and good faith as objection.Building up a professional technical team from practical experience and corporation with customers, making the enterprise develop competitiveness. Our commitment is providing customers the high quality products and satisfactory service. Customers’ satisfaction is our unremitting pursuit.
Q1: Can I have a sample order for LED light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A: Sample needs 3-7 days, mass production needs 1-2 weeks according to order quantity.
Q3: Do you have any MOQ limit for LED light order?
A: 1pc for sample order is available.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to place an order for LED light?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q6: Are you a factory? A. Yes, we are a factory which has more than 80 employees, and factory area is more than 8000 square meters.
Q7: Do you offer guarantee for the products? A: Yes, we offer 3-5 years warranty to our products.
Ordering and Pricing
- Minimum order quantity: 50 piece
- Volume pricing:
- 50–200 piece: US $42.82 / piece
- 201–500 piece: US $41.96 / piece
- 501+ piece: US $40.68 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ip65 panel?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5-Year warranty. Spare parts and technical support remain available after the warranty period.
Can the ip65 panel be supplied for my local voltage?
The standard configuration is 220-240. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
