Steel Cold Room Panel, Stainless, 100mm/120mm/150mm

Steel cold room panel — type Sandwich Panel, certificate CE/ISO/FM/ISO9001. The complete factory specification follows. Made by Fengshun Refrigeration & Heat Transfer Technology Group Co., Ltd. (6 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Steel Cold Room Panel

• Production Capacity: 12000sqm per day
• Material: Stainless Steel, Polyurethane, Color steel
• Warranty: 5 year
• Place Of Origin: Shandong, China
• Application: Cold storage construction
• Type: Sandwich Panel

Technical Specifications

Product Details

Product description

COLD ROOM/FREEZER ROOM SANDWICH PANEL
Product name	Cold room storage sandwich panel
Standard Width	960mm(Cam-Lock); 1140mm(Fast-Fit)
Panel Thickness	75mm, 100mm, 120mm, 150m, 200mm etc..
Steel Plate Thickness	0.4mm/0.5mm/0.6mm/0.8mm/1mm
Surface material	Galvanized Steel/SUS304
Length	<11.8m
Density	40kg-43kg
Fire rating	B1 B2
Connection Type	Cam-Lock, Fast-Fit, Male-Female, Tougue-Groove
Temperature	-45-50 Degrees
Warranty	More Than 10 Years
Transport Package	Sea Worthy Packing in Container
Application	Cold room / freezer room / blast freezer room
HS Code	7308900000
Origin	Shandong, China
Certification	CE/ISO

Product Details

Polyurethane sandwich panel is the best heat insulation and energy saving material recognized in the world today. It has been widely used in large industrial plants, exhibition halls, gymnasiums, cold storage, purification workshops, animal husbandry, edible fungi and other industries. Polyurethane, as one of the most excellent insulation materials in the insulation and energy saving market at present, makes polyurethane hard foam products more and more widely used in building energy saving and heat preservation with its unique advantages. Building energy saving will become the main application direction of polyurethane hard foam in the future.

— PU/PUR/PIR PANEL —

> Panel Material: Color steel sheet, Galvanized steel, Stainless steel sheet.

> Thickness: 50mm/75mm/100mm/120mm/150mm/175mm/200mm/250mm

> Density: 42kg/M3

> Certificates: SGS, ISO14001, ISO9001
> Color: White, Gray, Sliver, Whit gray etc, as required

> Lifetime: 10-30 years

> Fire proof rate B1, B2

Application

Cold Room Storage and Freezer Room Application:

> 10°C~15°C cold room storage: can be used in processing workshop, temperature control hall, receiving and delivery area, function room,etc.
> 0°C~10°C cold room storage: can be used for meat pre-cooling, meat deacidifi-cation, fruit and vegetable preservation, low temperature passage, medicine storage, etc.

> -15°C~ -30°C cold room storage: can be used for low temperature storage, cold chain logistics, etc.
> -30°C~ -40°C cold room storage: can be used for food quick-freezing, tunnel freezer, etc.
> -50°C ~ -80°C cold room storage: can be used for tuna storage, vaccine storage,

Company Profile

Fengshun Group was established since 1993, is a comprehensive high-tech enterprise integrating the design, development, manufacturing, sales, construction, operation and maintenance services of cooling and heating equipment.

The group has 5 branches, include SANESUN brand, producing Walk-in cold room storage/freezer rooms, PUR/PIR panels, condensing unit, evaporator, air condenser, compressor unit, fluorine barrel type pump system etc; All of our product with CE and ISO certificate, can supply the SASO, COC and etc. documents.

We are the one-stop refrigeration cold room storage supplier, professional engineers supply the customize solution based on customer special project need, whole system provide and OEM support. We have been successfully in offering machines to projects of logistic storage, food factory, supermarkets. packaged equipment and system, automobile components producing system, food making, bakery etc.

We exported to the USA, Canada, Australia, England, Ecuador, Sudan, Russia, South Africa, Dubai, Lebanon, India, Philippines, Singapore, Vietnam, Thailand, Korea, Japan, Peru, Chile, Mexico and more than 100 countries.

The company not only provides customers with a full set of equipment design, production and commissioning services, but also according to customer needs to provide professional technical solutions and perfect after-sales service, thus establishing a good reputation and credibility in the market

Certifications

FENGSHUN focuses on quality management systems and has passed the ISO9001, ISO14001, ISO45001 management system certification and CE certificates, to ensure that every link from the production process to product quality inspection meets the high standard requirements.

Product Recommendation

Packing & Delivery

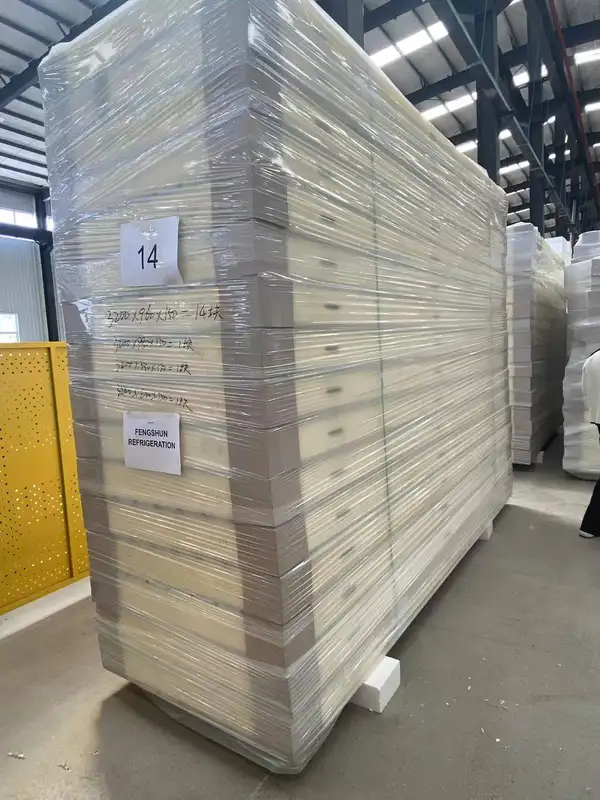

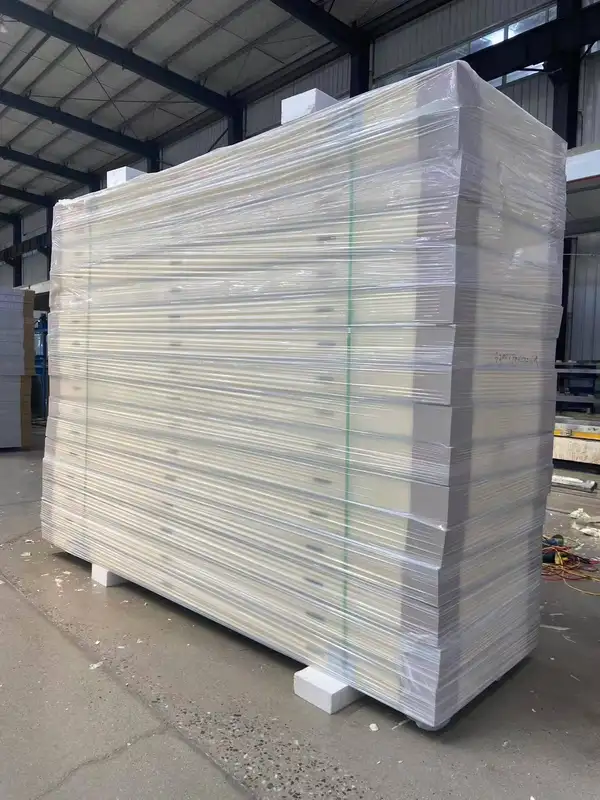

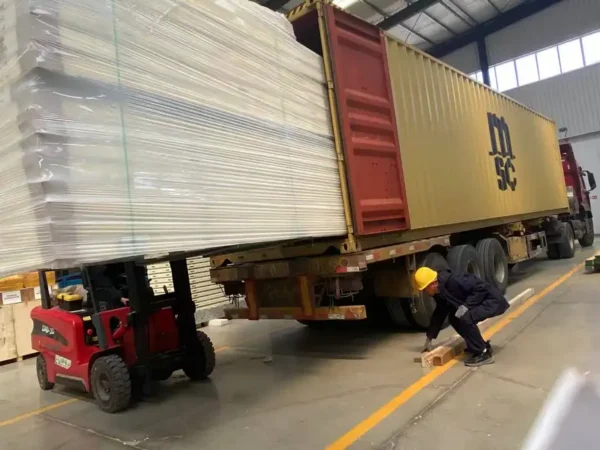

Cold Room Storage Packing Details When Delivery
1. Conventional wooden packing

2. According to container size, stander id export package

FAQ

1: Can we customize the product based on requirements?
Sure, of course. the cold room storage we accept OEM and ODM.
2. What is your MOQ?
Our MOQ is 1 piece.
3. What compressor do you use?
We usually use , Bitzer, Copeland, RefComp,FUSHENG,HANBELL brand compressor etc.
4. What is your delivery time?
We usually prepare goods ready to ship in 15-25days.
5. Can i put my logo ?
Sure, of course. we accept OEM and ODM.
6. How about Warranty?
We provide 1 year (365 days) warranty on whole equipment(both accessories and compressor).
7. What is your payment term?
Payment term is 30% deposit upon confirm order, 70% balance before shipment. You can pay through Telex Transfer or Credit Card.

Ordering and Pricing

• Minimum order quantity: 1 square centimeter
• Volume pricing:
  • 1–99 square centimeter: US $33.9 / square centimeter
  • 100–999 square centimeter: US $23.9 / square centimeter
  • 1000–9999 square centimeter: US $18.9 / square centimeter
  • 10000+ square centimeter: US $17.9 / square centimeter
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this steel cold room panel?

The standard minimum order quantity is 1 square centimeter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this steel cold room panel carry?

It is supplied with CE/ISO/FM/ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Fengshun Refrigeration & Heat Transfer Technology Group Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Fengshun Refrigeration & Heat Transfer Technology Group Co., Ltd. range on HVACR Nexus.
