Kit for ducted fan — type HVAC Systems, model number Kit-completo-plenum-4-zone-fancoil. The complete factory specification follows. Made by Sara Srl (1 year on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Kit For Ducted Fan
- Model Number: Kit-completo-plenum-4-zone-fancoil
- Warranty: N/A
- Place Of Origin: Italy
- Application: Other
- Feature: Easy Installation
- Type: HVAC Systems
Technical Specifications
| Type | HVAC Systems |
|---|---|
| Application | Other |
| Feature | Easy Installation |
| Warranty | N/A |
| After-Sale Service | N/A |
| Design Style | Industrial |
| Project Solution Capability | N/A |
| Place Of Origin | Italy |
| Model Number | Kit-completo-plenum-4-zone-fancoil |
| Selling Units | Single item |
| Single Gross Weight | 5.000 kg |
Product Details
Complete 4-Zone Insulated Plenum Kit for Ducted Fan Coil
The complete 4-zone insulated plenum kit for ducted fan coil air distribution through outlets is a system consisting of: Insulated polyurethane plenum; Collars; Supply outlets; Return grille and cable ties. Official Warranty in Italy.

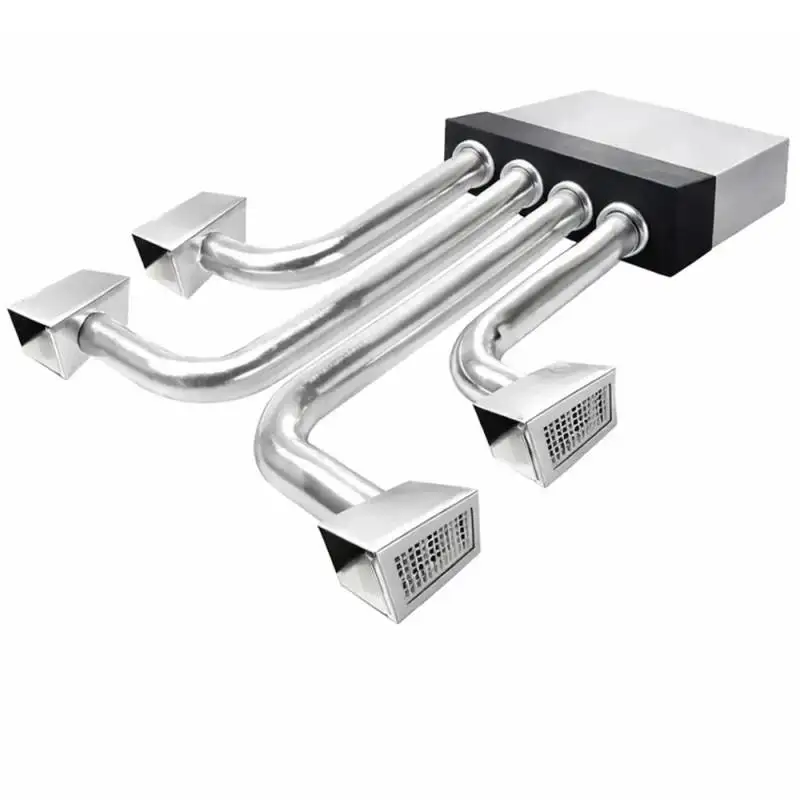

The complete plenum kit;

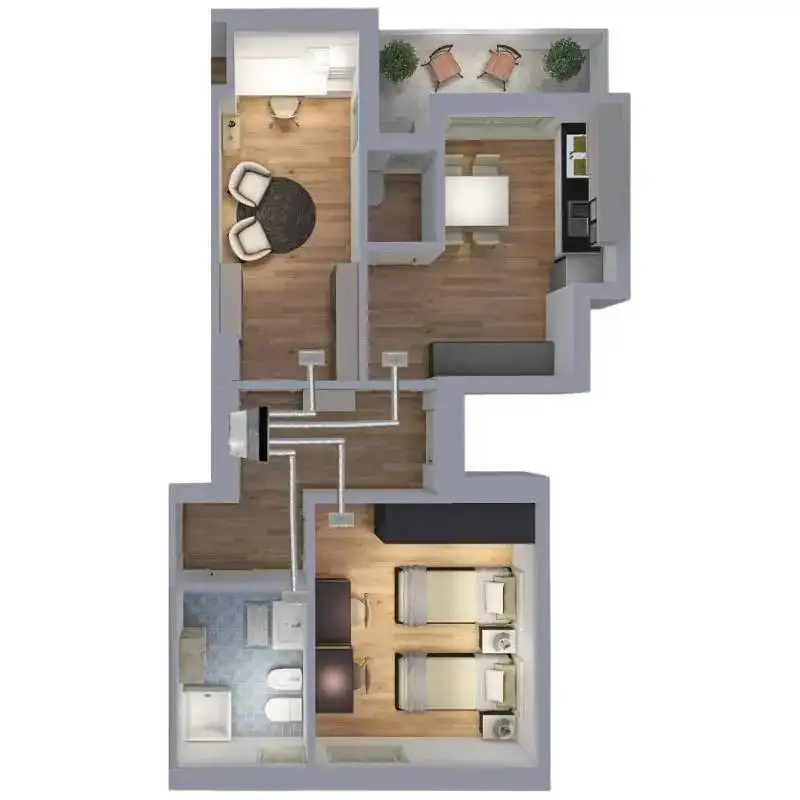

The new kits contain all the necessary accessories (plenum, dampers, grilles, tubing, collars, ties, etc.) to properly duct the air produced by the indoor unit and optimally distribute it to each room, with the ability to regulate and direct the airflow thanks to the dampers and adjustable outlet vanes, thus providing maximum efficiency and the best comfort within homes or offices.
KIT COMPOSITION
1 Insulated expanded polyurethane plenum, 20.5 mm thick for the indoor unit
4 Plenum Collars for Connection D. 150

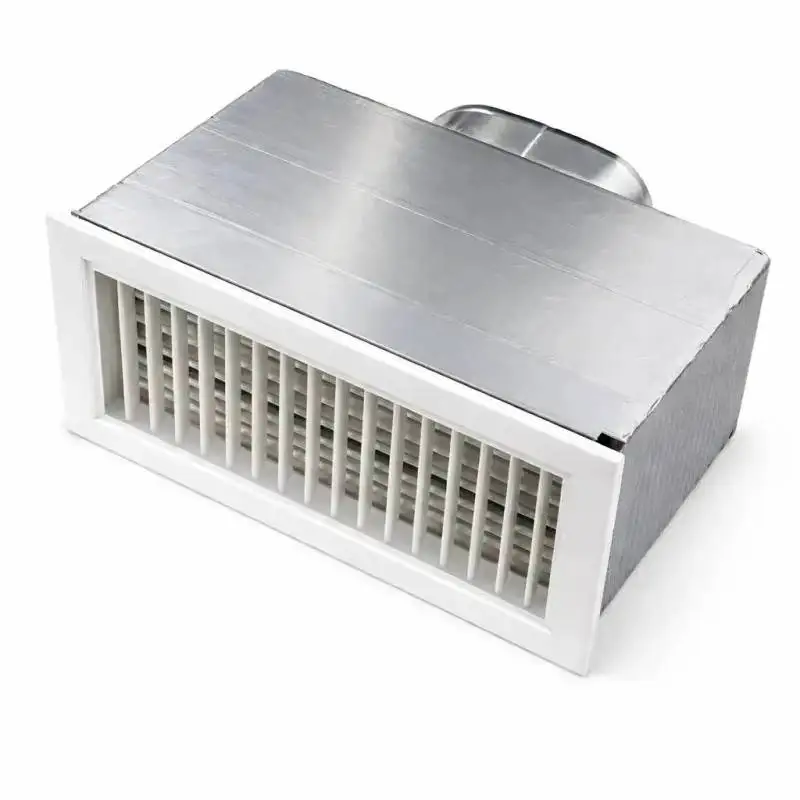

4 White Vertical Mounting Supply Outlets with Installation Hole 300X150, External Size 332X182
4 Insulated Plenums in Expanded Polyurethane with Rear Connection for Outlet (332X182)

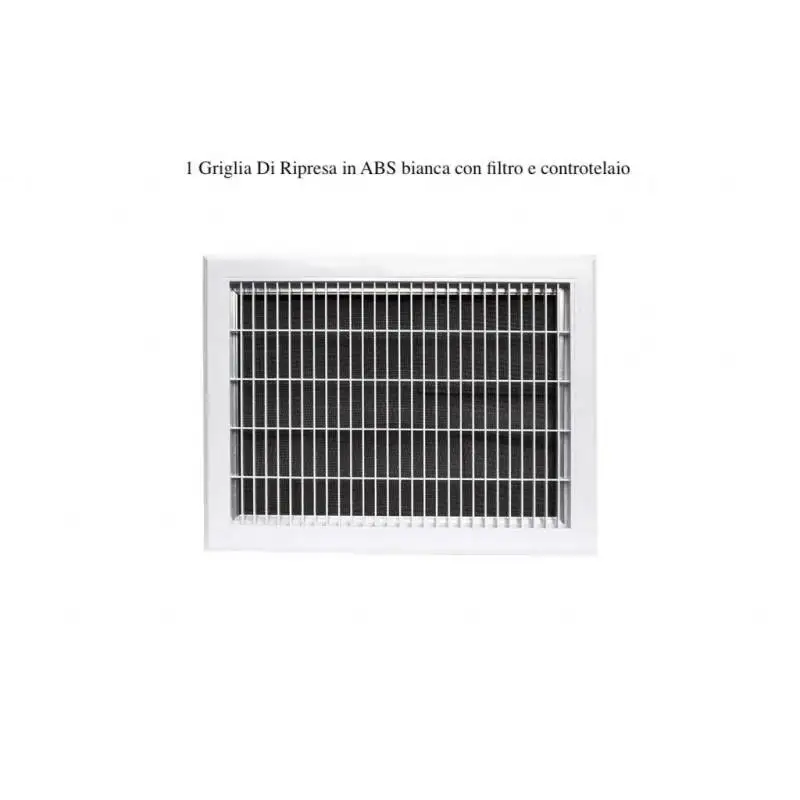

1 White ABS Return Grille with Filter and Frame 780X430

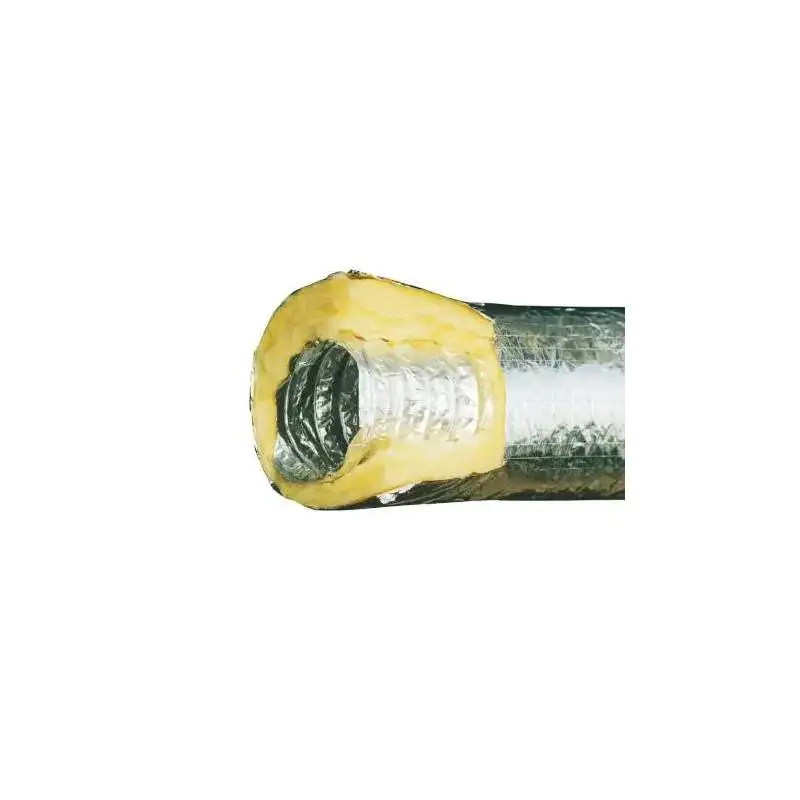

Ducted Tubing with Internal Diameter 152 mm, Length 6 m
Insulated Plenum for Indoor Unit;
Sandwich panels consisting of an insulating component made of rigid expanded polyurethane, coated on both sides with aluminum sheets for constructing air ducts.
A high-density (49Kg/m³ of foam alone) closed-cell expanded polyurethane panel is at the heart of this innovation: its 20.5 mm thick structure is both lightweight and advanced, achieving key performance such as pre-insulation with significantly lower weight than that of insulated sheet metal.
The aluminum coating is more than just a simple "cover." It performs a fundamental function in two directions:
– A solid and durable surface, 80 microns thick, for longer-lasting ductwork,
– Bacteriostatic properties and easy cleaning for better air quality.
Plenum Collars for Connection D. 150;
Aluminum sheet collars, 150 mm high, designed to connect flexible tubes to supply/return plenums.
Supply Outlets;
Insulated Plenums with Rear Connection for Outlet
Made with high-quality 80-micron corrugated and lacquered aluminum sheets, insulated with rigid expanded polyisocyanurate foam (PIR), overall thickness 20 mm, fire-resistant, highly thermally insulating, waterproof, hygienic, and practical.
Polyurethane Panels;
Sandwich panels consisting of an insulating component made of rigid expanded polyurethane, coated on both sides with aluminum sheets for constructing air ducts.
A high-density (49Kg/m³ of foam alone) closed-cell expanded polyurethane panel is at the heart of this innovation: its 20.5 mm thick structure is both lightweight and advanced, achieving key performance such as pre-insulation with significantly lower weight than that of insulated sheet metal.
The aluminum coating is more than just a simple "cover." It performs a fundamental function in two directions:
– A solid and durable surface, 80 microns thick, for longer-lasting ductwork,
– Bacteriostatic properties and easy cleaning for better air quality.

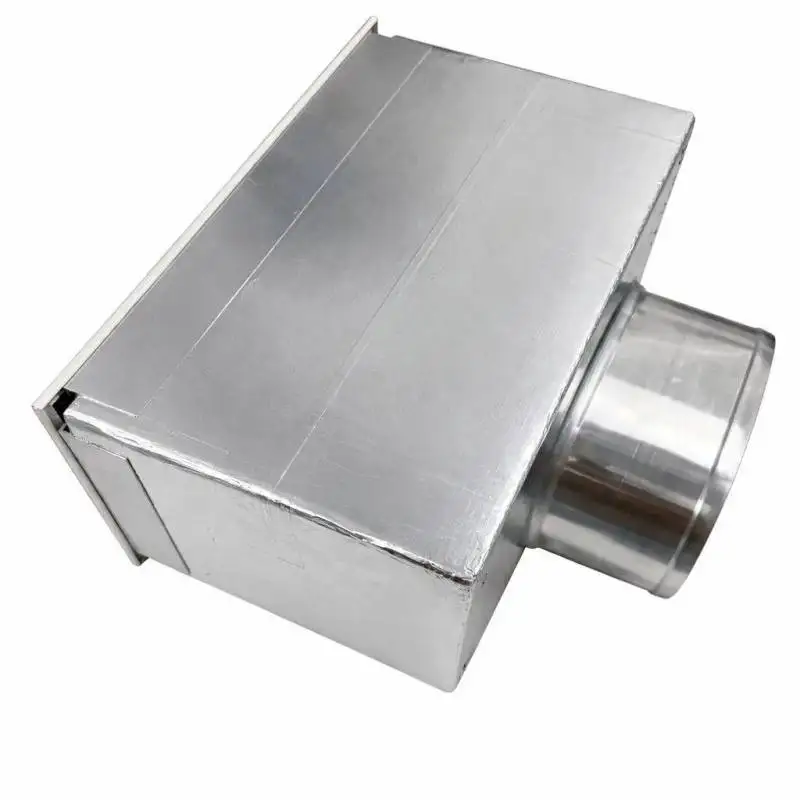

Insulated Plenums with Rear Connection for Outlet;
The insulated plenums with rear connection are constructed from galvanized sheet metal with external insulation in 5 mm thick closed-cell polyethylene.
When using the outlet with the insulated plenum, no mounting profile is required.
| Warranty | N/A |
| Project Solution Capability | N/A |
| Design Style | Industrial |
| After-sale Service | N/A |
| Feature | Easy Installation |
| Type | HVAC Systems |
| Application | Other |
| Company Name | Sara Srl |
| Company Address | XX September Street 72 |
| Company Country | IT |
| Company Zip | 87018 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $917.42 / piece
- Ships from: IT
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this kit for ducted fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a N/A warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
