The ducted fan listed here carries type HVAC Systems, model number plenum-bocchetta-2-zone-fancoil, documented exactly as the manufacturer publishes it. Made by Sara Srl (1 year on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ducted Fan
- Model Number: plenum-bocchetta-2-zone-fancoil
- Warranty: N/A
- Place Of Origin: Italy
- Application: Other
- Feature: Easy Installation
- Type: HVAC Systems
Technical Specifications
| Type | HVAC Systems |
|---|---|
| Application | Other |
| Feature | Easy Installation |
| Warranty | N/A |
| After-Sale Service | N/A |
| Design Style | Minimalist |
| Project Solution Capability | N/A |
| Place Of Origin | Italy |
| Model Number | plenum-bocchetta-2-zone-fancoil |
| Selling Units | Single item |
| Single Gross Weight | 5.0 kg |
Product Details

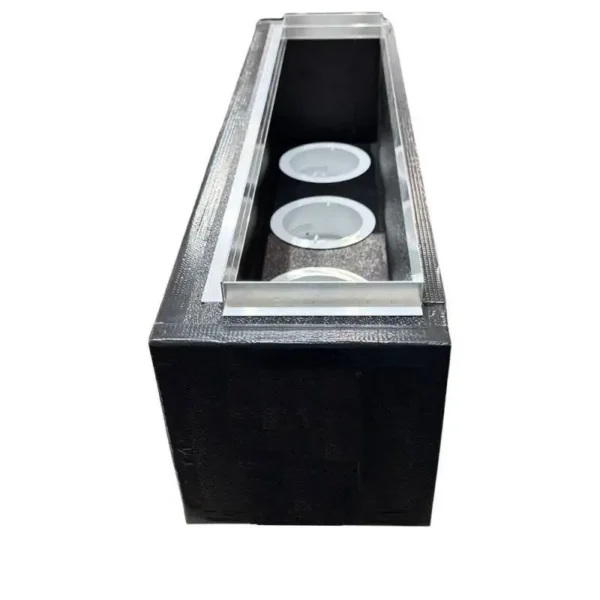

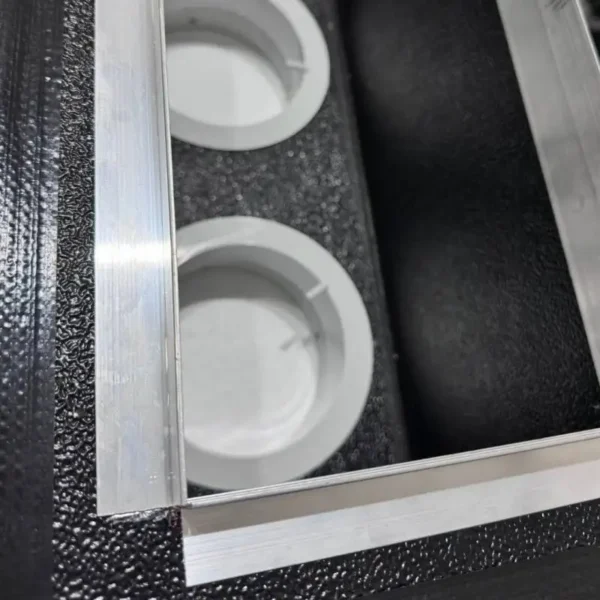

Expanded polyurethane plenum with 2 outlets and variable diameter connections of 100, 127, and 150 mm
Insulated supply plenum in expanded polyurethane with two zones and variable connections of 100, 127, and 150 mm, compatible with all ducted heat exchangers. Available in various sizes. The plenum for ducted fan coils, complete with plenum outlets, is the ideal solution to ensure uniform and efficient air distribution in ducted air conditioning systems. Designed for residential and commercial applications, this product ensures high performance, long-term reliability, and easy installation.
The robust and well-finished structure helps reduce air leaks, vibrations, and noise, improving the comfort of the environment.
DETAILS
Insulated Air Supply Plenum with 2 Connections

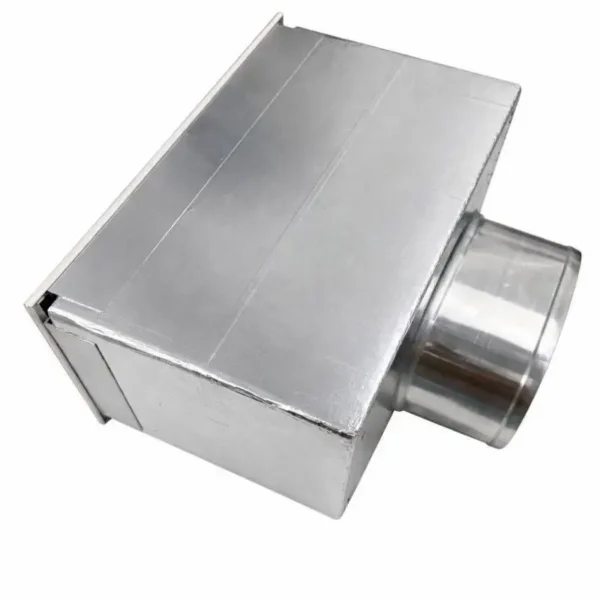

2 pcs Plenum Outlet
2 pcs bidirectional PVC grille 300×150 mm
Outlet diameters 100, 127, 150 mm
Compatible with all Air Conditioners
Available in Various Sizes
Availability in 7 days
Expanded polyurethane plenums are a valid alternative to galvanized sheet metal. The material used for the panels is polyurethane, expanded using approved ingredients. The advantages of this foam are numerous. The first characteristic is its great lightness, about eight times lighter than traditional products. The panels are internally and externally coated with aluminum.
Expanded polyurethane plenums are made with:
Sandwich panels consisting of an insulating component of rigid expanded polyurethane, coated on both sides with aluminum sheets for the construction of air transport ducts.

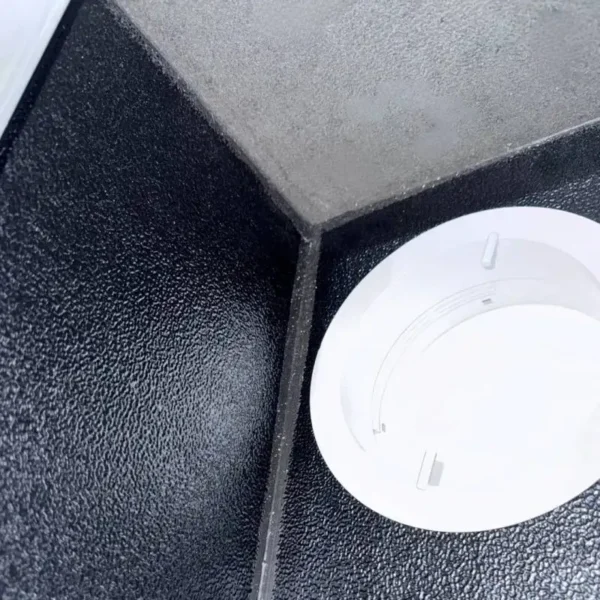

A panel of high-density (49Kg/m³) closed-cell expanded polyurethane is at the heart of this innovation: its 20.5 mm thick structure is both light and advanced, achieving key performance such as pre-insulation with significantly lower weight than that of insulated sheet metal.
The aluminum coating is much more than just a "cover." It performs a fundamental function in two directions:
– Solid and durable surface, with a thickness of 80 microns, for longer-lasting ducts,
– Bacteriostatic properties and ease of cleaning for better air quality.
Main Features
Ducted Fan Coil Plenum
High-insulation Expanded Polyurethane Structure

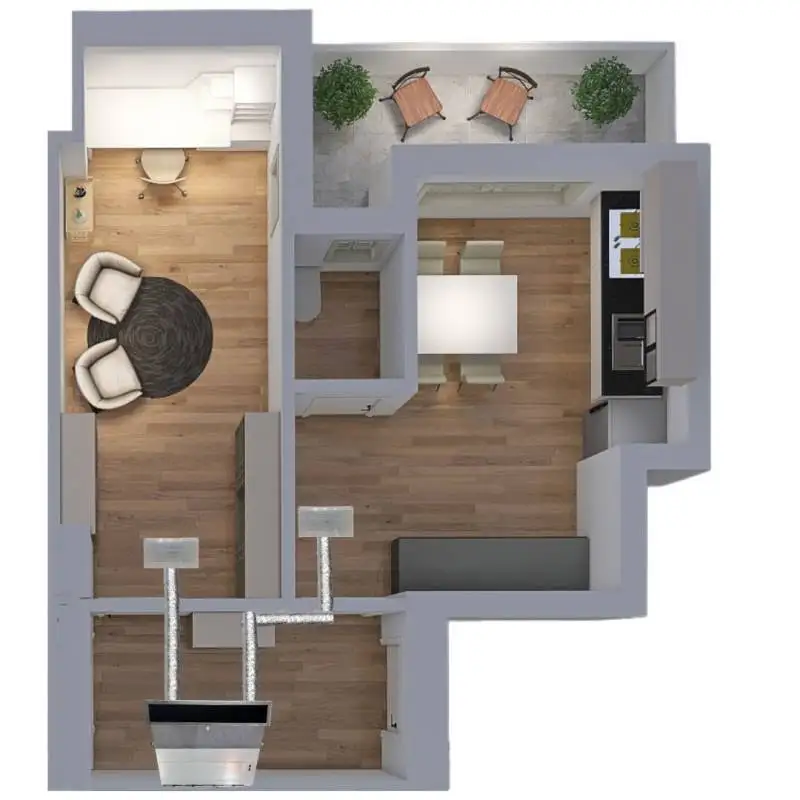

Two-zone configuration for optimized air management

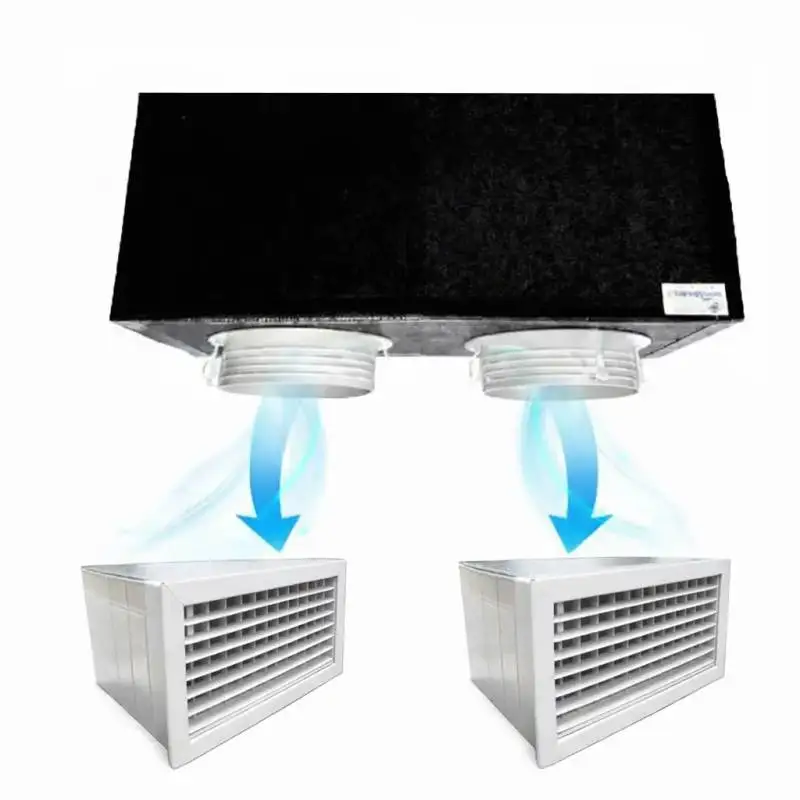

Complete with plenum outlet and PVC supply grille
Reduced thermal losses
Excellent noise reduction
Lightweight and durable product
Quick and easy installation
Benefits
Improves the energy efficiency of the system
Ensures uniform air distribution
Increases comfort in separate areas
Ready-to-use solution
Ideal for new installations or replacements
Applications
Private residences
Offices
Shops
Professional studios
Commercial environments
Technical Specifications
Type: Ducted Plenum
Material: Expanded Polyurethane
Zones: 2
Use: Air Supply
Compatibility: Ducted Air Conditioners
We manufacture custom-sized expanded polyurethane plenums for air conditioning. Feel free to send us the customized dimensions of the plenum you need.
| Warranty | N/A |
| Project Solution Capability | N/A |
| Design Style | Minimalist |
| After-sale Service | N/A |
| Feature | Easy Installation |
| Type | HVAC Systems |
| Application | Other |
| Company Name | Sara Srl |
| Company Address | XX September Street 72 |
| Company Country | IT |
| Company Zip | 87018 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $287.05 / piece
- Ships from: IT
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ducted fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a N/A warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
