This kitchen wall window extractor is published with the manufacturer’s full specification — voltage 110-240, power source Electric. Made by Hangzhou Jacony Technology Co., Ltd. (15 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Kitchen Wall Window Extractor
- Model Number: FA20/FA25/FA30/FA35/FA40
- Power Source: Electric
- Power Supply: 110-240
- Voltage: 110-240
- Blade Material: Cast Iron
- Material: Steel
Technical Specifications
| Voltage | 110-240 |
|---|---|
| Type | Wall-Mounted Axial Fan |
| Blade Material | Cast Iron |
| Mounting Type | Wall Fan |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Place Of Origin | Zhejiang, China |
| Brand Name | OEM |
| Model Number | FA20/FA25/FA30/FA35/FA40 |
| Application | Exhaust Ventilation |
| Material | Steel |
| Motor | Copper Motor |
| Color | Customizable |
| Power Supply | 110-240 |
| Function | Exhaust Air |
| Installation | Wall Mounted Blower |
| Frequency | 50 / 60Hz |
| Selling Units | Single item |
| Single Package Size | 25X25X20 cm |
| Single Gross Weight | 3.0 kg |
Product Details
Features:
* Made of iron material, hard to deformation and with long service life.
* Surface baking varnish technology, more attractive, and not rusty.
* Four blades, stronger suction, enhance ventilation pressure.
* Ultra-quiet copper motor,powerful,effective cooling,fast speed and ultra-quiet.
* Suitable for office, living room, toilet, kitchen, room.

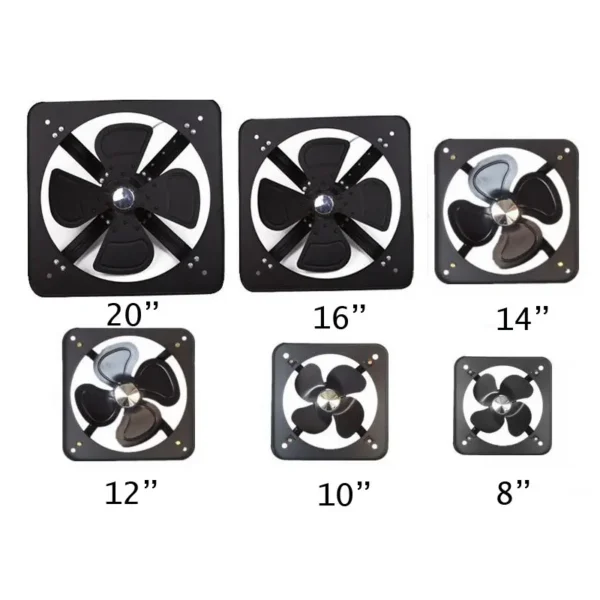

Model No. | Hole Size (mm) | Panel Size (mm) | Voltage & Frequency | Power (watt) | Speed (RPM) | Air Flow (M3/H) | Noise (dB)A |
FA-20(8inch) | 200 | 250×250 | 220V/50Hz | 30 | 1350 | 780 | |
FA-25 (10inch) | 240 | 280×280 | 220V/50Hz | 40 | 1350 | 1020 | 49 |
FA-30 (12inch) | 280 | 340×340 | 220V/50Hz | 80 | 1350 | 1200 | 52 |
FA-35 (14inch) | 330 | 400×400 | 220V/50Hz | 100 | 1350 | 1380 | 54 |
FA-40 (16inch) | 380 | 480×480 | 220V/50Hz | 120 | 1350 | 2880 | 60 |
and long service life.
-Dual ball bearing Motor provide high ventilation efficiency and very low noise during operation.
9000 square meters area.We have wire inserting department includes automatic wire inserting machines,Punch workshop,Assembling &
testing department and
packing department. We have more than 20 years in making motors and fans,our products are welcomed in china customers and
overseas.We have 3C certificates ,CE certificates and Energy saving report for our products.
Production Department 1
Production Department 2
Assembling &Testing department
Copper Motors
Warehouse
Showroom
Energy Efficiency Report
CCC Report
Rohs
TUV
Rohs For DC Motor
CE
Q:How to choose the Fans?
A:We provide ball bearing motor fans with panel or inline design, we also have outer rotor motor fans which has much better stable
quality,If you want a better material,we also have stainless steel fnished fans,Make sure where you want to use the fan,how to install,the watt you need. Or you can contact us for help.
Q:Can i get a sample ?
A:yes,we can provide paid sample for customers to check the quality first.Most sample charge is refundable after order made.
Q:How can i make order?
A:you can contact us to make a order on the alibaba.com or we can sign a contract for the order.
Q:Can i get a price list or discount?
A:pls contact us if you want to make order,prices base on the quantity&packing&specifications,so pls check all the details before
make order.
Q:Why the freight ship cost is so high on the website?
A:The freight cost price is for reference on the website,if you want to make order,pls contact us firstly.
Q:About the customized service.
A:we support several Customized services:
1.AC motor or DC motor
2.Inner rotor motor or outer rotor motor
3.Voltage&Hertz
4.Shell and blade color
5.Box design
6.Stickers design
7.Material option
8.Qty of blades for each fan
9.Plug & Wire length.
Q: After-sale service?
A: 1 yeas of warranty,we can send free part if any problem.However,it is available to get our help if warranty expired.
Q:Payment
A:We support T/T,Western Union,Moneygram,Escrow,Paypal,etc
Q:Transportation
A:Tranksported by DHL,UPS,EMS,Fedex,Air freight,Sea freight.it depand on customers' choices.
Ordering and Pricing
- Minimum order quantity: 20 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this kitchen wall window extractor?
The standard minimum order quantity is 20 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the kitchen wall window extractor be supplied for my local voltage?
The standard configuration is 110-240. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
