R454B support is the forward-looking detail in this integrated condensing unit — it is the low-GWP blend replacing R410A in commercial systems, and a unit that cannot run it will need replacing rather than recharging when regulation tightens. Bitzer scroll compressor rated 10KW covering -20C to 8C, supplied complete with compressor and condenser at 220V or 380V.
Key Features of This Integrated Condensing Unit
- Voltage: 220 V, 380 V
- Cooling Capacity: 10KW
- Refrigerant: R22/R410/R404A/R454B
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Compressor Type: Scroll
Technical Specifications
| Cooling Capacity | 10KW |
|---|---|
| Temperature | -20-8c |
| Compressor Brand | Bitzer |
| Compressor Type | Scroll |
| Key Selling Points | Eco-Friendly |
| Voltage | 220 V, 380 V |
| Warranty | 1 Year |
| Core Components | compressor, condenser |
| Video Outgoing-Inspection | Provided |
| Refrigerant | R22/R410/R404A/R454B |
| Place Of Origin | Guangdong, China |
| Weight (KG) | 100 |
| Selling Units | Single item |
Product Description
|

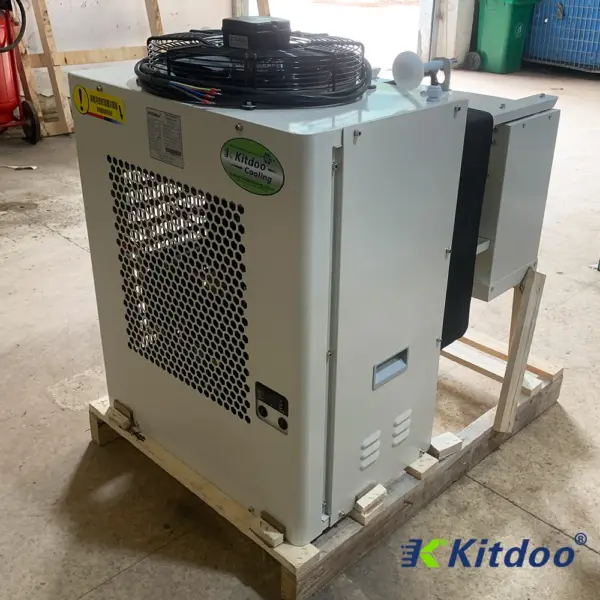

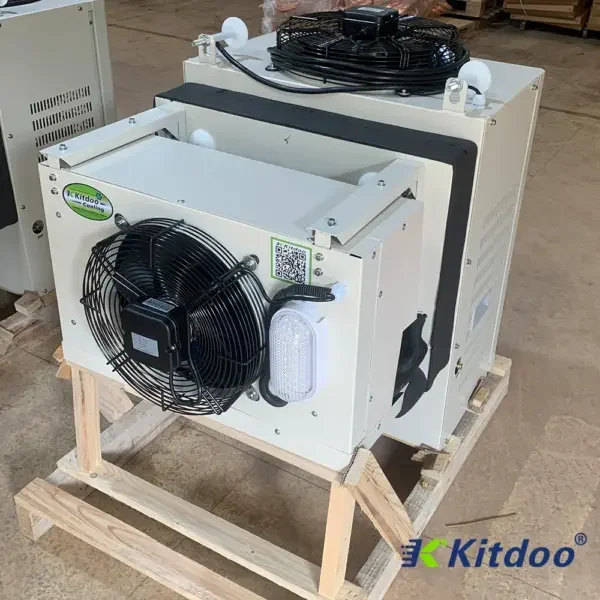

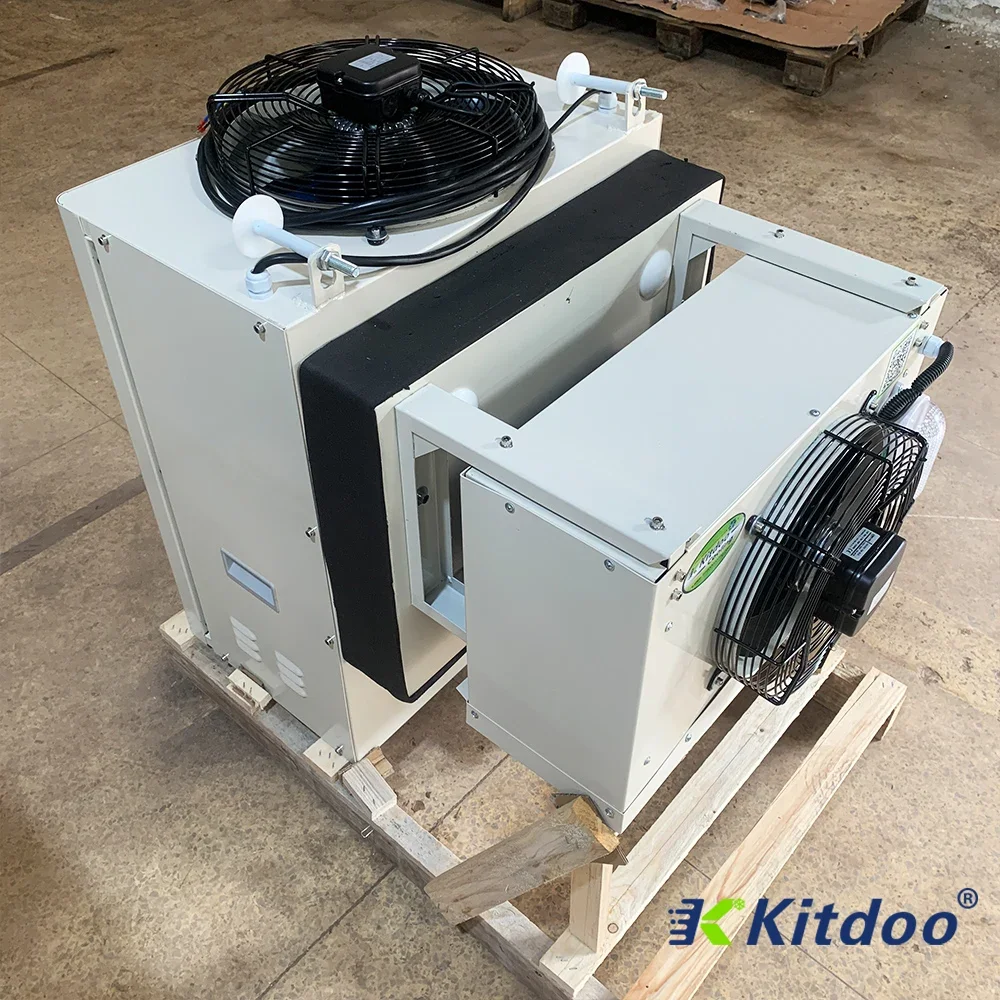

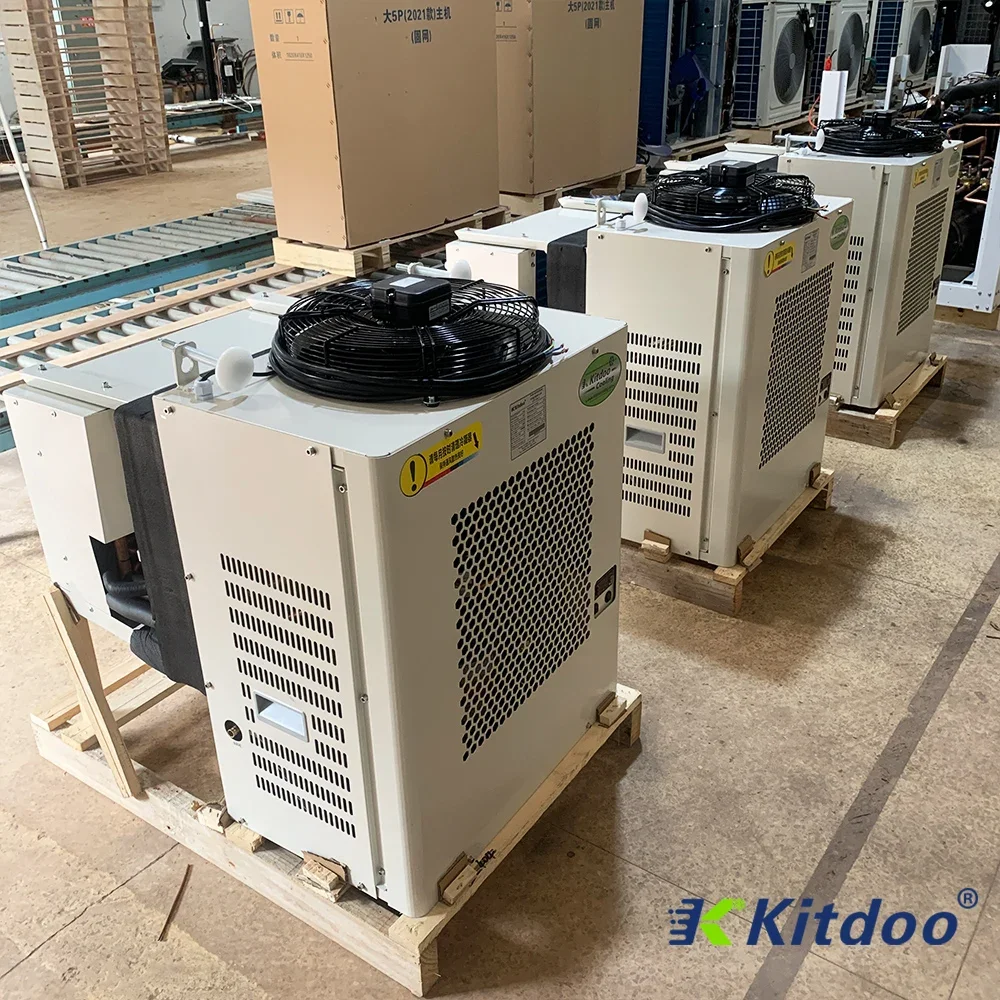

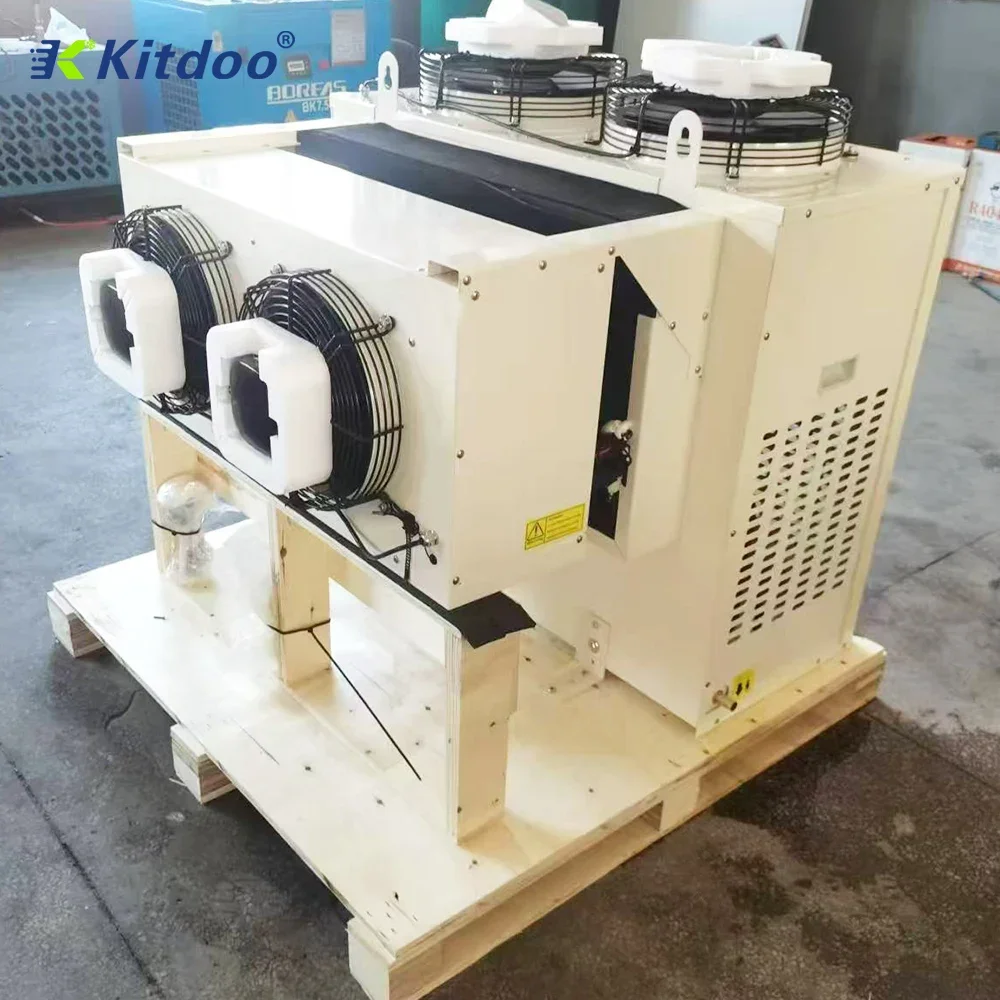

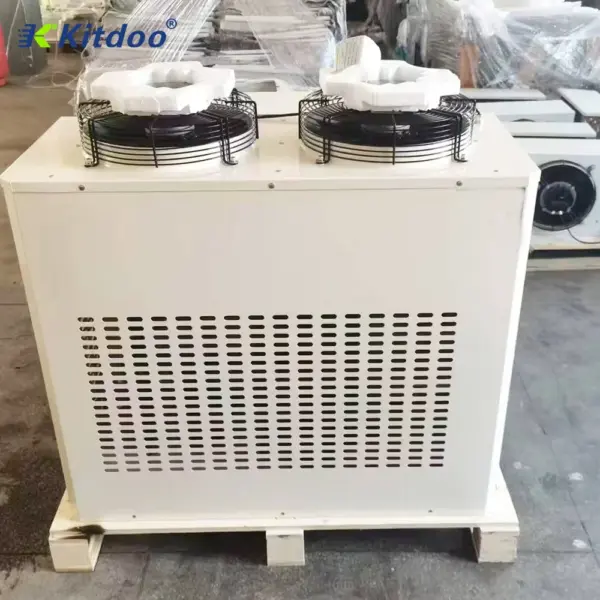

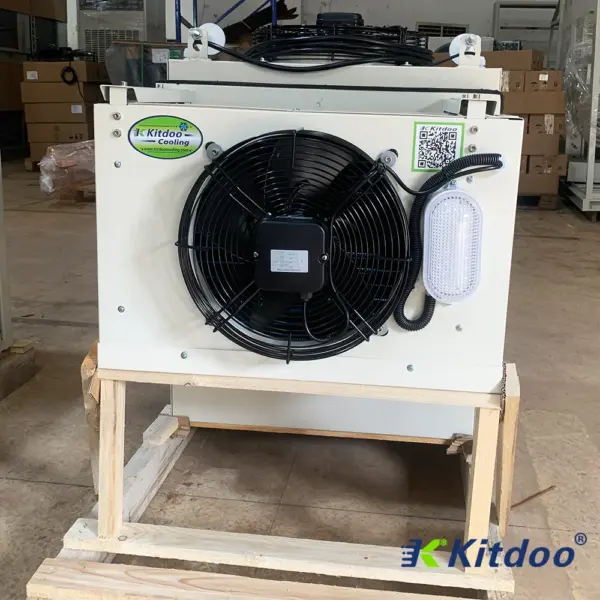

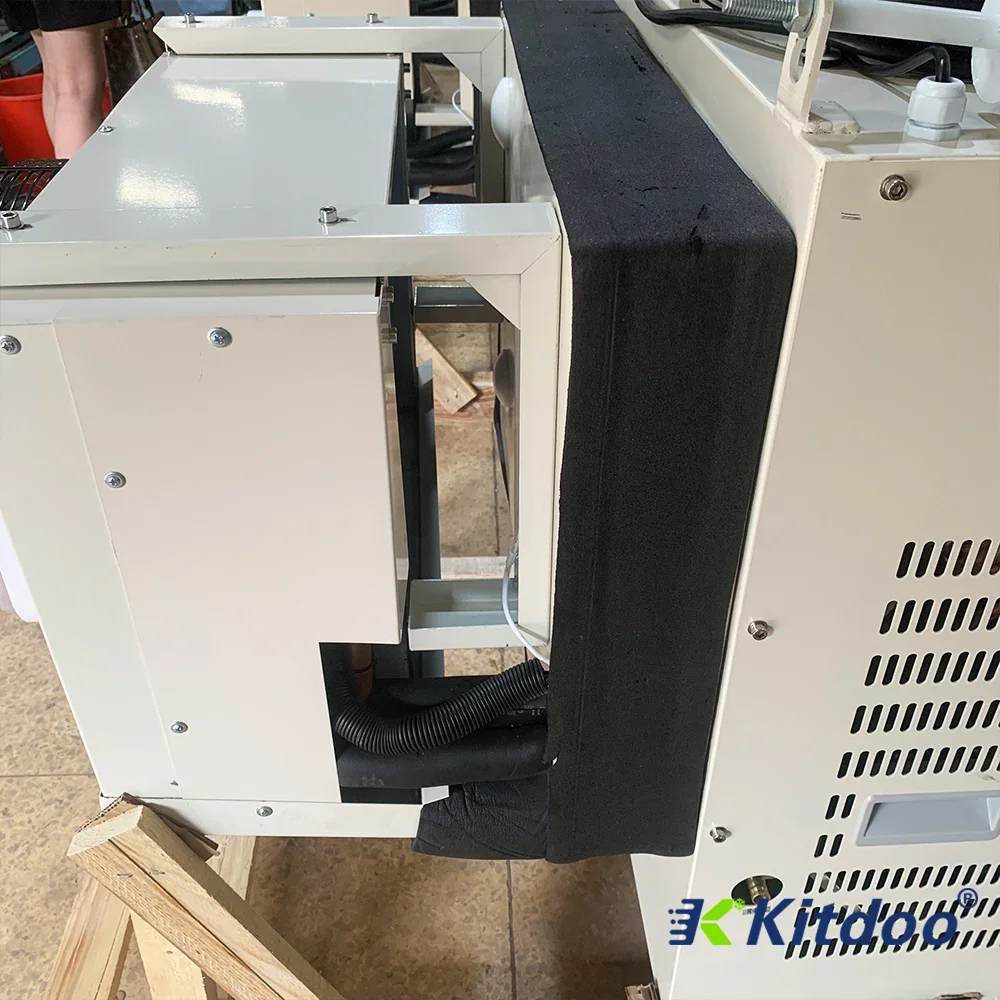

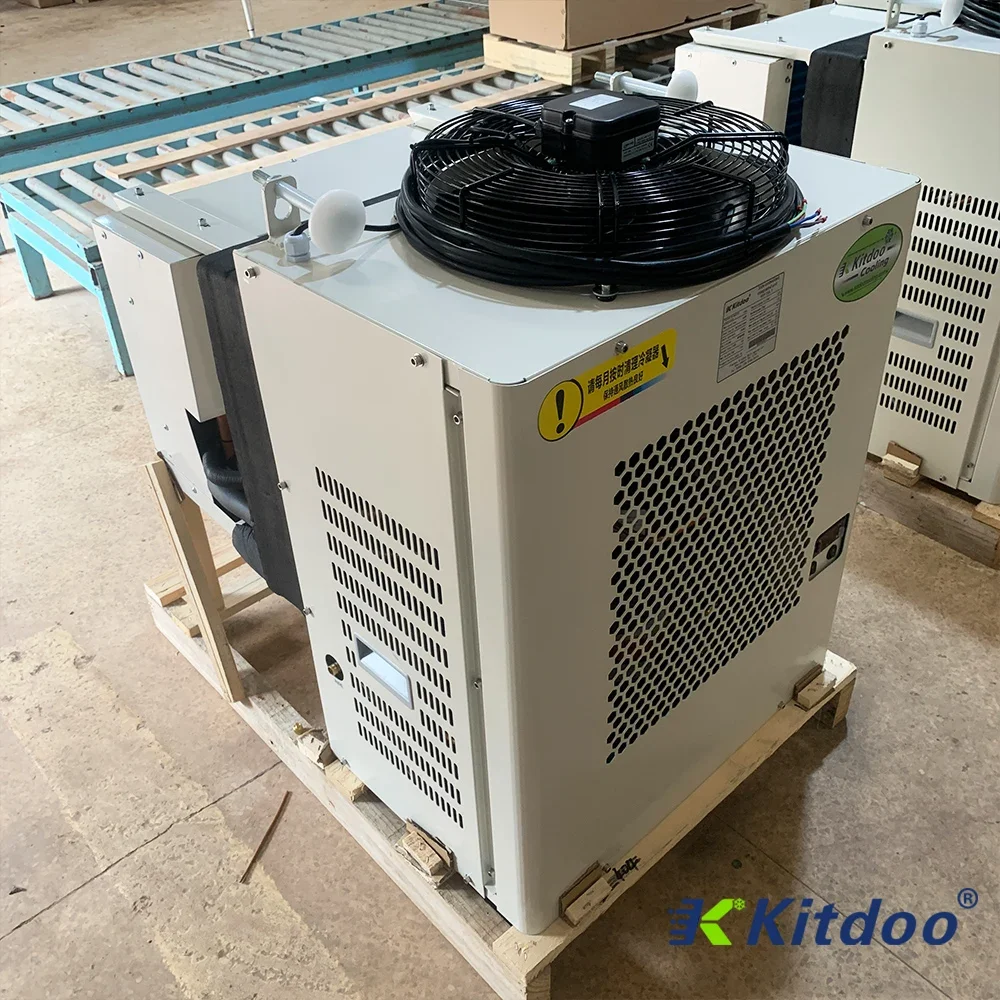

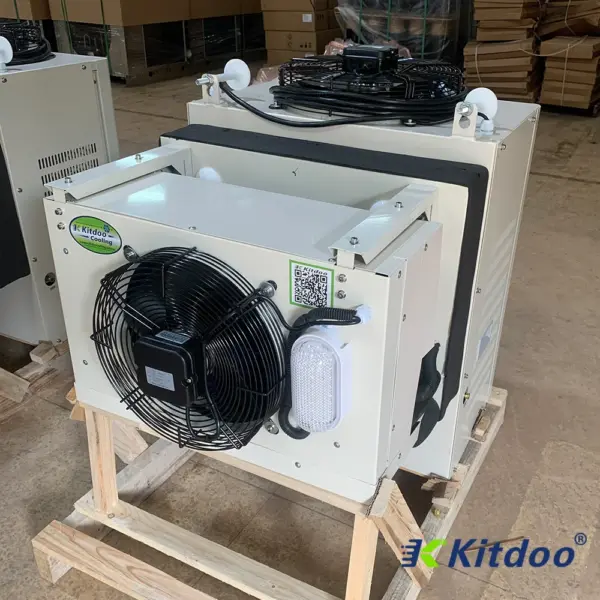

Integrated unit for cold storage
|
||||||||
|
Model
|
SY2S
|
SY3S
|
SY5S
|
|||||
|
Overall Dimension(mm)
|
1170*660*830
|
1350*800*950
|
||||||
|
Power supply
|
220V/50Hz
|
220V/50Hz
|
380V/50Hz
|
|||||
|
Evaporation temperature range
|
-42℃~ -5℃
|
|||||||
|
Design condensing temperature
|
40°C
|
|||||||
|
Applicable ambient temperature
|
45°C~-10°C
|
|||||||
|
Work material
|
R22/R404a
|
|||||||
|
Maximum operating current(A)
|
10
|
18
|
13
|
|||||
|
Operating power(W)
|
1700
|
2600
|
3700
|
|||||
|
Pressure control type
|
Electronic Pressure Sensors
|
|||||||
|
Condensing fan
|
Power
|
180W
|
180W
|
380W
|
||||
|
Quantities
|
1
|
1
|
1
|
|||||
|
Evaporator fans
|
Power
|
180W
|
180W
|
380W
|
||||
|
Quantities
|
1
|
1
|
1
|
|||||
|
Condensing area (m²)
|
20
|
30
|
50
|
|||||
|
Evaporated area (m²)
|
20
|
30
|
50
|
|||||
|
Weights
|
98KG
|
106KG
|
160KG
|
|||||
|
Cooling capacity
|
Evaporating temperature (°C)
|
Cooling Capacity：W
Ambient Temp:32℃
|
||||||
|
-5
|
3750
|
5625
|
9370
|
|||||
|
-25
|
1850
|
2785
|
4645
|
|||||
|
Customizable refrigerant compressor 110V,60Hz outlet voltage
|
||||||||
Frequently Asked Questions
What is the minimum order quantity for this integrated condensing unit?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this integrated condensing unit?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 220 V, 380 V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
