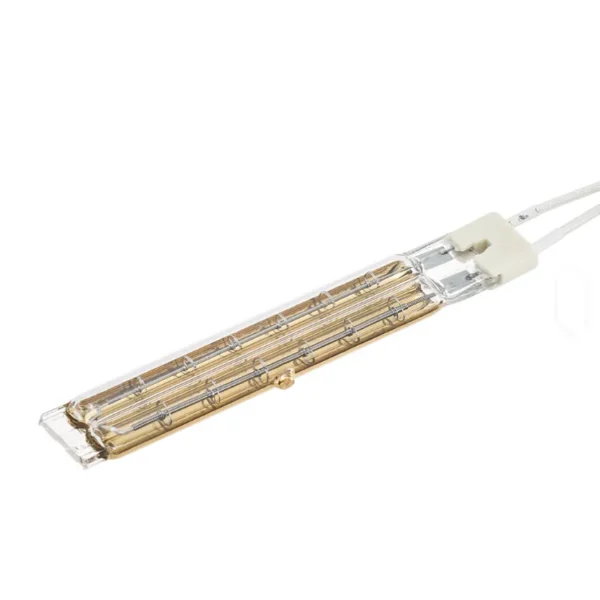

Key specification for this lamp quartz twin tube: 400 V, 3000w(4.02hp). Everything below is reproduced from the factory data sheet. Made by Lianyungang Yaunda Quartz Product Co., Ltd. (13 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Lamp Quartz Twin Tube
- Power Source: Electric
- Power Source:: Electricity
- Voltage: 400 V
- Heating Capacity: 3000w(4.02hp)
- Material: Quartz
- Warranty: 1 Year
Technical Specifications
| Type | quartz heater |
|---|---|
| Power Source | Electric |
| Voltage | 400 V |
| Material | Quartz |
| Warranty | 1 Year |
| Heating Capacity | 3000w(4.02hp) |
| Place Of Origin | China |
| Weight (Kg) | 0.15 |
| Certification | ce |
| Heating Response Time | 1S |
| Power Source: | Electricity |

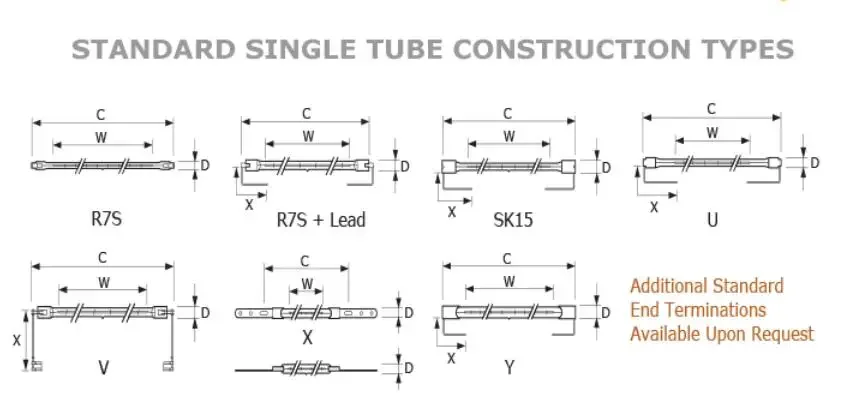

| Shape: | Linear, Round, C, U type |
| Type: | Electric Heater Parts |
| Lifetime | 5000 hours |
| Type Of Sale | Factory Outlet |
| Brand Name | OEM |
| Mounting: | Vertical and Horizontal |

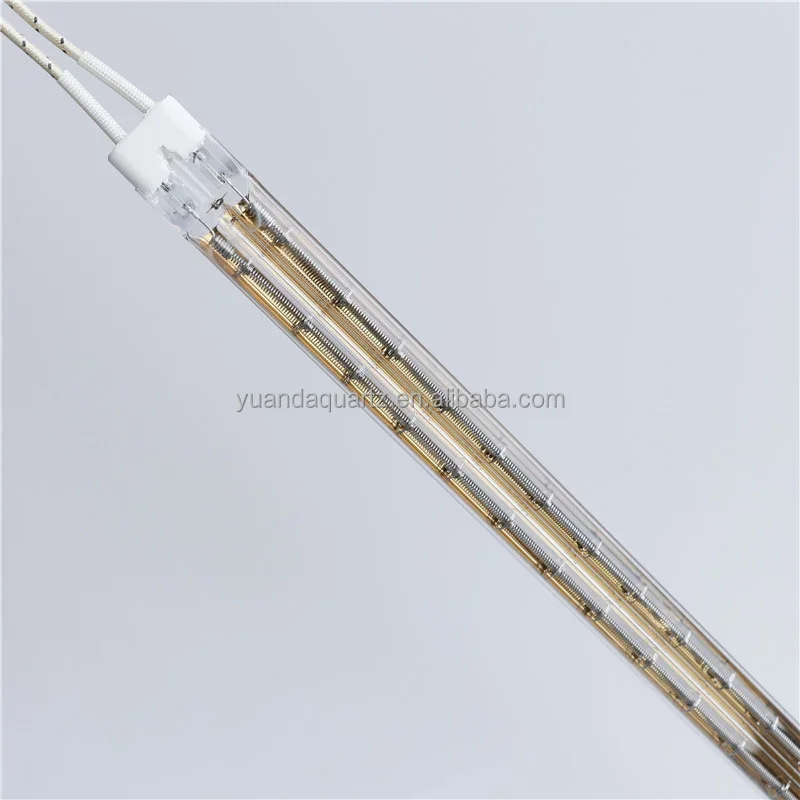

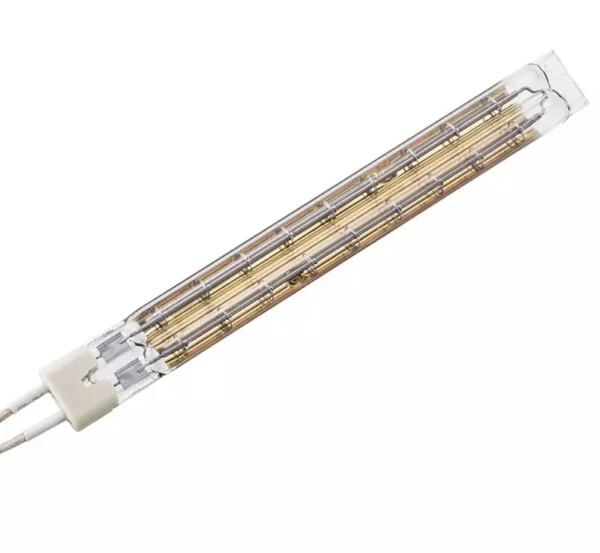

| Product Name | Twin tube infrared heat element |
| Selling Units | Single item |
| Single Package Size | 30X20X20 cm |
| Single Gross Weight | 3.0 kg |
Product Details
Filament | Tungsten |
Lamp reflecter | Clear,White,Gold |
Wavelength | 1.3um |
Voltage | 24-600V |
Power | 50-5000W |
Color Temp | 2450K |
Tube diameter | 10mm,11mm,or customized |
Life Time | >5000hrs |
The top quality of filament can let the lamp keep long time life
*High efficiency.
*Economical to run.
*Have a fast response switching on and off time.
*Effectively transmit and focus heat on materials.
High purity 99.99% quartz glass tube
*Is totally transparent at IR radiation.
*quartz is used in halogen bulbs because it can withstand high temperatures. Quartz also ensures against heat shock.

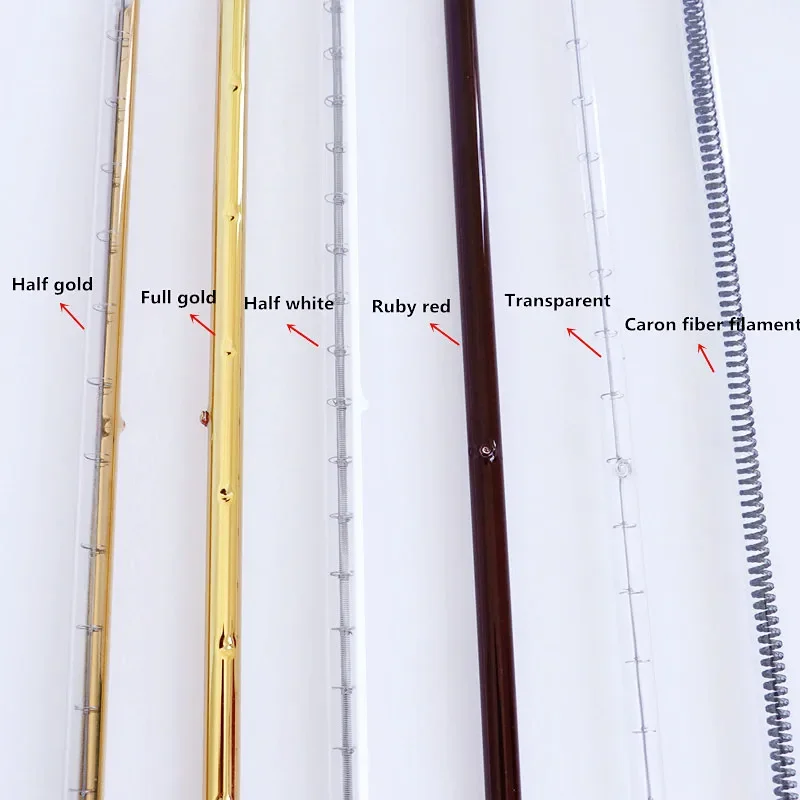

The advantage of different reflector
WHITE REFLECTOR

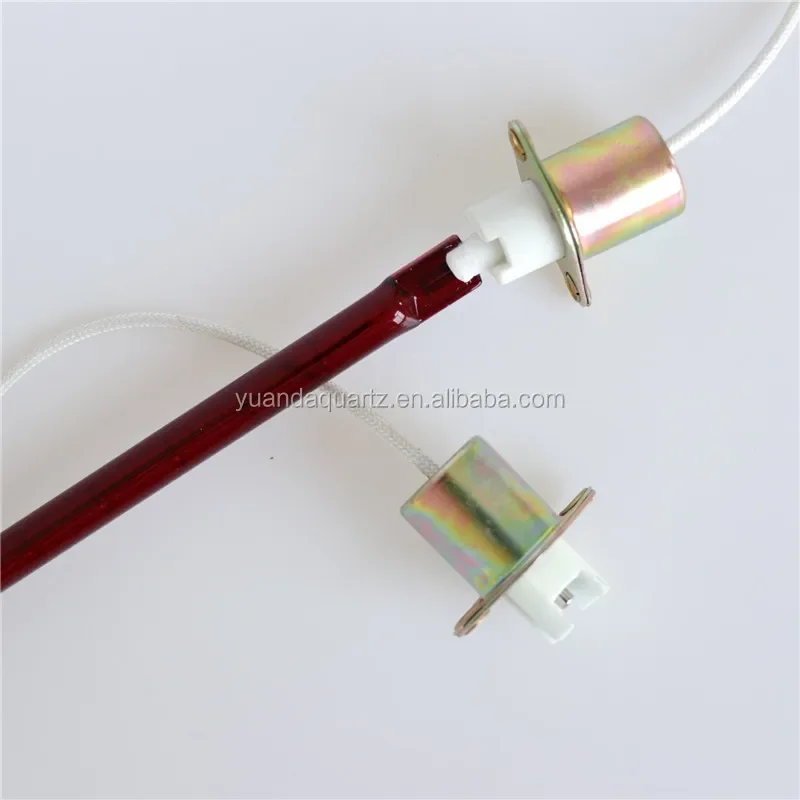

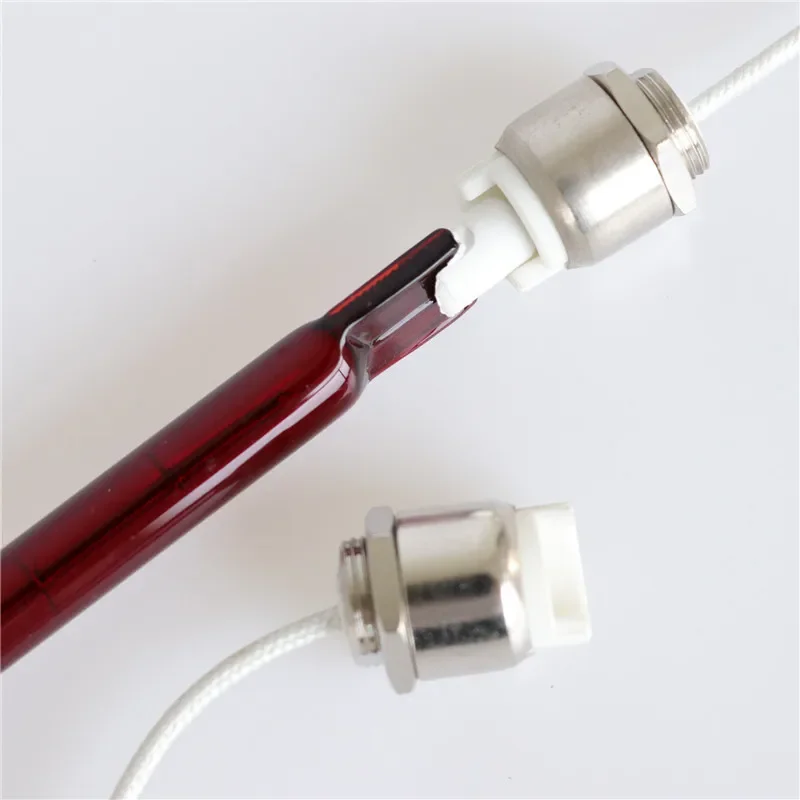

RUBY REFLECTOR
Reduce the brightness of visible light.
The lighting is soft rose ,reduce wavelength, increase heat.

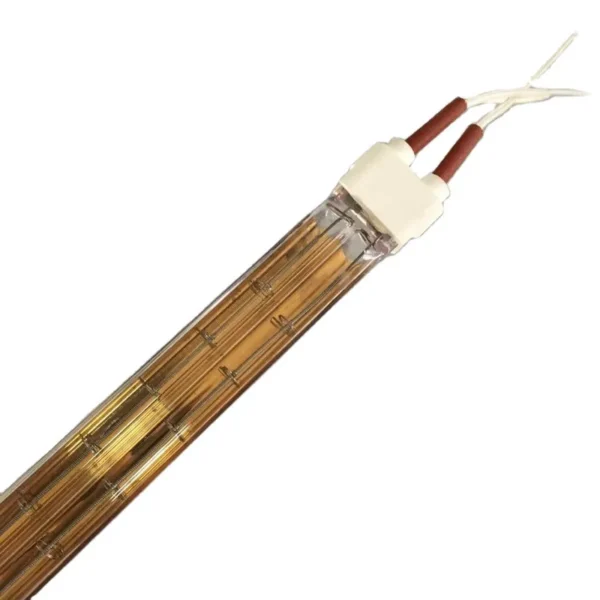

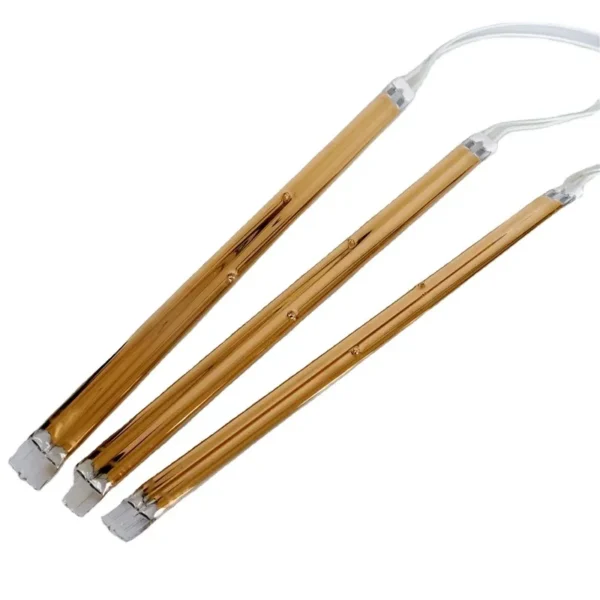

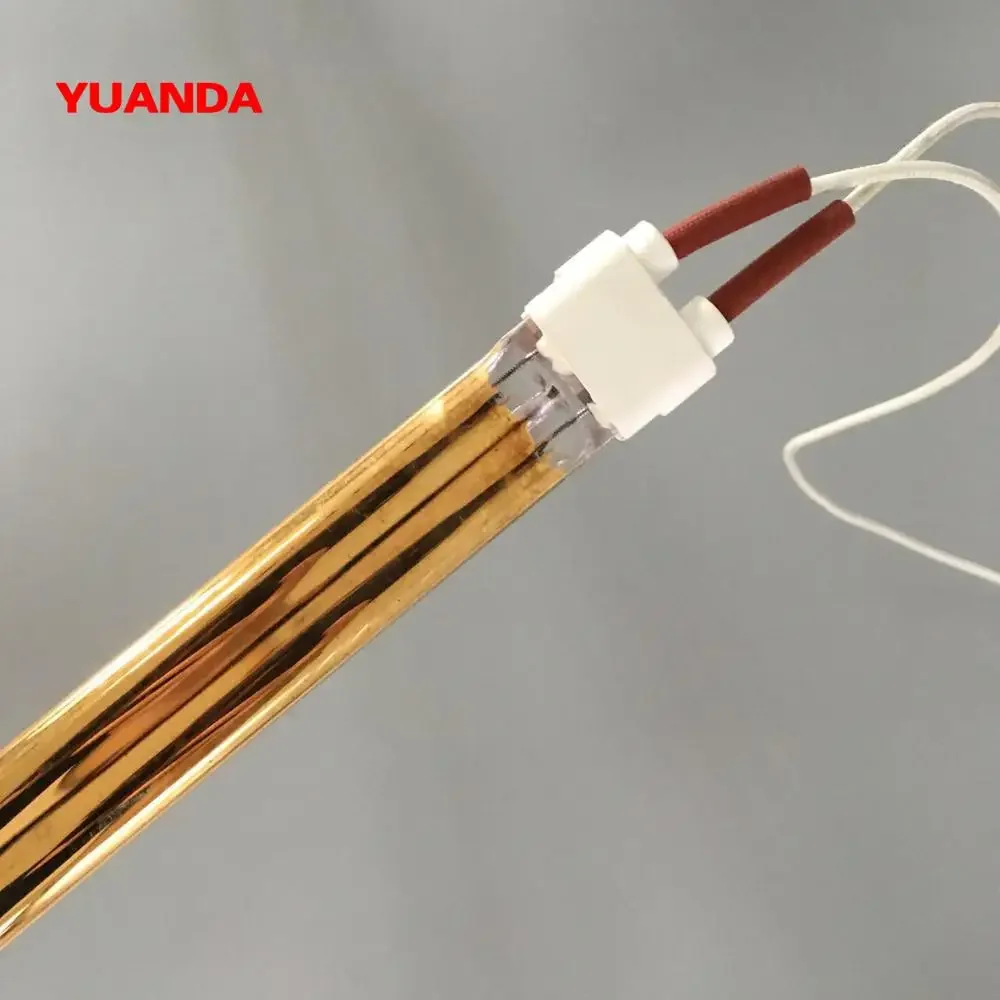

GOLD REFLECTOR

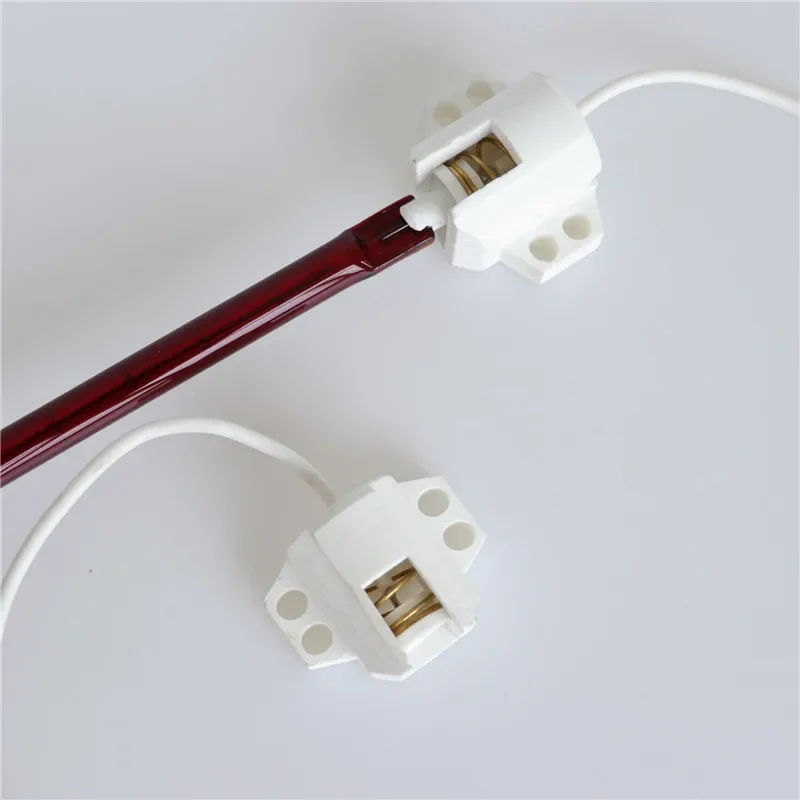

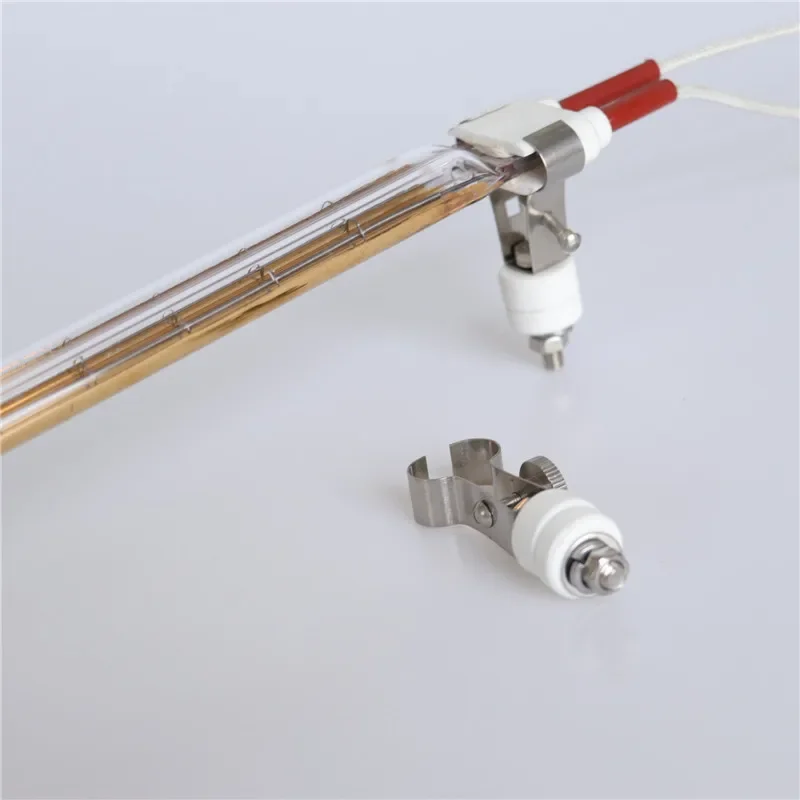

EASY FIXED THE LAMPS
SAFETY PRECAUTIONS :
1. Components are allowed to work under the following conditions:
A. The relative humidity of the air is not more than 95 percent.
B. There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
C. Without violent impact and vibration;
D. The working voltage should not be greater than 1.1 times the rated value, and it can also be effectively grounded.
E. Insulation resistance ≥ 1MΩ Dielectric strength: 2KV/1min.

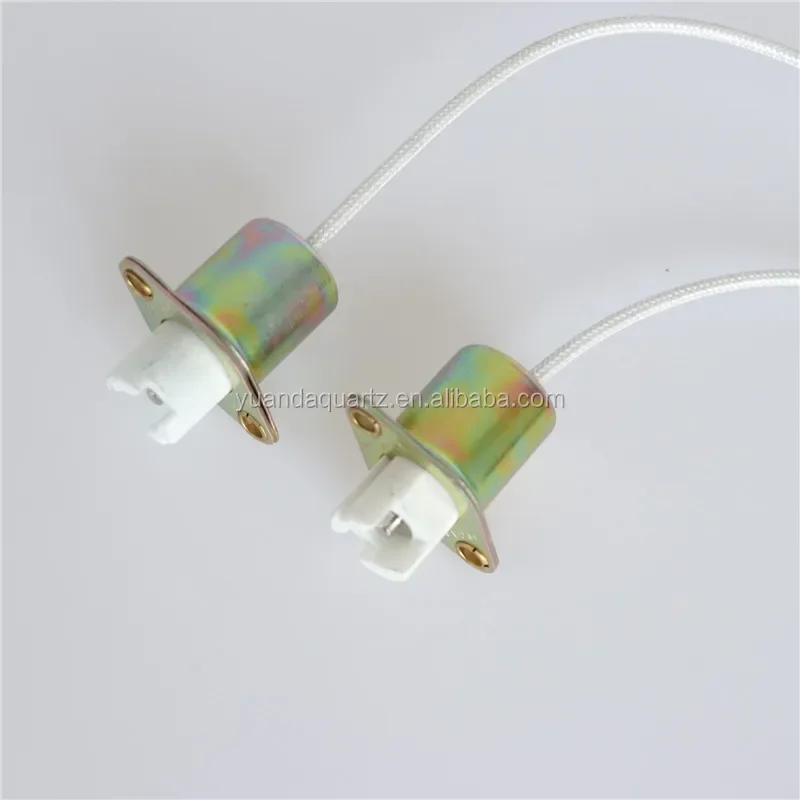

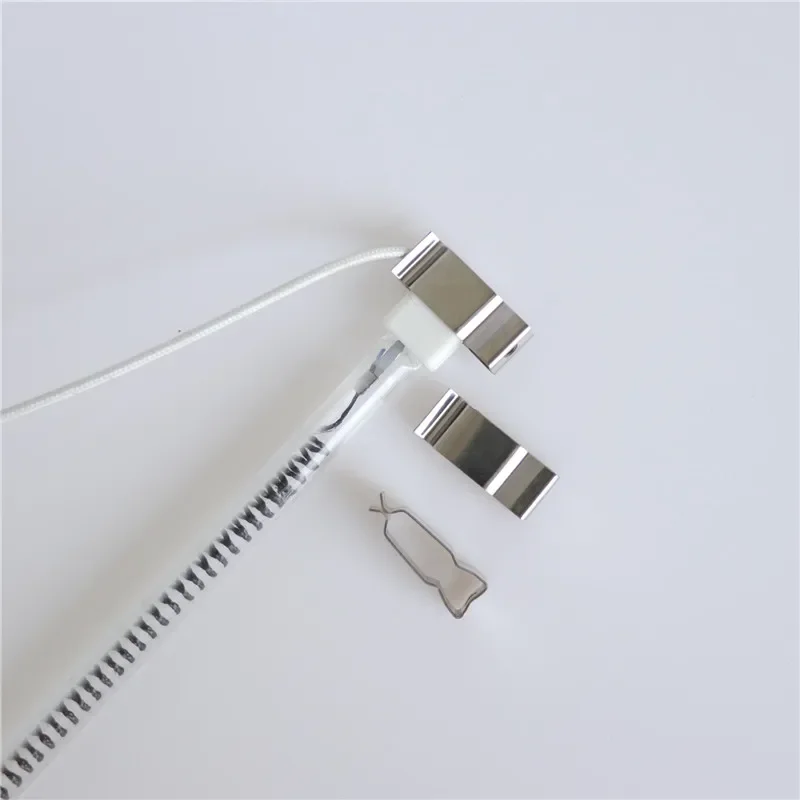

2. The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.
When the operating temperature exceeds 200 degrees Celsius, a high-temperature wire and screw connection that withstands 400 degrees or more is used.
3.Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object.
Take necessary protective measures to avoid mechanical damage

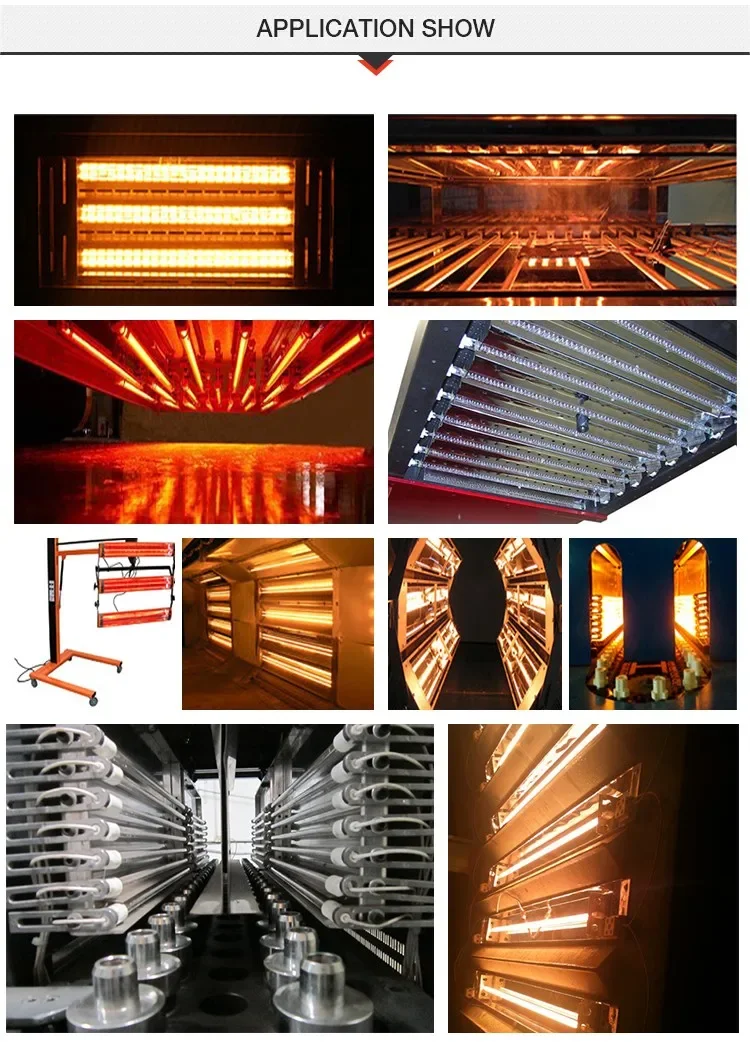

Support(zone) | Application | Suggest the ir lamp type |
Plastics | • Bottle blowing • Thermoforming • Plastic forming • Welding • Serigraphy • Strapping | Half white reflecter infrared lamp |
Paper | • Drying • Copying • Offset printing • Ink jet • Serigraphy | Clear short wave heat lamp Half white heat lamp |
Food | • Food catering • Food processing | Ruby heat lamp. round halogen oven lamp |
Wood & Composites | • Drying • Curing • Powder coating | white reflecter infrared heat lamp Gold relfetcer heat lamp |
Shoes & Fabrics | • Drying • Curing | White relfecter/gold reflecter/clear/ruby |
Metal | • Strapping • Coil coating • Powder coating | Gold relfetcer heat lamp/twin tube ir lamp |
Paint | • Automobile repair shops • Powder coating | Ruby jacked heat lamp/relfecter lamp |
Animal care | • Breeding and rearing of animals • Veterinary clinics, zoos,pet shops and beauty parlors | Ruby ir lamp. |
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10+ piece: US $10 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this lamp quartz twin tube?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this lamp quartz twin tube carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the lamp quartz twin tube be supplied for my local voltage?
The standard configuration is 400 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Lianyungang Yaunda Quartz Product Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Lianyungang Yaunda Quartz Product Co., Ltd. range on HVACR Nexus.
