Large ceiling hvls fan — 110V-440V, 1.5KW/0.75KW/0.55KW. The complete factory specification follows. Made by Jiangsu Dawang Ventilation Machinery Co., Ltd. (7 years on the platform, typical reply ≤12h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Large Ceiling Hvls Fan
- Power: 1.5KW/0.75KW/0.55KW
- Voltage: 110V-440V
- Blade Material: Aluminum Alloy
- Warranty: 2 Years
- Certification: CE,ROHS,FCC
- Place Of Origin: Wuxi, China
Technical Specifications
| Mounting | Ceiling Fan |
|---|---|
| Voltage | 110V-440V |
| Blade Material | Aluminum Alloy |
| Warranty | 2 Years |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM |
| Place Of Origin | Wuxi, China |
| Power | 1.5KW/0.75KW/0.55KW |
| Brand Name | DAWANG FAN |
| HVLS Fan | High Volume, Low Speed |
| Fan Diameter | 10ft-26ft |
| Package | 2 PCS Wooden Cases |
| Coverage Area | 452-2462 Square Meter |
| Blade Nos | 5 PCS |

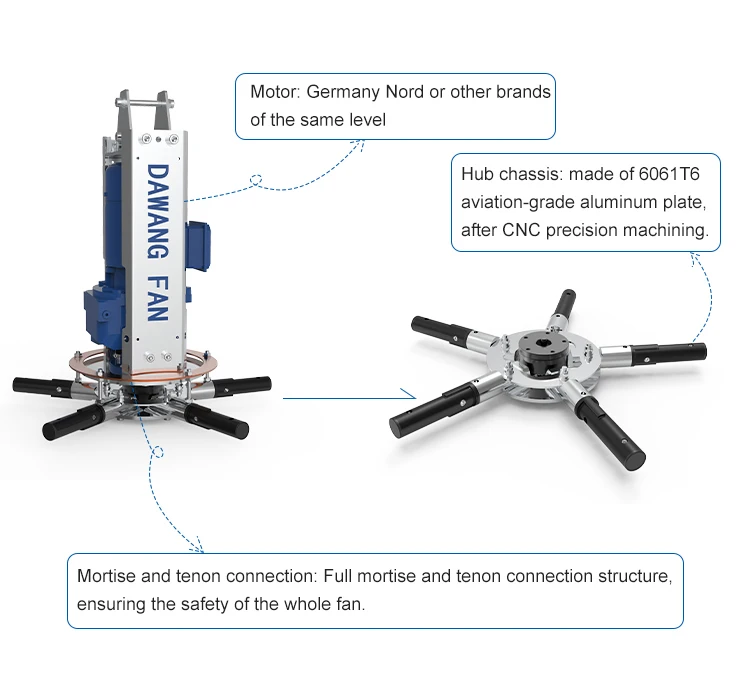

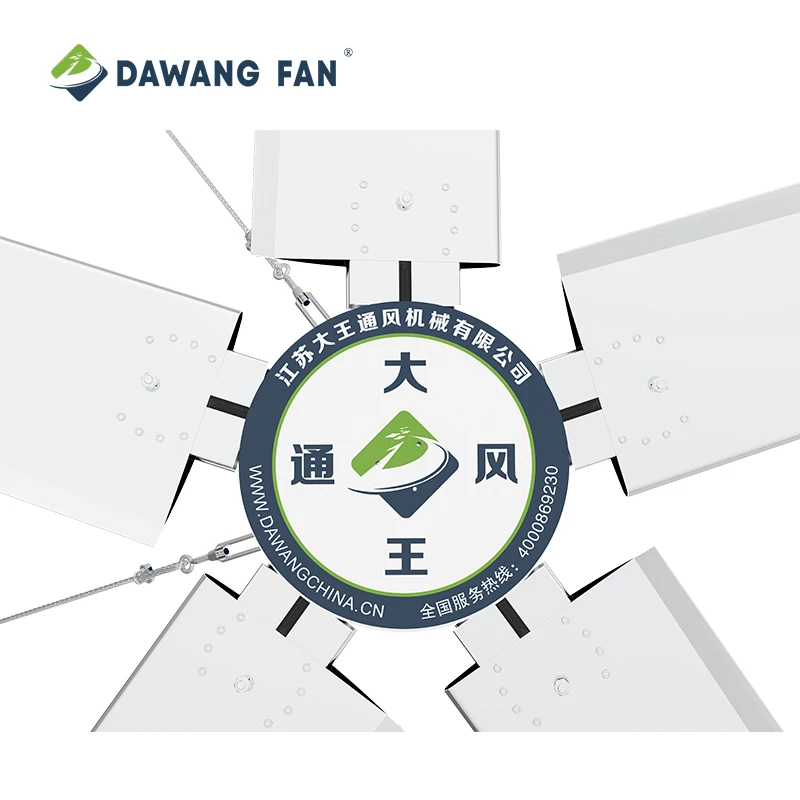

| Patent | Mortise-tenon Connection |
| Certification | CE,ROHS,FCC |
| Selling Units | Single item |
| Single Package Size | 101X53.5X51 cm |
| Single Gross Weight | 188.000 kg |
Product Details
Product Series | D.Fans Series | ||||||||||||||||
Model | D26 | D24 | D22 | D20 | D18 | D16 | D14 | D12 | D10 | ||||||||
Specification/ Diameter(m) | 8 | 7.3 | 6.7 | 6.1 | 5.5 | 4.9 | 4.2 | 3.6 | 3.1 | ||||||||
Speed (rpm) | 10-45 | 10-55 | 10-60 | 10-60 | 10-70 | 10-75 | 10-80 | 10-90 | 10-100 | ||||||||
Full-load air volume(m³/min) | 17676 | 16130 | 14804 | 13800 | 12152 | 10826 | 9280 | 7954 | 6849 | ||||||||
Coverage area(m²) | 2462 | 2123 | 1809 | 1520 | 1256 | 1017 | 804 | 615 | 452 | ||||||||
Average consumption(kwh) | ≤1.5 | ≤1.2 | ≤1.2 | ≤1.0 | ≤0.8 | ≤0.8 | ≤0.7 | ≤0.7 | ≤0.7 | ||||||||
Rated power rate(kw) | 1.5 | 0.75 | 0.55 | ||||||||||||||
Noise(dB) | ≤50 | ||||||||||||||||
Full-load current(A) | 3.2 | ||||||||||||||||
Power supply(V) | 380V/220S | ||||||||||||||||
Weight(kg) | 106 | 101 | 99 | 96 | 95 | 90 | 88 | 86 | 82 | ||||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $3212 / set
- 10+ set: US $1445 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this large ceiling hvls fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this large ceiling hvls fan carry?
It is supplied with CE,ROHS,FCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the large ceiling hvls fan be supplied for my local voltage?
The standard configuration is 110V-440V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
