Key specification for this litre ibc tote heater: voltage Up to 480v, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shanghai Pamaens Technology Co., Ltd. (12 years on the platform, typical reply ≤8h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Litre Ibc Tote Heater
- Power Source: Electric
- Max. Power Density: 2000 w/sq m depending on application
- Voltage: Up to 480v
- Supply Voltage: 6~480 V, 1 or 3 phase
- Material: 1000 Litre IBC Tote Heater Jacket Heating Blanket
- Insulation Material: Fiberglass reinforced Silicone Rubber
Technical Specifications
| Type | 1000 Litre IBC Tote Heater Jacket Heating Blanket |
|---|---|
| Power Source | Electric |
| Voltage | Up to 480v |
| Material | 1000 Litre IBC Tote Heater Jacket Heating Blanket |
| Core Components | 1000 Litre IBC Tote Heater Jacket Heating Blanket |
| Key Selling Points | Long service life and high quality |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 22 |
| Brand Name | PAMAENS |
| Dimension(L*W*H) | Customized |
| Working Temperature Range | -50 – 260 ℃ |
| Supply Voltage | 6~480 V, 1 or 3 phase |
| Insulation Material | Fiberglass reinforced Silicone Rubber |
| Max. Operating Temp | 260 Deg C |
| Min. Element Temp | -50 Deg C |
| Max. Power Density | 2000 w/sq m depending on application |
| Resistance Tolerance | about +/- 5% |
| Standard Thickness | 10-30 mm could be customized |
| Flammability | Flame Retardant |
| Moisture Absorption | Moisture proof |
| Thermal Protection & Control | On board thermal fuse, thermostat, thermistor and PT100 |
| Selling Units | Single item |
| Single Package Size | 60X40X50 cm |
| Single Gross Weight | 20.0 kg |
Product Details

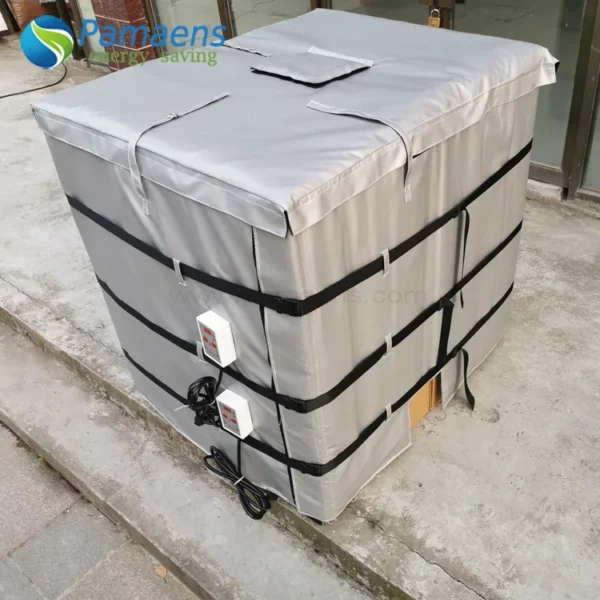

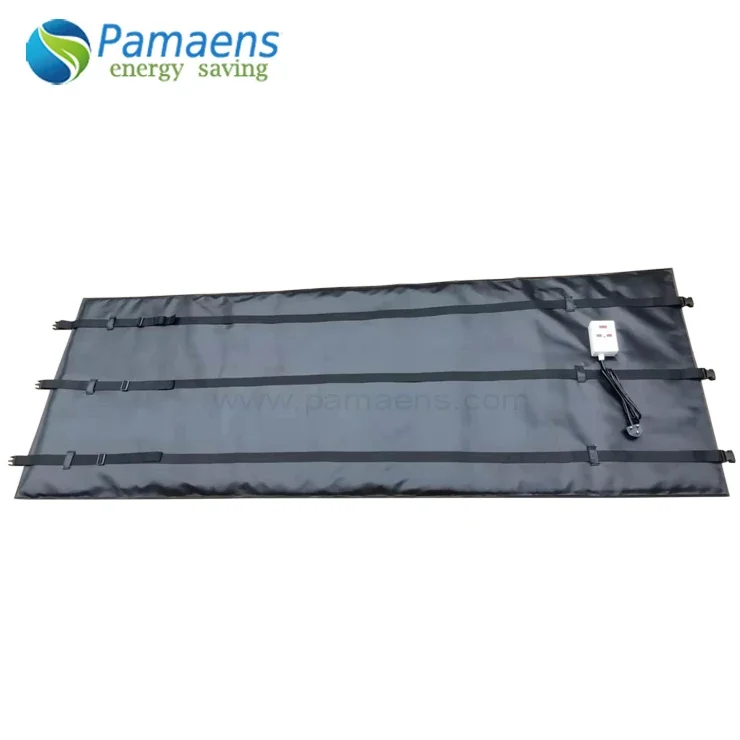

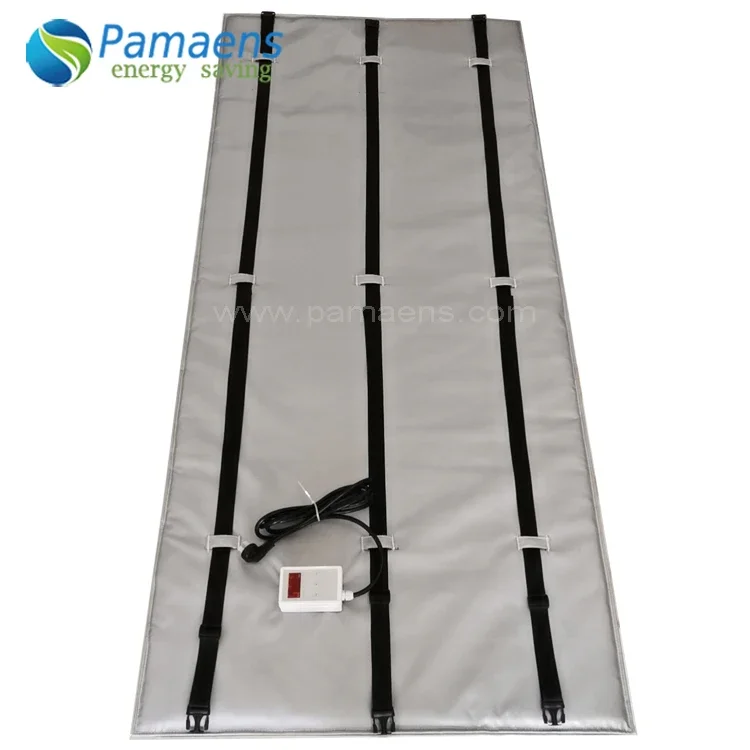

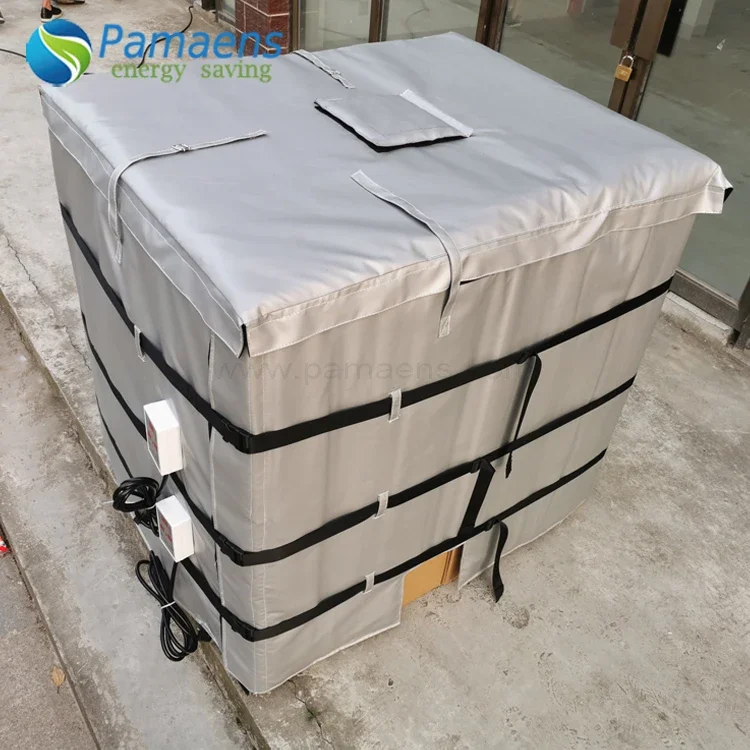

Introductions of 1000 Litre IBC Heater Jacket
1000 Litre IBC Heater Jacket combined by the heating element, base core, fabrics, power cord, junction box, control switch (or thermostat). It could be classified into two types, constant temperature type and adjustable temperature type. The constant temperature type is implanting one or more fixed temperature control element in the electric blanket, when the temperature is lower than the set temperature, the heating blanket automatically starts heating, when the temperature reaches the set temperature; the heating blanket automatically disconnected the power supply, and continues thermal insulation. The whole process is circulated. The temperature adjustable type is built in a temperature probe, which transmit temperature signal to the relay in the temperature control box, and the relay control the connection of the circuit. Temperature could be set up by users according to the using environment and conditions. The ordinary temperature range is -35℃ to 120℃, and for other temperature range, we could customized according to customers’ requirements.

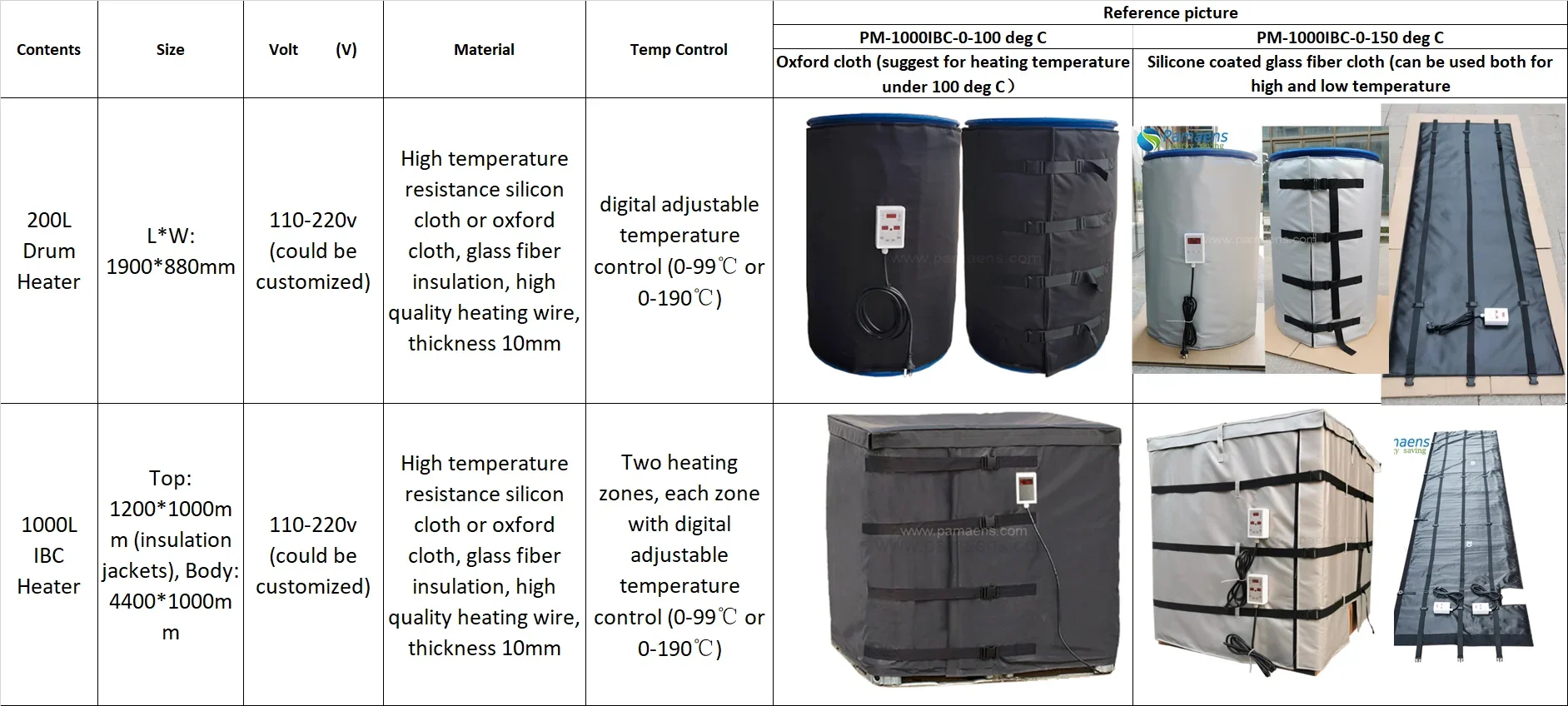

Specifications of 1000 Litre IBC Heater Jacket
1 Voltage: 50HZ 220V/230V/240V/100V/110v/120v
2 Rated power: 100-1500W/ square meter (according to the user's different needs can be customized)
3 Rated current: 0.45A~16A
4 Temperature: Adjustable temperature type≤190℃±1℃; Accessories: electronic temperature control box
5 Constant temperature type: 35℃~260℃±5℃(5℃/grade)
6 Heating area: Customized, ex.: 2200mm x 300mm.
7 Product size: Customized, ex.:2500mm x 400mm.
The feature of 1000 Litre IBC Heater Jacket
A.Thickened the thermal insulation layer make the heating blanket has better thermal insulation, and faster heating up.
B. Smoothly lied resistant wire makes the heating blanket heating Uniform.
C. High temperature resistance flame retardant fabrics are used.
D. The heating blanket is designed with connection and fixation device, by which the heating area could extend easily.
E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃.
F. The heating blanket is built in temperature control in case of burning of the heating blanket by abnormal use.
G. Several temperature probes are layout uniformly, making sure the uniform heating.
Advantages of 1000 Litre IBC Heater Jacket
1. Integrated type
2. Custom size and shape
3. Full coverage heating and insulation, high thermal and heating efficiency
4. Good flexibility
5. Uniform heating
6. Built-in overheat switch to prevent accidental burning of heated body
7. Large range, high power, fast heating.
8. High insulation performance of all material
9. Easy to install and remove, safer and adjustable
How to Choose heaters:

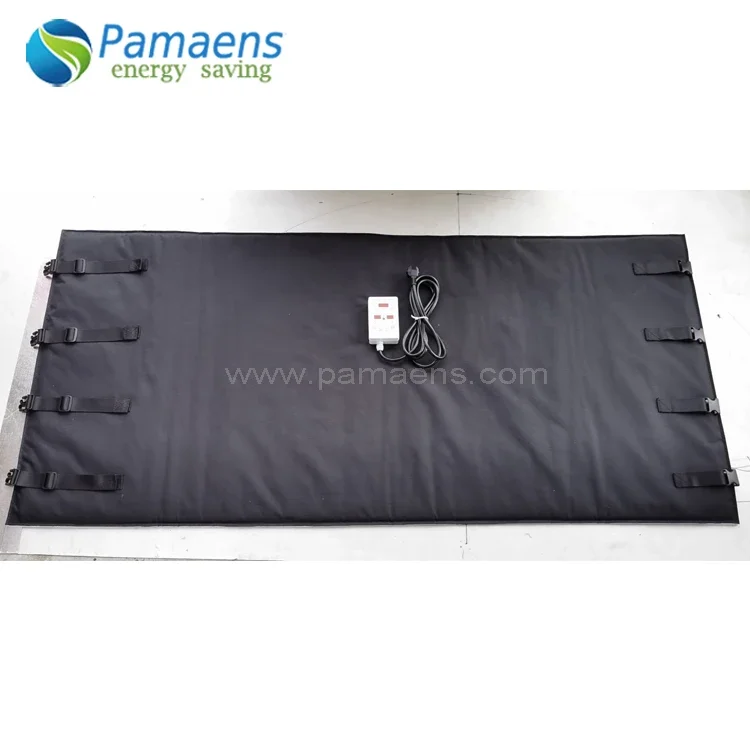

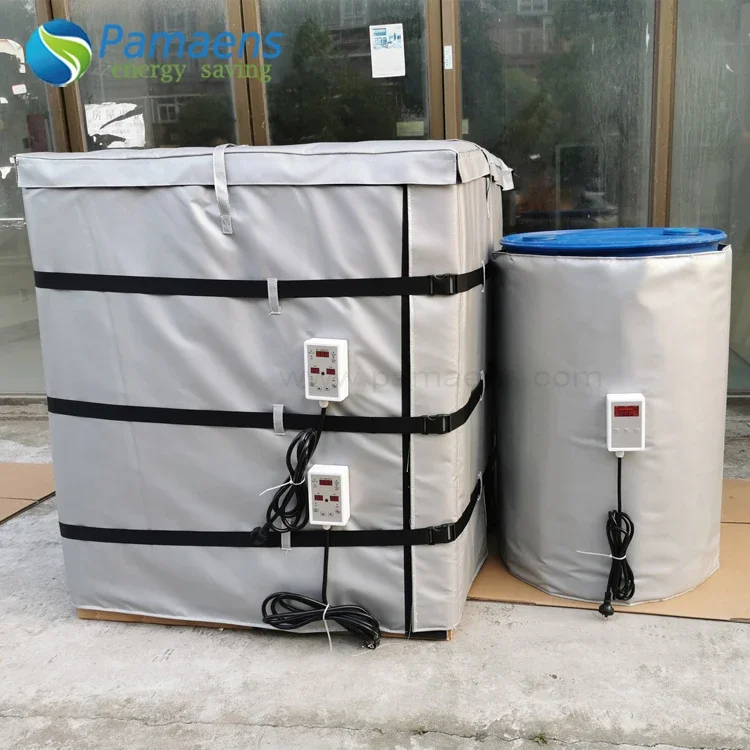

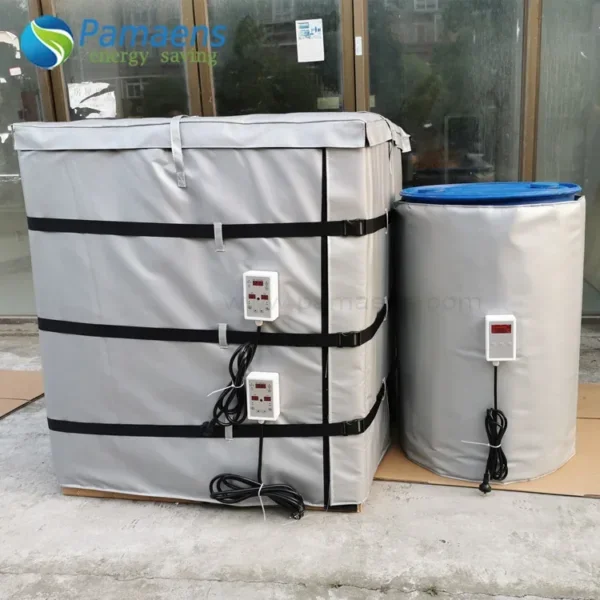

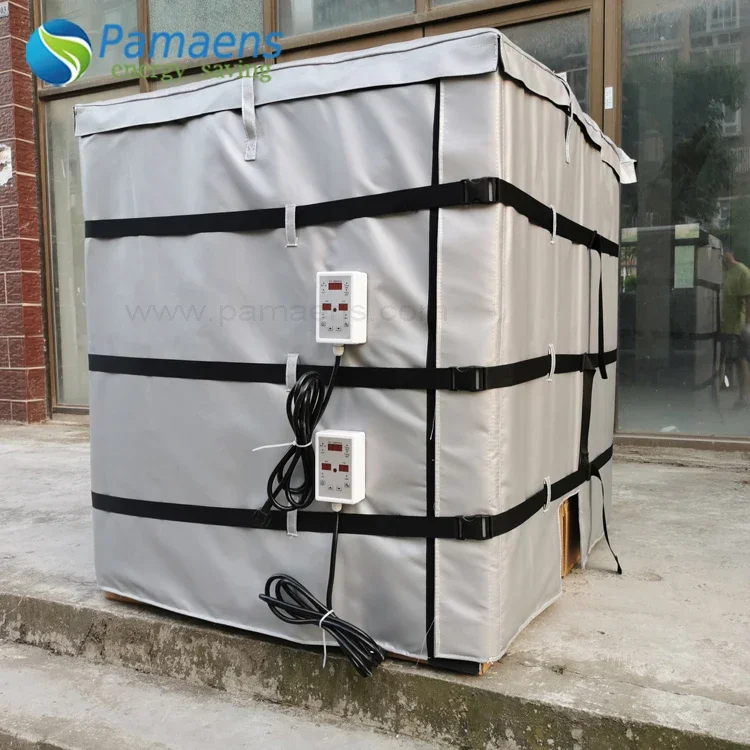

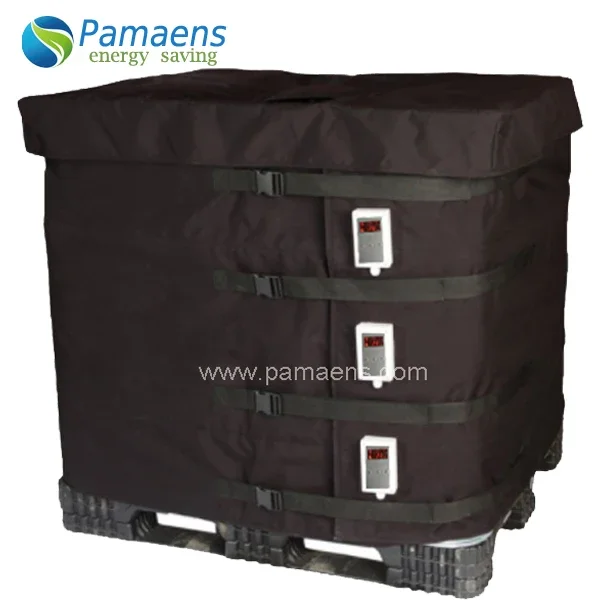

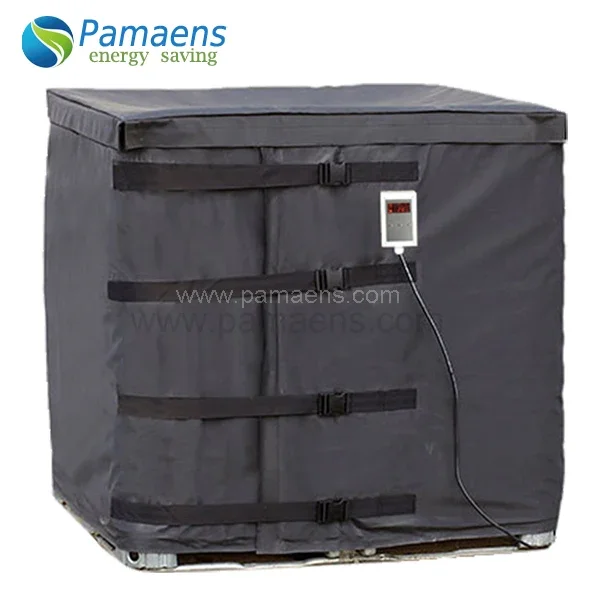

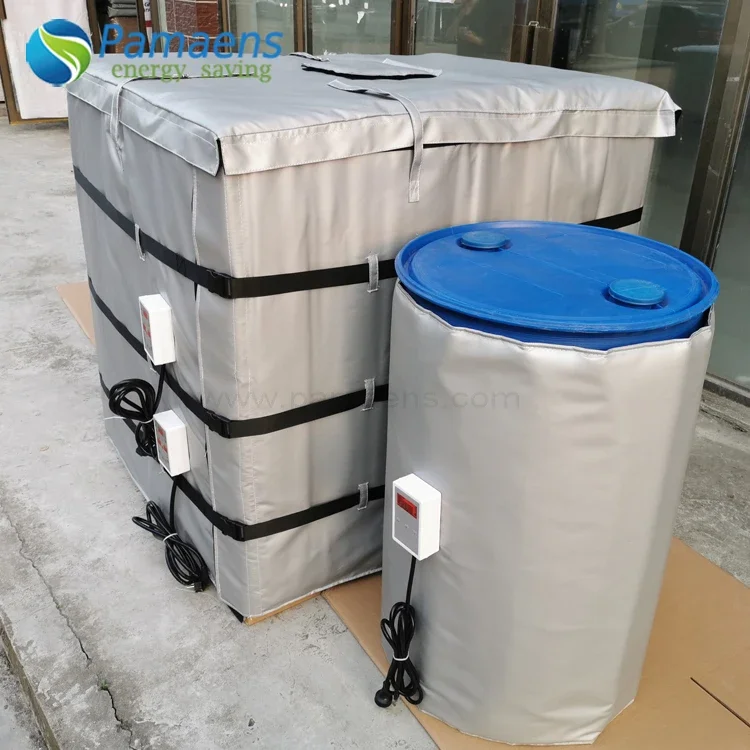

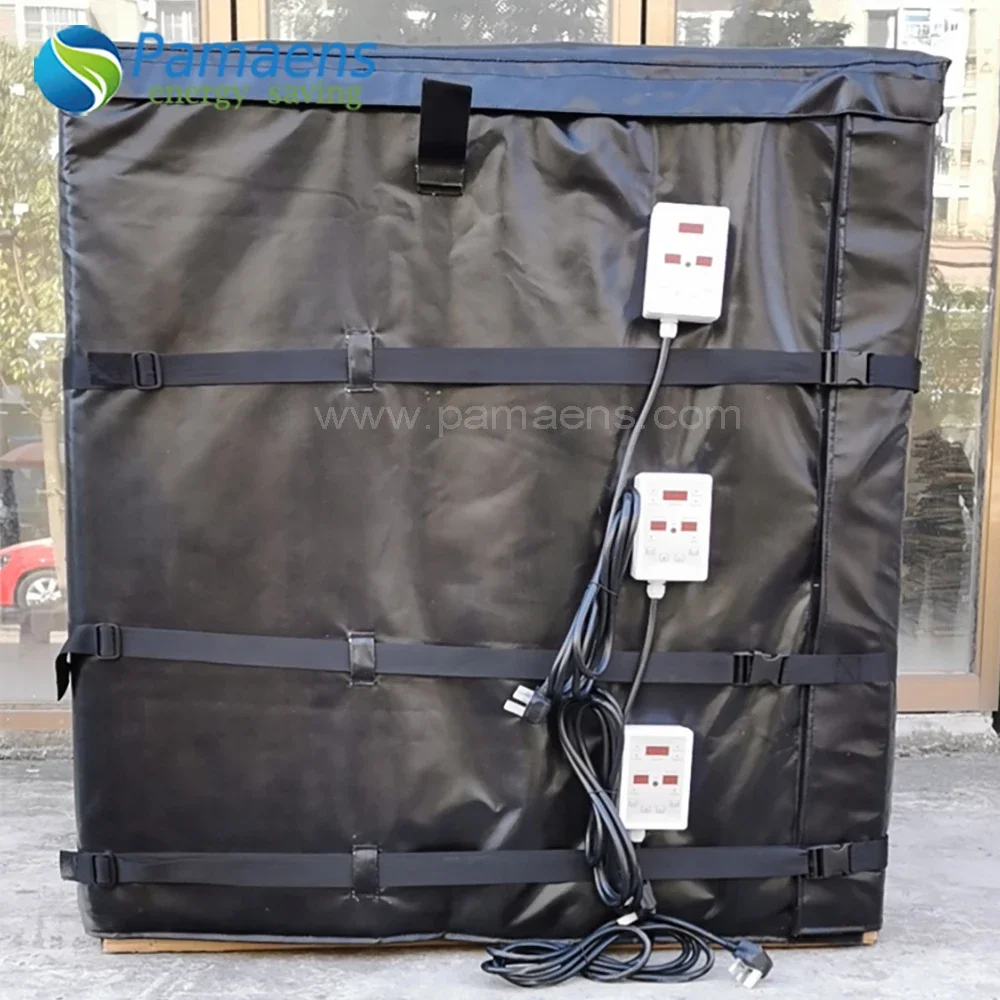

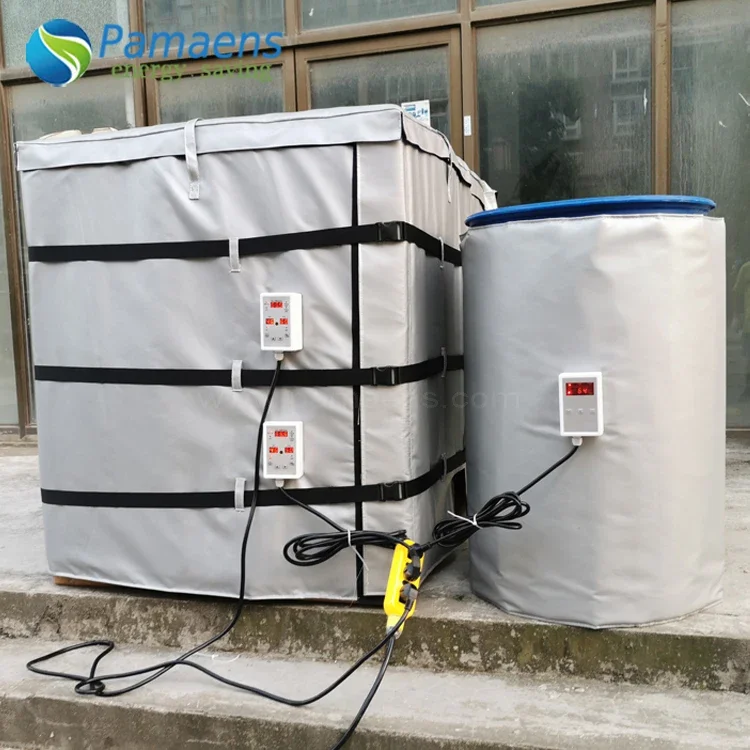

Products Show case of 1000 Litre IBC Heater Jacket
 |  |
|
|  |
|
|  |
 |  |
 |  |
|
|  |
|
|  |
 |  |
 |  |

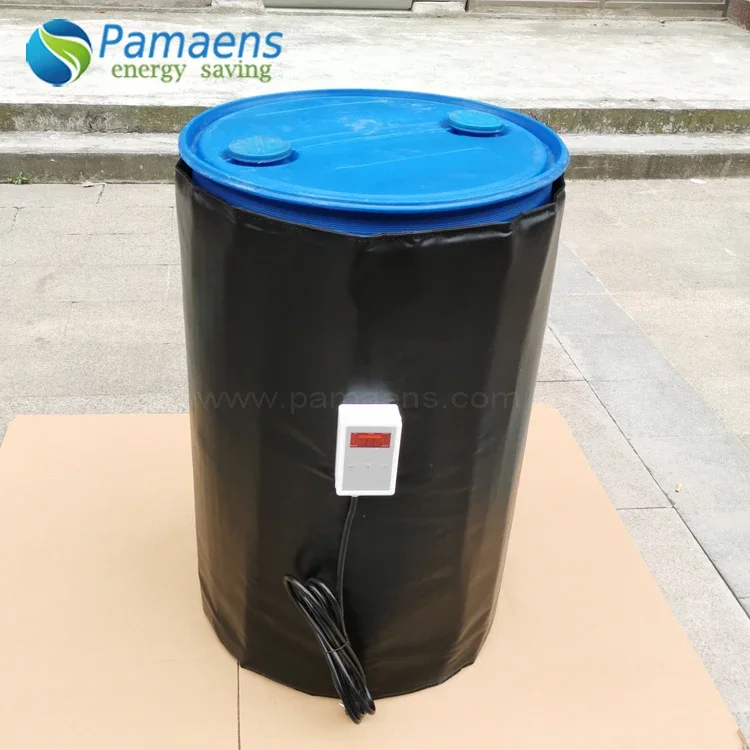

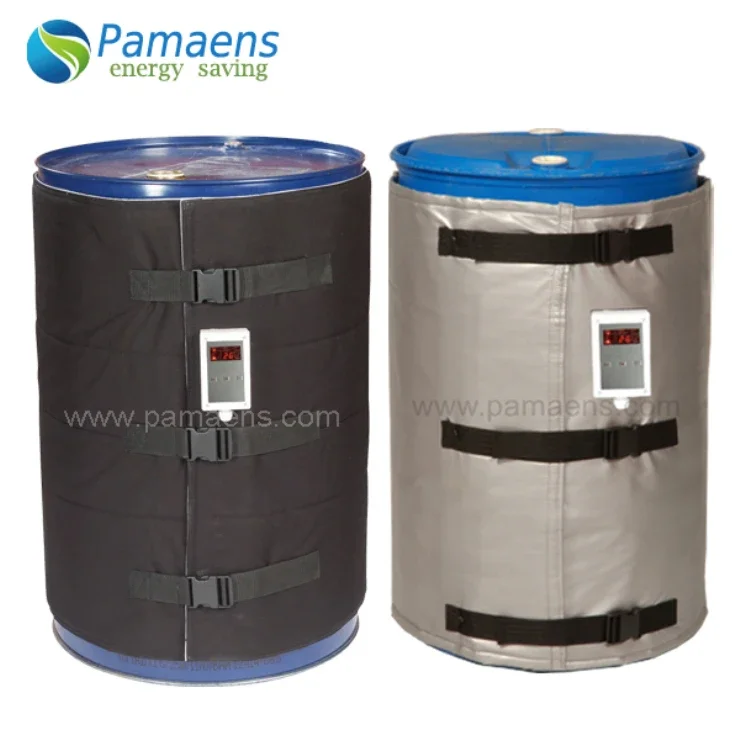

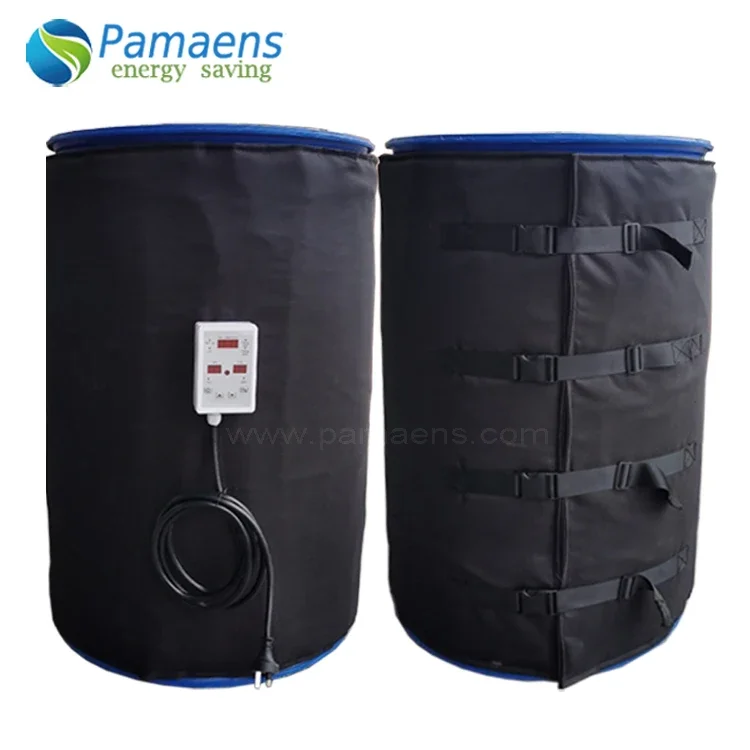

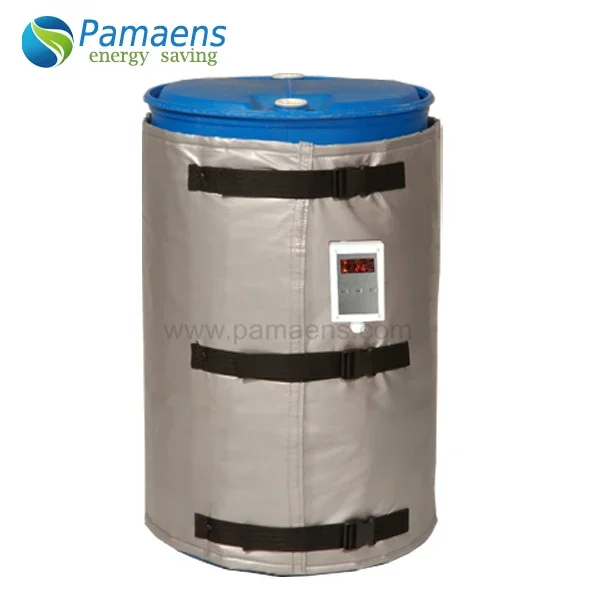

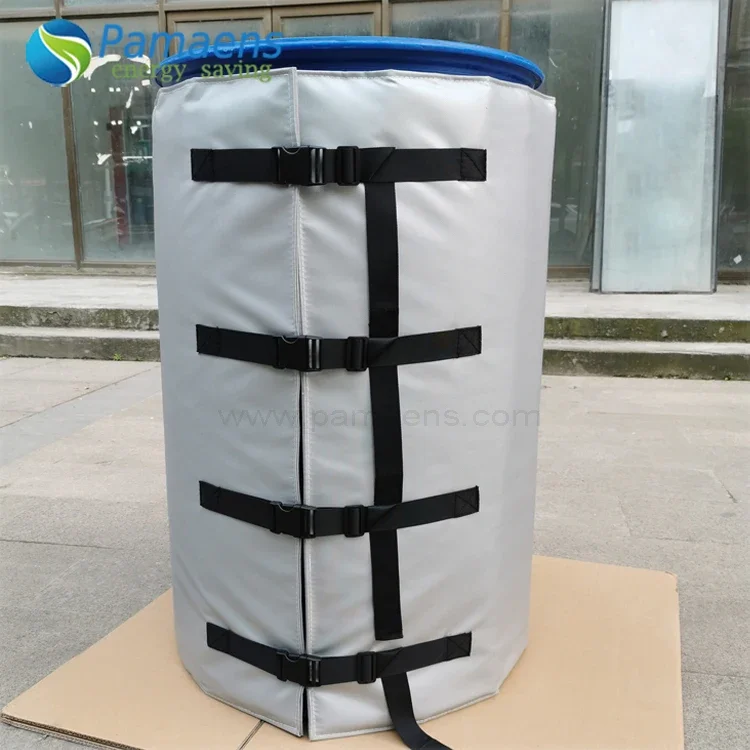

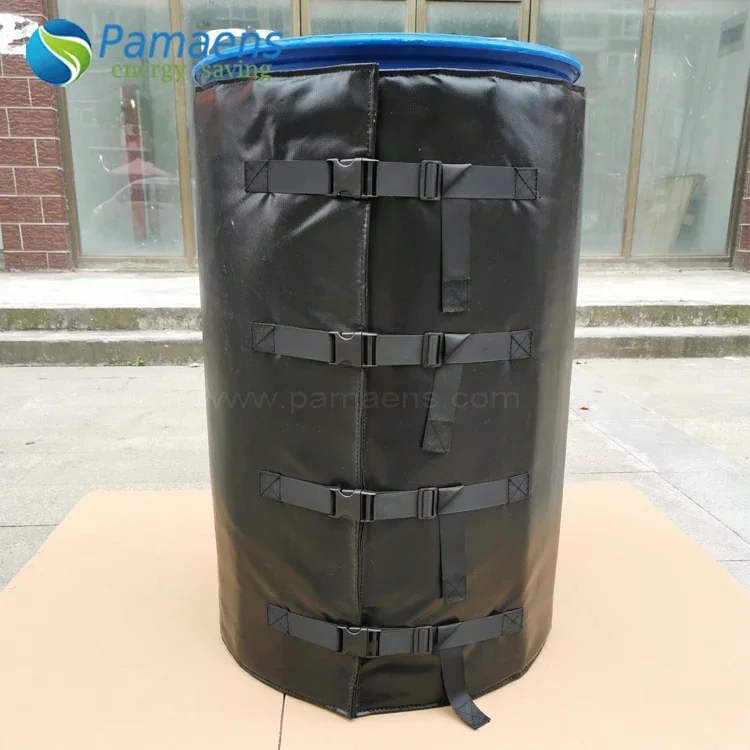

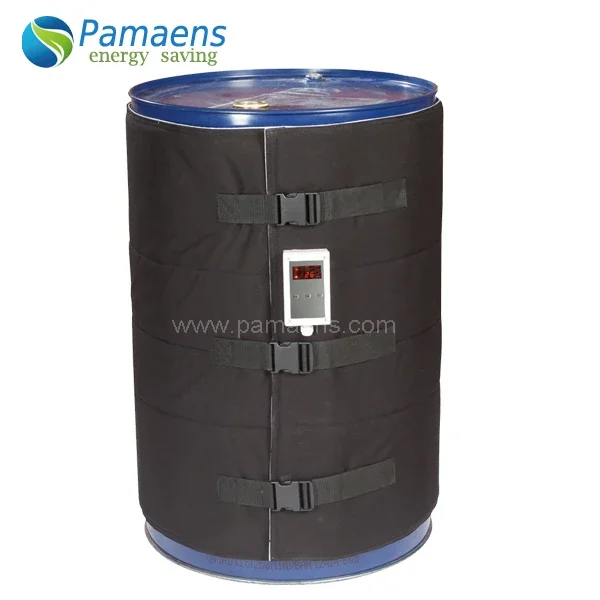

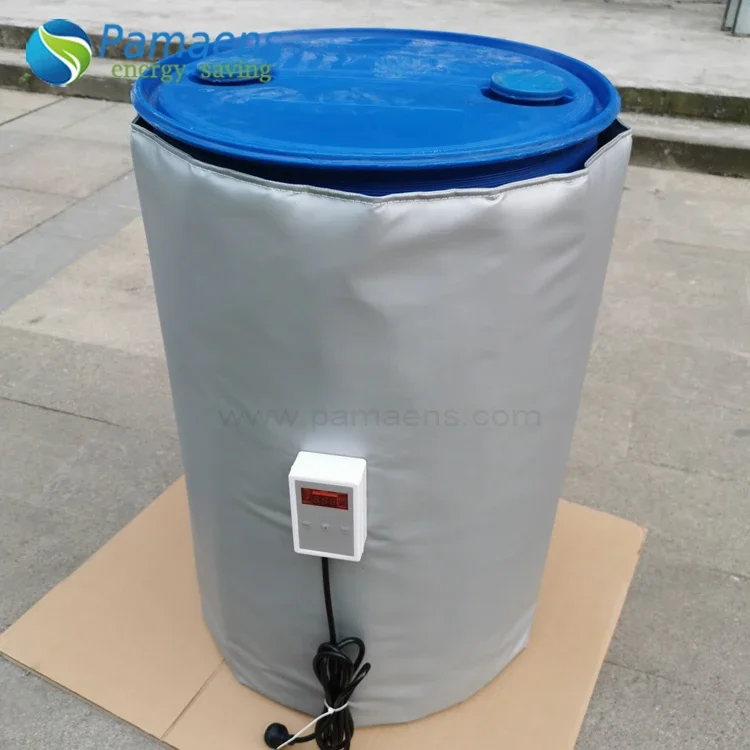

200L / 55 gallon drum heater order link:
https://www.alibaba.com/product-detail/10-Off-In-Stock-200-Liter_60586909565.html?spm=a2747.manage.0.0.32d571d28YxlHI
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-15 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

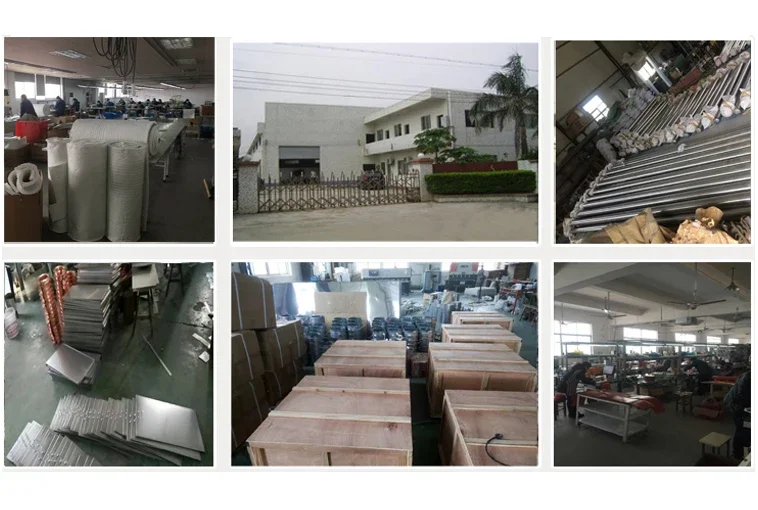

About us
Shanghai PAMAENS Technology Co., Ltd located in Shanghai, specialized in researching, R&D and manufacturing heaters, plastic machinery parts and energy saving products. We have strong R&D team, many of our engineers have more than ten years experience on manufacturing heaters, and we have strict quality control system, and a team of professional sales people, so no matter manufacturing process, products quality, or prices, we believe few factories could compare with us in China.
Order Guidance of 1000 Litre IBC Heater Jacket
-
Dimension of the tank/drum
-
Is this a hazardous (ATEX) area?
-
What temperature do you want to heat to, and how quickly?
-
What is the ambient temperature?
-
What is inside the tank?
-
Is it solid or liquid at normal ambient temperature?
-
Quantity
How can I get the sample to check your quality?
After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
What can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.
What is your term of delivery?
We accept EXW, FOB or C&F Shanghai, DDU etc. You can choose the one which is the most convenient or cost effective for you.
What about the lead time for the mass production?
Our production time is 10-20 days depends on the order quantity and the season you place the order.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this litre ibc tote heater?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the litre ibc tote heater be supplied for my local voltage?
The standard configuration is Up to 480v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
