The price shown is for reference only. Products are available in various configurations and can be customized. Please contact us directly for a final price based on your exact needs.
Product Description
|
Product name
|

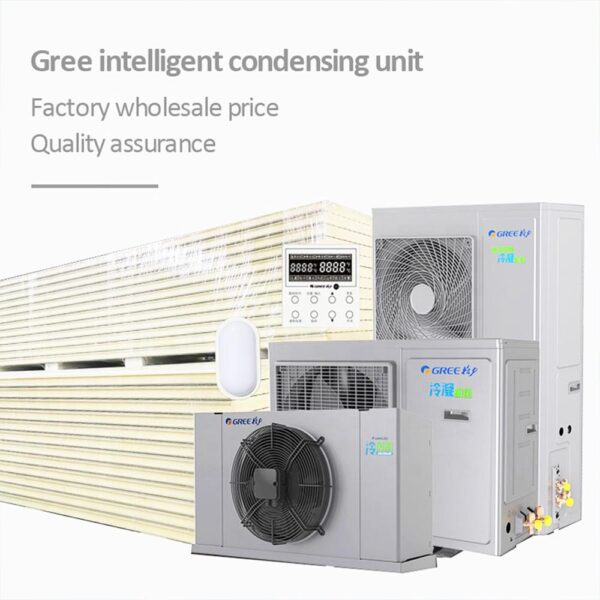

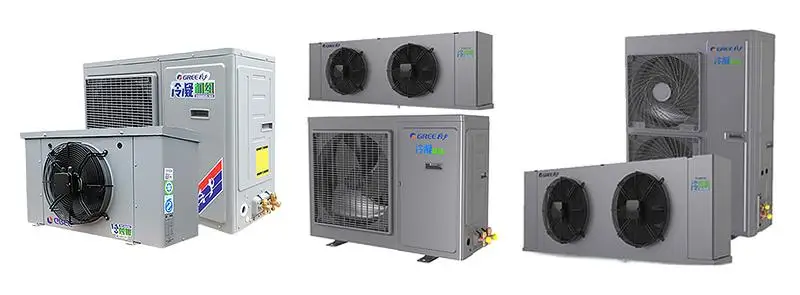

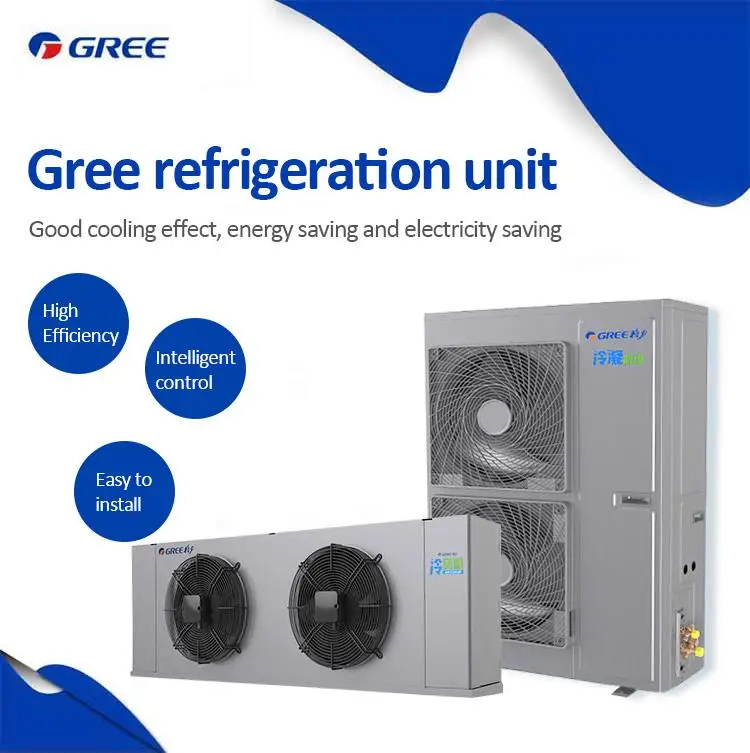

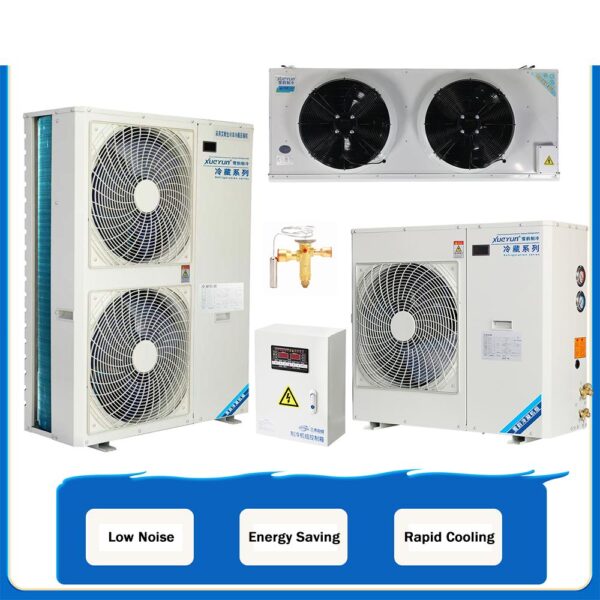

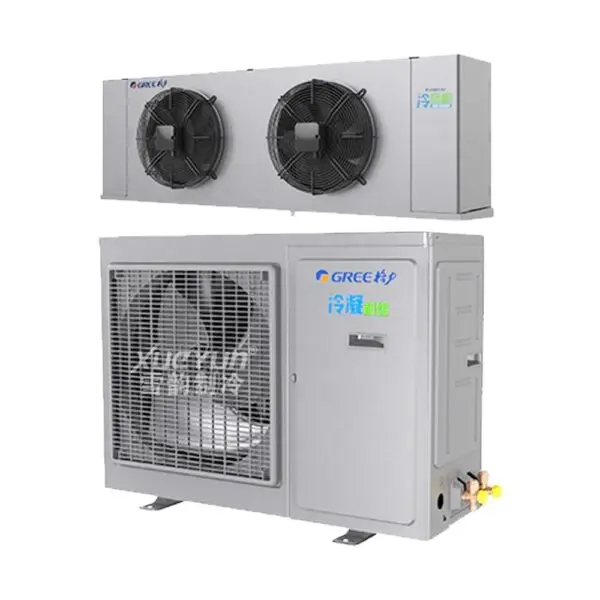

Refrigeration unit (compressor, air cooler, expansion valve, electric controller)
|
|
Color
|
Silver gray
|
|
Safety protection device
|
System high and low pressure protection, exhaust high temperature protection, etc.
|
|
Condensing fan type
|
Brushless DC Motor
|
|
Throttling device
|
Electronic expansion valve
|
|
Heat Exchanger
|
Finned tube heat exchanger
|
|
Voltage
|
200v-380v 50Hz
|
|
Applicable Industries
|
Hotels, Food & Beverage Factory, Farms, Restaurant, Home use
|
|
High temperature compressor unit
|
||||||||||||||
|
Evaporation temperature(°C)
|
-15 〜10 °C
|
|||||||||||||
|
Type of refrigeration oil
|
Ester oil
|
|||||||||||||
|
Refrigerant
|
R410A
|
|||||||||||||
|
Type
|
GNJ-QFT3C G/NaD
|
GNJ-QFT5C G/NaD
|
GNJ-QFT6C G/NaD
|
GNJ-QFT8C G/NaD
|
GNJ-QFT10C G/NaD
|
GNJ-QFT12C G/NaD
|
||||||||
|
Cooling capacity(Kw)
|
8.1
|
13.3
|
16.5
|
19.5
|
33.1
|
35
|
||||||||
|
Input power(kW)
|
2.4
|
3.8
|
5
|
5.4
|
9.6
|
10.1
|
||||||||
|
Distribution power(Kw)
|
4.2
|
7.0
|
8
|
9
|
14
|
15.4
|
||||||||
|
Refrigerant oil volume(L)
|
1.05
|
1.7
|
1.7
|
1.77
|
2.5
|
2.75
|
||||||||
|

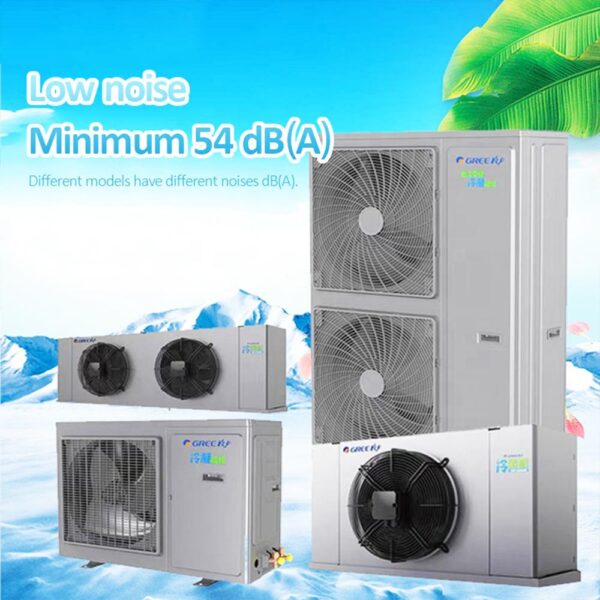

Noise dB (A)
|
54
|
60
|
60
|
60
|
67
|
66
|
||||||||
|
Power supply
|
220V 〜 50Hz
|
380V 3N 〜50Hz
|
||||||||||||
|
Refrigerant charge (Kg)
|
3
|
5.3
|
6
|
9.5
|
8
|
9.4
|
||||||||
|

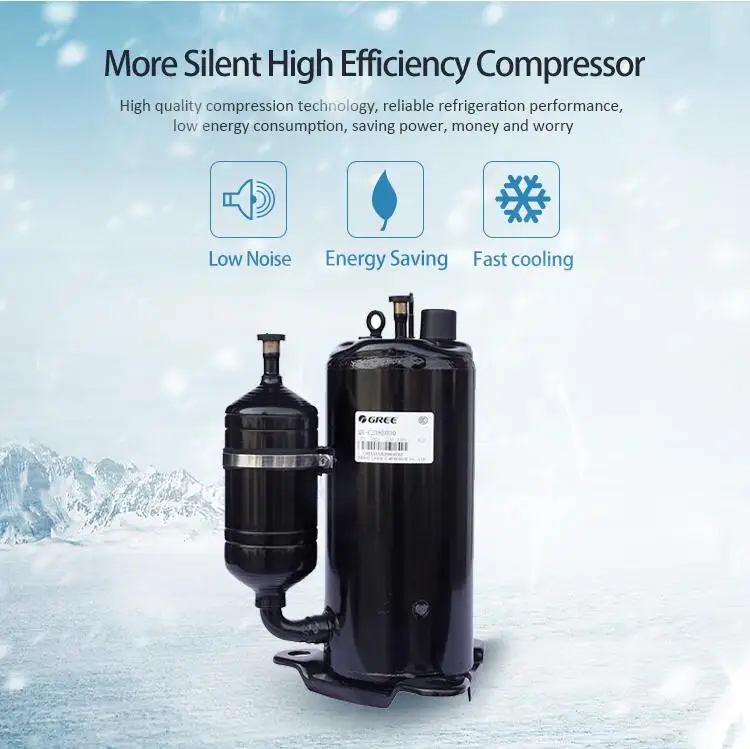

Compressor
|
TYPE
|
Hermetic Rotary Compressor
|
Hermetic scroll compressor
|
|||||||||||
|
HP
|
3
|
5
|
6
|
8
|
10
|
12
|
||||||||
|
Connecting pipe (mm)
|
gas tube
|
16
|
19
|
19
|
22
|
28
|
28
|
|||||||
|
liquid tube
|
9.52
|
12
|
12
|
12
|
16
|
16
|
||||||||
|
Condensing fan power (w)
|
120
|
150
|
250
|
200X2
|
200X2
|
200X2
|
||||||||
|
Size(mm)
|
412*1040*700
|
530*944*823
|
530*944*823
|
427*1098*1584
|
127*1098*1584
|
427*1098*1584
|
||||||||
|
Net weight (kg)
|
72
|
105
|
118
|
159
|
195
|
176
|
||||||||
|
LOW temperature compressor unit
|
||||||||||||
|
Evaporation temperature
|
-30℃〜0℃
|
|||||||||||
|
Type
|
GNJ-QF3C D/NfD
|
GNJ-QF4C D/NfD
|
GNJ-QF5C D/NfD
|
GNJ-QF7C D/NfD
|
GNJ-QF12C D/NfD
|
|||||||
|
Type of refrigeration oil
|
FVC32D
|
RB68EP
|
POE
|
|||||||||
|
Refrigerant
|
R404A
|
R410A
|
||||||||||
|
Cooling capacity(Kw)
|
4.6
|
5.5
|
8.5
|
10.8
|
19.5
|
|||||||
|
Input power(Kw)
|
2.1
|
2.4
|
3.6
|
4.9
|
8.3
|
|||||||
|
Distribution power(Kw)
|
4
|
4
|
6.1
|
11.1
|
14.7
|
|||||||
|
Refrigerant oil volume(L)
|
1.25
|
1
|
1.7
|
1.7
|
2.51
|
|||||||
|
Noise dB (A)
|
56
|
56
|
56
|
56
|
65
|
|||||||
|
Power supply
|
220V 〜 50Hz
|
380V 3N 〜50Hz
|
||||||||||
|
Refrigerant charge (Kg)
|
3.8
|
4
|
5
|
5.5
|
10.5
|
|||||||
|
compressor
|
TYPE
|
Hermetic Rotary Compressor
|
Hermetic scroll compressor
|
|||||||||
|
HP
|
3
|
4
|
5
|
7
|
12
|
|||||||
|
Connecting pipe (mm)
|
gas tube
|
16
|
19
|
19
|
19
|
22
|
||||||
|
liquid tube
|
9.52
|
12
|
12
|
12
|
12
|
|||||||
|
Condensing fan power (w)
|
120
|
120
|
120X2
|
120X2
|
200X2
|
|||||||
|
Size(mm)
|
1040*412*700
|
950*412*800
|
995*412*1350
|
995*412*1350
|
1098*427*1584
|
|||||||
|
Net weight (Kg)
|
75
|
77
|
124
|
125
|
187
|
|||||||

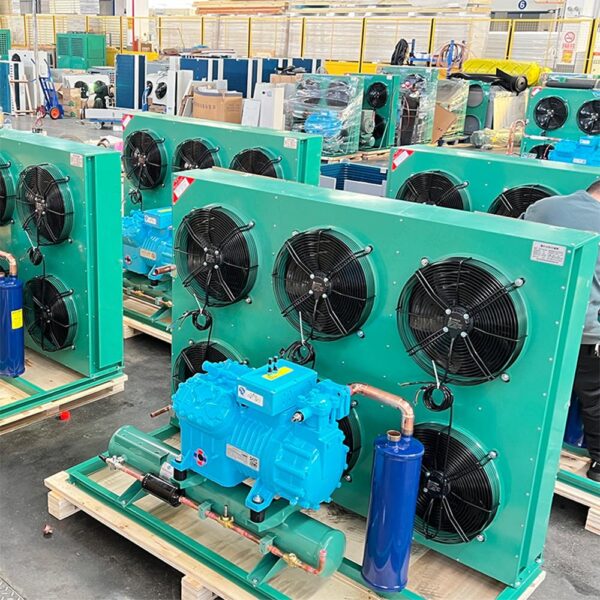

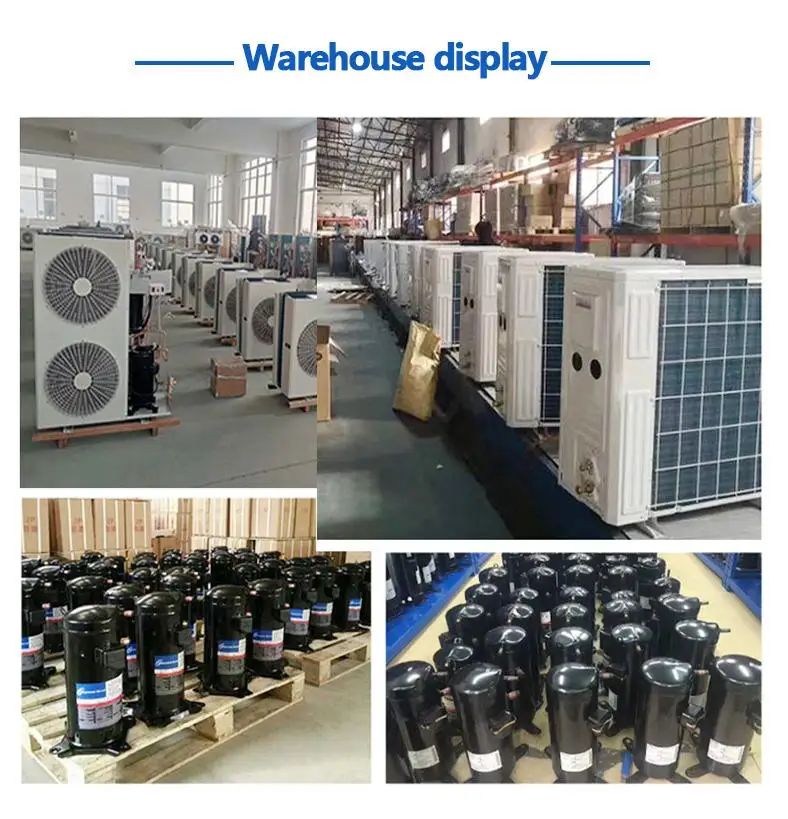

Factory Display

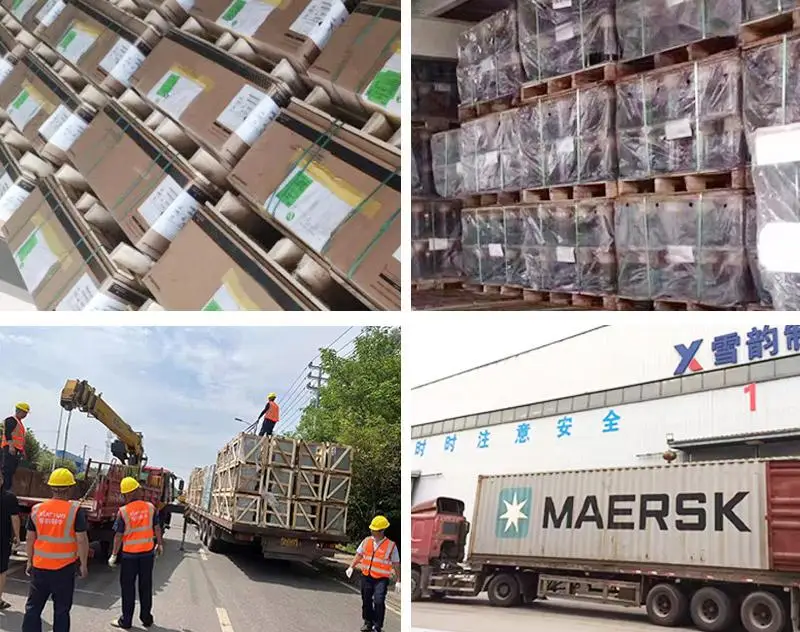

Packing & Delivery
Company Profile
Xueyun Refrigeration Equipment Co., Ltd., a CCTV broadcast brand, the leader of China’s digital innovation cold chain.
It is a modern group company integrating R&D, production, sales, warehouse design and installation of refrigeration equipment such as cold storage, cold room and fresh-keeping storage, freezing and quick-freezing storage.
The company has 25,000 square meters of production plant and dozens of professional and technical personnel.
It has passed the ISO9001 international quality certification and obtained the first-level qualification of the electromechanical equipment installation service. Absorbing advanced management experience and scientific research results at home and abroad,and striving to give customers the best user experience.
Please don’t hesitate to contact us for
Free cold storage designs and drawings!
FAQ
1. Who are we?
We are based in Chongqing, China, start from 2017,Production cold storage, cold room and fresh-keeping storage, freezing and quick-freezing storage and etc,.There are total about 51-100 people in our office.Please do not hesitate to contact us for further information,we are waiting for you for 24 hours.
We are based in Chongqing, China, start from 2017,Production cold storage, cold room and fresh-keeping storage, freezing and quick-freezing storage and etc,.There are total about 51-100 people in our office.Please do not hesitate to contact us for further information,we are waiting for you for 24 hours.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Gree Refrigeration Unit/Emerson Valley Wheel Compressor,Polyurethane Cold Storage Board,Air Cooler
4. Why should you buy from us not from other suppliers?
Xueyun Refrigeration Equipment Co., Ltd., a CCTV broadcast brand, is the leader of China’s digital innovation cold chain. It is a modern group company integrating R&D, production, sales, warehouse design and installation of refrigeration equipment such as
5. What services can we provide?
Accepted Delivery Terms: FOB,EXWï¼›
Accepted Payment Currency :USD,CNY;
Accepted Payment Type: T/T;L/C/ Western Union
Language Spoken:English,Chinese,Spanish
