This machine double station pump is published with the manufacturer’s full specification — 380V/220V/CUSTOMIZED, power 38. Made by Zhangjiagang Great Supreme Industry Limited (3 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Machine Double Station Pump
- Model Number: GS-3L-II
- Power (Kw): 38
- Screw Heating Power(Kw): 12
- Extruder Motor Power(Kw): 30
- Die Head Heating Power(Kw): 4.5
- Voltage: 380V/220V/CUSTOMIZED
Technical Specifications
| Plastic Processed | PP, HDPE, PE, EVA, PE/PP, HDPE/PP |
|---|---|
| Clamping Force (KN) | 70 |
| Voltage | 380V/220V/CUSTOMIZED |
| Automation | Automatic |
| No. Of Screw Heating Zone | 4 |
| Plc Brand | Siemens |
| Core Components | PLC, Gearbox, Motor, Pump |
| Warranty | 2 Years |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Not Available |
| Output (Kg/H) | 110 |
| Place Of Origin | Jiangsu, China |
| Power (Kw) | 38 |
| Weight (T) | 8 |
| Brand Name | GS MACHINERY |
| Dimension(L*W*H) | 3.7*2.8*2.3M |
| Screw L/D Ratio | 25 |
| Screw Diameter (Mm) | 75 |
| Screw Heating Power(Kw) | 12 |
| Extruder Motor Power(Kw) | 30 |
| Mold Platen Size(Width)(Mm) | 440 |
| Mold Platen Size(Height)(Mm) | 300 |
| Air Pressure(Mpa) | 0.6 |
| Air Comsumption(M³/Min) | 1.5 |
| Die Head Heating Power(Kw) | 4.5 |
| Model Number | GS-3L-II |
| Blow Moulding Type | Extrusion Blow Moulding |
| Suitable Bottle | 100ml-3L Bottle |
| Station | Double Sation |
| Material Application | HDPE LDPE PP |
| Hydraulic Valve | Japan Yuken |
| Platen Type | toggle frame clamping design |
| Processing Type | Hydraulic Extrusion Blow Molding |
| Parison Control | Japan MOOG 200 Points |
| Selling Units | Single item |
Product Details
Video description
Why Choose Us

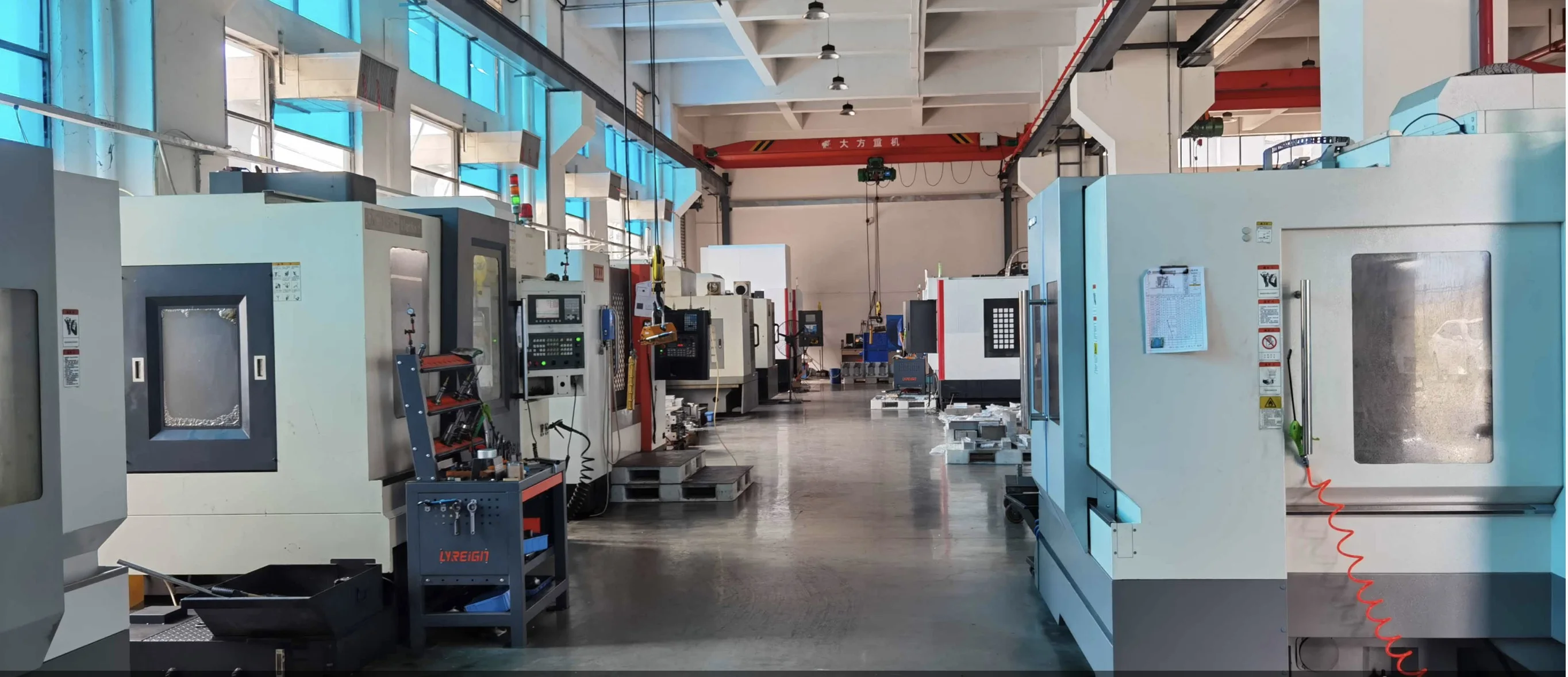

Advanced CNC Production
Imported high-tech CNC machines from famous brands overseas to minimize errors in our production, and reduce time and material cost.
Custom Extrusion Blow Mold
Besides designs that we already have in our design bank, we also provides customized design based on our customer's requirements.
3D drawings/ prototype will be sent for approval before developing.
3D drawings/ prototype will be sent for approval before developing.
excellent service
Our customer service team are well-trained and well-mannered professionals who always solve your problems in time.
Products Description

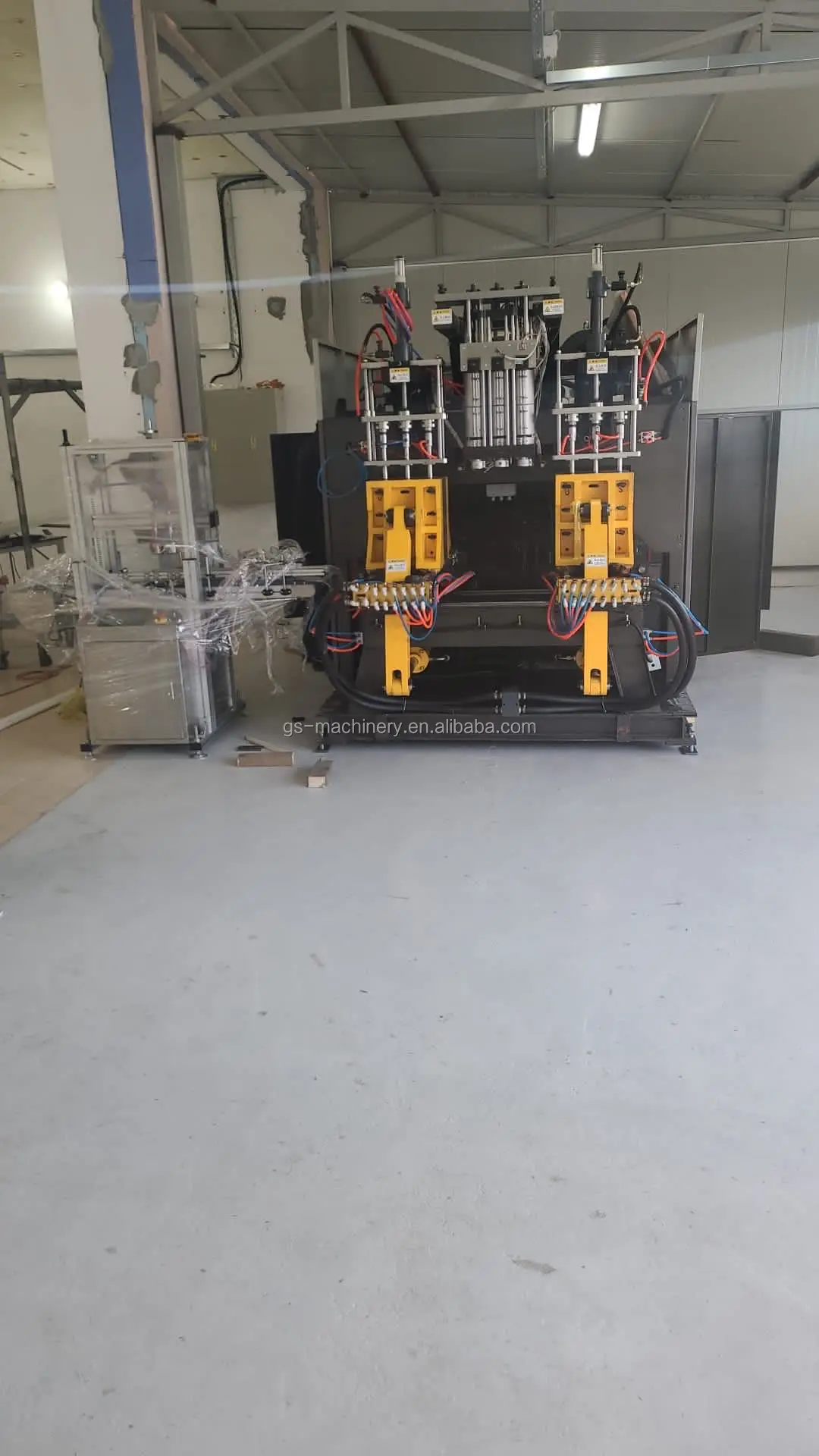

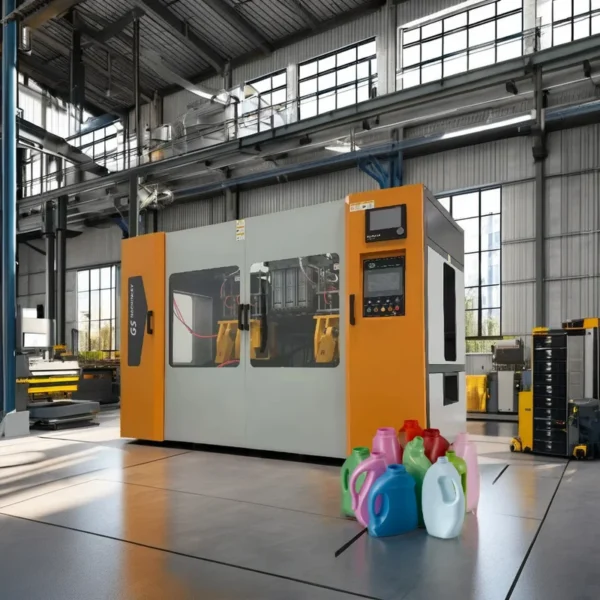

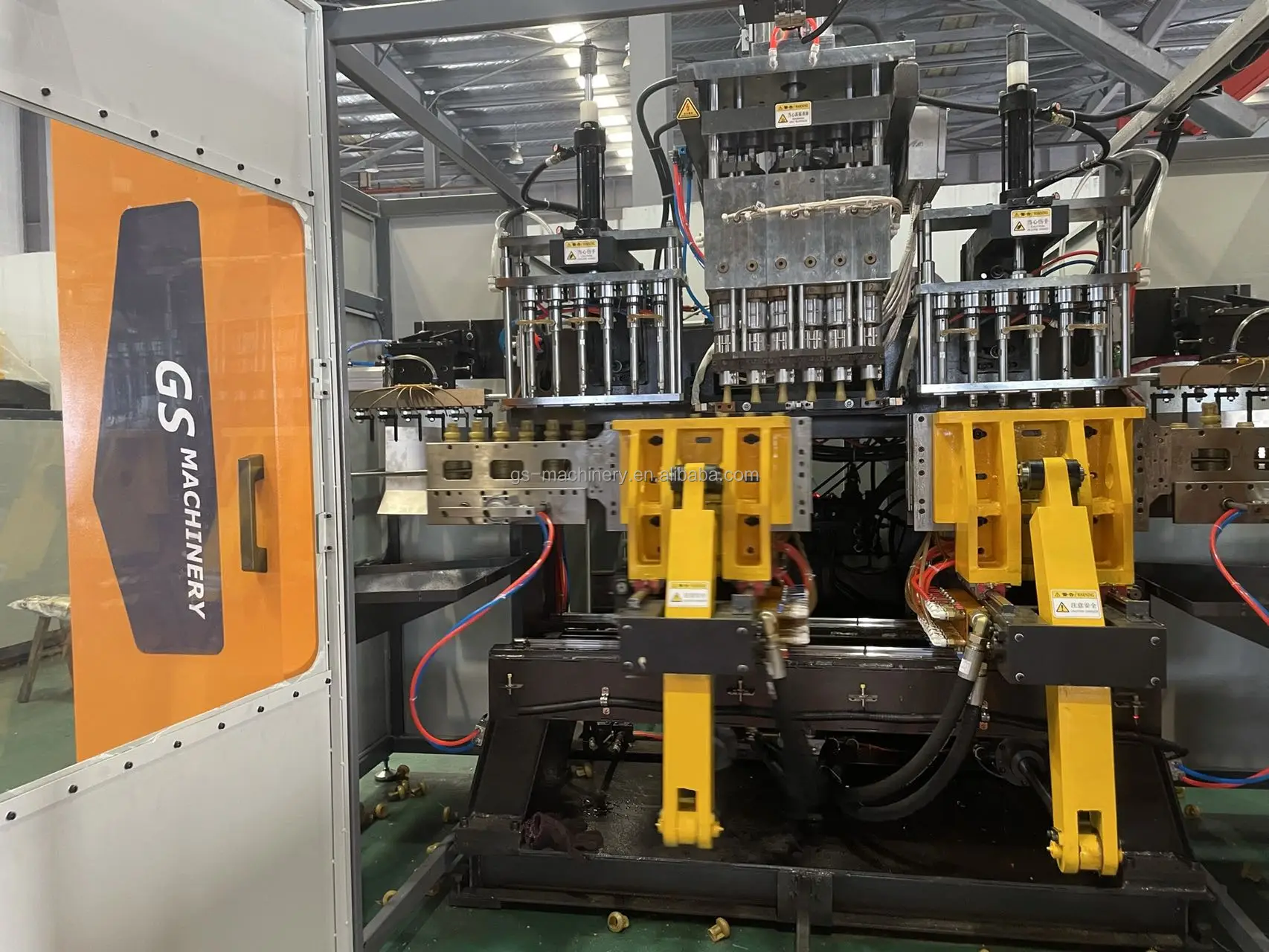

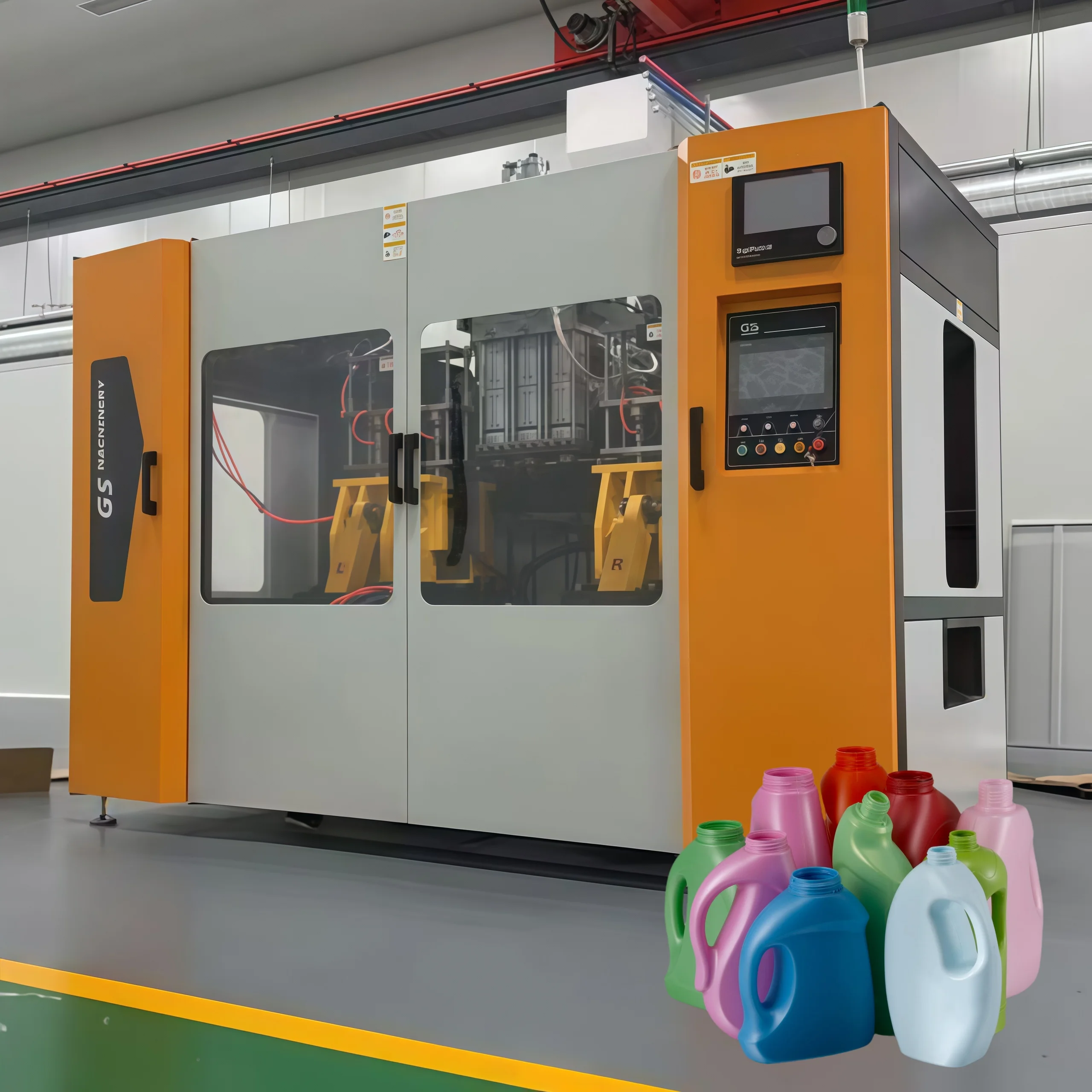

GS-3L-II DOUBLE STATION BLOWING MACHINE
This is our Hot-selling series machine. Toggle-balanced clamping frame, with well-known liner guide rail HIWIN from Taiwan; great clamping force and explosion-proof;
This machine is suitable for milk or juice bottles at high productivity. It can be also equipped with six die-heads to make the small bottles.
This machine is suitable for milk or juice bottles at high productivity. It can be also equipped with six die-heads to make the small bottles.
If you have other special requirements, we can provide customized services for you.

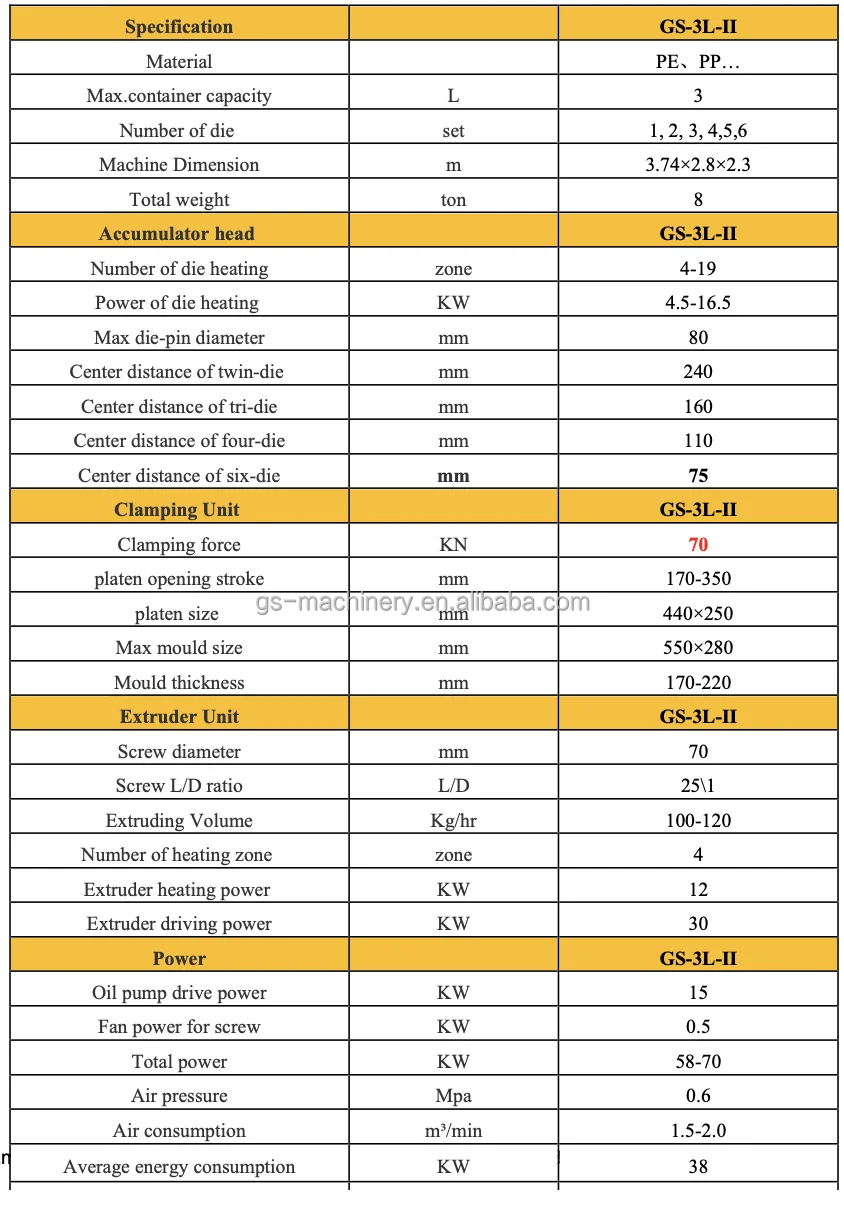

Product Paramenters
Product Details

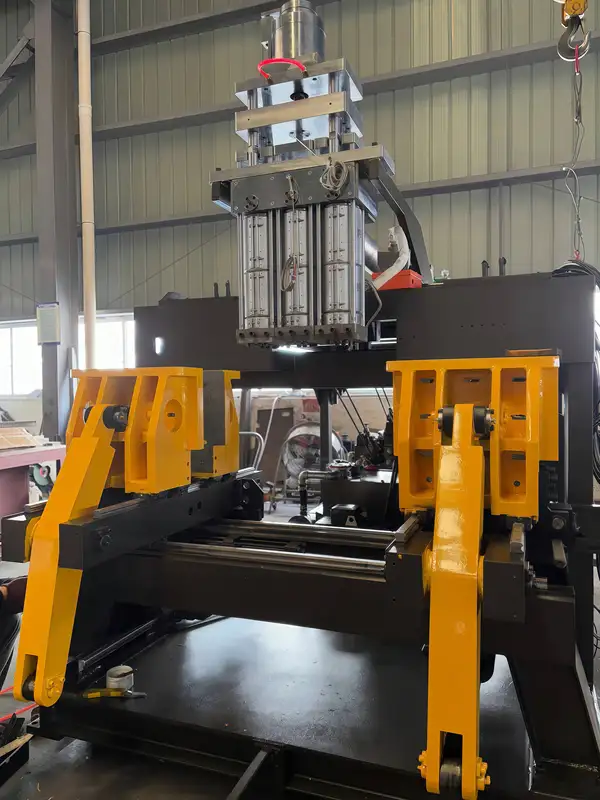

Toggle-balanced clamping frame
>>Toggle-balanced clamping frame, with well-known liner guide rail from Taiwan;
great clamping force and avoid mold swelling problem;
>>The end positions & slow speed positions are controlled by proximity switches and braking valves
>> Whole blow pin frame could be turned over onto top platform, convenient for mold changeToggle-balanced clamping frame

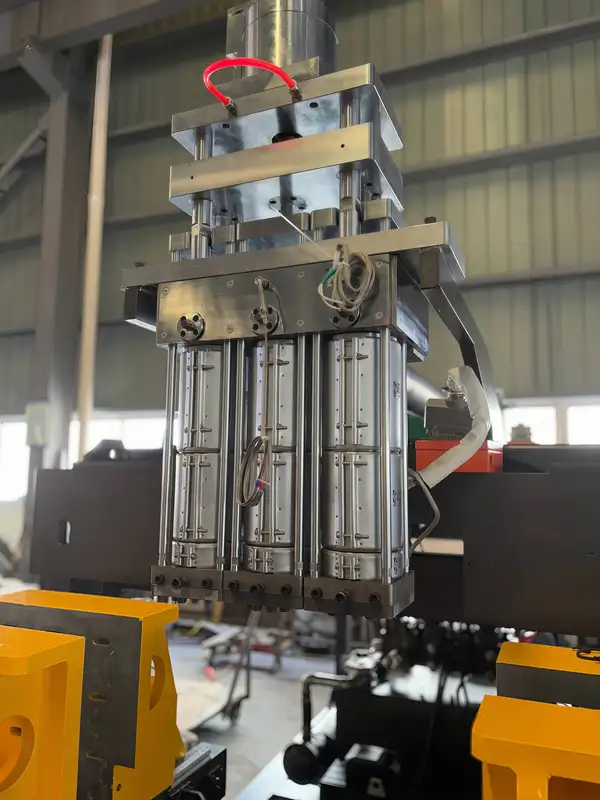

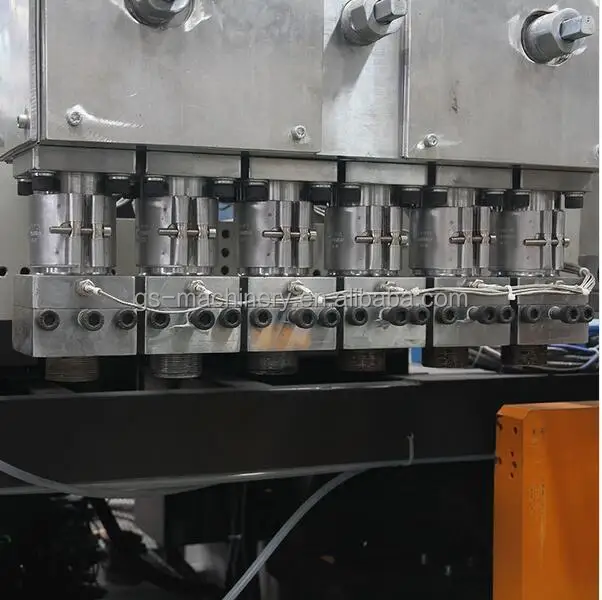

Die Head
>>Head mode: the continuous extrusion head is designed double lips torpedo type die head with individual flow control valve;
>>Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
>>convenience to refueling, change color, purge, disassembly and cleaning with those die head.
>>Symmetry part of the wall thickness is very uniform;Head mode: the continuous extrusion head is designed double lips torpedo type die head with individual flow control valve;
>>Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
>>convenience to refueling, change color, purge, disassembly and cleaning with those die head.
>>Symmetry part of the wall thickness is very uniform;Head mode: the continuous extrusion head is designed double lips torpedo type die head with individual flow control valve;

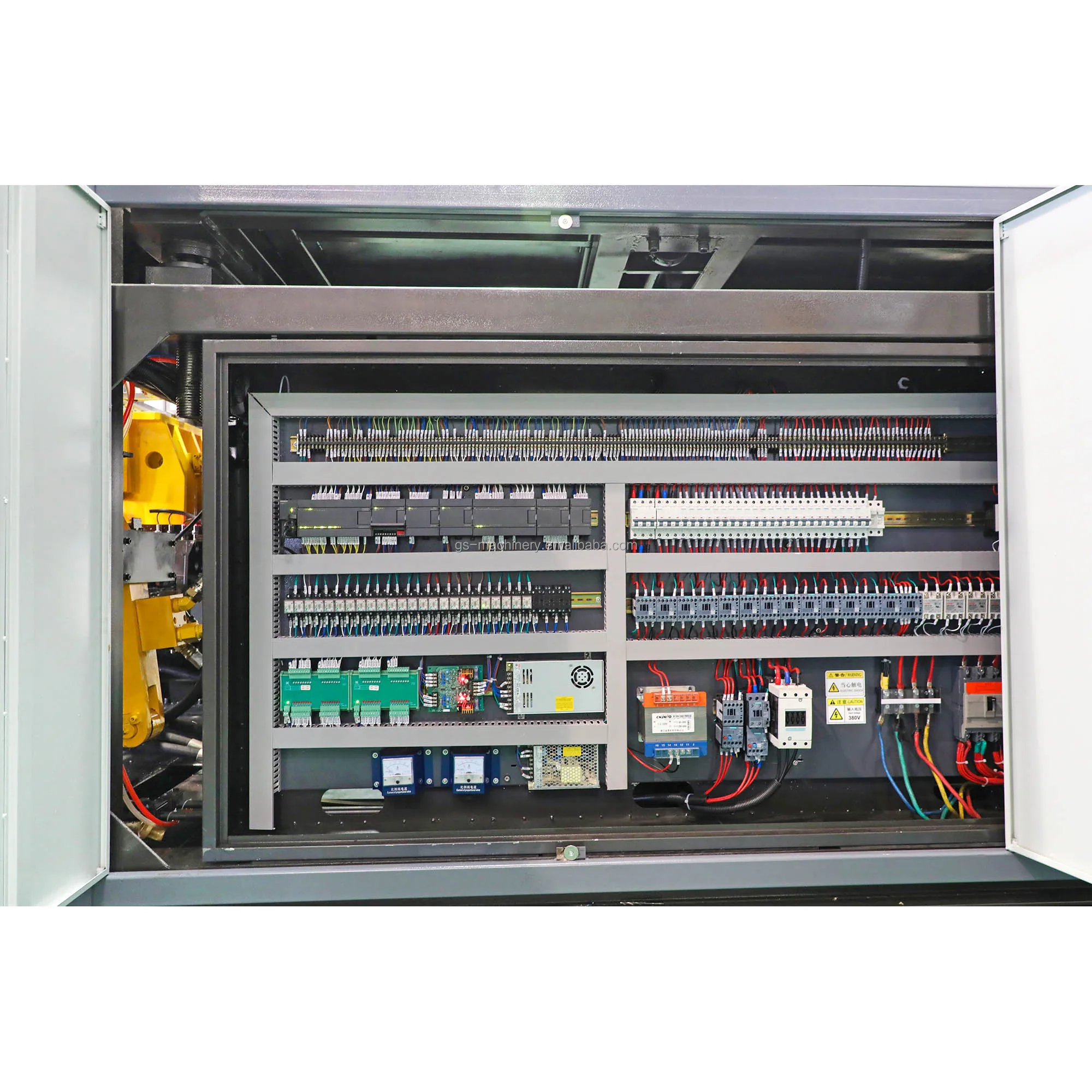

Electrical System

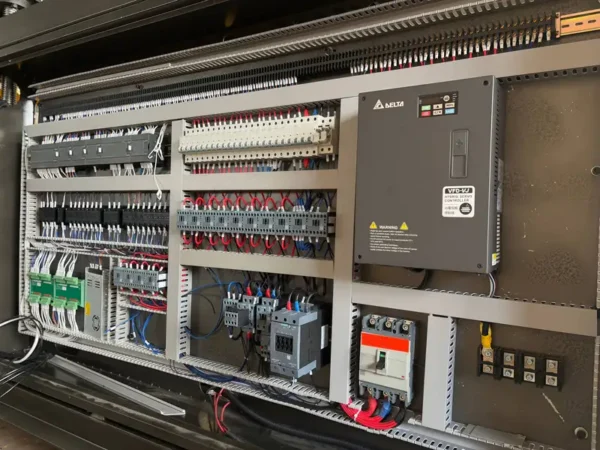

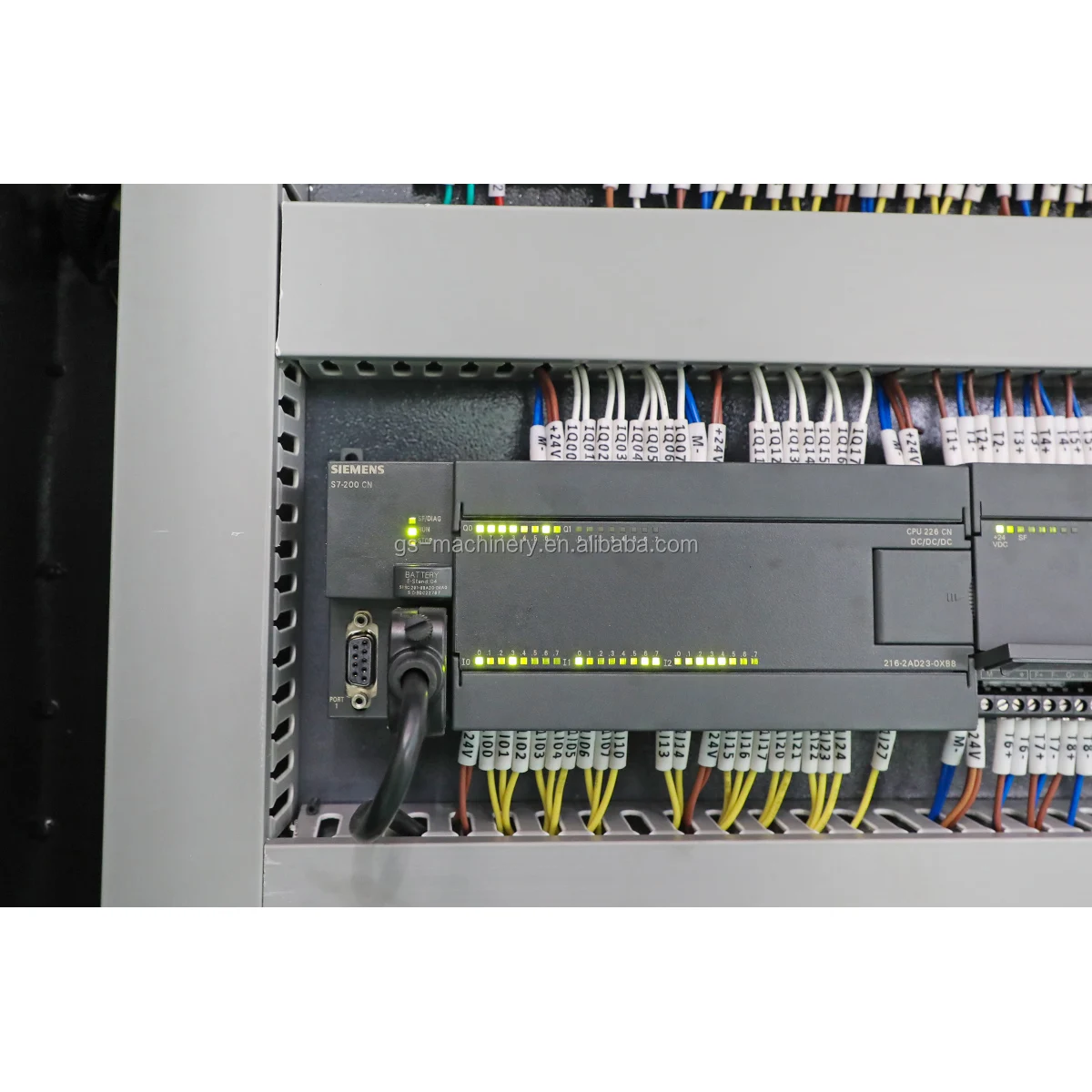

>>World famous brands like SIEMENS, OMRON, MINGWELL etc, fully-guaranteed machine preformance and liftspan.

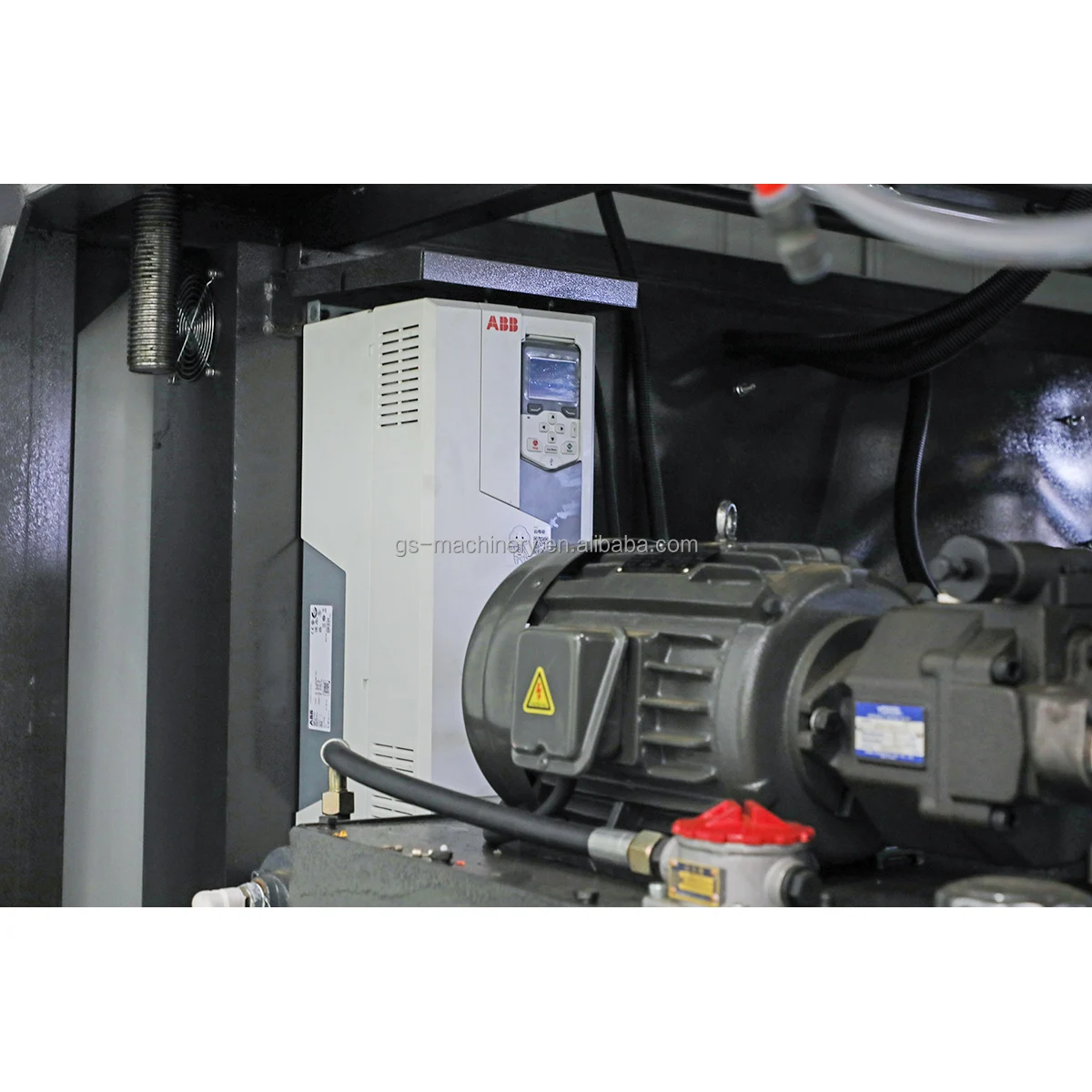

>>Inverter is from ABB or Taiwan DELTA, adjust the screw speed, saving energy .

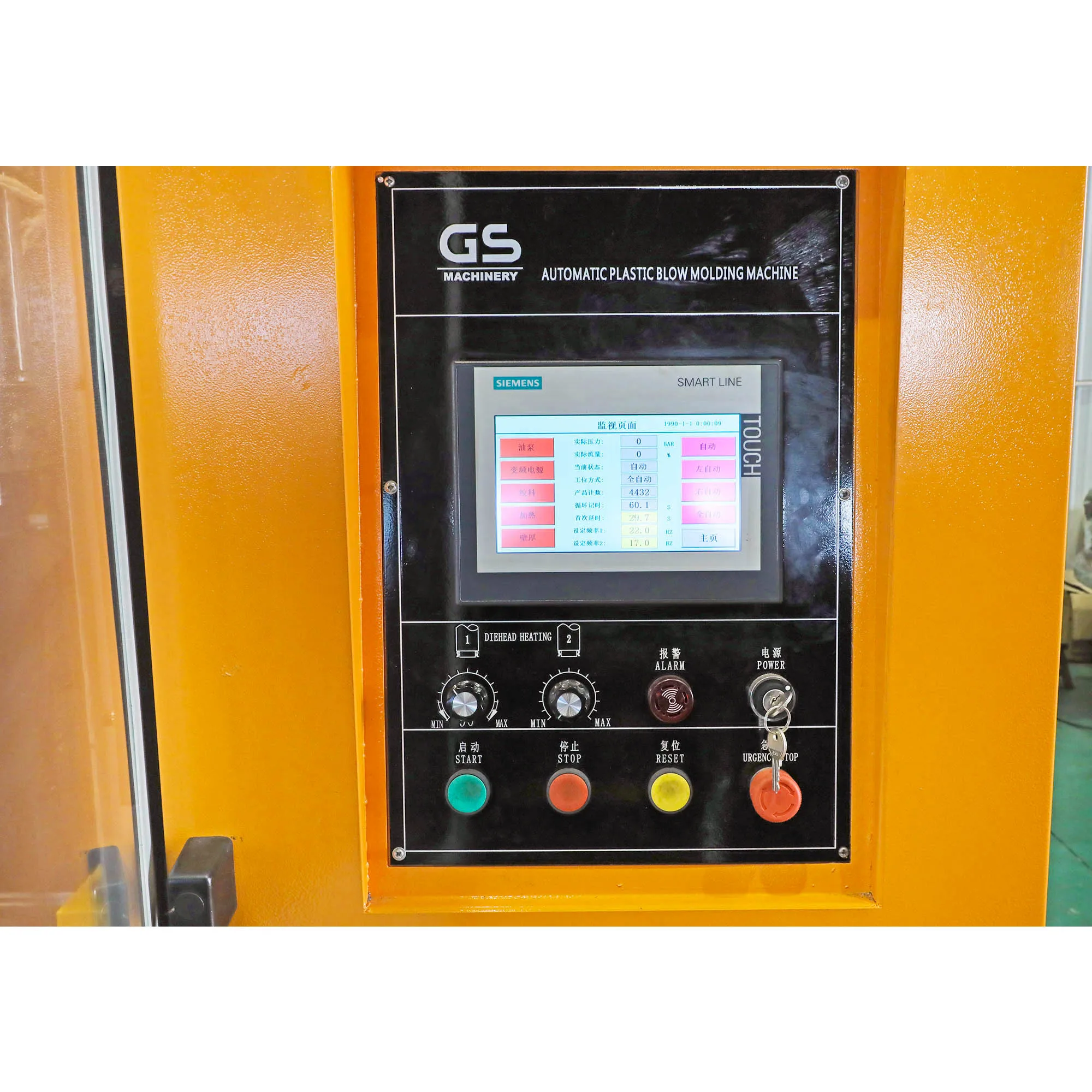

CONTROL SYSTEM

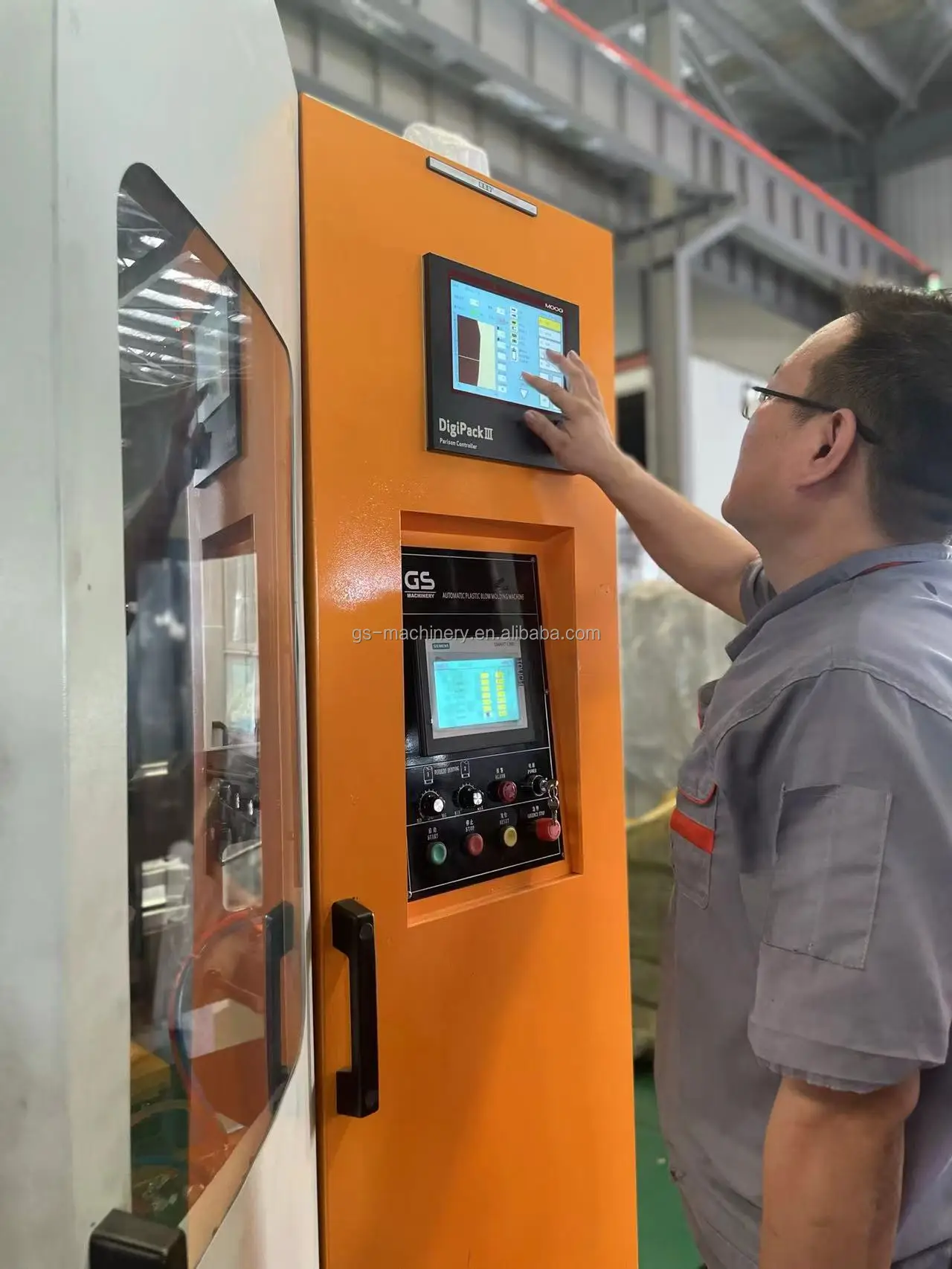

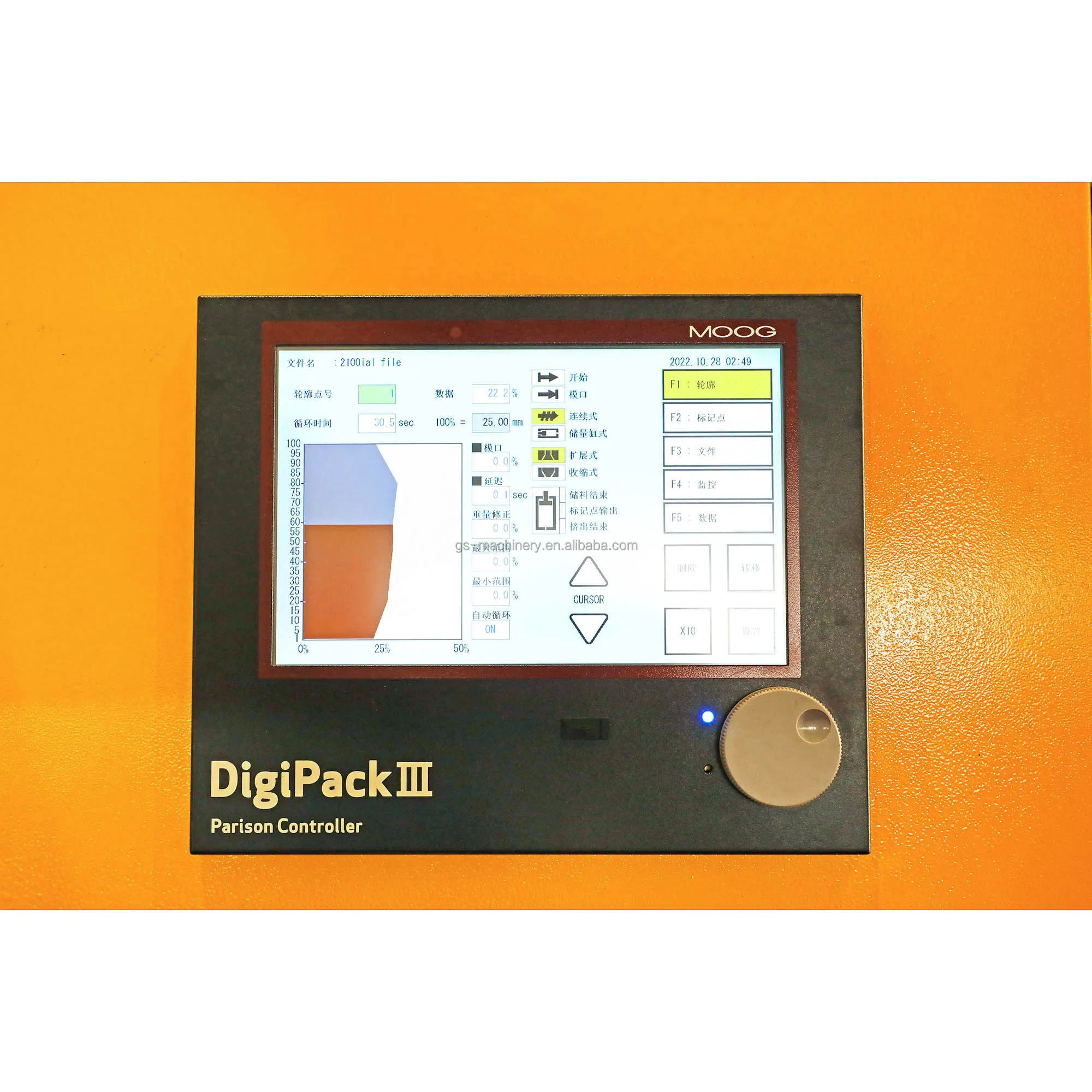

>>SIEMENS color touch screen, more easy on operation. with user's native language for option. >>MOOG 200 Points parison controller used for product wall thickness control precisely for option.
ADVANCED SERVO SYSTEM

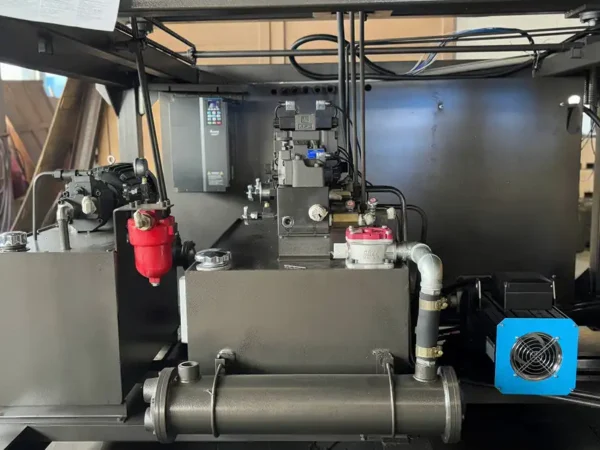

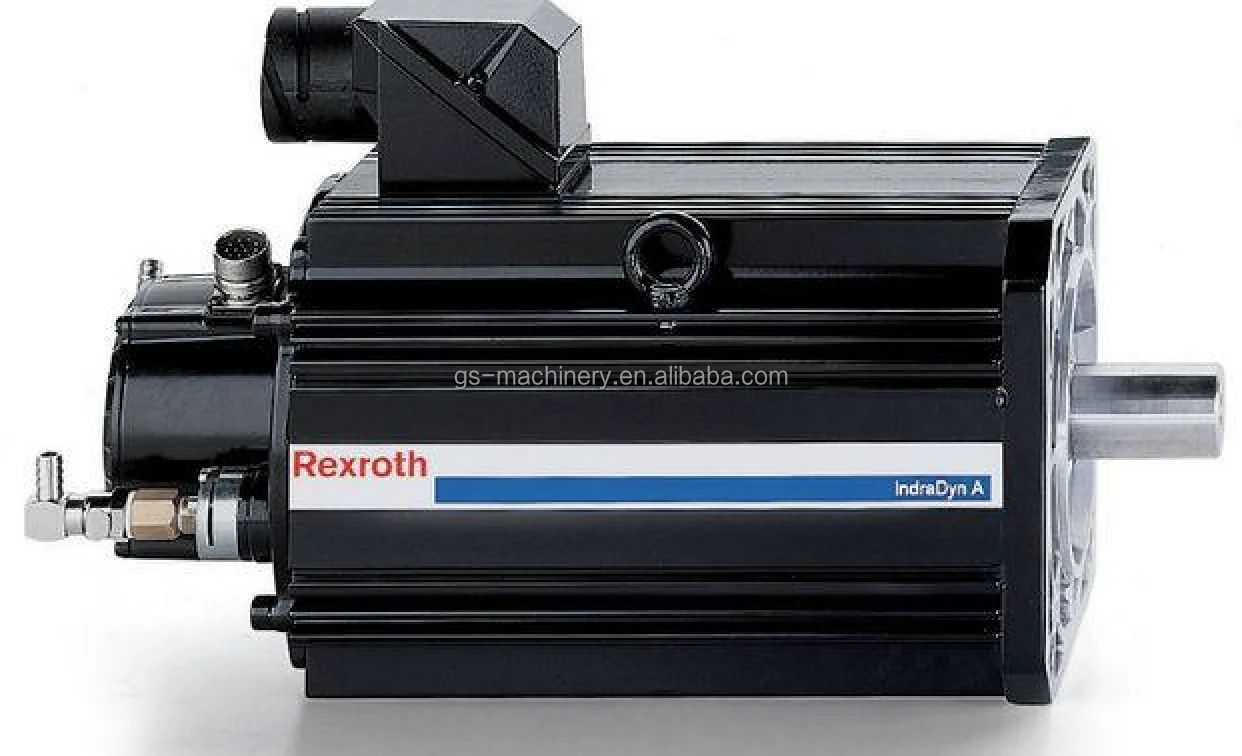

>>Servo motor +servo pump are optional. Saving 30–40% power consumption.
>>HIGH efficiency, HIGH speed, Lowest noise!

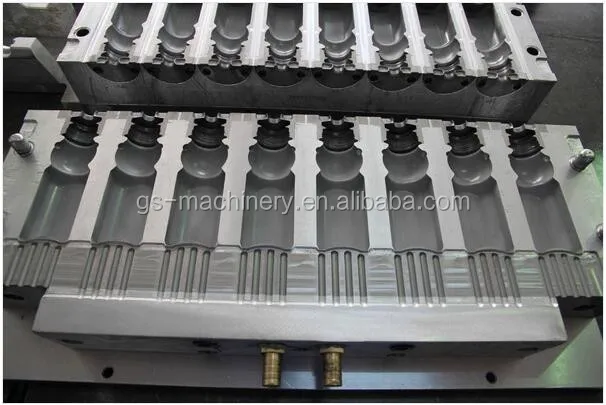

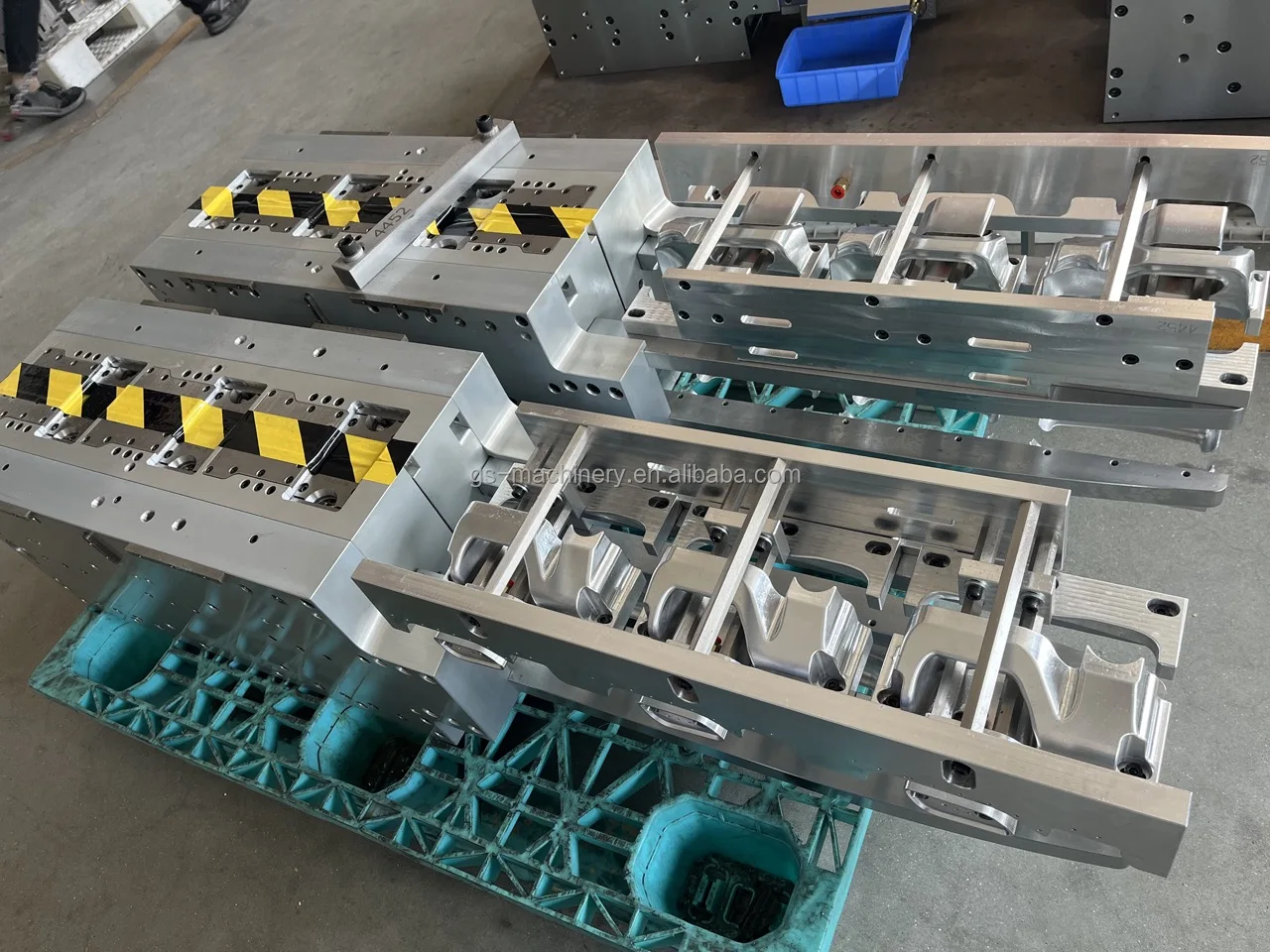

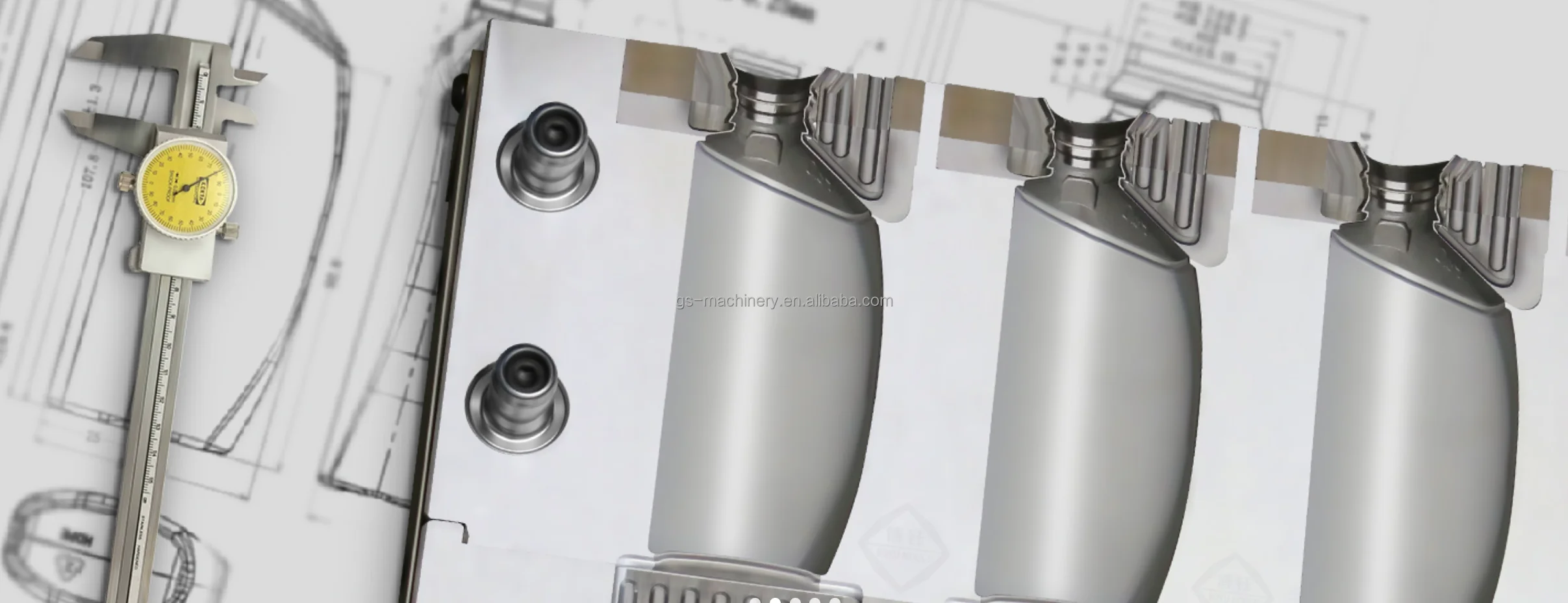

HIGH QUALITY BLOW MOLDS
>>design drawing, manufacturing mold parts, assembly together by 20 years skillful technicians,
testing molds on our machines, make sure running goods before shipment.
>>high quality mold material, such as P20, Aluminum, BeCu, for better finished product;
>>Mold design with optimized cooling system, help to reduce cooling time, increase production speed.
Mold with deflashing, automatic running condition.
Mold with deflashing, automatic running condition.
Company Profile
Our service
7/24 Online Service
1.Machine running video
2.Watch our factory online
3.More service contact us7/24 Online Service
3.More service contact us7/24 Online Service
Successful blow molding machine Plant
1.Supply a running blowing machine in your country , you can see machine running directly.
2. provide 24 hours live running of machine for inspection online
Installation / Debug / Training

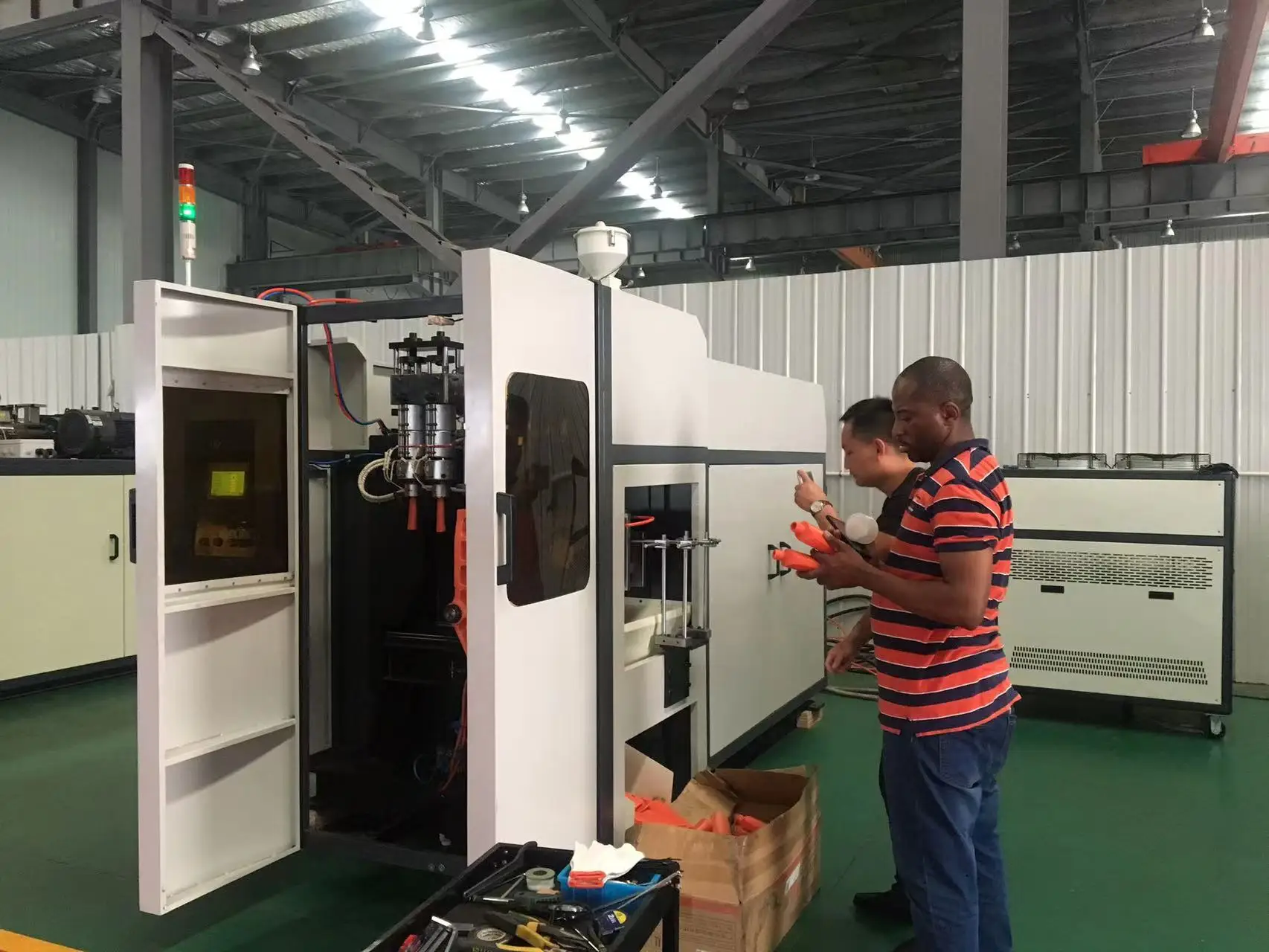

1. We will arrange skillful technician from China or our agents at overseas for equipment installation, debug and test production.
2. Our company offers technology training to the customer in client's factory.
3. We promise that our goods are all new and not used.
3. We promise that our goods are all new and not used.
After-sales Service
1.After checking, we offer 12 months as a quality guarantee, free offer for easy-wearing parts and offer other parts at the lowest price.
2.If you could not solve the problems, we will arrange a technician to your factory solving the problems.
2.If you could not solve the problems, we will arrange a technician to your factory solving the problems.
3.Remote-control system could help to solve troubles vastly
FAQ
The advantage of GS sales consultant
1.We can provide comprehensive,professional equipment selection Suggestion;
2.And can provide production energy consumption calculation,return on investment benefit analysis;
3.To provide tailor-made workshop layout CAD blueprint;
4.Provide products optimization Suggestions;
5.Can provide the whole line optimization Suggestions;
2.And can provide production energy consumption calculation,return on investment benefit analysis;
3.To provide tailor-made workshop layout CAD blueprint;
4.Provide products optimization Suggestions;
5.Can provide the whole line optimization Suggestions;
The advantage of GS technical team
1.Each year many customized requirements makes us have rich experience across multiple industry;
2.Customized equipment model According to industry products unique characteristics
3.The project responsibility system, closed loop team cooperation of design team and process team, and adjusting team, jointly create the equipment for user‘s satisfaction;
4.Engineers would study abroad or attend meeting of industry,keep up with the latest industry information and technology trend;
5.Undertake many key projects, and have a construction team formed by a number of senior technicians who can build cable tray, and install whole line equipment;
2.Customized equipment model According to industry products unique characteristics
3.The project responsibility system, closed loop team cooperation of design team and process team, and adjusting team, jointly create the equipment for user‘s satisfaction;
4.Engineers would study abroad or attend meeting of industry,keep up with the latest industry information and technology trend;
5.Undertake many key projects, and have a construction team formed by a number of senior technicians who can build cable tray, and install whole line equipment;
The advantage of GS after-sales team
1.free lifetime service for GS machine;
2.24-hour rapid response;
3.Set up domestic services team and international services team;
4.Some technical personnel also master auxiliary equipment debugging and maintenance;
5.Every season, GS would provide customers with a free of charge training course for 2 days
6.Exclusive machining equipment for producing After-sales components, guarantee a quick response to users’ requirement;
2.24-hour rapid response;
3.Set up domestic services team and international services team;
4.Some technical personnel also master auxiliary equipment debugging and maintenance;
5.Every season, GS would provide customers with a free of charge training course for 2 days
6.Exclusive machining equipment for producing After-sales components, guarantee a quick response to users’ requirement;
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this machine double station pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the machine double station pump be supplied for my local voltage?
The standard configuration is 380V/220V/CUSTOMIZED. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
