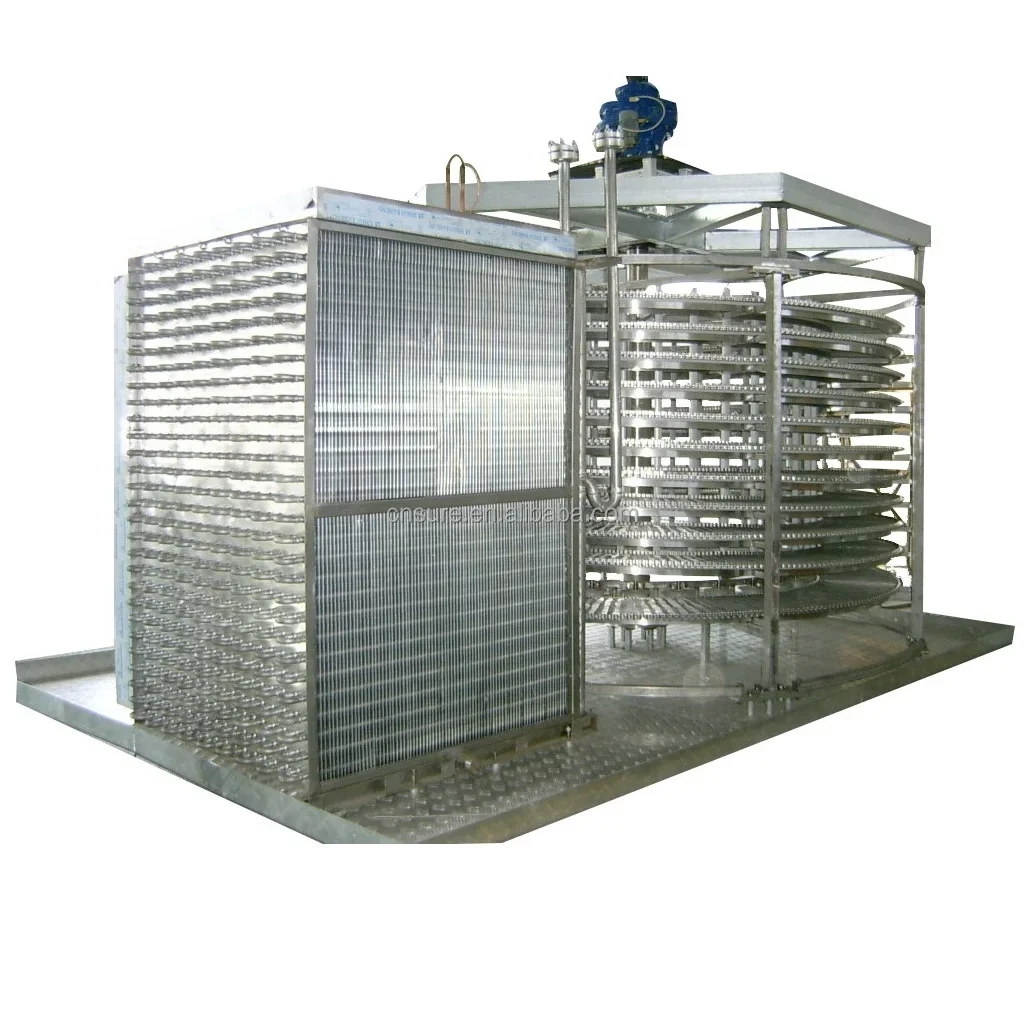

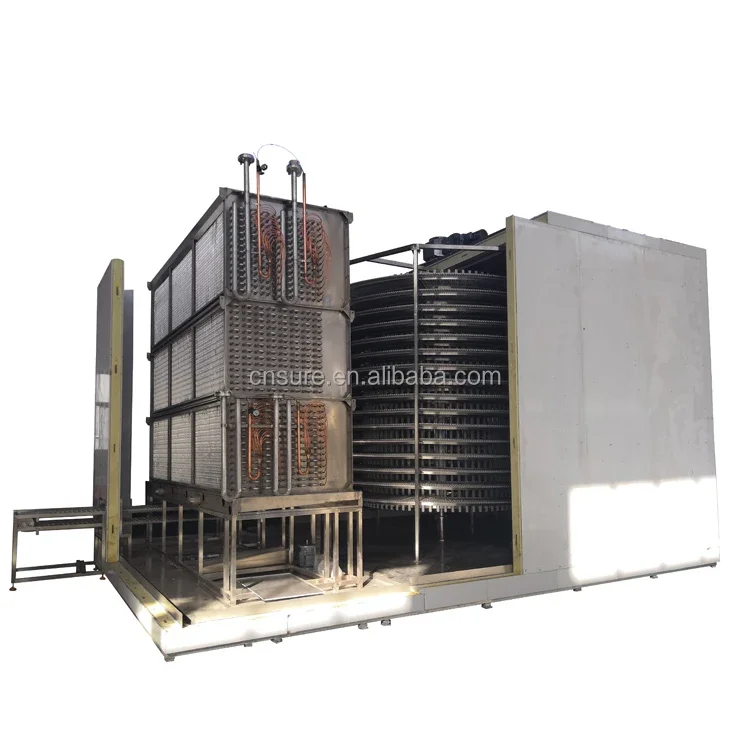

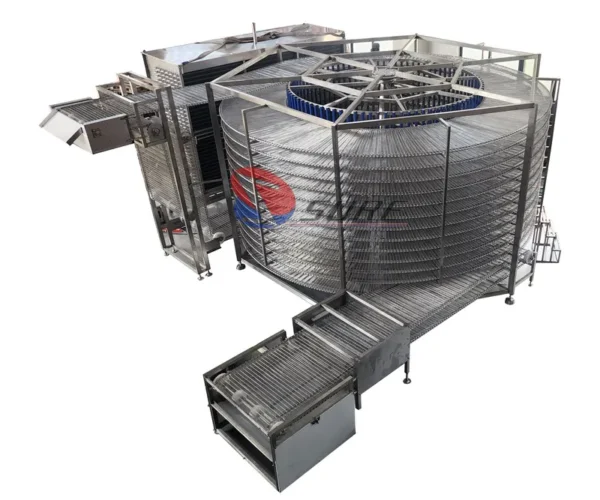

This machine spiral conveyor freezer is published with the manufacturer’s full specification — 380V/50Hz, type Spiral Freezer. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Machine Spiral Conveyor Freezer
- Power(W): Customized
- Voltage: 380V/50Hz
- Belt Material: Modular Plastic
- Warranty: 1 Year
- After Warranty Service: Video technical support
- Place Of Origin: Tianjin, China
Technical Specifications
| Type | Spiral Freezer |
|---|---|
| Temperature Control | -20℃ to 0℃ |
| Voltage | 380V/50Hz |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Bearing, Gearbox, Motor |
| Key Selling Points | Long Service Life |
| Power(W) | Customized |
| Place Of Origin | Tianjin, China |
| Weight (Kg) | 2000 |
| Brand Name | SURE |
| Product Name | Spiral Freezer |
| Application | Burek Seafood, Meat & Pastry |
| Belt Material | Modular Plastic |
| Condensing Type | Evaporative Cooled |
| After Warranty Service | Video technical support |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
model | output | installed power | refrigeration consumption | dimension | belt width |
sf200 | 200kg/h | 3.55kw | 30kw | 4.0*3.3*2.1m | 300mm |
sf300 | 300kg/h | 5.15kw | 43.5kw | 4.9*4.1*2.5m | 450mm |
sf500 | 500kg/h | 11.2kw | 75kw | 5.6*4.0*2.9m | 450mm |
sf1000 | 1000kg/h | 22.0kw | 145kw | 6.8*5.0*3.3m | 600mm |
sf1500 | 1500kg/h | 31.0kw | 225kw | 6.8*5.2*4.5m | 600mm |
Main Features

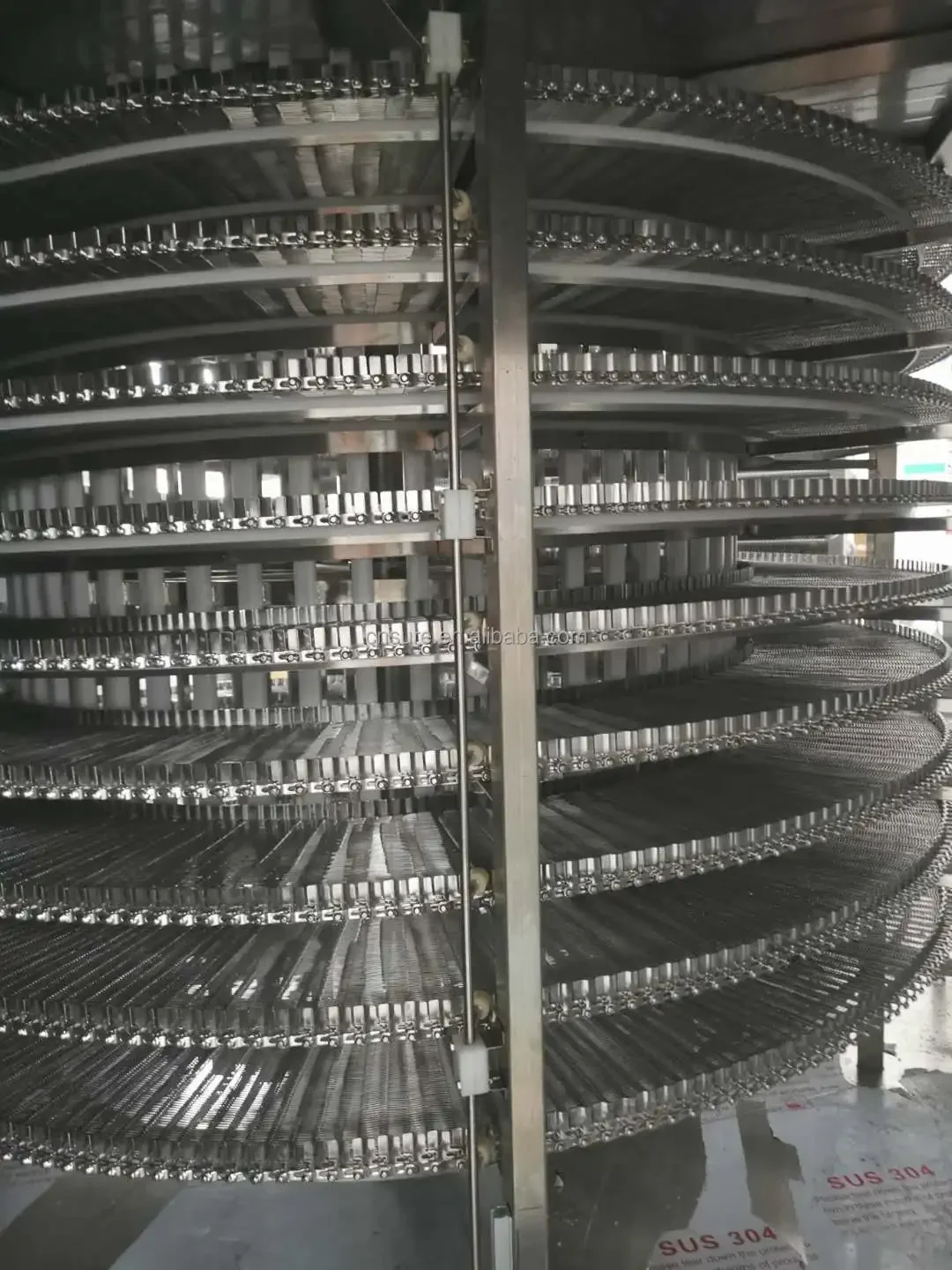

We adopt food grade stainless steel as the material of conveyor belt. The surface of belt is flat and neat.
2.Driving System:
The working speed of conveyor belt can be adjusted by frequency inverter and speed reducer.
3.Electric Controlling System:
We adopt Siemens or Schneider electric components .
1.internal components using high-quality
stainless steel SUS304, easy cleaning.
Using water frost, ensure clean sanitation. 2.Inverter control to realize infinitely adjustable-speed, frozen goods frozen time is
adjustable 3.Safety device: mesh belt prevention device, heavy hammer protection, emergency stop device
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $39990 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this machine spiral conveyor freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the machine spiral conveyor freezer be supplied for my local voltage?
The standard configuration is 380V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Tianjin Sure International Trading Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Tianjin Sure International Trading Co., Ltd. range on HVACR Nexus.
