The manufacture air extractor listed here carries power source Electric, material Full copper motor, documented exactly as the manufacturer publishes it. Made by Zhongshan Yongning Ventilation System Manufacturing Co., Ltd. (17 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Manufacture Air Extractor
- Power Source: Electric
- Material: Full copper motor
- Certification: ce
- Place Of Origin: China
- Application: Commercial, Garage, Hotel, Household
- Features: Available in front and back mesh
Technical Specifications
| Application | Commercial, Garage, Hotel, Household |
|---|---|
| Type | Air Cooling Fan, Bathroom Fan, Ventilation Fan |
| Power Source | Electric |
| Number Of Blades | 4 |
| Control Method | Mechanical Control |
| App-Controlled | No |
| Place Of Origin | China |
| Product Name | Heavy-Duty Ventilating Fan |
| Style | Modern |
| Material | Full copper motor |
| Color | Green / Blue etc. |
| Temperate Climates Or Tropical Climates | T45 |
| Rated Frequency | 50Hz |
| IP Ratin | IPX0 |
| Features | Available in front and back mesh |
| Certification | ce |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

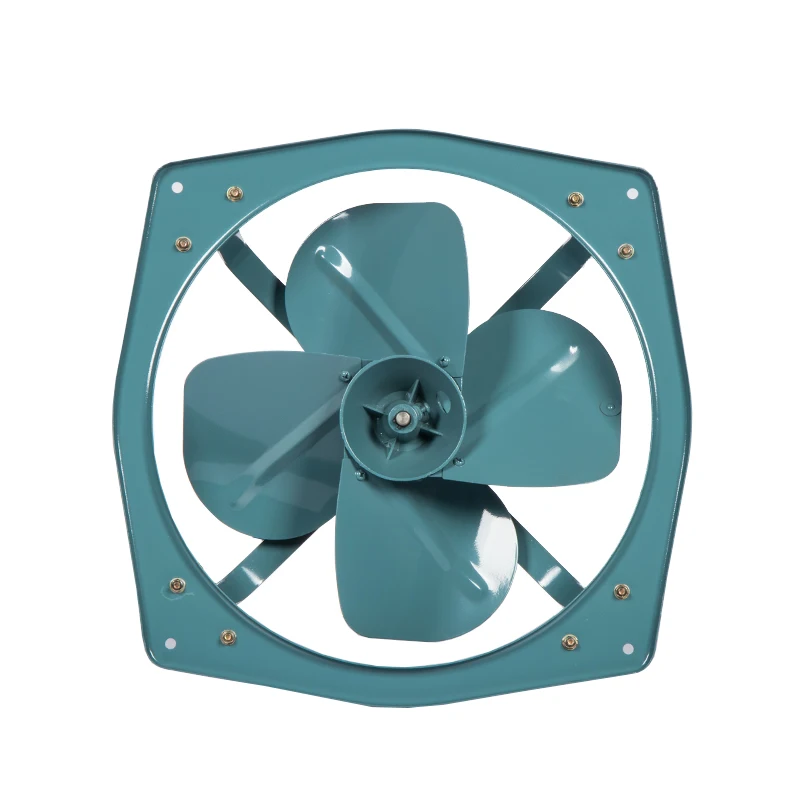

24 Inch Manufacture Air Extractor Commercial Industrial Ventilation Exhaust Fan
| Product Name | model | FAC-23 | FAC-30 | FAC-40 | FAC-45 |
| Heavy-Duty Ventilating Fan | Spec(mm) | 230(9") | 300(12") | 400(16") | 450(18") |
| power(W) | 50 | 100 | 200 | 200 | |
| speed(r/min) | 1400 | 1400 | 1400 | 1400 | |
| capacity(m3/min) | 13 | 30 | 55 | 85 | |
| protection against electric shock | ClassⅠ | ClassⅠ | ClassⅠ | ClassⅠ | |
| rated frequency | 50Hz | 50Hz | 50Hz | 50Hz | |
| Rated voltage or voltage range(V) | AC 220-240V | AC 220-240V | AC 220-240V | AC 220-240V | |
| Temperate climates or tropical climates | T50 | T45 | T45 | T45 | |
| Working Temperature(℃) | -20~45℃ | -20~45℃ | -20~45℃ | -20~45℃ | |
| IP Ratin | IPX0 | IPX0 | IPX0 | IPX0 | |
| Size(cm) | 29.6×29.6×20.5 | 38.5×38.5×25 | 48×48×26 | 56×56×30 | |
| Warranty(Years) | 1 year | 1 year | 1 year | 1 year | |
| Industrial ventilating fan/ Heavy duty exhaust fan/ metal wall mounted fan 1.Sizes: 9" 12" 16" 18" 24" 30" 2.Cold-rolled silicon steel sheet and pure copper winding motor for long service life and low-temperature rising 3.Large air delivery & engery saving 4.Material thickness 9" heavy duty exhaust fan 1.0mm 3mm 1.0mm 12" heavy duty exhaust fan 1.2mm 4mm 1.2mm 16" heavy duty exhaust fan 1.2mm 4mm 1.2mm 18" heavy duty exhaust fan 1.2mm 5mm 1.2mm 24" heavy duty exhaust fan 1.5mm 6mm 1.5mm 30" heavy duty exhaust fan 2mm 8mm 2mm 5.Optional in front and rear guard, suitable for special installation defend requirement 6.Ideal for school, hotel,ware house , kitchen, workshop for ventilation | |||||
1. Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures
2. What is your terms of payment?
Usually,we accept T/T,irrevocable L/C at sight.For regular orders, Terms of payment 30% deposit,full payment before delivery the goods.
3. What is the lead time?
It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
4. What is your terms of packing?
Generally, we pack our goods in neutral cartons.If is fragile we will make wooden frame.and we also can according to your requirements.
5. What is your terms of delivery?
We accept EXW,FOB,CIF,etc. You can choose the one which is the most convenient or cost effective for you.
6. How to solve the quality problems after sales?
Take photos of the problems and send to us. We will make a satisfied solution for you within 24 hours after we confirm the problems.
7. Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available.
8. Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
9. You are manufacturer or trading company?
We are factory. Welcome to visit our factory at anytime.
Ordering and Pricing
- Minimum order quantity: 50 piece
- Volume pricing:
- 50+ piece: US $18.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this manufacture air extractor?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this manufacture air extractor carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhongshan Yongning Ventilation System Manufacturing Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhongshan Yongning Ventilation System Manufacturing Co., Ltd. range on HVACR Nexus.
