Suspended Air Handling Unit: type heating cooling airflow Heat Recovery, certification CE. Supplied direct from the factory with the complete specification.
Key specification for this suspended air handling unit: type heating cooling airflow Heat Recovery, certification CE. Everything below is reproduced from the factory data sheet. Made by Rife (Beijing) Artificial Environment Technology Co., Ltd. (1 year on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Suspended Air Handling Unit
Warranty: 2 Years
Certification: CE
Place Of Origin: Beijing, China
Application: Heater cooling Parts
Type: heating cooling airflow Heat Recovery
Weight (Kg): 300
Technical Specifications
Application
Heater cooling Parts
Type
heating cooling airflow Heat Recovery
Warranty
2 Years
Weight (Kg)
300
Place Of Origin
Beijing, China
Brand Name
Rife
Applicable Industries
Plant
Usage
Industry Automation
Product Name
Direct-Expansion (DX) Indoor Unit
Item
Direct-Expansion (DX) Indoor Unit with Fresh Air Ventilation
Keyword
heating cooling air conditioner
Certification
CE
Rated Fresh Air Volume
9000 m³/h
Max Heating Volumn
63 kw

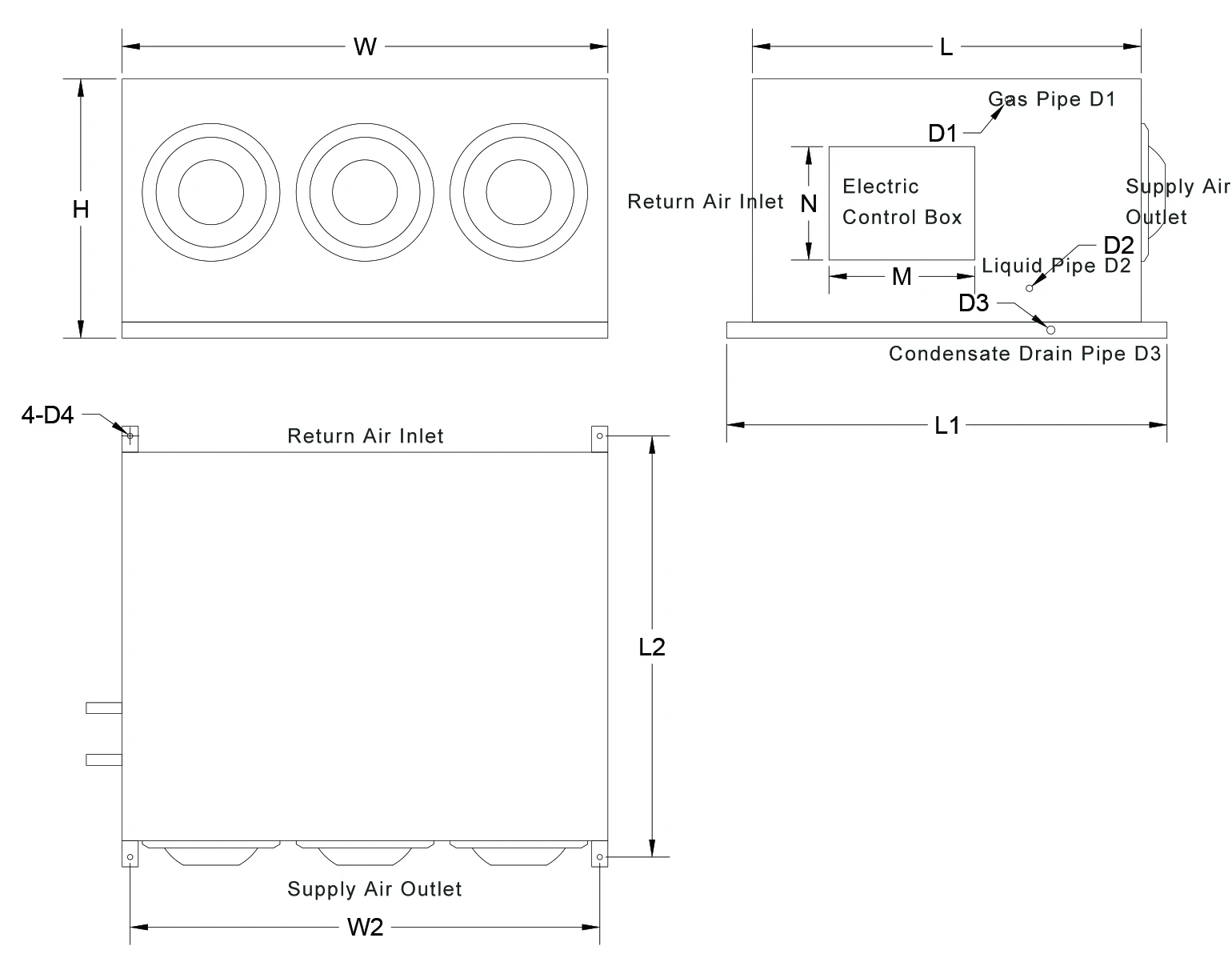

Dimension
1200*2000*750mm
Selling Units
Single item
Single Volume
0 cm³
Single Gross Weight
0.0 kg
Product Details
Specification

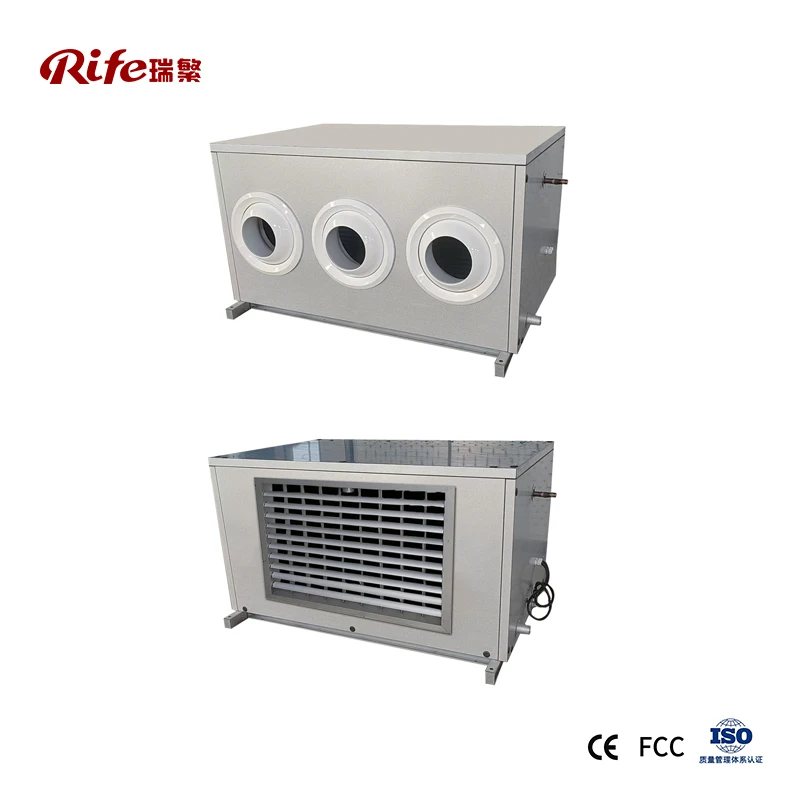

Direct-expansion (DX) Suspended air Handling Units Save Space with Long Service Life and Online Support

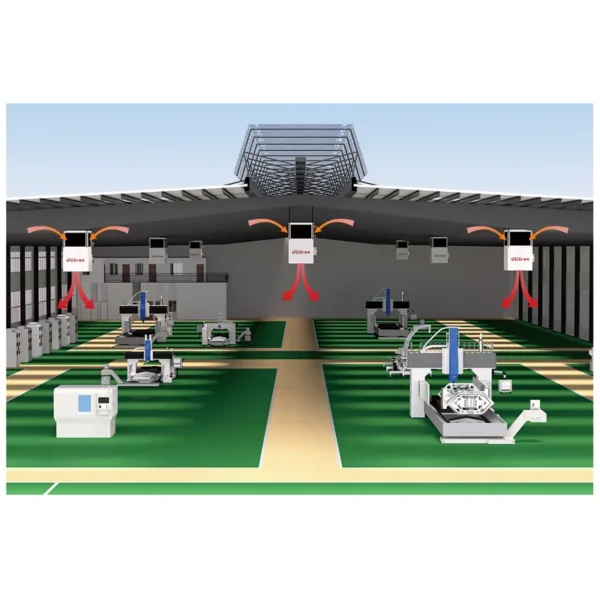

Equipment Overview The fresh air ventilation direct – expansion indoor unit for high – ceiling spaces is one of the most widely used HVAC (Heating, Ventilation, and Air Conditioning) equipment in high – ceiling space environments. This equipment is suitable for large – scale spaces such as tall factories. It is installed on the roof and integrates multiple functions including heating, cooling, ventilation and air exchange, and heat recovery.
High-Ceiling Compatibility: Ideal for spacious indoor environments. Direct Expansion Technology: Efficient cooling and heating solutions. CE and FCC Certifications: Ensures quality and safety standards met. Energy Efficiency: Low power consumption for cost-effective operation. Durability: Built to withstand high-traffic industrial settings.
Product Features: Repeated air circulation reduces temperature gradients; No draft sensation, higher comfort; Centralized control and individual control can be realized, with simple and convenient operation; Various operating modes can be easily switched according to indoor conditions; Installed on the roof, it can maximize the working space and will not interfere with internal facilities such as machinery and lighting in the workshop; A condensate trap is added to remove the condensate generated during cooling; No need to install supply air ducts and return air ducts; Maintenance can be carried out on the roof. Only by opening the access door can maintenance be easily performed;
Product Description
Specialties
Large Cooling Capacity per Unit The maximum capacity of a single indoor unit is 24P, and a single unit can meet the cooling needs of large spaces up to 600–800 square meters. Long – distance Air Supply The vertical direct – blowing type can achieve a 30 – meter – high air supply, and the horizontal jet type can achieve a 25 – meter – long – distance air supply. Multiple Working Conditions Return air condition, fresh air condition, cool storage condition, workshop condition — flexible in application and wide in scope. Noise Control The unit can be equipped with an axial flow fan or a low – noise backward – curved centrifugal fan. Sound – absorbing and thermal – insulating materials are attached inside the panel, and technologies such as noise – reducing air channels and additional sound – absorbing sections are adopted. Space – saving Top – hanging or side – wall installation methods are available. No air ducts need to be installed, so the installation is flexible and does not occupy effective space. Precise Temperature and Humidity Control With wireless temperature and humidity collectors, temperature and humidity can be collected at multiple points in the personnel activity area of large spaces. Free networking is supported to achieve precise automatic control.
Ordering and Pricing
Minimum order quantity: 1 piece
Volume pricing:
1–9 piece: US $9626 / piece
10–49 piece: US $9168 / piece
50+ piece: US $8731 / piece
Ships from: China
Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this suspended air handling unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this suspended air handling unit carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
Specifications, certifications and images on this page are as published by the manufacturer and have not been
independently tested or verified by HVACR Nexus. Confirm the full specification and the approvals valid in your
market in writing before ordering.
