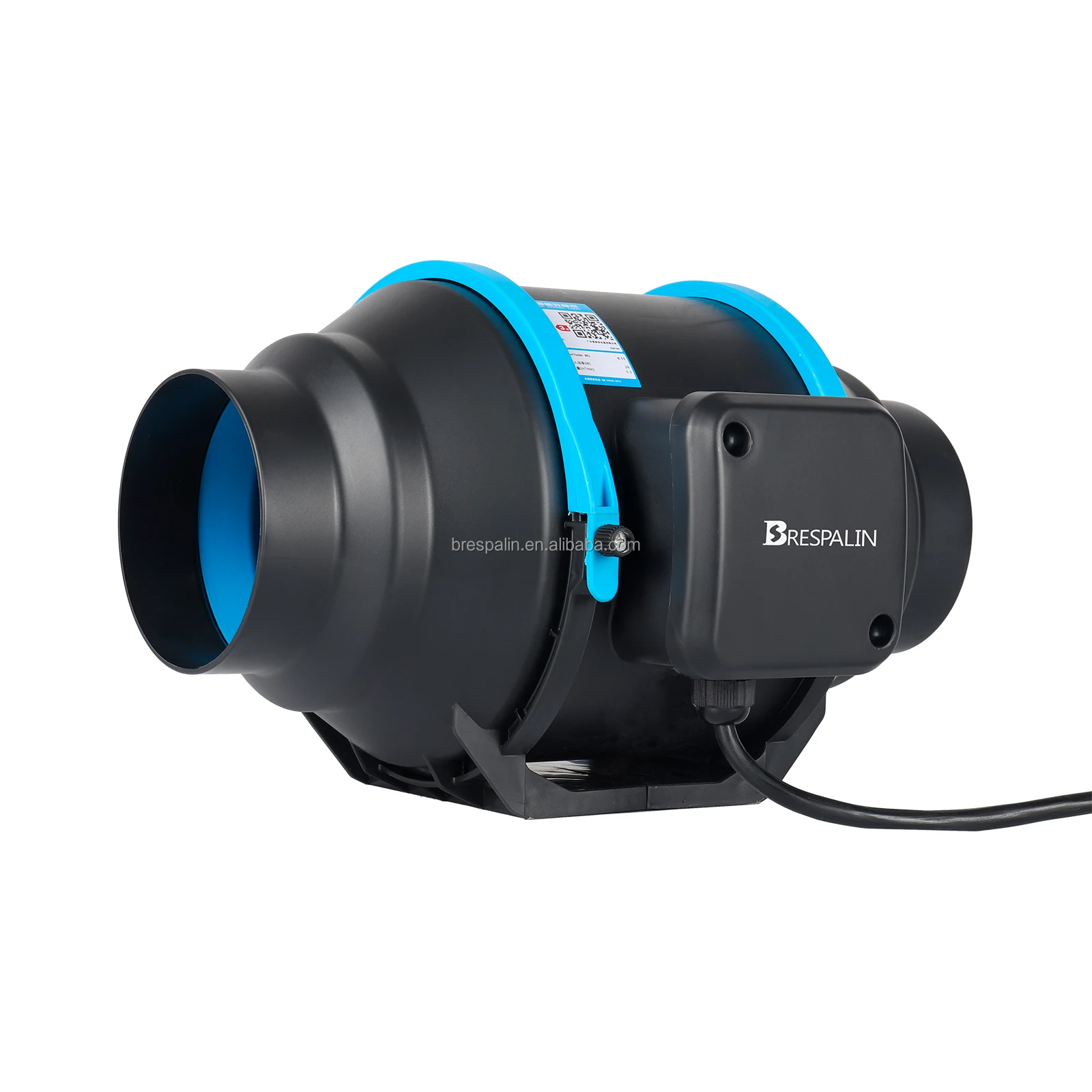

Mixed Flow Fan, Explosion-Proof, 220V, Electric

Key specification for this mixed flow fan: 220V/50Hz, power source Electric. Everything below is reproduced from the factory data sheet. Made by Foshan Brespalin Co., Ltd (10 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Mixed Flow Fan

• Model Number: AM100, AM150, AM200, AM250, AM315
• Power Source: Electric
• Power: 40/38 W
• Voltage: 220V/50Hz
• Blade Material: Plastic
• Main Material: Plastic

Technical Specifications

Product Details

Product Description

AC/EC In-line Mixed Flow Fan

♦ Simple installation, simple maintenance.

♦ Ball bearing motor.
♦ Large air flow.
♦ High Pressure, high efficiency
♦ Duct air pressurization.
♦ Stable long service life
♦ Unique Design.
♦ Low cost.

item	value
Type	Axial Flow Fan
Applicable Industries	Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Construction works , Food & Beverage Shops
Customized support	OEM, ODM
Electric Current Type	AC
Mounting	Duct Fan
Blade Material	Plastic
Place of Origin	China
	Guangdong
Brand Name	OEM acceptable
Model Number	AM100
Voltage	220V/50Hz
Warranty	1 Year
After-sales Service Provided	Online support
Product Name	Mixed Flow Inline Duct Fan for Air Booster of HVAC
Power	40/38 W
Air Volume	200/150 cbm/h
Voltage	220 V
Frequency	50 Hz
Main Material	Plastic
Noise	30/25 dB
Static Pressure	180/130 Pa
Speed	Low / High (Double Speed)
Duct Size	100/125 mm, 4/5 inch Inline Duct Extractor

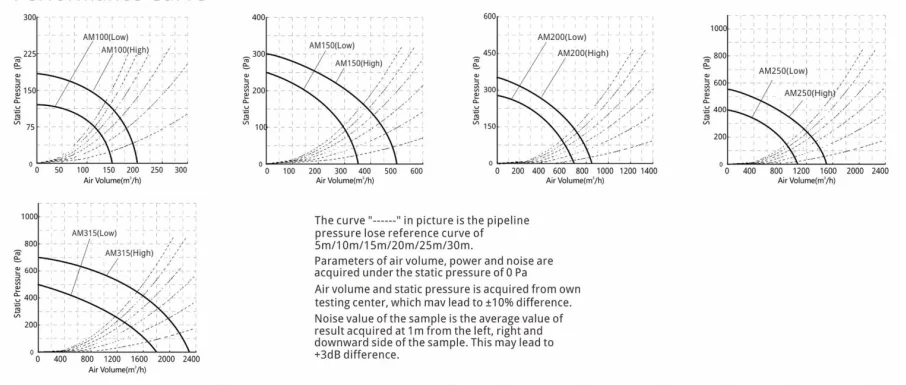

Performance Curve

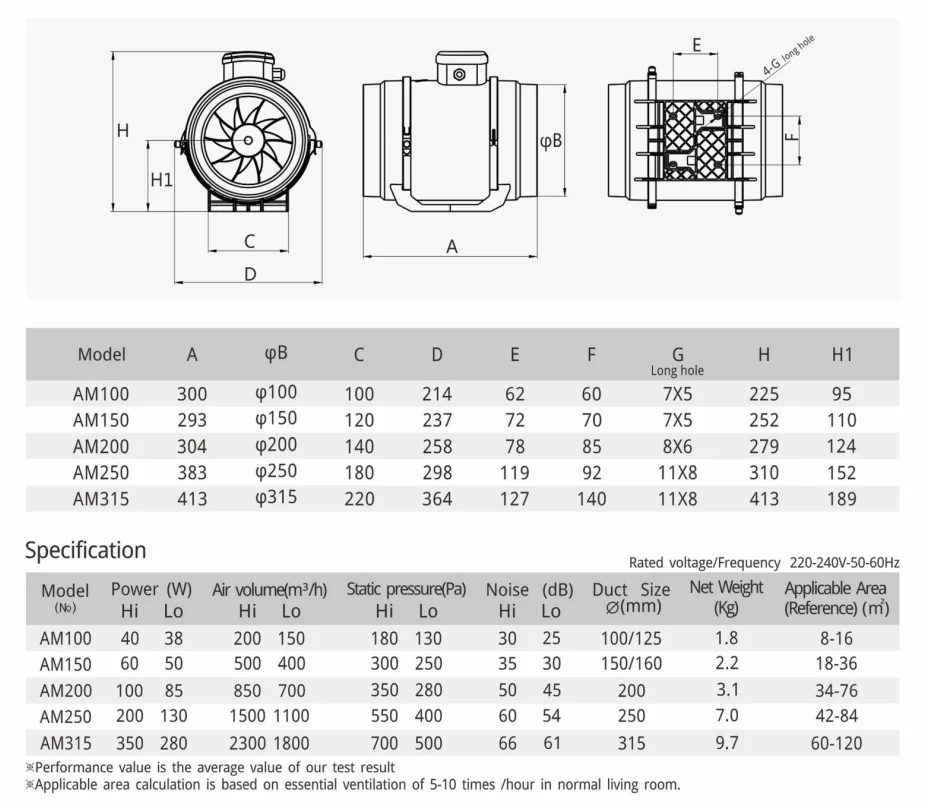

Performance Table

Model	Power (w)	Air Volume (m³/h)	Static Pressure (Pa)	Noise (dB)	Duct Size (mm)	Net Weight  (kg)	Applicable Area (㎡)
AM100	40/38	200/150	180/130	30/25	100/125	1.8	8-16
AM150	60/50	500/400	300/250	35/30	150/160	2.2	18-36
AM200	100/85	850/700	350/280	50/45	200	3.1	34-76
AM250	200/130	1500/1100	550/400	60/54	250	7.0	42-84
AM315	350/280	2300/1800	700/500	66/61	315	9.7	60-120

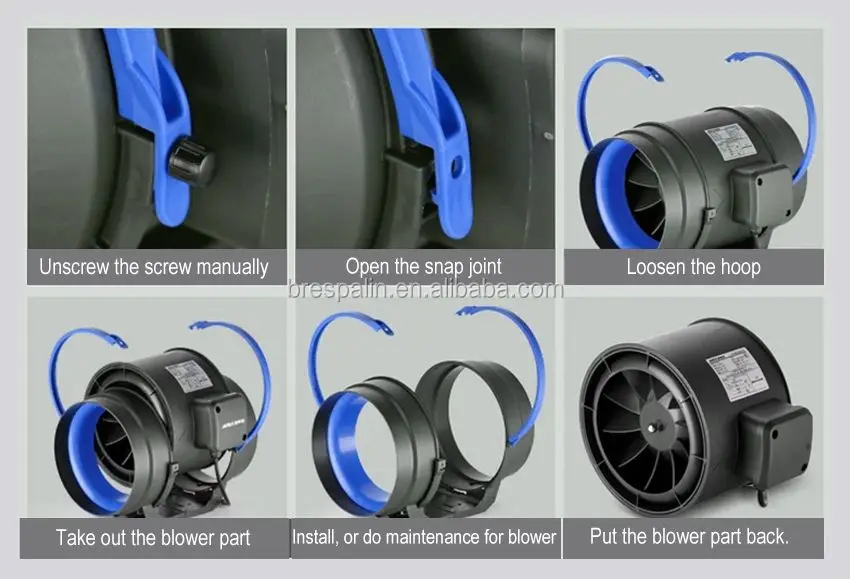

Blower can be taken out just by unscrew two screws with any operation on the duct and spigot connector.

Easy Installation & Maintenance

Packing & Delivery

Carton with Foam. a) 4 single carton in 1 master caton (ror AM100, AM150, AM200) b) 1 single carton (for AM 250, AM315)

Company Profile

BRESPALIN is based on around 26 years' experience of manufacturing Air purifying, Fresh air system, Ventilation system and Industrial fans. Currently, we are invested by several factories. We are built for below missions. 1. We belongs to the factory, so price we can give is based on factory cost, not trading cost. 2. We are sole International sales of the factory, we can help to control and protect the market of clients. 3. We integrates different kinds of products for air management. For these products, you can get professional service in one stop. 4. We are independent of factory. This make us standing in the position of client instead of factories. It will solve your problem of communication with factory. 5. We absorb new knowledge and business way Internationally. This make us be able to give more marketing suggestion and new cooperation ways. We manufacture kinds of products for solution of air management. We have several factories which supply different kind and level of products. Our main products are as below: 1. Air Purifying Units: Portable air purifier, PM2.5 purifier, Household air purifier, Car air purifier, Pet air purifier, Purifying blower. 2. Fresh Air System: Heat exchanger, Exhaust fan, Inline fan, Duct fan, Bathroom exhaust fan, Ceiling exhaust fan. 3. Industrial Blower: Middle pressure centrifugal fan, High pressure centrifugal fan, Fire-control blower, Air contitioner blower, Boiler centrifugal fan, Axial fan. 4. Motor and Impeller for Air Conditioner, Exhaust Fan, HVAC System Ventilators, Heat Recovery Ventilators, Blowers, Cooling Fan, etc. We give ourselves two missions and will devote ourselves to them. 1. Dispel any kind of worries of our customers. 2. Improve human living environment by our products and concept.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Mid East(35.00%),Southeast Asia(18.00%),Domestic Market(16.00%),Southern Europe(8.00%),Western Europe(7.00%),South America(5.00%),North America(5.00%),Oceania(3.00%),South Asia(3.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Axial Fan,Centrifugal Fan,Purifying Inline Fan,Exhaust Fan,Inline Duct fan

4. why should you buy from us not from other suppliers?
We have 26 years of R&D and Manufacturing experience on air solutions. We have strong experience which ensure you mass productivity and flexible requirements. We have a strong team of R&D who will offer you nice and clear communication for OEM & ODM.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,French

​​​​​​

Ordering and Pricing

• Minimum order quantity: 50 piece
• Volume pricing:
  • 50–199 piece: US $30.5 / piece
  • 200+ piece: US $20.5 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this mixed flow fan?

The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this mixed flow fan carry?

It is supplied with CE CB GCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the mixed flow fan be supplied for my local voltage?

The standard configuration is 220V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Foshan Brespalin Co., Ltd, based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Foshan Brespalin Co., Ltd range on HVACR Nexus.
