Mmf-12f24ds-cn1 axial fan — 24V, power source Electric. The complete factory specification follows. Made by Guangzhou Yuexiu District Weikeheng Electronic Firm (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Mmf-12f24ds-Cn1 Axial Fan
- Model Number: MMF-12F24DS-CN1
- Power Source: Electric
- Voltage: 24V
- Material: Plastic
- Blade Material: Plastic
- Speed: 3120 RPM
Technical Specifications
| Voltage | 24V |
|---|---|
| Speed | 3120 RPM |
| Type | DC Brushless Axial Fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Japan |
| Brand Name | MELCO |
| Model Number | MMF-12F24DS-CN1 |
| Color | Black |
| Series | MMF-12F |
| Lead Wire | 2-Wire DC on CN1 version |
| Size | 120X120X38MM/4.72X4.72X1.50 in |
| Application | Inverter, servo drive, industrial control cabinet, CNC equipment |
| Product Classification | 120mm Cooling Fan, High Airflow Fan, High Temperature Fan |
| Product Classification. | all Bearing Fan, Industrial Cooling Fan, Inverter Cooling Fan. |
| Application Range | Mitsubishi inverter cooling, VFDs, servo drives |
| Application Range. | industrial control cabinets, PLC systems, CNC machines |
| Application Range.. | power supplies, UPS systems, automation machinery, power electronics |
| Selling Units | Single item |
| Single Package Size | 21X11X14 cm |
| Single Gross Weight | 0.431 kg |
Product Details
PRODUCT HIGHLIGHTS

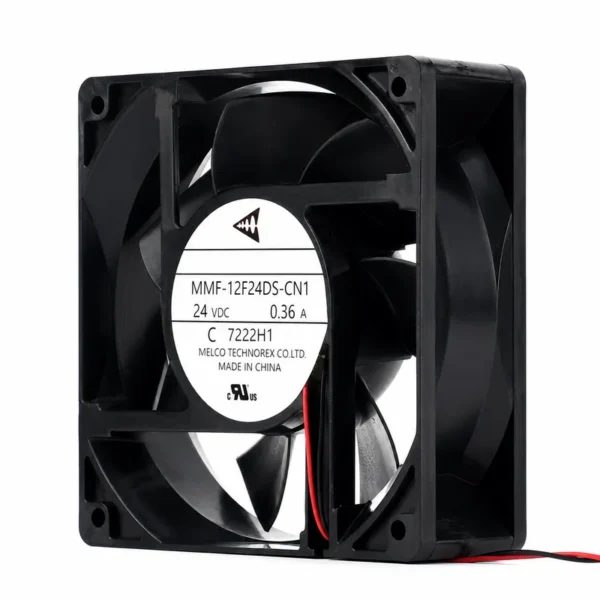

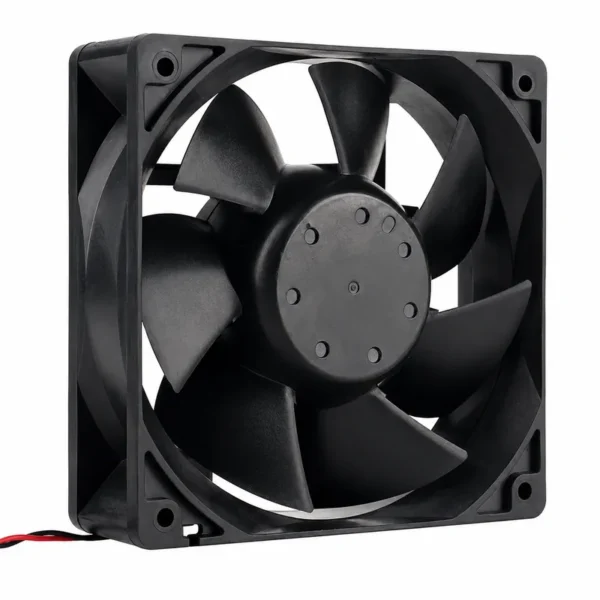

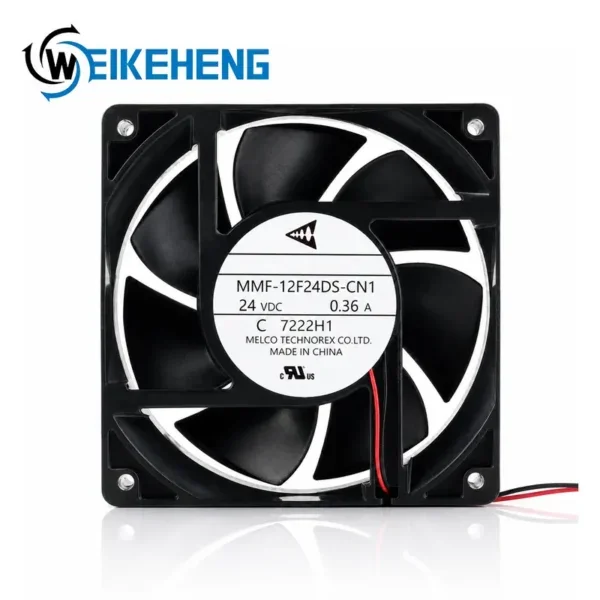

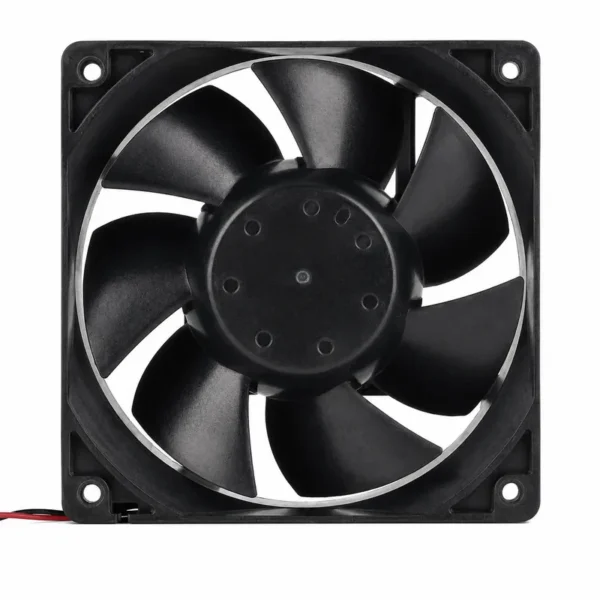

- MELCO TECHNOREX MMF-12F24DS-CN1 is a high-airflow 24VDC brushless axial cooling fan in a 120×120×38mm format. Official MMF-12F24DS specifications provide 3120RPM speed, 3.24m³/min (194.4m³/h, approximately 114.4CFM) maximum airflow, 96.1Pa maximum static pressure and 47dB(A) typical noise. The fan features ball-bearing construction, UL94V-0 flame-retardant resin frame and impeller, operation up to +85°C and an official long-life rating of 100,000 hours at 60°C continuous operation. The pictured CN1 version is rated 24V 0.36A, uses a 2-wire connection and is marked Made in China. It is widely suitable for Mitsubishi inverters, VFDs, servo drives, industrial control cabinets and automation equipment.
Brand | MELCO TECHNOREX |
Model | MMF‑12F24DS‑CN1 |
Type | DC Brushless Axial Fan |

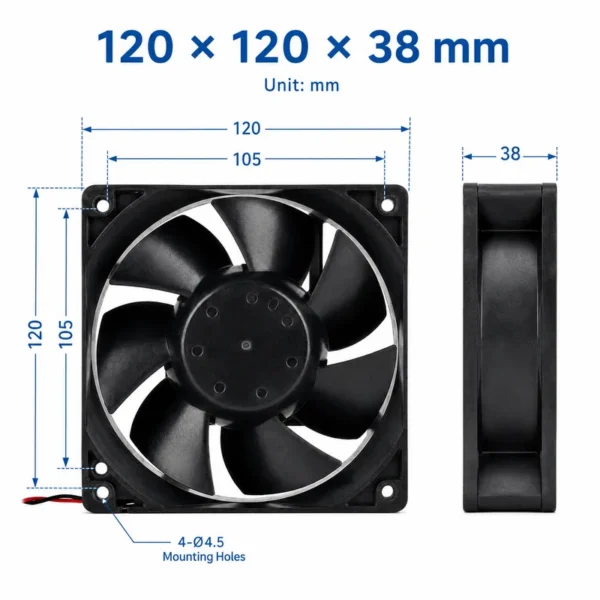

Size | 120 × 120 × 38 mm |
Inch Size | 4.72 × 4.72 × 1.50 in |
Rated Voltage | 24 VDC |
Operating Voltage | 10.0‑27.6 VDC |
Rated Current | 0.36 A typ. / 0.43 A max. |
Rated Power | 8.64 W typ. / 10.32 W max. |
Starting Current | 1.05 A typ. / 1.26 A max. |
Speed | 3120 RPM ±15% |
Max Airflow | 3.24 m³/min |
Airflow | 194.4 m³/h |
Server, distribution box, industrial control cabinet heat dissipation & ventilation Frequency converter, welding machine, charging pile, air compressor cooling Workshop & warehouse ventilation, smoke exhaust Oven, disinfection cabinet, dehumidifier, air cooler Energy storage cabinet, photovoltaic inverter, power battery heat dissipation Printer, injection molding machine, machine tool equipment cooling Communication base station, outdoor power cabinet dustproof & heat dissipation Ventilation, temperature and humidity control |
Louver Vent Cover ZL-801~ZL-806
ZL-801~ZL-806 plastic louver vent cover with integrated dust filter. Auto open-close shutters keep out dust & rain, ideal for
cabinet cooling fan ventilation and heat dissipation. Multiple sizes available.
cabinet cooling fan ventilation and heat dissipation. Multiple sizes available.
Custom Protective Cover
Custom metal wire fan safety grilles in full sizes 15mm-280mm, protective mesh compatible with all cooling fans.
sizes:15/17/18/20/25/30/35/36/38/40/45/50/52/60/70/80/92/120/125/127/136/140/150/160/172/200/220/280mm
sizes:15/17/18/20/25/30/35/36/38/40/45/50/52/60/70/80/92/120/125/127/136/140/150/160/172/200/220/280mm
Custom Dust Cover
Custom ABS fan filter guards with removable washable foam filters, complete size range from 15mm to 280mm, high dust capture
efficiency, simple to mount and clean.
efficiency, simple to mount and clean.
FAQs
Who We Are
Headquartered in Guangzhou, China, we have been exporting products since 2019. Our sales coverage breaks down as follows: North America (20.50%), South Asia (12.00%), Southeast Asia (11.00%), Eastern Middle East (9.00%), Western Europe (6.00%), Eastern Europe (4.00%) and South America (4.00%). Our team consists of around 12 to 16 staff members.
How We Ensure Quality
We conduct thorough item-by-item inspections before shipment to fully control finished product quality and prevent defective goods from being delivered.
What You Can Buy From Us
We offer industrial cooling fans from well-known brands, including ebmpapst, Delta, NMB, SUNON, ADDA, ZIEHL-ABEGG, ORIX, SANYO, Nidec, SUPERRED, Bi-Sonic, FULLTECH, OMRON, AVC and Mitsubishi
Why Choose Us
As an original manufacturer supporting in-depth customization, we boast sophisticated craftsmanship and professional technology. Our team delivers prompt responses to fully meet all your purchasing requirements.
Delivery Time
For in-stock products, we guarantee delivery within 3 to 7 working days. The lead time for customized items will be negotiated
separately. We will keep you updated with the exact delivery schedule once confirmed.
separately. We will keep you updated with the exact delivery schedule once confirmed.
Shipping Options
We arrange fast delivery via DHL, FedEx, UPS, TNT and EMS at competitive rates. You may also use your own courier account or
appoint your preferred freight forwarder for shipment.
appoint your preferred freight forwarder for shipment.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $7 / piece
- 50–199 piece: US $6.5 / piece
- 200–499 piece: US $6 / piece
- 500+ piece: US $5.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this mmf-12f24ds-cn1 axial fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the mmf-12f24ds-cn1 axial fan be supplied for my local voltage?
The standard configuration is 24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
