This mounted fresh air unit is published with the manufacturer’s full specification — airflow 20/40/50, material ABS Plastic. Made by Beijing Holtop Air Conditioning Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Mounted Fresh Air Unit
- Model Number: AV-TTW5-W
- Input Power: 6-7.8w
- Ambient Voltage: 220
- Airflow (L/M/H): 20/40/50
- Material: ABS Plastic
- Warranty: 1 Year
Technical Specifications
| Application | Villa, Hotel, Apartment, Bedroom |
|---|---|
| Ambient Voltage | 220 |
| Material | ABS Plastic |
| Installation | Wall-mounted |
| Feature | Energy Saving, Easy Install, Anti-Corrosion |
| Design Style | European, Modern, Contemporary |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Free Spare Parts |
| Project Solution Capability | total solution for projects |
| Model Number | AV-TTW5-W |
| Place Of Origin | Beijing, China |
| Brand Name | ODM |
| Name | Single Rooms Heat Recovery Ventilators |
| Input Power | 6-7.8w |
| Control | Remote/WiFi control |
| Sensor | CO2/Humidity control |
| Airflow (L/M/H) | 20/40/50 |
| Regeneration Efficiency | ≤ 92 % |
| Ingress Protection Rating | IP22 |
| Certification | CE/CB/UKCA/RoSH |
| Noise | 32dB(A) |
| Waterproof | IPX4 |
| Selling Units | Single item |
| Single Package Size | 70X50X50 cm |
| Single Gross Weight | 10.000 kg |
Product Details

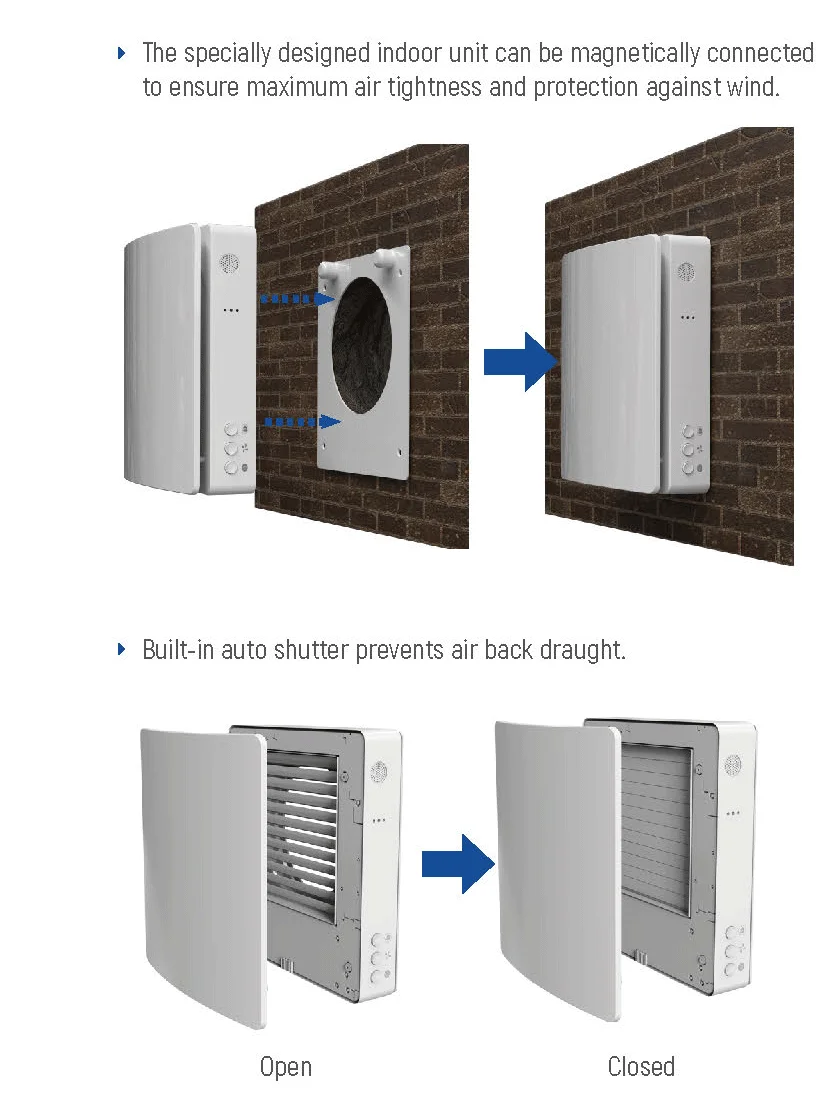

2.Automatic shutter to prevent back draught.
3.Frost and condensation free.
4.One-stop installation through the internal wall with a single hole.
5. High thermal efficiency. Built-in high-tech ceramic energy regenerator with maximum heat recovery efficiency of 97%.
6.Reversible 3 speed EC duct fan with low power consumption of 7.8W.
7.Free-cooling: when the unit detects that the utdoor temperature is within ±1°C of the set temperature, it automatically switches
to supply more fresh air.
8.Prefilter and F7 (MERV11) filter as standard to keep air clean.

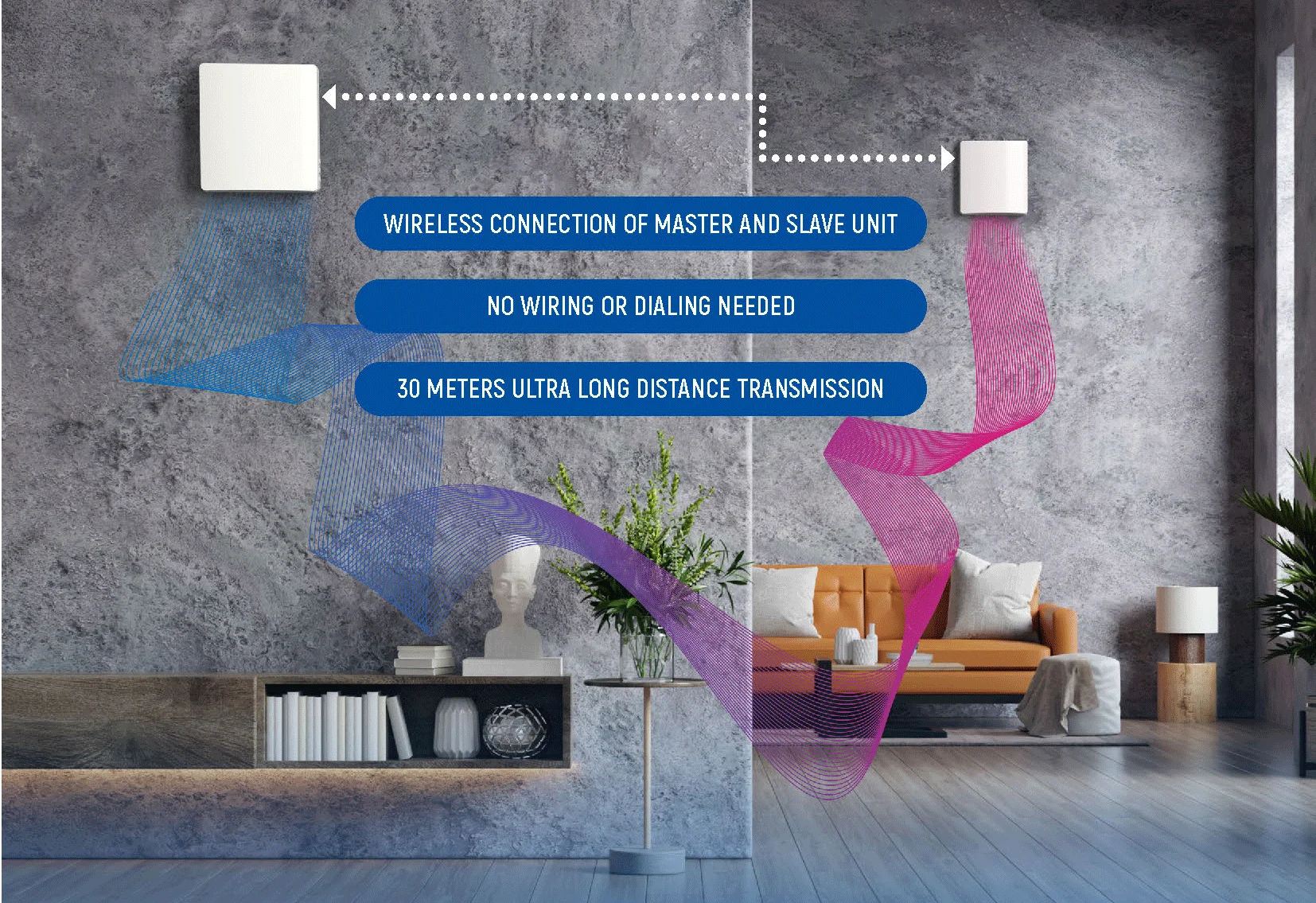

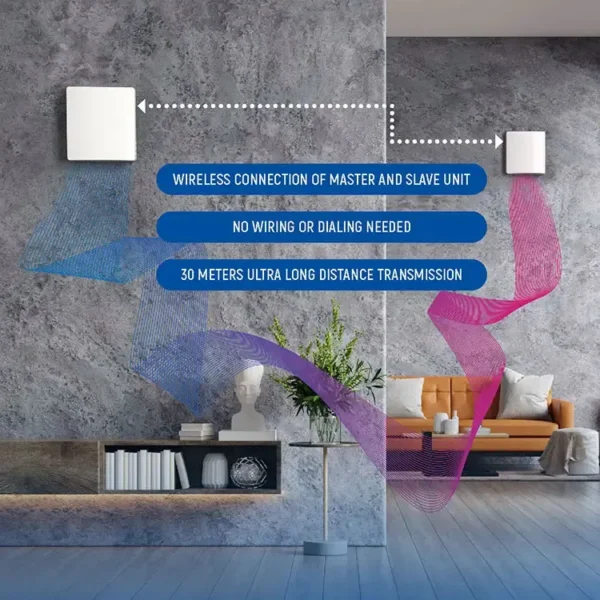

9.Flexible operation, working individually or in pairs.
10.High ingress protection with IPX4.
11.Quiet operation of less than 32.7dB(A).
12.Easy control. Unit can be controlled via button, remote controller and WIFI (Smart APP). With APP, user also can create scene
control and group control.
13.Controlled by Android or iOS smartphone via the cloud server from anywhere in the world.
14.Smarter IAQ control. Standard CO2 sensor to display real-time concentration and controls the unit to supply more fresh air to dilute the CO2 concentration, and optional humidity sensor and IAQ detector.

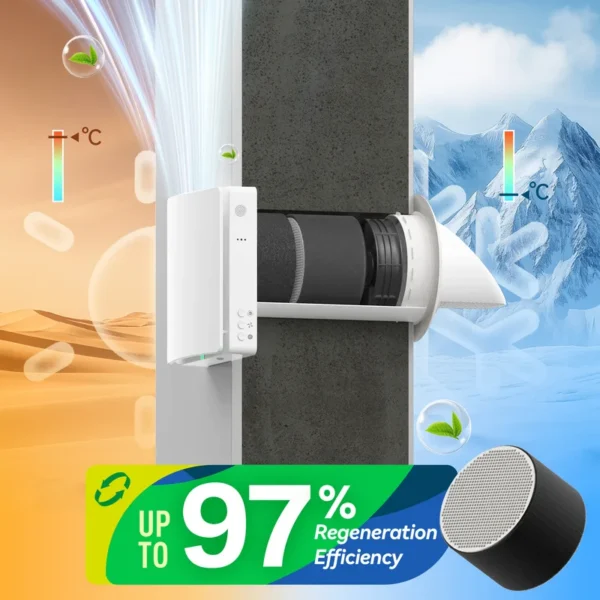

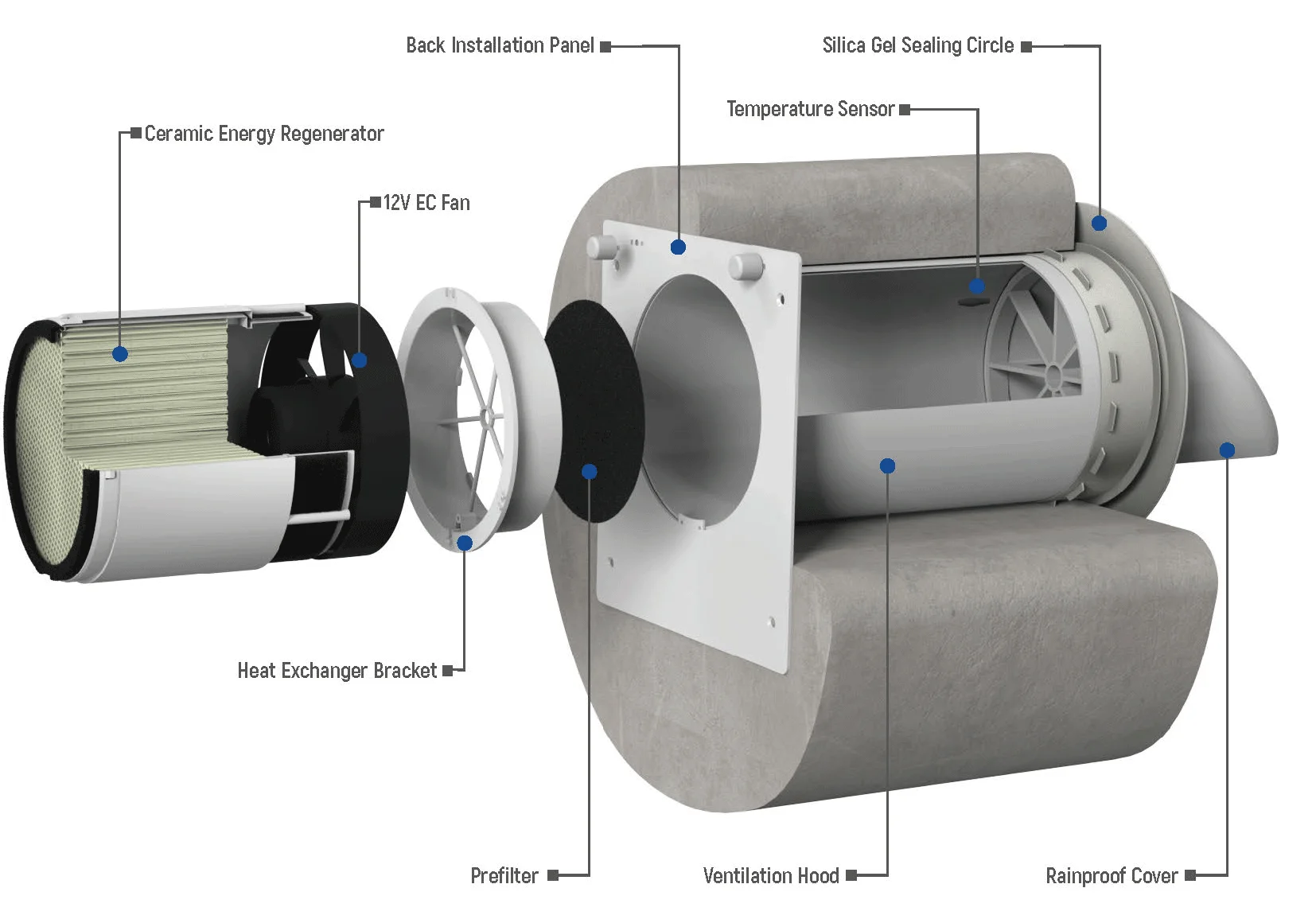

Ceramic Energy Regenerator
The high-tech ceramic energy accumulator with a regeneration efficiency of up to 97% ensures heat recovery from the exhaust air to heat or cool the supply air flow. Due to its cellular structure, the unique regenerator has a large air contact surface and high heat conducting and accumulating properties.
The ceramic regenerator is treated with an antibacterial composition to prevent bacterial growth inside.

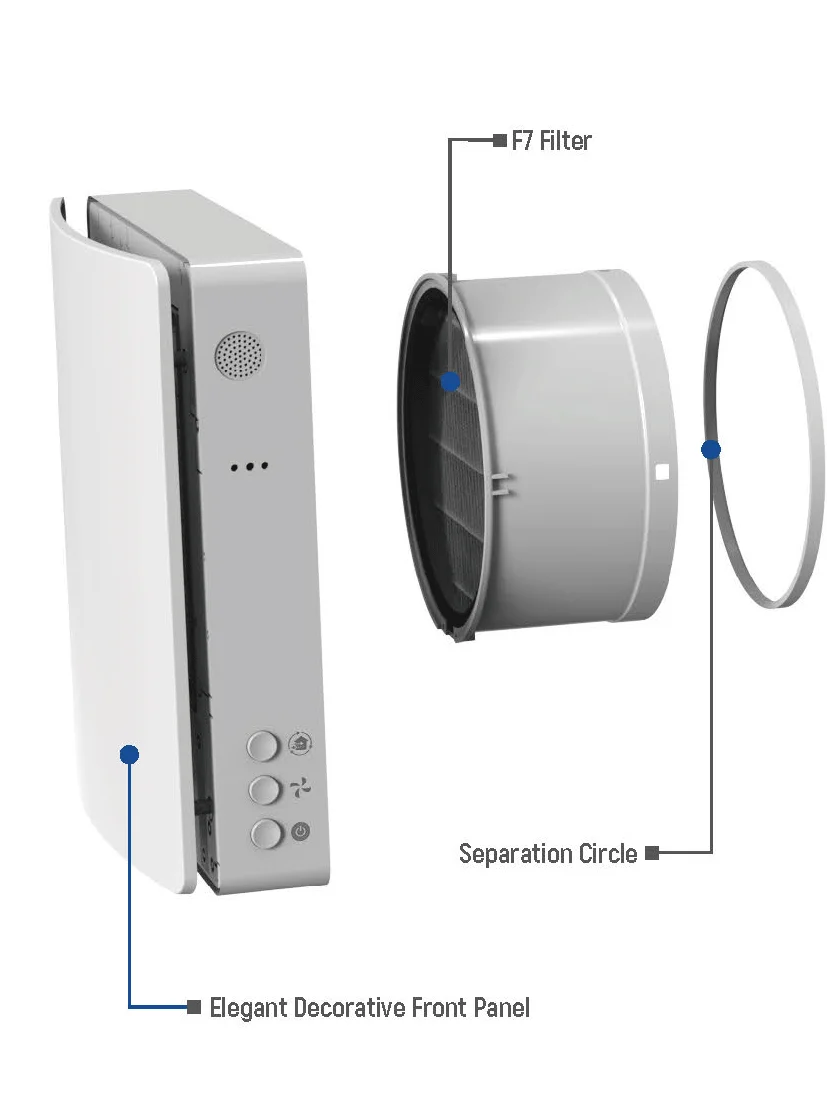

Air Filters
Two integrated air pre-filters and a F7 air filter are fitted as standard to provide supply and extract air filtration.
The filters are also antibacterially treated.
The filters are cleaned with a vacuum cleaner or by flushing with water.
The antibacterial solution will not be removed.

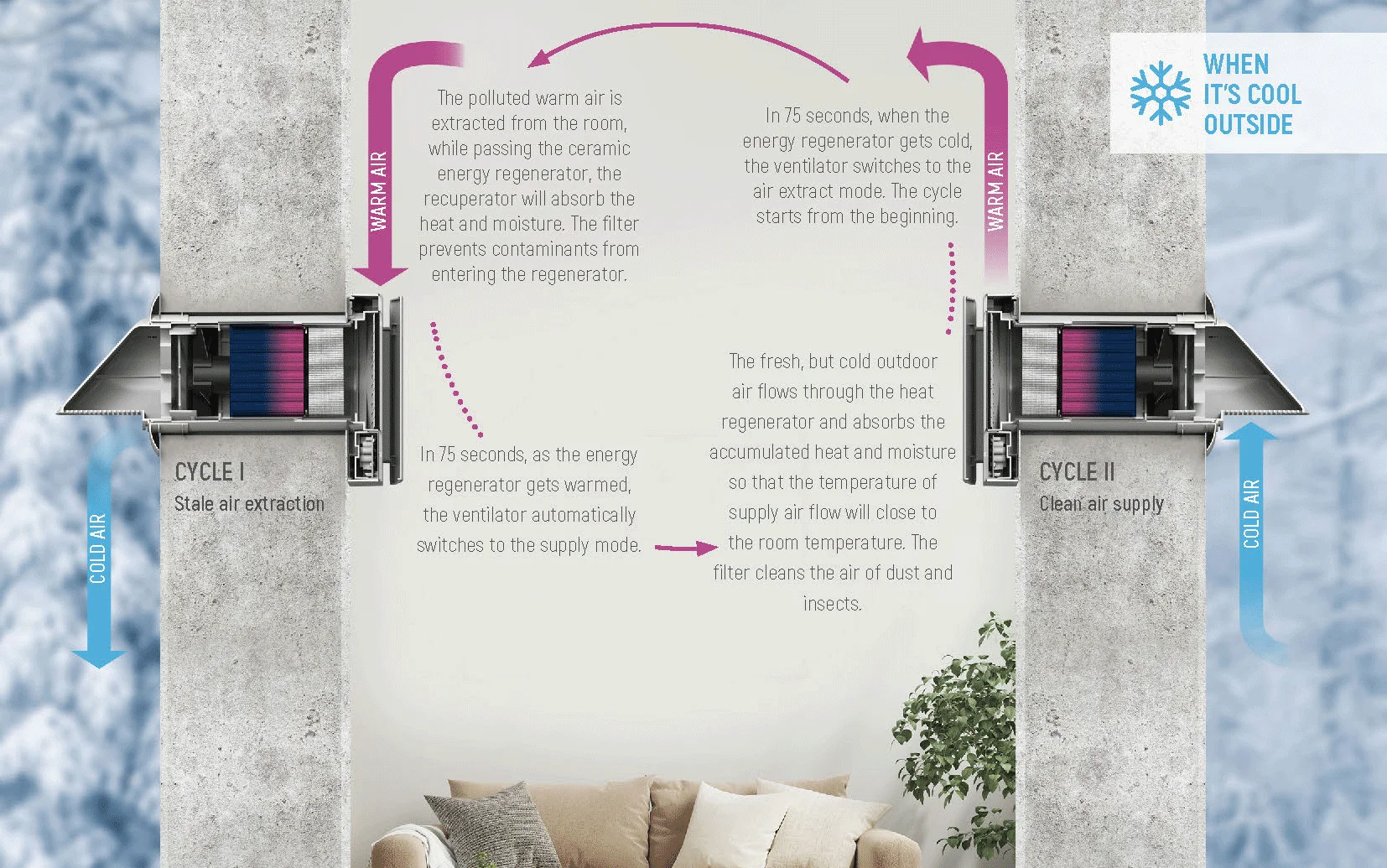

The ventilator operates in the heat recovery mode with two cycles can save energy by over 30% compared with the normal exhaust fan. The heat recovery efficiency is up to 97% when the air first entering the heat regenerator. It can recover the energy in the room and reduce the load on the heating system in winter.
Model No. | AV-TTW5-W | ||||
Voltage | 100V~240V AC /50-60Hz | ||||
Power [W] | 6 | 7 | 7.8 | ||
Current [A] | 0.04 | 0.05 | 0.06 | ||
Air flow in regeneration mode [m3/h] | 20 | 40 | 50 | ||
Sound pressure level [dBA] 32.7 | 32.7 | ||||
SEC | Class A | ||||
Transported air temperature [°C] | -20~50 | ||||
Ingress Protection Rating | IP22 | ||||
RPM | 2000 (max) | ||||

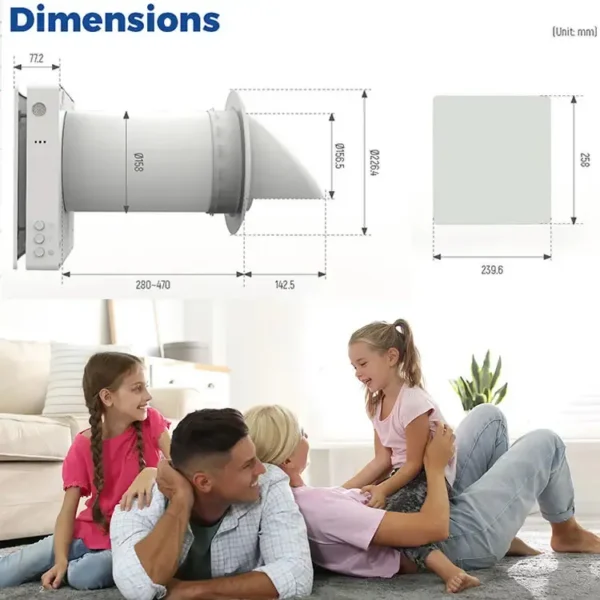

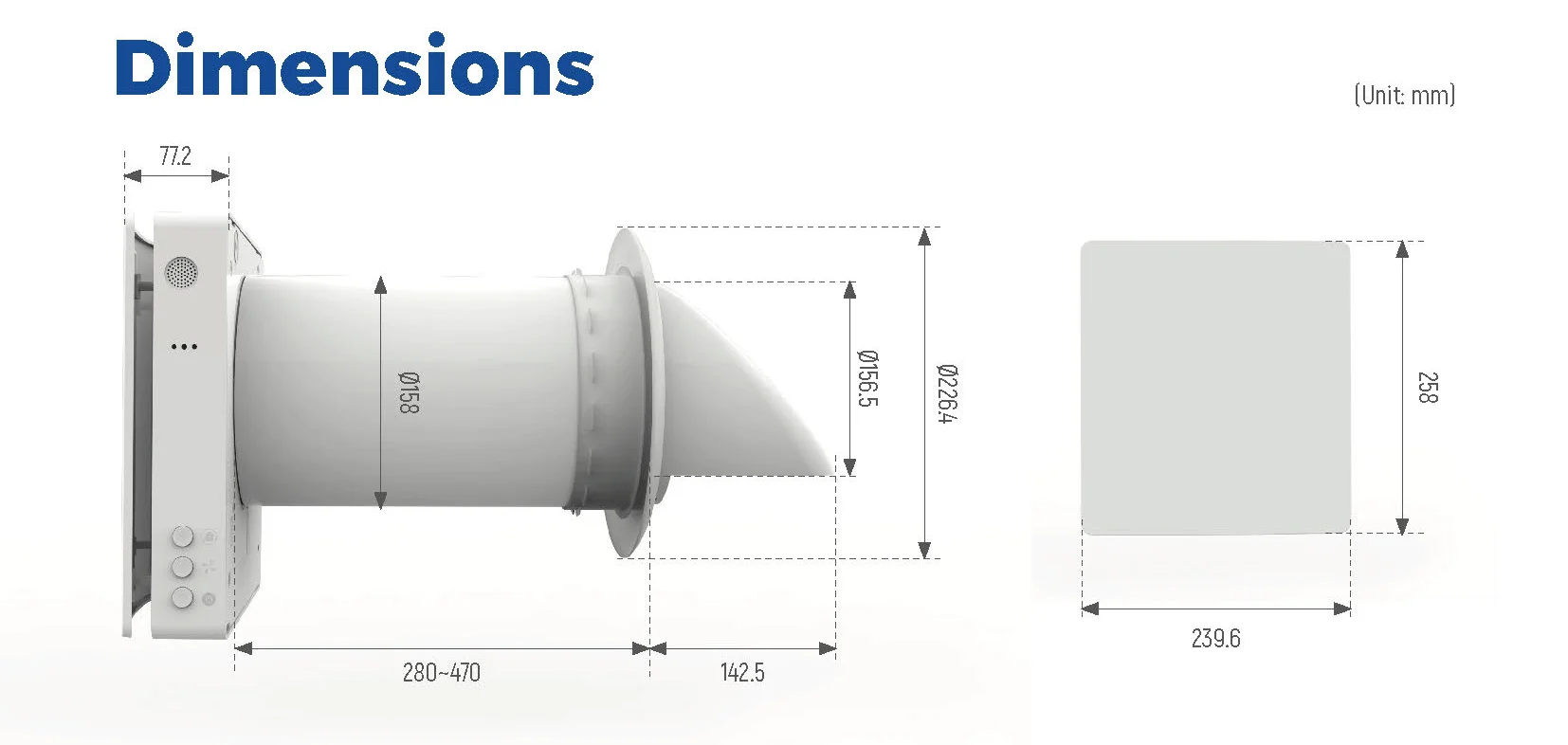

Diameter of duct [mm| | 158mm | ||||
Type of installation | Wall mounting | ||||
Net Weight | 4.2kg | ||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–499 set: US $165 / set
- 500+ set: US $125 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this mounted fresh air unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this mounted fresh air unit carry?
It is supplied with CE/CB/UKCA/RoSH documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the mounted fresh air unit be supplied for my local voltage?
The standard configuration is 220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Beijing Holtop Air Conditioning Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Beijing Holtop Air Conditioning Co., Ltd. range on HVACR Nexus.
