Radial Fan, Cast, 380V, 315-1250mm, Duct Fan, Cast Iron

The radial fan listed here carries 380 V, air flow 3000-90000m³/h, documented exactly as the manufacturer publishes it. Made by Hebei Taizhe Machinery Equipment Co., Ltd. (10 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Radial Fan

• Voltage: 380 V
• Air Flow: 3000-90000m³/h
• Blade Material: Cast Iron
• Speed: 651rpm
• Warranty: 1 Year
• Place Of Origin: Hebei

Technical Specifications

Product Details

Product Description

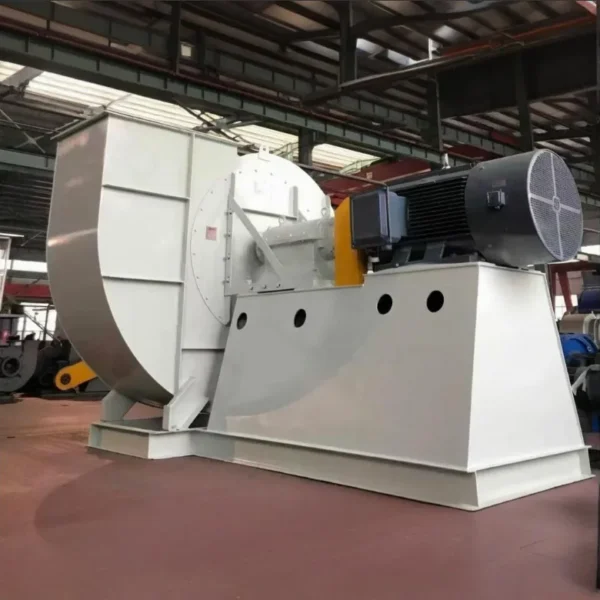

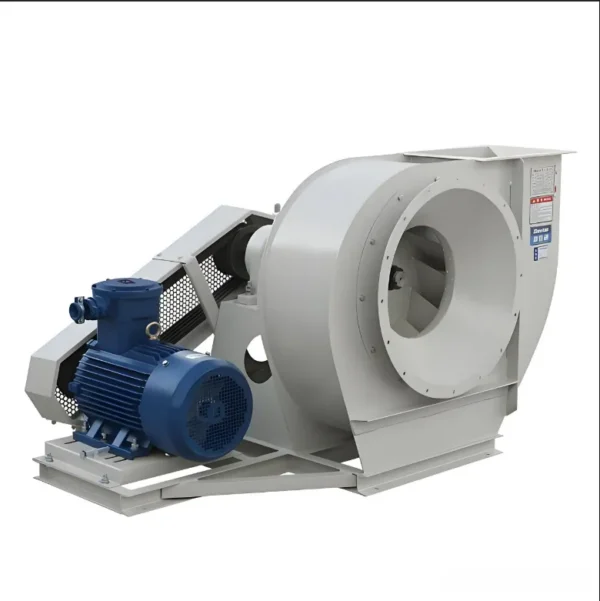

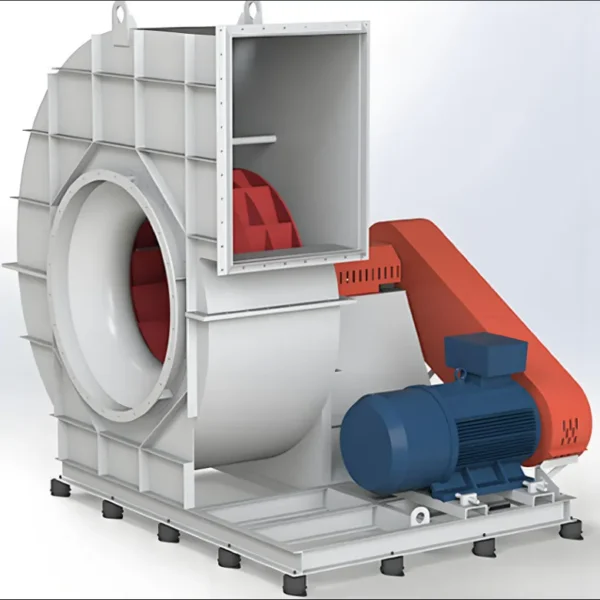

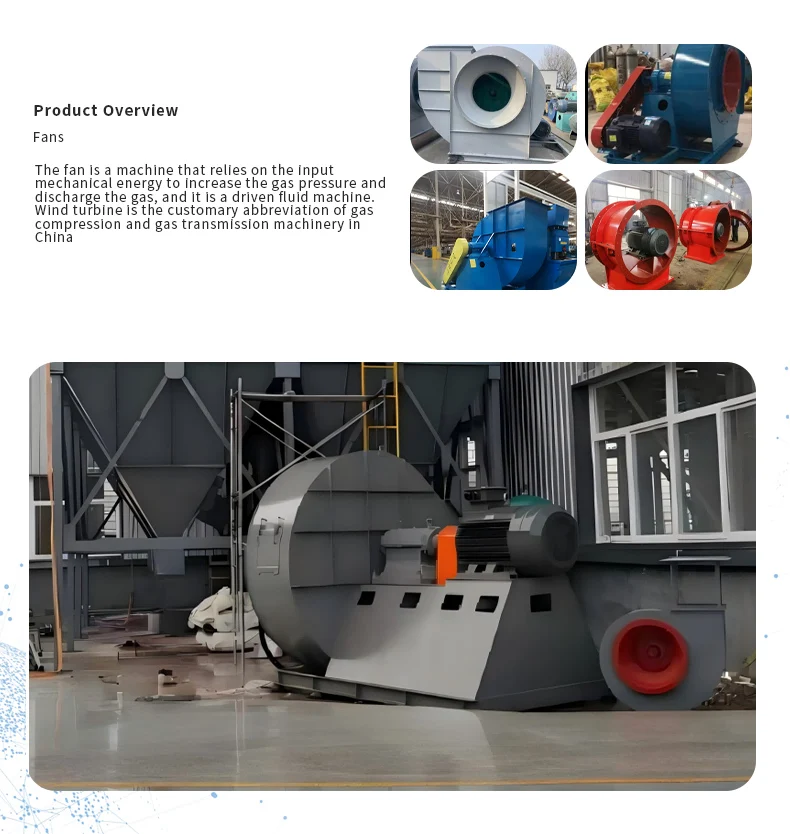

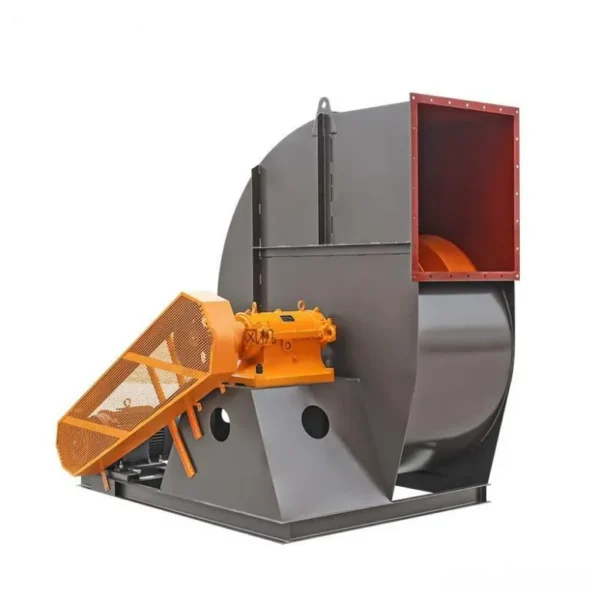

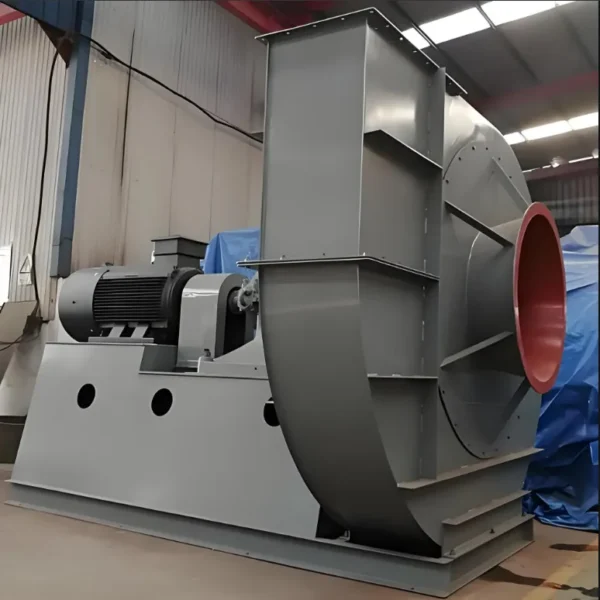

High pressure dust removal Centrifugal fan

The product has the advantages of high-pressure characteristics, large air volume and superior performance. It is designed as a forward inclined and straight airfoil on the wind blade. This fan has 16 kinds of fan outlet direction, optional accessories are: silencer, spring shock absorber, flange. Color，motor, belt, wind wheel, fan outlet direction are made according to customer requirements.Widely used in chemical,polishing industries, dust collection, industrial furnaces and other industries

Specification

type	rotate speed(r/min)	Air volume(m3/h)	Air pressure(pa)	power(kw)	noise(db)
5C	1450	9000-10320	1568-1666	2.2	83
		1595	10500-11820	1568-2166	3.7	86
		1670	11940-13320	2156-2293	5.5	86
6C	1450	13260-14580	1980-2087	3.7	86
		1571	14580-16140	1568-2303	5.5	88
		1690	15780-17340	2303-2528	7.5	88
7C	1450	16920-17700	2166-2313	7.5	88
		1554	18060-19680	1568-2568	11	95
		1680	19260-20880	2519-2695	15	95
7.5C	1450	21180-23400	2234-2332	11	96
		1657	22080-24000	1568-2568	15	98
		1695	24480-26700	2548-2724	18.5	98
8.3C	1450	29400-27660	1568-2715	18.5	99
		1541	30960-33480	2636-2852	22	101
		1650	34560-36000	2979-3087	30	101
9C	1450	32580-34380	2920-3107	22	102
		1535	36060-37740	2920-3107	30	103
		1680	38520-40800	3077-3136	37	103
10C	1330	38520-40500	3577-3841	30	104
		1450	40740-42060	3784-3990	37	103
		1571	42600-43980	3944-4139	45	105
11C	1450	47700-49380	3990-4254	45	105
		1562	50580-52200	4231-4403	55	106
12C	1353	52620-54300	4208-4575	55	106
		1450	55560-56580	4644-4862	75	107
13.5C	1450	58500-59580	5068-5435	90	116
14C	1450	60660-63180	5607-6020	110	118

Company Profile

Quality Guarantee

12months Quality warranty period (after put into operation formally).
Provide technical guide for fan/blower forever.
All the machines provided by our factory will be tested before ship.

Packing & Delivery

The fan/blower is packed in plywood or iron frame.

FAQ

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $500 / set
  • 10+ set: US $400 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this radial fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the radial fan be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Hebei Taizhe Machinery Equipment Co., Ltd., based in China. The company 10 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hebei Taizhe Machinery Equipment Co., Ltd. range on HVACR Nexus.
