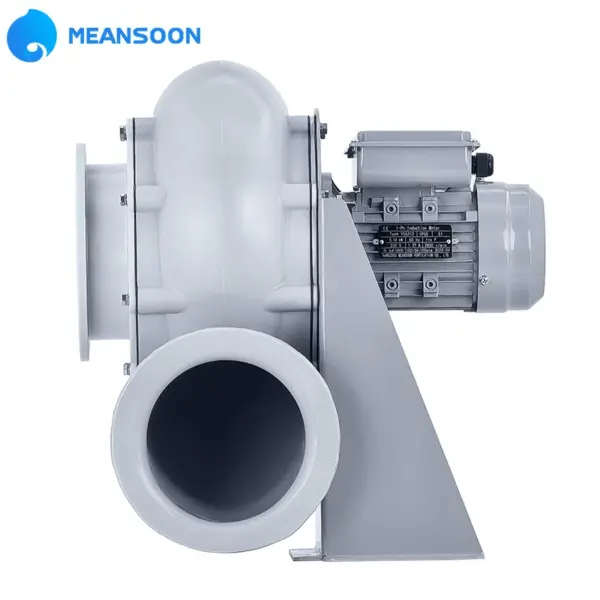

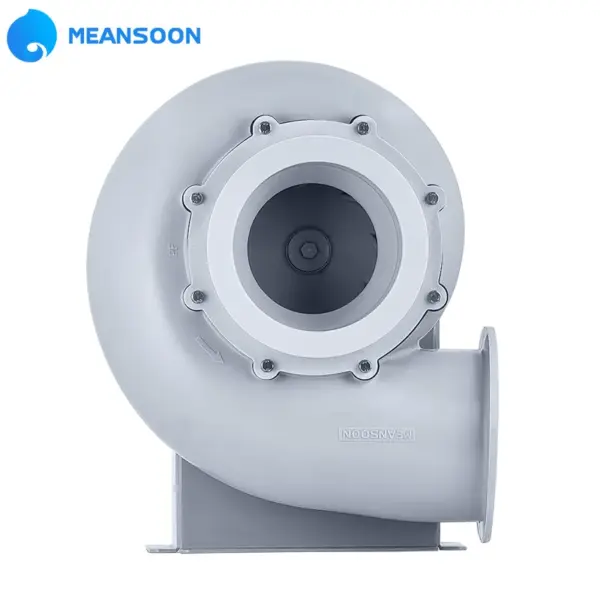

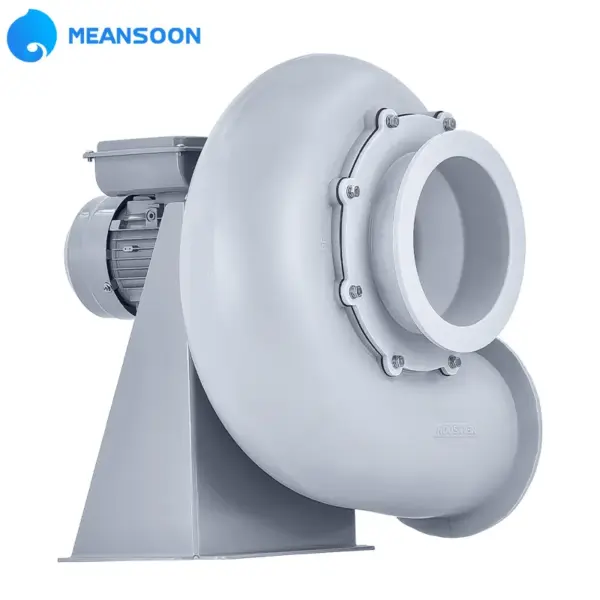

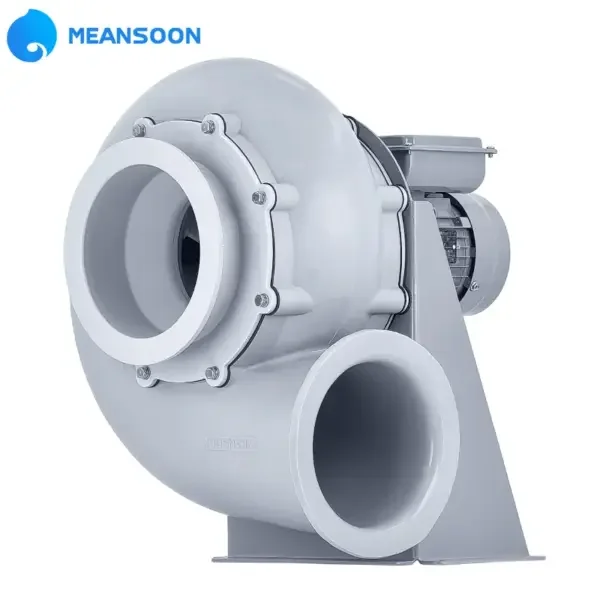

MPCF-160-B2S-FL Chemical Resistant Anti-corrosion Plastic PP Centrifugal Fans with Flange

MPCF-160-B2S-FL Chemical Resistant Anti-corrosion Plastic PP Centrifugal Fans with Flange

General Description

The MPCF Series (Flange Type) are developed by further    optimizing the aerodynamics of the impeller and volutes    based on the old MPCF and MACF series . Viton gaskets  was used to seal all the gaps to prevent acid and alkali leakage.

Suitable for applications where the extraction of corrosive fumes and gases:

Sulphuric acid , Sulphurous acid , Nitric acid , Nitrous acid ,   Hydrofluoric Acid , Boris Acid , Hydrocyanic Acid , Ammonia , Soda , Ethanol , Potassium hydroxide , Methanol , Propane ,  Formol , Benzene , Formaldehyde .

Application

The MPCF series (Flange Type) of Plastic Centrifugal Fan provides good characteristics of low noise and high

efficiency, which often are applied in laboratory, fume hood , fume cupboard , chemical storehouse , electroplating

factory, medicine factory, mold factory, Electronic workshop and metallurgy for exhaust ventilation .

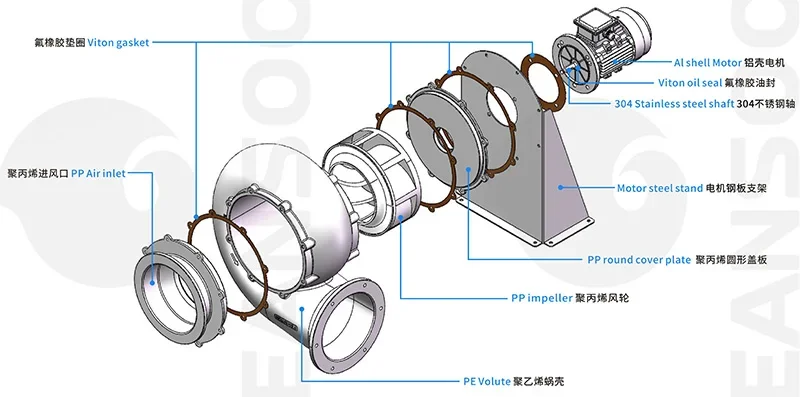

Volute

UV resistance level UV8 ,Flame retardant level HB, anti- static level 10-10.

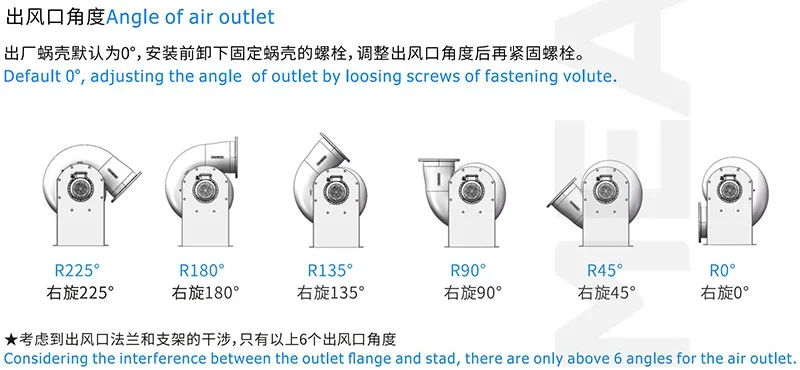

The volute is made of polyethylene (PE) ,   integrated molding , without welding points ; The default air outlet position  is 0°,  There are 8 angle positions , one every 45 degrees . All fan is with mounting bolts and nuts in 304 stainless steel.

Inlet/outlet are round with standard size: 160 , 200 , 250 , which are good for plastic duct connection .

Impeller

The forward/backward curved impeller is efficiently made of

fibreglass  reinforced polypropylene plastic  are dynamically  balanced.

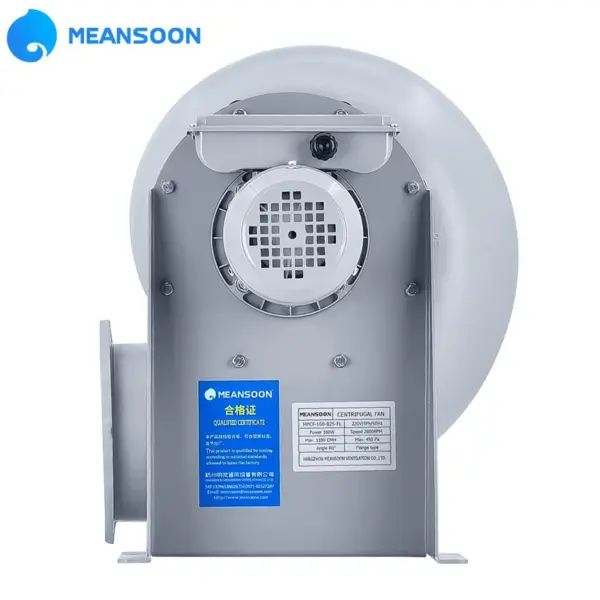

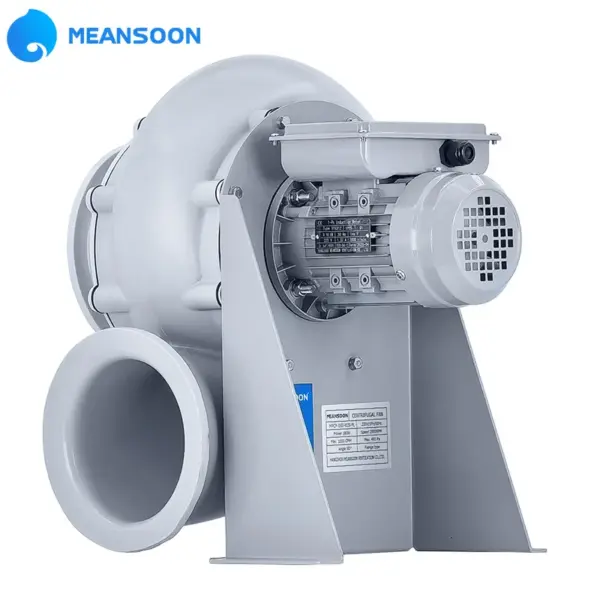

Motor

The Al shell motor is equipped with viton oil seal for better corrosion resistance .

For better motor lifespan , we choose NSK bearings . And

the motors are all equipped with copper wire windings , with   a protection level of IP55 , insulation Class F, and B5 Flange .

Explosion proof versions in accordance with CNEX

Directive for three-phase models is available. Motor is

outside the airstream. we can provide  Variable-frequency motors , driving by VDF.

Motor stand

Motor stand is made of Q234 steel in 3mm thickness , powder coated in gray by epoxy.
