This nitrogen tunnel freezer is published with the manufacturer’s full specification — voltage 380, cooling capacity 800-1500. Made by Guangzhou Speed Refrigeration Equipment Co., Ltd. (7 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Nitrogen Tunnel Freezer
- Power(W): 12000
- Voltage: 380
- Cooling Capacity: 800-1500
- Converyor Material: Stainless Steel SUS304
- Body Material: Stainless Steel SUS304
- Warranty: 1 Year
Technical Specifications
| Type | Tunnel Freezer |
|---|---|
| Voltage | 380 |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump |
| Key Selling Points | Maintain original texture and flavor of food |
| Power(W) | 12000 |
| Place Of Origin | Guangdong, China |
| Cooling Capacity | 800-1500 |
| Brand Name | SPEEDCRYO |
| Dimension(L*W*H) | 11*1.5 |
| Product Name | Tunnel Liquid Nitrogen Freezer |
| Freezer Type | Liquid Nitrogen Evaporation Freezer |
| Application | Food Quick Frozen Machine |
| Working Temperature | 0 to -196 Degrees |
| Temperature Control | 0 to -196 Stepless Control |
| Converyor Dimensions | 9 x 1.3 (M) |
| Converyor Material | Stainless Steel SUS304 |
| Insulation Layer | 150 (MM) Thickness |
| Body Material | Stainless Steel SUS304 |
| Freezing Time | 5-120 Mins Continually Adjustable |
| Packaging Details | Seaworthy packaging for the container |
| Port Of Dispatch | Nansha Port |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10 pieces per Month |
Product Details

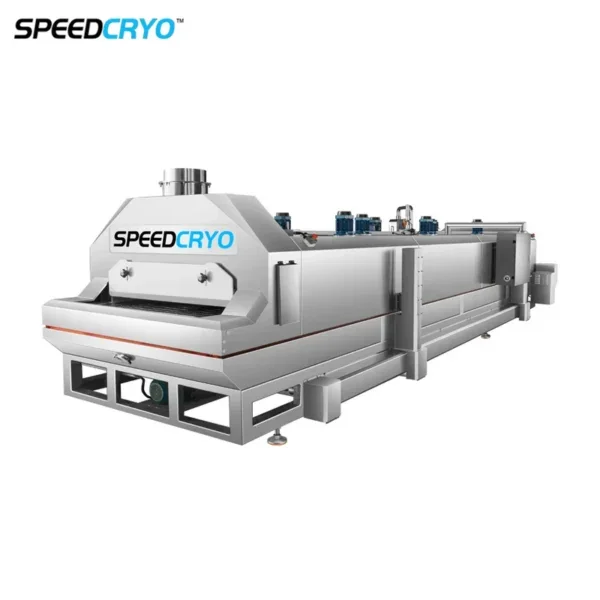

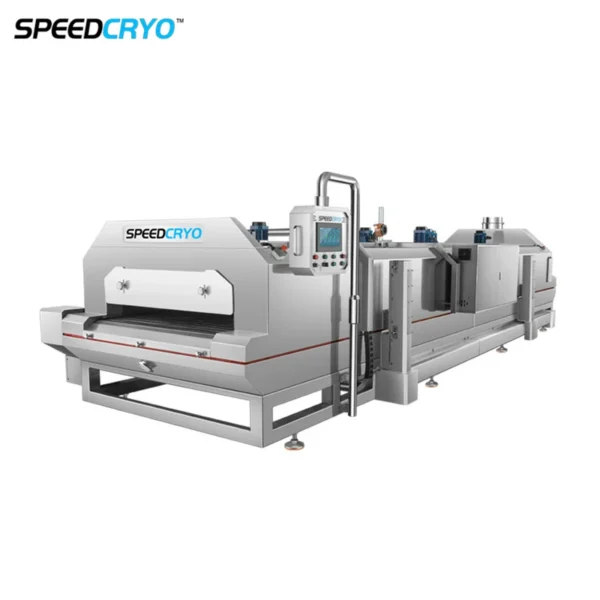

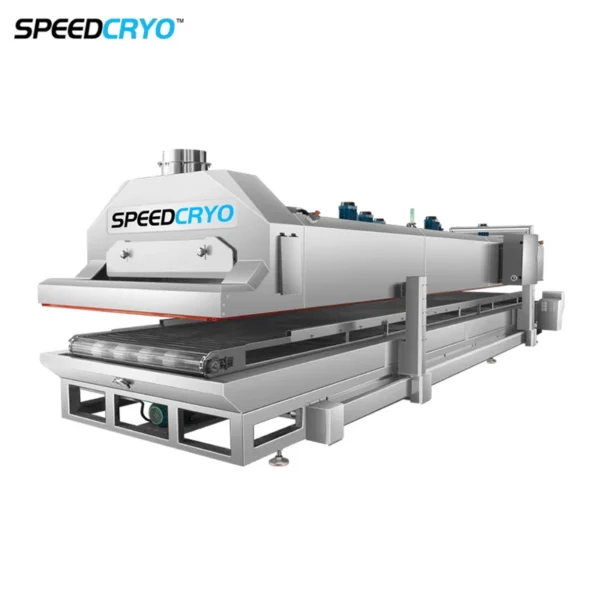

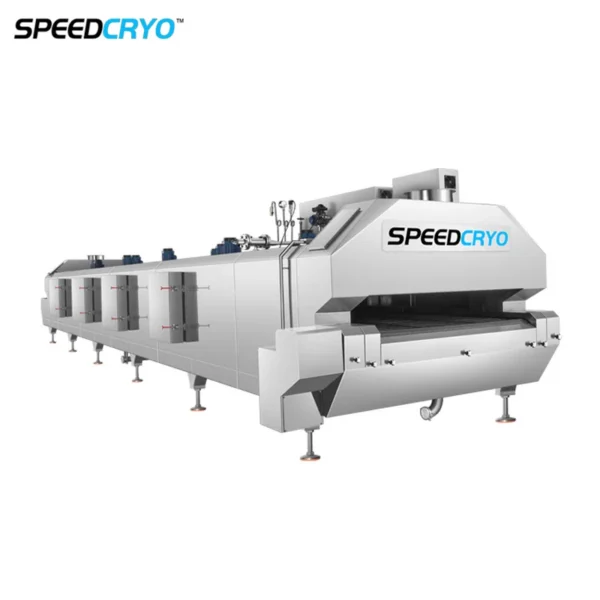

Nitrogen Tunnel Freezer IQF Small Production Machine, Small Cryogenic Freezer
Production Overview
Model NO. | JSSD-1115 |
Overall Dimension(m) | 11.06*2.5*1.8 |
Working Temperature | 0℃ ~ -196℃ |
Freezing Time (mins) | 5 ~ 120 Mins |
Power | 380V 50HZ 12KW |
Capacity | According to the type of food |
TIPS | Tunnel freezer can be customized according to customer's request. Contact us for more information. |
Benefits & Applications
What is Liquid Nitrogen Freezer?
– A kind of blast or shock freezers that uses liquid nitrogen (a colorless,odorless,non-toxic,non-flammable,non-corrosive inert gas,after gasification,the temperature can reach -196℃ quickly) as the cryogen to freeze large quantities of goods.Why use a liquid nitrogen freezer?
– Since the liquid nitrogen can quickly reach extremely low temperature,it can help the products reach a frozen state in a matter of minutes to crystallize the cellular structure perfectly. I t could greatly help to improcve the quality of frozen food,preserve the appearance,tast and nutrition of food in the best condition.The oxidation -resistant shelf life of the food that is quick-frozen with liquid nitrogen is more than three times that of the conveying refirgeration equipment,and the food that is quick-frozen with liquid nitrogen is easier to obtain QS certification.
80% Durian suppliers of Southeast Asia using our liquid nitrogen freezers!
The frozen durians can be stored at -18℃ encironment for at least 6 months without loss on flavor to achieve the purpose of
exporting to all over the world.
exporting to all over the world.
Kindly reminder:
Please click in Chat Now or Send Inquiry if you have any question.
CONTACT SUPPLIER
Recommended Products
Single Door Liquid Nitrogen Cryogenic Cabinet Freezer
Two Doors Liquid Nitrogen Cryogenic Cabinet Freezer
Four Doors Liquid Nitrogen Cryogenic Cabinet Freezer
Factory Overview
History & Milestones
>> 28 Years Experience
Guangzhou Speed Refrigeration Equipment Co.,Ltd was founded in 1993.
>> CE & ISO9001 Certification
All our equipment have passed CE and ISO9001 certification.
>> 67+ Patents
We have more than 67 patents.
>> Service
Years of export experience, 24 hours quick after-sales response.
>> CE & ISO9001 Certification
All our equipment have passed CE and ISO9001 certification.
>> 67+ Patents
We have more than 67 patents.
>> Service
Years of export experience, 24 hours quick after-sales response.
As a company own intensive Cold chain equipment technical and solutions, we provide varies ascendant Cold Chain equipment technics and solutions. Besides Liquid Nitrogen Cabinet Freezer and Tunnel Freezer,our company continuously put effort in building better Cold Chain layouts.In the near future, our company will launch more excellent Cold Chain relative products, and provide one-stop cold chain services for our customers.
* Providing the best quality,improving the stability and durability of the equipment,and increasing the customer's experience;
* Providing professional and feature-complete after-sales service, using a variety of service forms to quickly solve problems.
* Providing the best quality,improving the stability and durability of the equipment,and increasing the customer's experience;
* Providing professional and feature-complete after-sales service, using a variety of service forms to quickly solve problems.
Certification & Patents
Guangzhou Speed Refrigeration Equipment Co.,Ltd has gained certificates including National High-Tech Enterprise, the Top 10 Brand In China's Refrigeration Industry, China's Independent Innovation Brand,etc. Also, we have gained the certificate from both
ISO9001 Internation Organization for Standardization and CE Marking, with 67+ Cold Chain technology patents especially for
PRE-COOLING & ENERGY-SAVING SYSTEM.
ISO9001 Internation Organization for Standardization and CE Marking, with 67+ Cold Chain technology patents especially for
PRE-COOLING & ENERGY-SAVING SYSTEM.
Packing & Shipment
Users Reviews
FAQ
Q1:What is your warranty policy?
A1: One year warranty, life-time maintenance.Components and parts are provided for free within warranty date for replacement.
Q2: How to replace the components and parts?
A2: Videos, documents and remote video are available that teach clients how to replace.
Q3: Do you have training services that teach us how to manipulate the equipment?
A3: Yes, we can teach by videos, or clients can come to our factory to learn.Q4:Is it danger to manipulate liquid nitrogen freezers?
A4: Nitrogen is toxic-free, poisionless and harmless to human, but workers must wear antifreezing suit.
Q5: How much liquid nitrogen will be consumed for freezing foods?
A5: Generally 1:1, that is 1 ton nitrogen for 1 ton foodThe comsumption rate is 1:1 to 1:1.5, actual consumption depends on specific kind of food.
Q6: What is the power consumption?
A6: Small size of liquid nitrogen freezer: 1KWH per 3 to 4 hours;Large size of liquid nitrogen freezer: 1kWH per hour.
A1: One year warranty, life-time maintenance.Components and parts are provided for free within warranty date for replacement.
Q2: How to replace the components and parts?
A2: Videos, documents and remote video are available that teach clients how to replace.
Q3: Do you have training services that teach us how to manipulate the equipment?
A3: Yes, we can teach by videos, or clients can come to our factory to learn.Q4:Is it danger to manipulate liquid nitrogen freezers?
A4: Nitrogen is toxic-free, poisionless and harmless to human, but workers must wear antifreezing suit.
Q5: How much liquid nitrogen will be consumed for freezing foods?
A5: Generally 1:1, that is 1 ton nitrogen for 1 ton foodThe comsumption rate is 1:1 to 1:1.5, actual consumption depends on specific kind of food.
Q6: What is the power consumption?
A6: Small size of liquid nitrogen freezer: 1KWH per 3 to 4 hours;Large size of liquid nitrogen freezer: 1kWH per hour.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1+ unit: US $63500 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this nitrogen tunnel freezer?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the nitrogen tunnel freezer be supplied for my local voltage?
The standard configuration is 380. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
