Key specification for this oil pump: power source Electric, material Cast Steel, SS304. Everything below is reproduced from the factory data sheet. Made by Zhejiang Yonjou Technology Co., Ltd. (20 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Oil Pump
- Model Number: LQRY
- Power Source: Electric
- Horsepower: 1-265 hp
- Power: Electric
- Material: Cast Steel, SS304

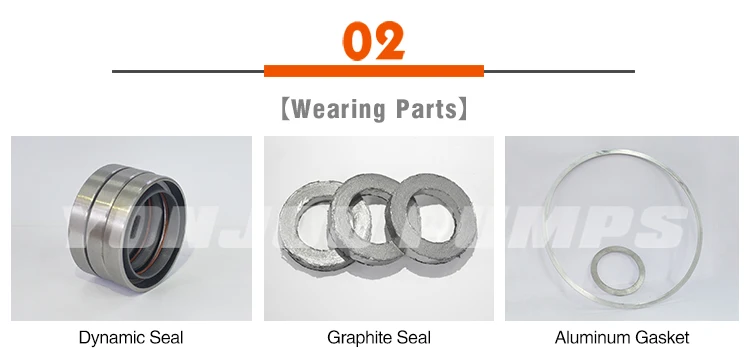

- Warranty: 1 year except wearing parts
Technical Specifications
| Application | District Energy |
|---|---|
| Structure | Single-stage Pump |
| Power Source | Electric |
| Outlet Size | 20-250 mm |
| Warranty | 1 year except wearing parts |
| Customized Support | OEM, ODM |
| Horsepower | 1-265 hp |
| Pressure | High pressure |
| Model Number | LQRY |
| Place Of Origin | Zhejiang, China |
| Brand Name | YONJOU |
| Power | Electric |
| Material | Cast Steel, SS304 |
| Max Temperature | 370 Degree |
| Cooling | Non- Water -Cooled, Air-cooling |
| Package | International Standard Plywood Case |
| Payment | By Sea, By Air, By Express, By Truck, By Train |
| Usage | Hot Oil, Cooking Oil, Circulation Oil |
| Selling Units | Single item |
| Single Package Size | 40X30X25 cm |
| Single Gross Weight | 45.000 kg |
Product Details

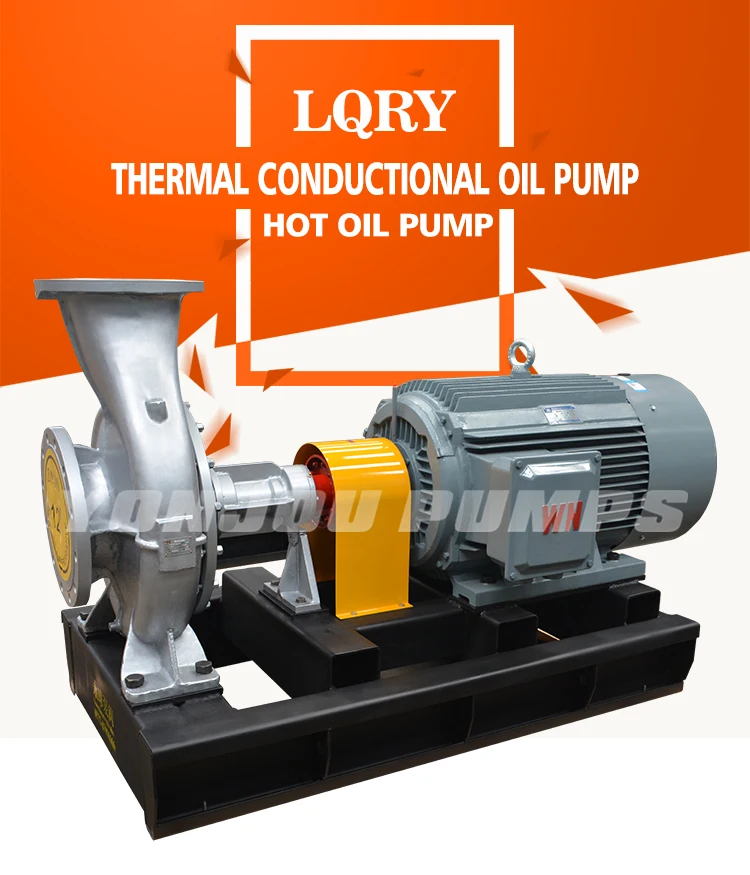

YONJOU LQRY Horizontal High Temperature Vegetable Crude Transfer Circulation Centrifugal Hot Oil Pump Thermal Oil Pump
Summary:
1.YONJOU LQRY Series 370 degree hot oil transfer pump is suitable for heat-conduction oil, or other hot oils with temperature ≤370°C
2. It has a reasonable structure, advanced technology, high efficiency, long-term stable operation without leakage in the hot state. Used to transport not containing solid particles of corrosion high temperature liquid with system of directly wind cooling.
3. It's widely used in petroleum oil, chemical industry, rubber, leather, food industry, grease, boilers, construction, road maintenance, pharmaceutical, plastics, rubber, synthetic fiber textile, printing and dyeing and other industrial fields.
Product details:
| Centrifugal Pump | |
| Material: | Cast Steel, SS304 |
| Max. Temperature: | 370°C(698°F) |
| Diameter Size: | 20~150 mm |
| Flow Range: | 4.5~400 m3/h (other request can be customized) |
| Head Range: | 15~85 m (other request can be customized) |
| Usage: | Hot Oil, Cooling Oil, Circulation Oil |
| Drive: | Electric Motor, Diesel Engine |
| Liquid with Solid: | No |
Performance Data:
| Model | Capacity | Head | Speed | Shaft Power | Motor Power |
| m3/h | m | r/min | kW | kW | |
| 26-20-100 | 4.5 | 15 | 2825 | 0.45 | 0.75 |
| 50-32-150 | 8 | 22 | 2900 | 1 | 1.5 |
| 50-32-160 | 10 | 25 | 2900 | 1.5 | 2.2 |
| 65-40-160 | 12.5 | 25 | 2900 | 2.5 | 3 |
| 50-50-170 | 12.5 | 32 | 2900 | 3.2 | 4 |
| 65-50-180 | 32 | 32 | 2900 | 4.5 | 5.5 |
| 65-50-170 | 40 | 25 | 2900 | 4.5 | 5.5 |
| 80-50-180 | 40 | 40 | 2900 | 6.7 | 7.5 |
| 80-50-170 | 60 | 20 | 2900 | 6.7 | 7.5 |
| 100-65-190 | 60 | 38 | 2930 | 9.2 | 11 |
| 100-65-200 | 80 | 40 | 2930 | 12.5 | 15 |
| 100-65-220 | 58 | 50 | 2930 | 12.5 | 15 |
| 100-65-230 | 100 | 55 | 2940 | 19.5 | 22 |
| 125-100-190 | 155 | 30 | 2940 | 20 | 22 |
| 100-65-240 | 100 | 70 | 2950 | 25.5 | 30 |
| 100-65-257 | 100 | 80 | 2950 | 32.5 | 37 |
| 125-100-220 | 160 | 45 | 2950 | 25.5 | 37 |
| 125-80-250 | 150 | 60 | 2970 | 35.5 | 45 |
| 125-100-257 | 200 | 60 | 2970 | 42.8 | 55 |
| 125-100-260 | 260 | 70 | 2970 | 64.3 | 75 |
Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump et

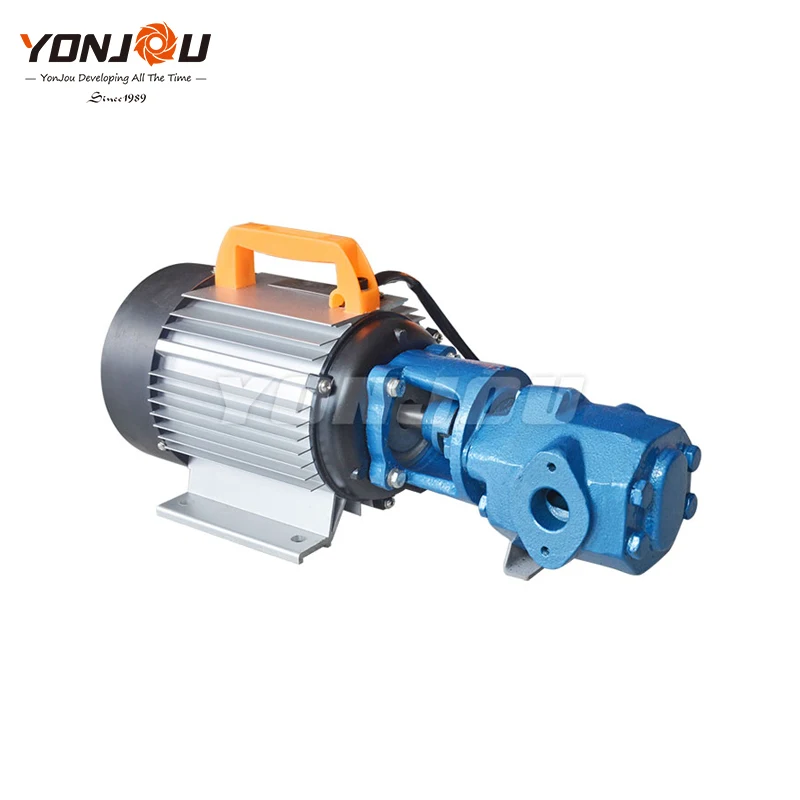

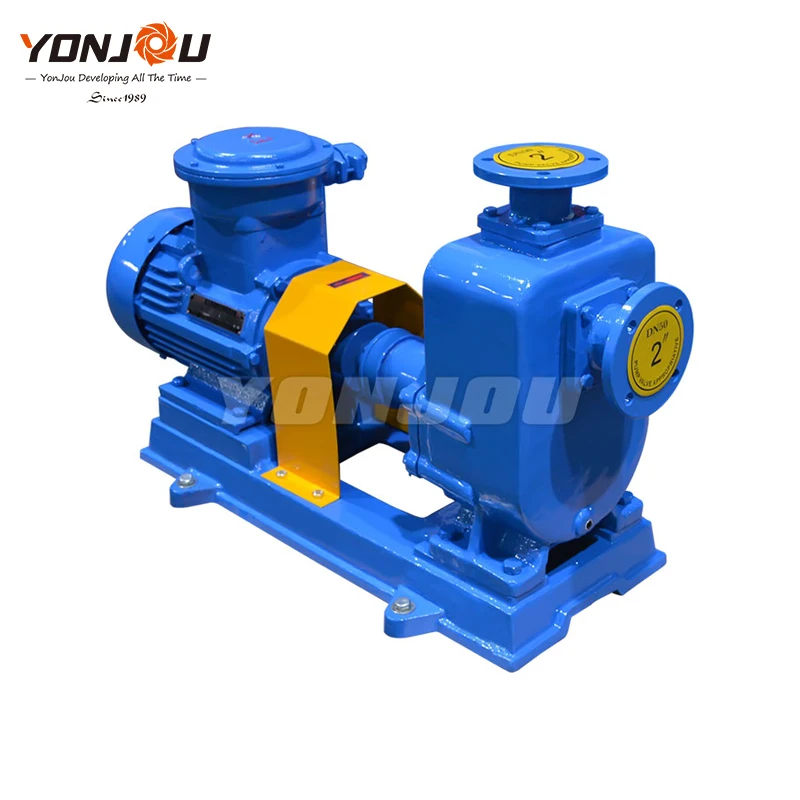

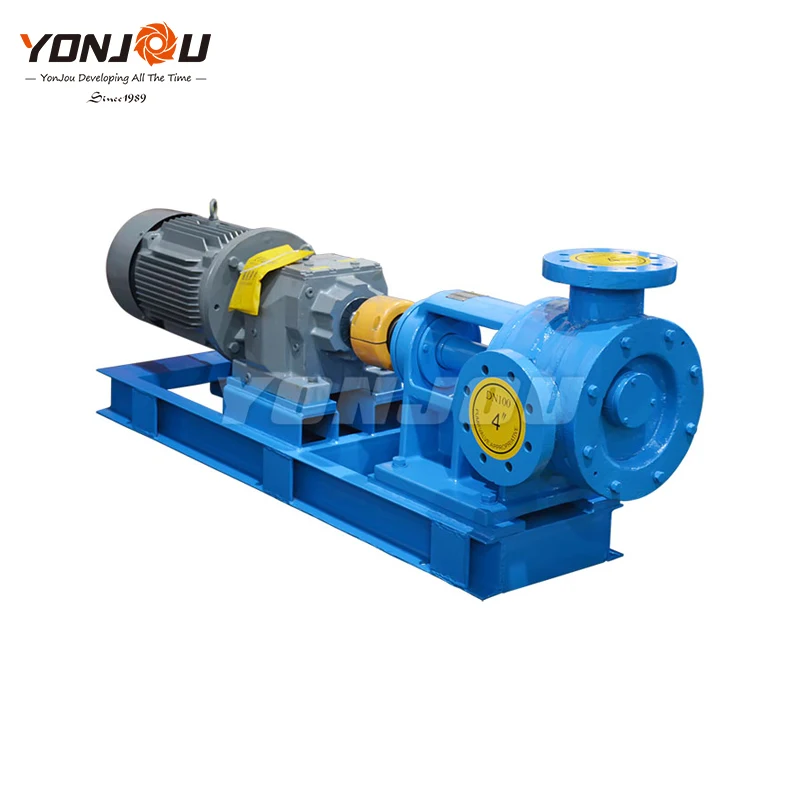

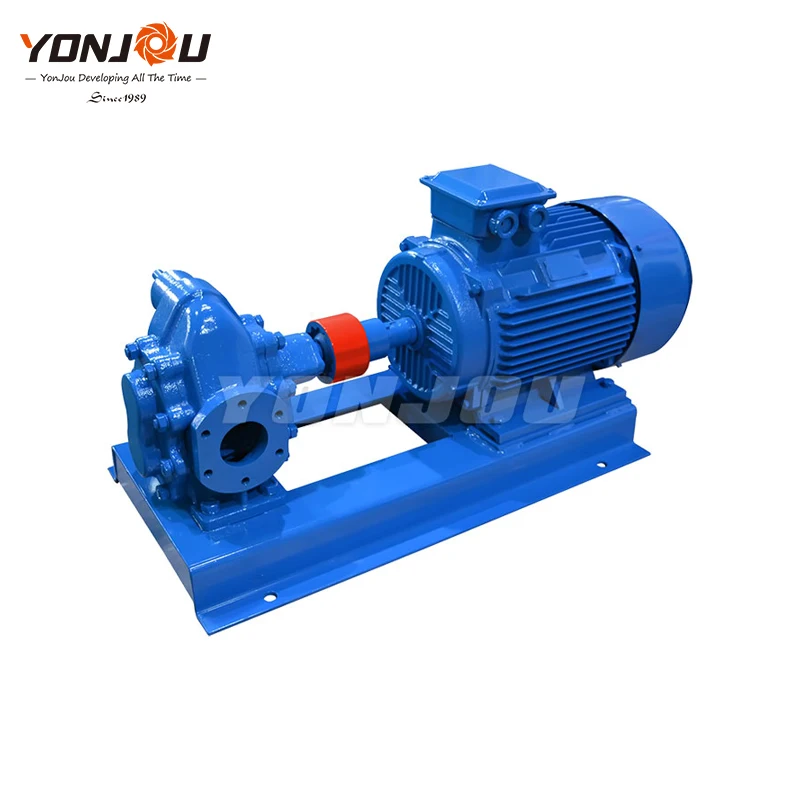

a wide range of oil pumps:
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.

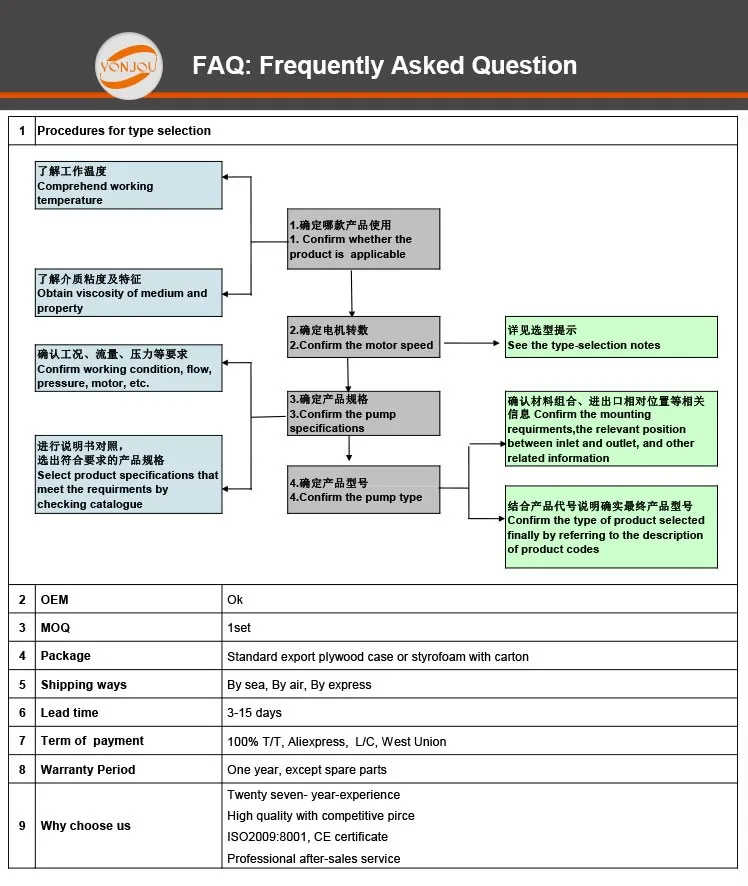

Frequently Asked Questions
What is the minimum order quantity for this oil pump?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year except wearing parts warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Zhejiang Yonjou Technology Co., Ltd., based in China. The company 20 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhejiang Yonjou Technology Co., Ltd. range on HVACR Nexus.
