Key specification for this pedestal fan: 220V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Guangzhou Qixiang Industry Co., Ltd. (12 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Pedestal Fan
- Model Number: YDF-1500
- Power Source: Electric
- Voltage: 220V
- Material: Stainless Steel
- Blade Material: aluminium magnesium alloy
- Speed: 2500 RPM
Technical Specifications
| Voltage | 220V |
|---|---|
| Speed | 2500 RPM |
| Type | Adjustable Blade Axial Fan |
| Material | Stainless Steel |
| Blade Material | aluminium magnesium alloy |
| Mounting Type | Free Standing |
| Bearing Type | Sleeve Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | QIXIANG |
| Model Number | YDF-1500 |
| Product Name | 2m air blower industrial FAN |
| Motor | PMSM |
| Usage | Air Cooler |
| Size | 2000mm/1250mm |
| Color | black,red blue,green |
| Application | warehouse,workshop,large place |
| Noise | 65dB |
| Weight | 137kg |
| Installation | Free-standing |
| Selling Units | Single item |
| Single Package Size | 22.3X7.7X21.3 cm |
| Single Gross Weight | 20.0 kg |
Product Details

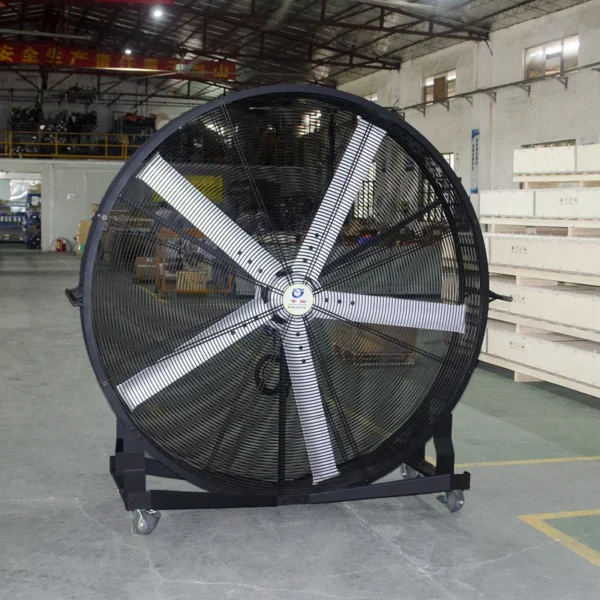

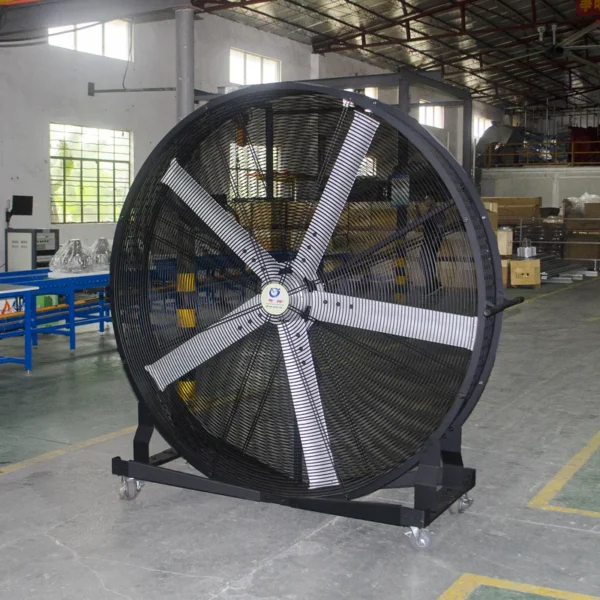

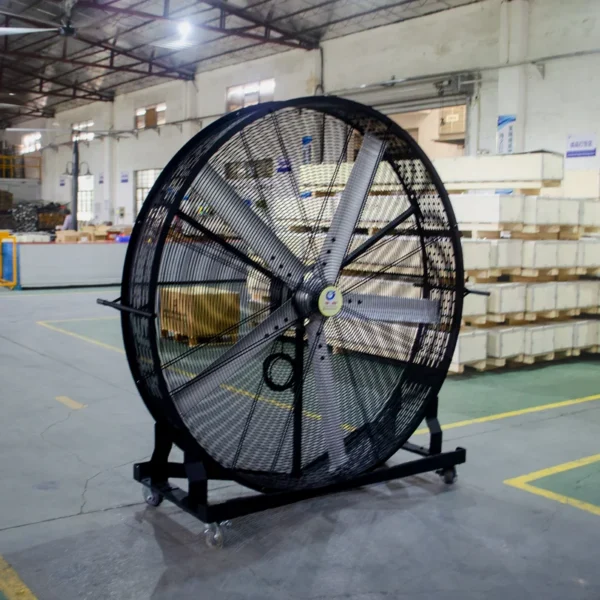

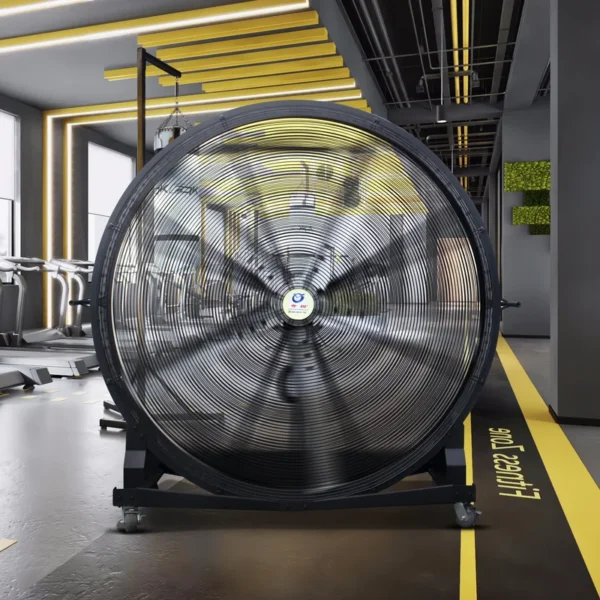

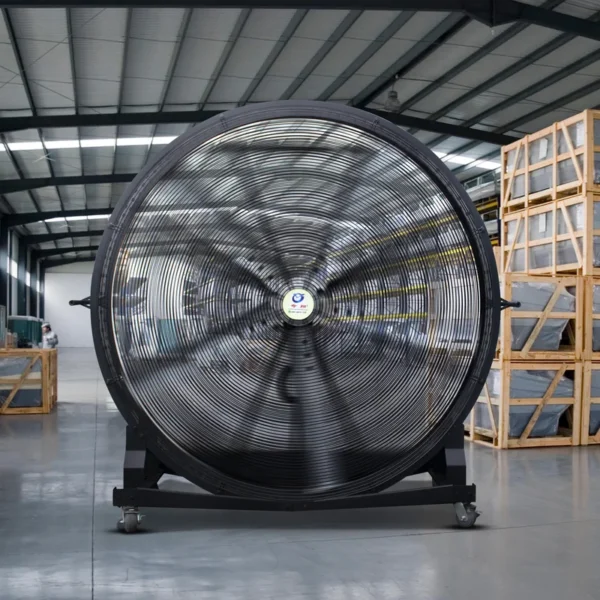

QIXIANG PMSM Motor 2m/1.5m Wave Blade Blower Exhaust Fan Standing Mobile Industrial Fan For Big Space
1. Large air volume, long distance air feel
2. Portable, easy to move with 4 wheels,floor standing type fan, flexible for site condition
3. Low power with only 400W-950W
4. Waterproof, low noise with PMSM motor, free maintenance and low watt
6. IP55 waterproof, can be used outdoor

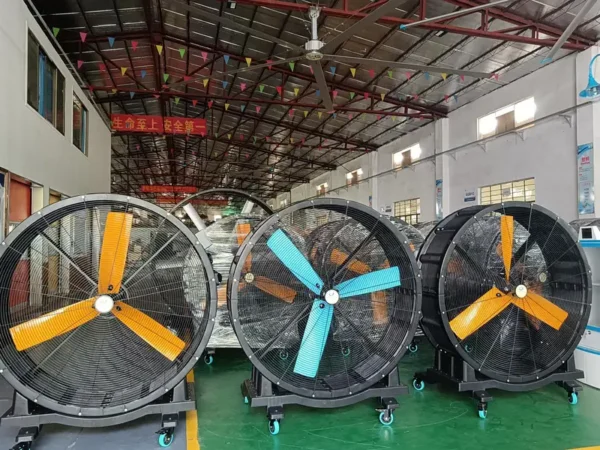

No | Item | Power | Diameter | Max speed | Air volume | Noise | Blade Quantity | Weight |
1 | QX–F2000 | 950W | 2.0M | 260RPM | 1200 m³/min | ≤65db | 6pcs | 137kg |
2 | QX–F1500 | 950W | 1.5M | 400RPM | 720 m³/min | ≤65db | 6pcs | 103kg |
3 | QX–F1200 | 500W | 1.2M | 450RPM | 420 m³/min | ≤65db | 5pcs | 70kg |
4 | QX–F900 | 500W | 0.9M | 700RPM | 280 m³/min | ≤65db | 5pcs | 57kg |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–199 set: US $1450 / set
- 200–499 set: US $1138 / set
- 500+ set: US $650 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this pedestal fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the pedestal fan be supplied for my local voltage?
The standard configuration is 220V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Qixiang Industry Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangzhou Qixiang Industry Co., Ltd. range on HVACR Nexus.
