Key specification for this plastic centrifugal duct fan: 220V/1Ph/50Hz, power source type Corded Electric. Everything below is reproduced from the factory data sheet. Made by Hangzhou Meansoon Ventilation Co., Ltd. (5 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Plastic Centrifugal Duct Fan
- Model Number: MPCF-250-B4S
- Power Source Type: Corded Electric
- Voltage: 220V/1Ph/50Hz
- Material: Plastic, Stainless Steel, Aluminum Alloy, Copper, Steel
- Blade Material: Plastic
- Impeller Materials: Polypropylene (PP)
Technical Specifications
| Duct Diameter | 250mm |
|---|---|
| Mounting | Duct Fan |
| Voltage | 220V/1Ph/50Hz |
| Motor Type | AC Motor |
| Speed | 1400RPM |
| Material | Plastic, Stainless Steel, Aluminum Alloy, Copper, Steel |
| Blade Material | Plastic |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM |
| Noise Level | 57 dB |
| Place Of Origin | Zhejiang, China |
| Brand Name | MEANSOON |
| Model Number | MPCF-250-B4S |
| Application | Chemical factory |
| Impeller Materials | Polypropylene (PP) |
| Volute | polyethylene (PE) |
| Protection | IP54 |
| Certification | CE |
| Selling Units | Single item |
Product Details
Product Name:

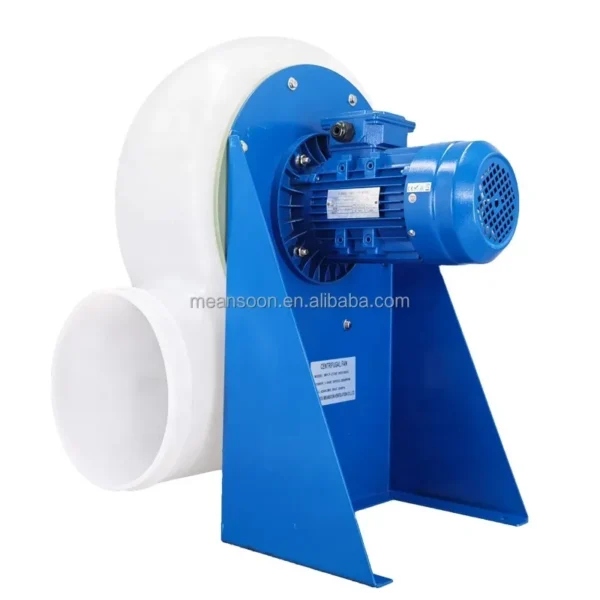

Plastic Chemical PP corrosion resistant exhaust fan
Model: MPCF-250-B4S
Specification
| 1 | Materials | PP impeller + PE spiral case+100% Copper motor |
| 2 | Color | white spiral case + blue motor+ blue bracket |
| 3 | Diameter of intlet | Φ240 |
| 4 | Diameter of outlet | Φ240 |
| 5 | Power | 250W |
| 6 | Power supply | 220~230V/1Ph/50Hz |
| 7 | Max Airflow | 2150 CMH ( Cubic Meters per Hour ) |
| 8 | Max Pressure | 290 Pa |
| 9 | Net weight | 18.4 KGS |
| 10 | Gross Weight | 21.0KGS |
| 11 | Packing details | 1 carton for 1 peice, Carton Size: 59*51*68CM |
| 12 | MOQ | 1 Piece |
| 13 | LOGO | Please send me your design, we can print it on fan |
| 14 | OEM accepted | Yes |
| 15 | Sample time | normal 5 days/ special 15 days |
| 16 | Certification Availalbe | CE |
| 17 | Production capacity | 1000 per month |
| 18 | Payment items | 100% payment before manufacture <5000USD 30% as deposit, 70% before shipment > 5000USD |
GENERAL DESCRIPTION
Chemical corrosion resistant PP plastic centrifugal fan is particularly designed for conveying corrosive vapours and smokes, also with high humidity level and with maximum emperature of 60ºC.
Suitable for applications where the extraction of corrosive fumes and gases:
Sulphuric acid, Sulphurous acid, Nitric acid, Nitrous acid, Hydrofluoric Acid, Boris Acid, Hydrocyanic Acid, Hydrochloric acid. Ammonia, Soda, Ethanol, Potassium hydroxide, Methanol, Propane, Formol, Benzene, Formaldehyde.
APPLICATION
The MPCF series of Chemical corrosion resistant PP plastic centrifugal fan with backward curved impeller provide good characteristics of low noise and high efficiency, which often are applied in laboratory, fume hood, fume cupboard, chemical storehouse, electroplating factory, medicine factory, muould factory, Electronic workshop and metallurgy for exhaust ventilation.
SPIRAL CASES
The spiral case is made of polyethylene(PE) plastic. Reversible and rotable to any the 8 standard discharge positions by 45°increments. All fan is with mounting bolts and nuts in 304 stainless steel.
Inlet/outlet are round with standard size: 160, 200, 250, 300, which are good for plastic duct connection.
IMPELLERS
The impellers with backwrod curved blades are high efficiency made of polypropylene(PP) plastic are balanced dynamically
on balancing standard G2,5 according to DIN ISO 1940.
MOTORS
Direct driving, asynchronous, single or three phase, IP54, class F, B5 shape in 2-pole and
4-pole execution. Single speed: three phase 380 V-50/60Hz, single phase 220V-50/60Hz. Explosion proof versions in accordance with ATEX Directive for three phase models is available. . Motor is outside the airstream. All motors speed adjustable by variable frequency inverter drive.
MOTOR SUPPORT
metal stand constructed of epoxy coated in blue.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–9 unit: US $278.62 / unit
- 10–49 unit: US $250.75 / unit
- 50+ unit: US $225.68 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this plastic centrifugal duct fan?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this plastic centrifugal duct fan carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the plastic centrifugal duct fan be supplied for my local voltage?
The standard configuration is 220V/1Ph/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
