Plate heat exchanger — material Stainless Steel, heat exchanger type Plate Heat Exchanger. The complete factory specification follows. Made by Zhejiang Forwon Plate Heat Exchanger Co., Ltd. (5 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Plate Heat Exchanger
- Voltage: /
- Material: Stainless Steel
- Warranty: 1.5 year
- Certification: CE , UL , ISO9001, ISO14001
- Place Of Origin: Zhejiang, China

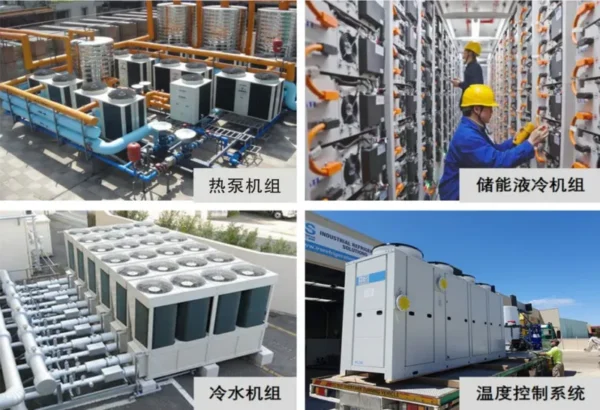

- Application: Heat Pump, air conditioning, chiller, new energy vehicles
Technical Specifications
| Heat Exchanger Type | Plate Heat Exchanger |
|---|---|
| Material | Stainless Steel |
| Voltage | / |
| Core Components | Heat Exchanger |
| Warranty | 1.5 year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High efficiency |
| Working Temperature Range | -196.0~225℃ |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 29 |
| Brand Name | Forwon |
| Liquid Flow Rate | 55m3/h |
| Maximum Pressure Rating | 3.0Mpa |
| Dimension(L*W*H) | 376*366*A mm |

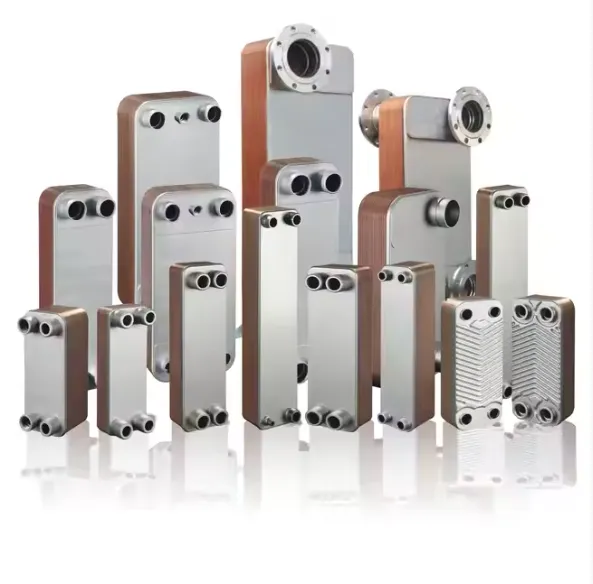

| Product Name | Brazed Plate Heat Exchanger |
| Application | Heat Pump, air conditioning, chiller, new energy vehicles |
| Design Pressure | 3.0 mpa |
| Max Plate Numbers | 250 pcs |
| Plate Type | H |
| Max Connection Size | 2"1/2 |
| Certification | CE , UL , ISO9001, ISO14001 |
| Keyword | Plate heat exchanger |
| Selling Units | Single item |
| Single Package Size | 40X39X10.5 cm |
| Single Gross Weight | 29.0 kg |
Product Details
PRODUCT SPECIFICATIONS | ||
FHC115 | ||
Plate Nos | N | |
Size A (mm) | 16+2.31N | |
Weight (kg) | 0.45N+15.5 | |
Volume (L)F1F2 side/F3F4 side | 0.022*N/2 , 0.022*(N-2)/2 | |
Heat exchange area (m2) | (N-2)*0.115 | |
Design pressure(Mpa) | 3.0 | |
Testing pressure(Mpa) | 4.5 / 6.75 | |
Design temperature(℃） | -196~200 | |
Max flow | 55m3/h | |
Max plate numbers | 250 | |
Max connection size | 2"1/2 | |
Plate Material | SS304,SS316 | |
Connection Material | SS304 | |
Brazing Material | 99.9% pure copper/Steel | |
Plate type | H | |
Distributor | Q | |
Connection type | Threaded, Solder, Flange | |
Approval | CE, UL, PED, ISO9001, ISO14001 | |
Packing | EPE foam,carton or polywood case | |
Mounting Bracket(Optional) | Studs, bracket, feet | |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–199 piece: US $363 / piece
- 200+ piece: US $313 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this plate heat exchanger?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1.5 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this plate heat exchanger carry?
It is supplied with CE , UL , ISO9001, ISO14001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the plate heat exchanger be supplied for my local voltage?
The standard configuration is /. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

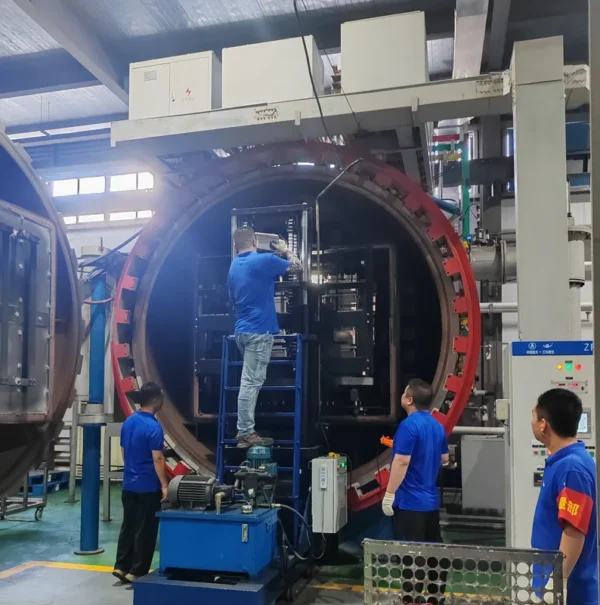

About the Manufacturer
This product is produced by Zhejiang Forwon Plate Heat Exchanger Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Zhejiang Forwon Plate Heat Exchanger Co., Ltd. range on HVACR Nexus.
