The plate heat exchanger listed here carries capacity 45-100 W, refrigerant R134A, documented exactly as the manufacturer publishes it. Made by Changzhou Vrcoolertech Refrigeration Co., Ltd. (11 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Plate Heat Exchanger
- Power: customized
- Capacity: 45-100 W
- Refrigerant: R134A
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Application: cooling water, juice, milk
Technical Specifications
| Core Components | Engine |
|---|---|
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 70 |
| Place Of Origin | Jiangsu, China |
| Brand Name | VRCOOLER |
| Application | cooling water, juice, milk |
| Product Name | Water Plate Cooler Compact Heat Transfer Component for Cooling Steam |
| Original | Jiangsu ,China |
| Packing | Wooden box |
| Capacity | 45-100 W |
| Power | customized |
| Refrigerant | R134A |
| Selling Units | Single item |
| Single Package Size | 70X30X25 cm |
| Single Gross Weight | 130.0 kg |
Product Details

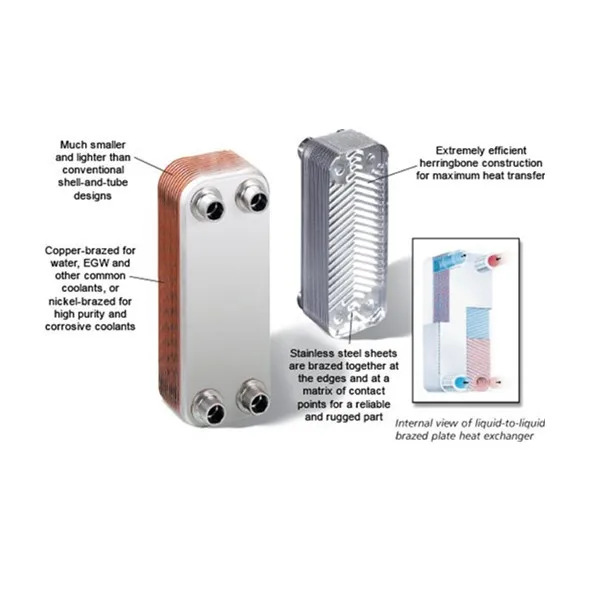

A brazed plate heat exchanger consists of a pack of thin corrugated metal plates. A thin copper foil is placed between each plate. The assembly is placed in a high temperature vacuum furnace in which the copper foil melts and brazes two adjacent plates together. The melted foil also seals the channel formed between two plates. In order to retain high internal pressure, two thicker front and end plates are normally brazed to both sides of the plate pack.
B3 Series have 3 flow paths:
H=higher heat transfer efficiency, higher pressure loss
M=medium heat transfer efficiency, medium pressure loss
L=Lower heat transfer efficiency, lower pressure loss.
1.Plate material :AISI304 or AISI316L
2.Brazing material:Nickel Titanium or Copper
3.Design Parameter:Brazing design pressure3.0Mpa
Testing pressure 3.0 Mpa
Design temperature -123 °C-296°C
2. Good chemical stability, resistance to various chemical corrosion; anti-moth-eaten and anti-mildew.
3. Fireproof and flame retardant (Fireproof Class A non-combustible, GB8624-2006, German standard DIN4102, Class A1)
4. Anti-aging and weather resistance
5. Water-proof and oil-proof: good water-repellent performance and oil-proof
a.Refrigeration: used for condenser and evaporator
b.HVAC: intermediate Heat Exchanger cooperated with the boiler, high-rise building intermediate Heat Exchanger
c.Chemical Industry: soda ash industry, synthetic ammonia, alcohol fermentation, resin composite cooling, etc.
d.Metallurgical Industry: aluminate liquor heating and cooling, steel-making process cooling, etc.
e.Machinery Industry: all kinds of quenching liquid cooling, reducer lubricating oil cooling, etc.
f.Power Industry: high voltage transformer oil cooling, generator bearing oil cooling, etc.
g.Paper Industry: bleaching process heat recovery, wash slurry heating, etc.
h.Textile Industry: viscose rayon aqueous alkali cooling, boiling nitrocellulose cooling, etc.
i.Food & Beverage: juice sterilization cooling, animal and plant oil heating and cooling.
j.Grease Technology: soap base atmospheric pressure drying, various technology liquids heating and cooling.
k.Central Heating: thermal power plant waste heat district heating, bath water heating.
l.Marine: shipbuilding
Others: petroleum, desalination, and geothermal.
Assemble
Brazed furnace
Painting Room
Press Machine
Q1: How to contact with us ?
A1: * 24 hours online from Trade Manager, quick answer, or email with us, we chat,what sapp is available.
* Select one product and leave message to us.
Q2: How to purchase the products which you want?
A2: * Choose one product which you are interested and leave message
* Or Inform us your request for brand and model number
* Or inform us your detailed request including dimension, weight, material, we can recommend to you.
* MOQ can be offered for you reference.
Q3: How to confirm the quality before place the order?
A3: * sample can be provided for your testing before order.
* If you are in China, warmly welcome you visit our factory, check the Quality, meanwhile
welcome to visit our office for reference.
Q4: How about the after-sale services ?
A4: * If any problems after receiving the bulk goods, please do not
hesitate to contact us for dealing, our engineer will service at any time to make you satisfied.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–19 unit: US $800 / unit
- 20+ unit: US $600 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this plate heat exchanger?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Changzhou Vrcoolertech Refrigeration Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Changzhou Vrcoolertech Refrigeration Co., Ltd. range on HVACR Nexus.
