Key specification for this plug fan: 380 V, 5.5kw. Everything below is reproduced from the factory data sheet. Made by Jiangxi Jinjinwo Environmental Protection Co., Ltd. (1 year on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Plug Fan
- Model Number: HTFC-I-22
- Power: 5.5kw
- Voltage: 380 V
- Blade Material: Galvanized sheet
- Speed: 1100rpm, 900rpm, 1300rpm, 1400rpm, 1500rpm
- Warranty: 1 Year
Technical Specifications
| Type | Forward Curved Blade Radial Fan |
|---|---|
| Voltage | 380 V |
| Speed | 1100rpm, 900rpm, 1300rpm, 1400rpm, 1500rpm |
| Blade Material | Galvanized sheet |
| Mounting | Free Standing |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OBM, ODM, OEM |
| Place Of Origin | Jiangxi, China |
| Brand Name | XJTKJ |
| Model Number | HTFC-I-22 |
| Product Name | No. 22 HTFC-I type cabinet centrifugal fan |
| Usage | Exhaust Ventilation .Placed |
| Motor Type | Three – Phase Asynchronous Motor |
| Power | 5.5kw |
| Pressure(Pa) | 423-488 |
| Brand | XJTKJ |
| Certificate | CCC |
| Application Scenario | Shopping malls, residential buildings, underground garages, etc |
| Size | 1990*1240*1080mm |
| Function | Fire protection ventilation, exhaust, supply air and smoke exhaust |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

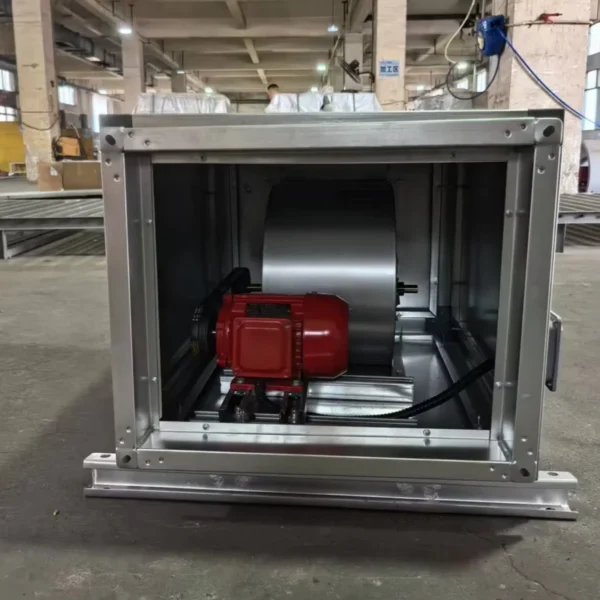

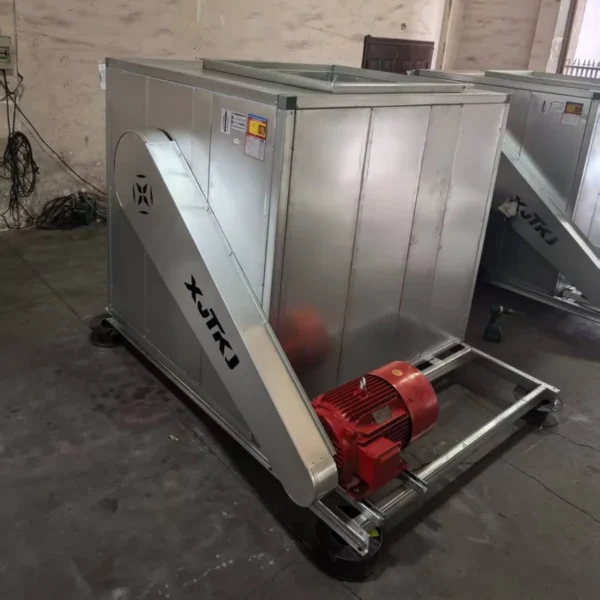

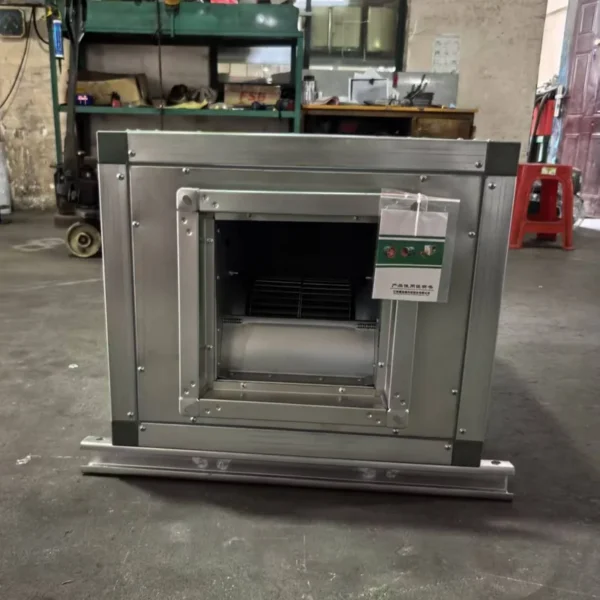

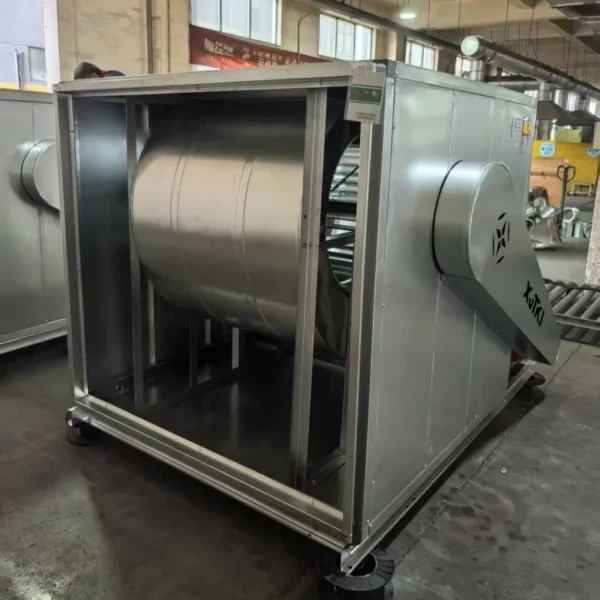

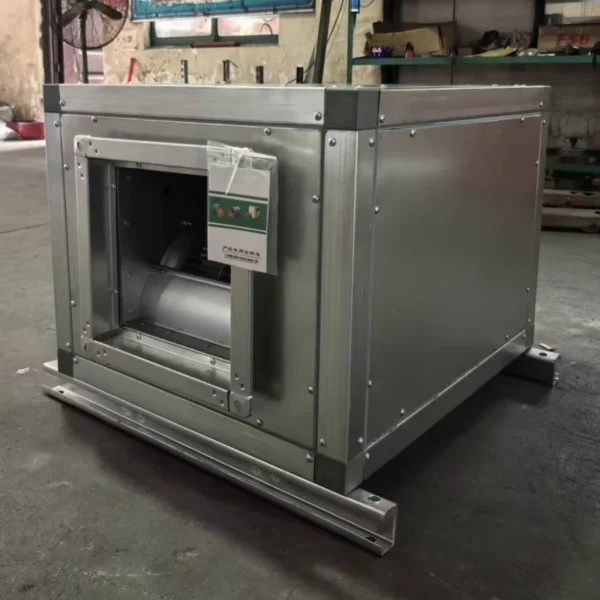

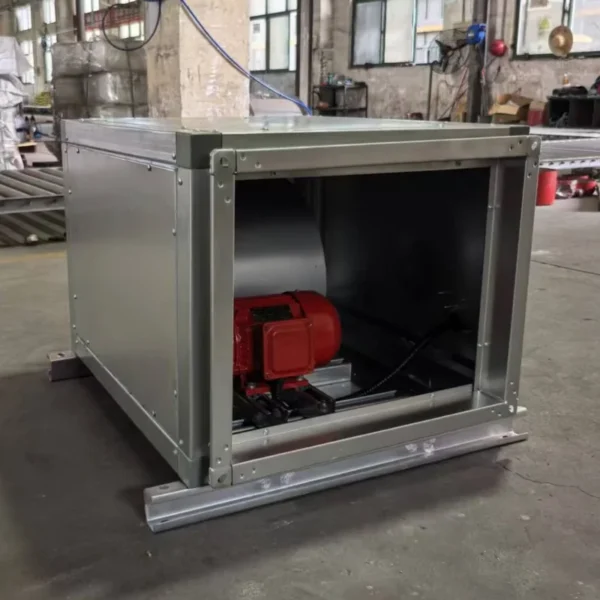

Cabinet-style centrifugal fans
| HTFC-A/B Type Forward-Inclined Cabinet Centrifugal Fan External Parameters Table | |||||||||
| Fan model | L | W(wide) | H(high) | Air outlet | Underframe | ||||
| Type A | Type B | W1 | H1 | M(A) | M(B) | N | |||
| HTFC-I-20 | 1120 | 1300 | 1100 | 1020 | 630 | 570 | 1870 | 1400 | 1180 |
| HTFC-I-22 | 1240 | 1400 | 1160 | 1080 | 690 | 620 | 1990 | 1500 | 1240 |
| HTFC-I-25 | 1380 | 1600 | 1320 | 1240 | 780 | 710 | 2180 | 1700 | 1400 |
| HTFC-I-27.5 | 1500 | 1700 | 1460 | 1380 | 840 | 750 | 2250 | 1800 | 1540 |
| HTFC-I-30 | 1600 | 1800 | 1580 | 1500 | 940 | 840 | 2550 | 1900 | 1640 |
| HTFC-I-33 | 1680 | 1900 | 1730 | 1650 | 1070 | 1030 | 2630 | 2000 | 1810 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–99 set: US $500.41 / set
- 100–499 set: US $498.2 / set
- 500+ set: US $496 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this plug fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this plug fan carry?
It is supplied with CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the plug fan be supplied for my local voltage?
The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
