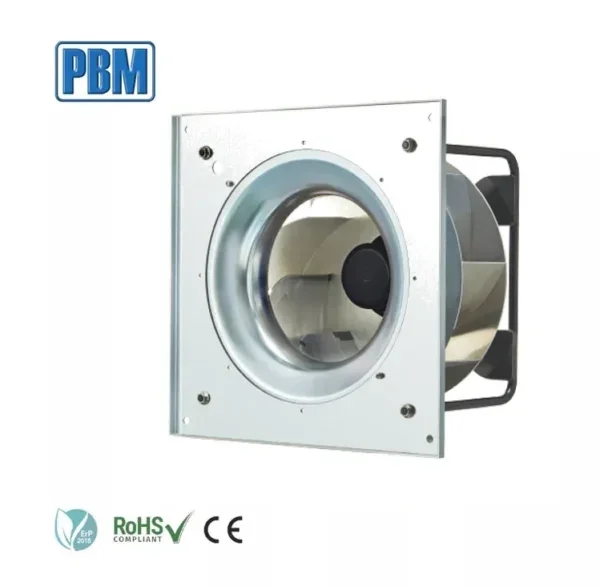

Pressure Centrifugal Exhaust Fan, 250mm, 230V

The pressure centrifugal exhaust fan listed here carries 230V, blade material Stainless Steel, documented exactly as the manufacturer publishes it. Made by Pbm Motor And Fan (suzhou) Co., Ltd. (8 years on the platform, typical reply ≤8h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Pressure Centrifugal Exhaust Fan

• Model Number: PK3N250B2E-YZ5
• Voltage: 230V
• Blade Material: Stainless Steel
• Speed Control: 0-10VDC/PWM
• Warranty: 2 Years
• Certification: CE RoHS ErP

Technical Specifications

Product Details

Products Description

One-plug Easy-mounting with Higher Efficiency

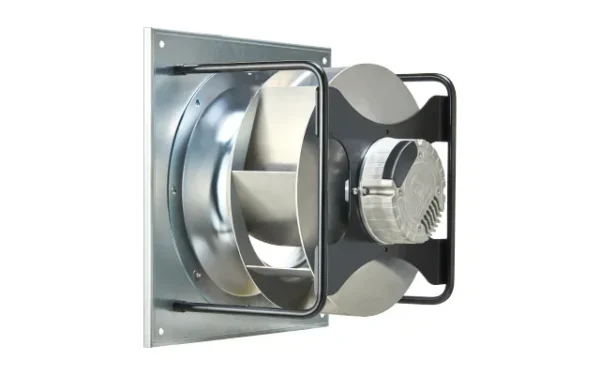

PBM centrifugal fans with support bracket, adopt both metal rivetstructure or welding and single-piece plastic with glass fiber reinforcement aerodynamic impeller, compact energy-saving smart EC motor drives it with maintenance free ball bearing, installed into easy-mounting, anti-vibration, robust support bracket design to guarantee stable, quiet fan operation with maximum “η” up to 55% efficiency at ErP Directive satisfaction of customers in their ventilation, heating, refrigeration product or system.

Product Specification

1. General Characters

Model	PK3N250B2E-YZ5
Rated Voltage	230 VAC
Operating Voltage	184~270 VAC
Rated Speed	3600 RPM
Input Current	2.5 A
Input Power	550 W
Air Flow	2750 m3/H
Static Pressure	330 Pa
Sound Level	85 dB(A)
Protection Type	IP55

2. Mechanical

Dimension	400x400x254.5mm (see dimension drawing)
Material of Impeller	Propylene with glass-fiber reinforced
Mounting Position	Any
Surface of Rotor	Coated in black
Bearing System	NMB ball bearing
Lead Wire	AC(AWG20#)，DC(AWG24 #)
Weight	5910g
Package	Standard

3. Electrical Protection

Locked-rotor Protection	Over-current limiting circuit protects motor from damage at least for 72 hours of locked rotor condition at rated voltage.
Maximum Current under Locked Rotor	A, Typical inrush current when the motor is trying to re-start under locked rotor conditions is 2~4 times the normal running current reoccurring and for 16~20% of restarting cycle period. B, If he CL function is used this restarting inrush current is about the same as the normal running current.
Reverse Polarity Protection	No damage if the positive and negative leads are reversed under maximum operation voltage conditions.
Over Voltage Protection	The circuit will be shut down automaticlly when input voltage over threshold. And re-started when Voltage down to threshold below.
Soft Start	In 5 seconds after power on and speed control voltage gets to 1.5V or PWM duty cycle at 10% above.

4. Outline Drawing

5. Performance Curve

Company Profile

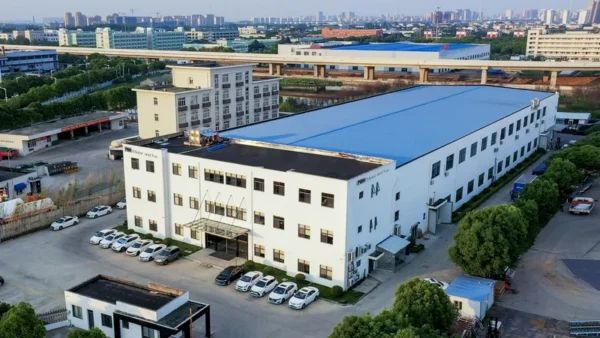

PBM is a China mainland EC(Electronically Commutated) brushless motor manufacturing and technology consulting company offering an extensive range of EC motors, fans and intelligent ventilation solutions for air-moving precisely and constantly with maintenance-free throughout the life cycle of products in last decades.

Focus on EC fan only and protecting our world with intelligent energy efficient motor and fan solutions are our goal in an attempt to make tomorrow a greener & Healthier world.

Recommend Products

FAQ

Q1. How about the delivery time ? A1: Within 25 days after we receive the order. Q2. What kind of payments do you support? A2: T/T & L/C, other types please contact us.

Q3. What's the MOQ? A3: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us. Q4. Transportation A4: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive. Q5. Global Market A5: Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best EC Centrifugal Fan to clients at competitive price. In addition to control of cost and quality, our stipulated lead-time, variety of designs, capability of product development and flexibility of service bring convenience and value added services to the clients.

Application

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–99 piece: US $121.19 / piece
  • 100–499 piece: US $116.2 / piece
  • 500–999 piece: US $110.18 / piece
  • 1000+ piece: US $106.04 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this pressure centrifugal exhaust fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this pressure centrifugal exhaust fan carry?

It is supplied with CE RoHS ErP documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the pressure centrifugal exhaust fan be supplied for my local voltage?

The standard configuration is 230V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Pbm Motor And Fan (suzhou) Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Pbm Motor And Fan (suzhou) Co., Ltd. range on HVACR Nexus.
