Price 70 100 150 200 250 300 400 500 600 700 800 1000 1500 2000 3000 Bhp Hp Natural Gas Lpg Diesel Fired Industrial Steam Boiler
Products Description

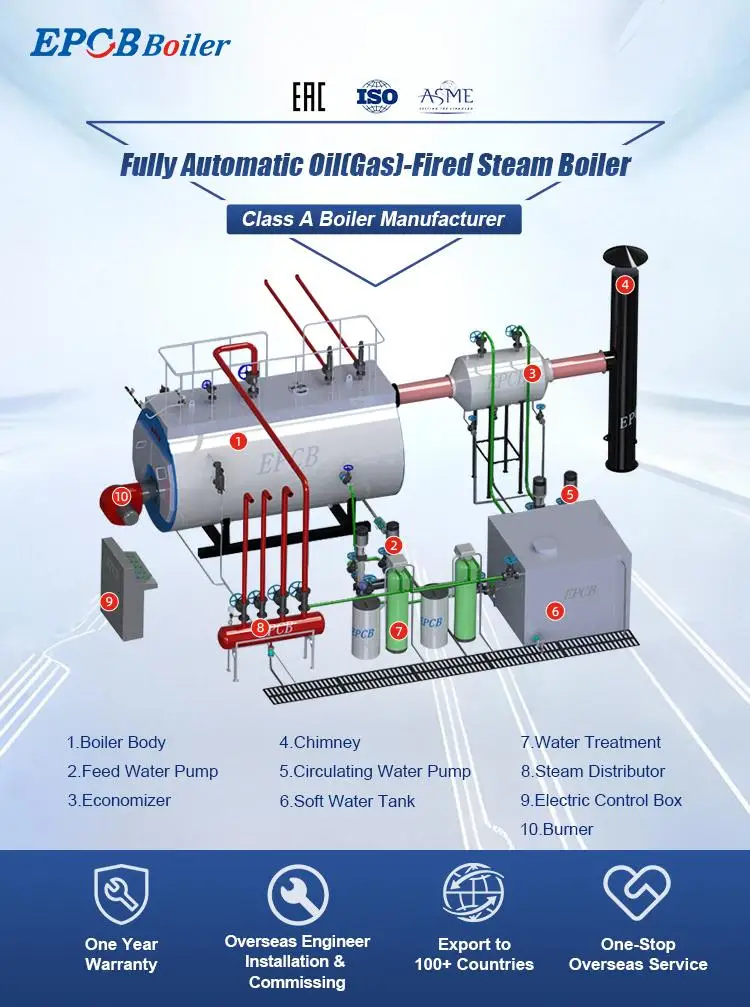

Fully automatic oil/gas fired steam boiler

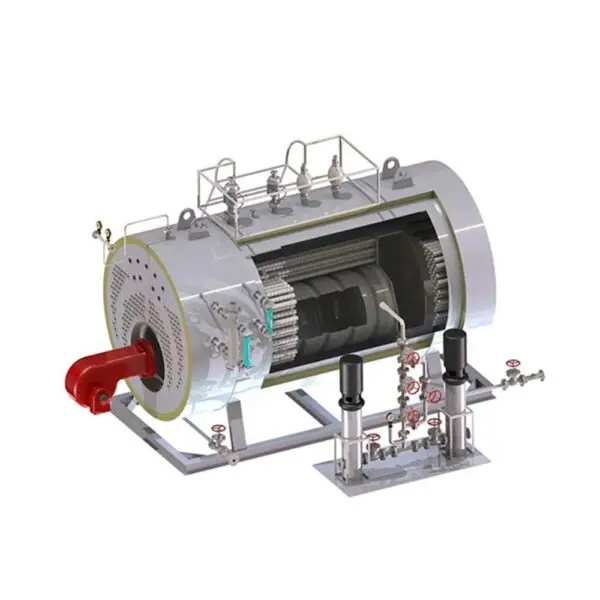

EPCB WNS oil-fired gas steam boiler adopts a wet back three-pass structure with a large heating area and a low-nitrogen burner for more complete combustion. The boiler is equipped with a PLC intelligent control system, which supports remote monitoring and one-button start and stop, accurately adjusts the combustion state, and ensures efficient and safe operation. The convection heat exchange structure is optimized, the heat exchange efficiency is improved, and the steam quality is stable. It is widely used in food, textile, chemical, pharmaceutical and other industries. It adopts an integrated compact design, small footprint, easy installation, and high-strength heat-resistant steel to ensure that the boiler is resistant to high temperature and corrosion, reducing maintenance costs, making it easier for enterprises to use.
Rated steam capacity:0.5ton-25ton/h;
Applicable fuel:natural gas, diesel, heavy oil, lpg, lng, cng, biogas, etc;
Rated steam pressure:1.0Mpa(10bar), 1.25Mpa(13bar), 1.6Mpa(16bar), 2.5Mpa(25bar);
Applicable fuel:natural gas, diesel, heavy oil, lpg, lng, cng, biogas, etc;
Rated steam pressure:1.0Mpa(10bar), 1.25Mpa(13bar), 1.6Mpa(16bar), 2.5Mpa(25bar);
EPCB boiler always upholds a professional, patient and meticulous service attitude to provide a full range of answers to every customer. Whether you have any questions about product specifications, technical parameters, application scenarios, installation and commissioning, or after-sales service, you can always consult us.

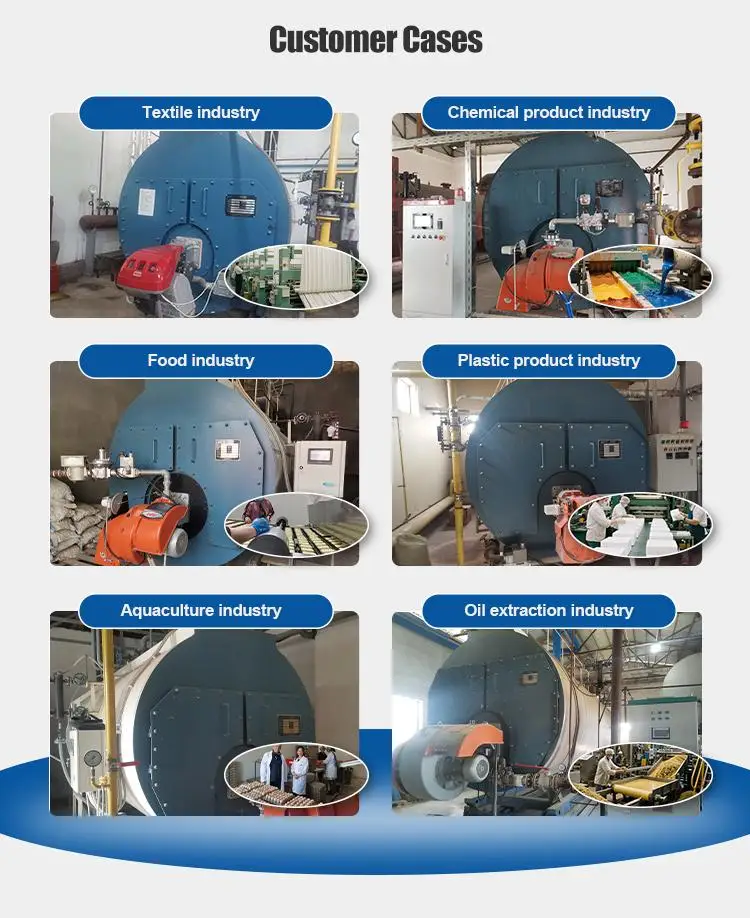

Customer Cases
EPCB Boiler is a professional boiler system solution provider. Our products are exported to more than one hundred countries and regions and are widely used in industrial production, food processing, chemical, textile, pharmaceutical, and other industries.

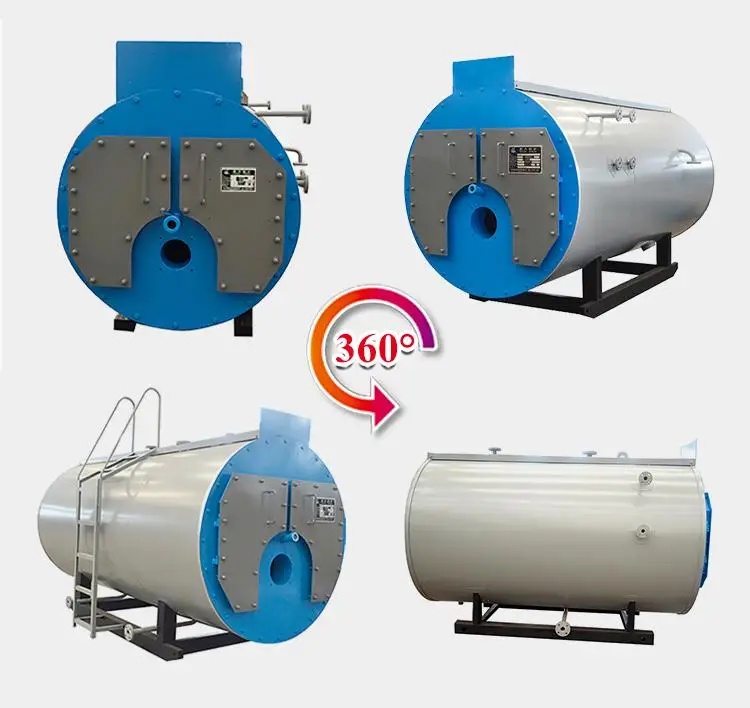

Details Images
|
Rated capacity t/h
|
1
|
2
|
4
|
6
|
8
|
10
|
15
|
20
|
|||||||||
|
Rated steam pressure MPa
|
0.7/1.0/1.25/1.6
|
||||||||||||||||
|
Rated steam temperature ℃
|
170/184/194/204
|
||||||||||||||||
|
Boiler thermal efficiency %
|
91.8
|
92.4
|
92.6
|
92.9
|
93.1
|
93.4
|
93.5
|
93.7
|
|||||||||
|
Body heating area m2
|
Boiler body
|
21.15
|
45.1
|
80.37
|
140.13
|
194.27
|
142.3
|
218.5
|
275.3
|
||||||||
|
Economizer
|
18.6
|
26.1
|
43.41
|
57.1
|
74.4
|
112.6
|
155
|
225.5
|
|||||||||
|
Boiler water volume m3
|
2.49
|
5.6
|
7.54
|
8.5
|
13.9
|
19.5
|
24.5
|
31.5
|
|||||||||
|
Water inlet diameter DN
|
40
|
40
|
50
|
50
|
50
|
50
|
65
|
80
|
|||||||||
|
Main steam valve diameter DN
|
65/25
|
80/40
|
100/40
|
125/40
|
150/40
|
150/40
|
200/50
|
200/65
|
|||||||||
|
Safety valve diameter DN
|
50
|
2×40
|
50+40
|
2×65
|
2×65
|
2×80
|
2×100
|
2×100
|
|||||||||
|
Blowdown diameter DN
|
40
|
40
|
40
|
40
|
40
|
2×50
|
2×50
|
2×50
|
|||||||||
|
Largest transportation size
|
Length mm
|
3100
|
3660
|
4900
|
5850
|
6500
|
6240
|
8500
|
9200
|
||||||||
|
Width mm
|
2200
|
2700
|
2300
|
2400
|
2600
|
2850
|
3500
|
3950
|
|||||||||
|
Height mm
|
2200
|
2630
|
2650
|
2700
|
2850
|
3100
|
4000
|
4350
|
|||||||||
|
Largest transportation weight kg
|
3600
|
5300
|
8700
|
12500
|
17800
|
22000
|
32500
|
40500
|
|||||||||

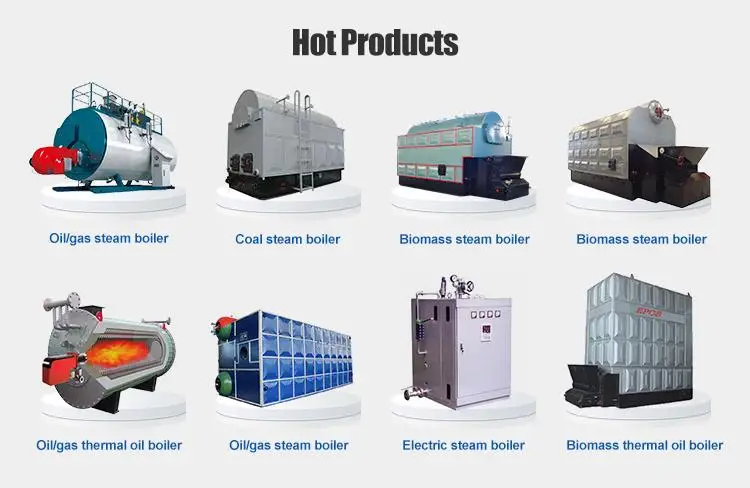

Recommend Products
Why Choose Us

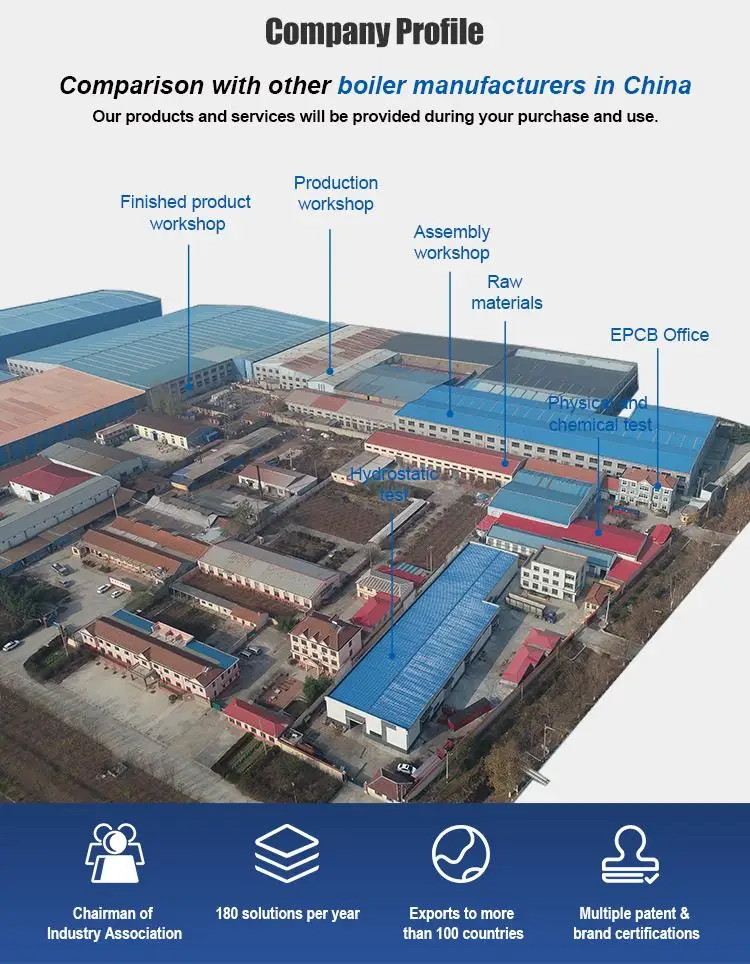

After more than seventy years of development, EPCB Boiler has grown into a professional boiler system solution provider integrating boiler design, manufacturing, installation, and maintenance. Our products cover steam boilers, thermal oil boilers, hot water boilers, power plant boilers, and other categories and can provide customized solutions according to customer needs. At present, our market has covered more than one hundred countries and regions in Asia, America, Europe, Africa, Oceania, etc. More than fifteen thousand companies around the world have chosen EPCB boilers, which are widely used in more than four hundred industries.The EPCB Boiler factory is located in Qingdao, an important industrial manufacturing base in China, covering an area of one hundred twenty thousand square meters. It has modern factory buildings, advanced production equipment, and a complete production line to ensure the stability and reliability of product quality. As of two thousand twenty-four, the annual production volume has reached two thousand units and continues to grow.Under a strict quality management system, we have obtained multiple international certifications: [Factory Certification] ISO nine thousand one; [Product Certification] CE, ASME, EAC, etc. EPCB Boiler always adheres to high-standard manufacturing to ensure the high performance, high safety, and long service life of each boiler, providing excellent heating solutions for global customers.

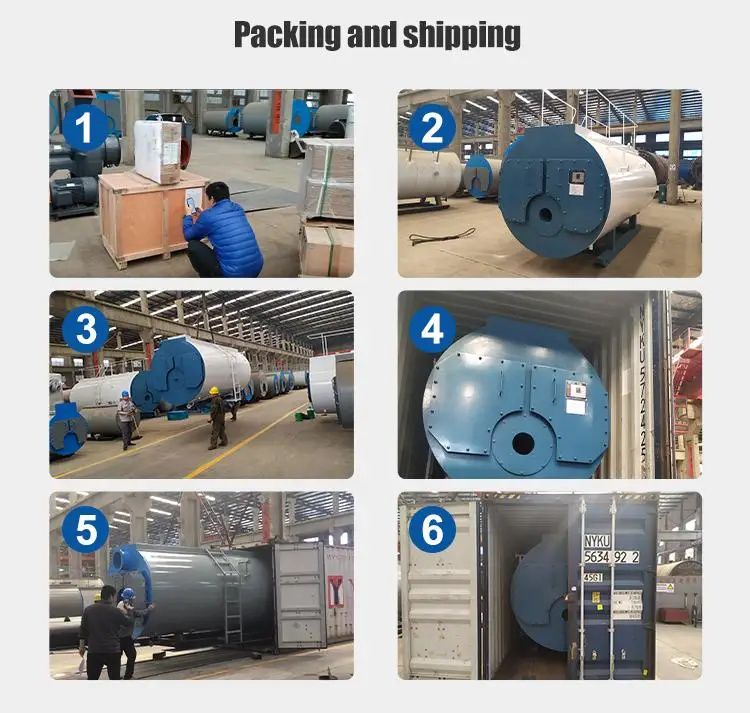

Product packaging
FAQ
â‘ Q: What is your delivery time?
A: Generally, the delivery time is 15~25 days for boilers≤6Ton , 25~40 days for boilers>6Ton.
â‘¡ Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
â‘¢ Q: What kind of transportation do you use?
A: We support various modes of transportation, such as by sea, by land and by air. You can choose any mode of transportation according to your actual situation.
â‘£ Q: Do you provide any training services?
A: Yes, we do. Our engineer will go to customer’s factory site to give the user’s operator guidance and training during the period of commissioning until they are skilled in boiler operation.
⑤ Q：What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
â‘¥ Q: How can I get the best price quickly?
A: You can tell us the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we will give you the reasonable quotation immediately by Email, Whatsapp, Skype, Wechat or any other communication tool you use.
A: Generally, the delivery time is 15~25 days for boilers≤6Ton , 25~40 days for boilers>6Ton.
â‘¡ Q: Do I get guarantee of products?
A: Yes, every product is 1 year quality warranty under customer correct using the products.
â‘¢ Q: What kind of transportation do you use?
A: We support various modes of transportation, such as by sea, by land and by air. You can choose any mode of transportation according to your actual situation.
â‘£ Q: Do you provide any training services?
A: Yes, we do. Our engineer will go to customer’s factory site to give the user’s operator guidance and training during the period of commissioning until they are skilled in boiler operation.
⑤ Q：What about the production?
A: Produce time is 20~25days for <6Ton boiler, 25~40days for >8Ton boiler.
â‘¥ Q: How can I get the best price quickly?
A: You can tell us the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we will give you the reasonable quotation immediately by Email, Whatsapp, Skype, Wechat or any other communication tool you use.
