This proof air conditioner is published with the manufacturer’s full specification — refrigerant R-410A, type Explosion Proof Air Conditioner. Made by Shenhai Explosion-Proof Technology Co., Ltd. (5 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Proof Air Conditioner
- Model Number: BKFR
- Refrigerant: R-410A
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Application: Warehouse
- Type: Explosion Proof Air Conditioner
Technical Specifications
| Type | Explosion Proof Air Conditioner |
|---|---|
| Refrigerant | R-410A |
| Mounting Type | Split Wall Mounted,Floor Mounted |
| Compressor Brand | Shen Hai |
| Fan Motors Type | AC |
| Motor Type | AC Motor |
| Filter Type | Regular Filter |
| Application | Warehouse |
| Key Selling Points | Explosion-proof |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Compressor |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 50 |
| Brand Name | Shen Hai |
| Model Number | BKFR |
| Dimension(L*W*H) | Customize |
| Alias | Explosion Proof Air Conditioner,Ex Proof Air Conditioner |
| Types Of | Single Cooling,Heating and Cooling |
| Function | Refrigeration and Heating in Flammable and Explosive Environments |
| Place Of Use | Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations |
| Metric Standards | 2.6kW,3.5kW,5kW,7.26kW,12kW |
| Applicable Scope | Zone 1,Zone 2,Zone 21,Zone 22;IIA IIB IIC Explosive Gas Environments |
| English Standards | 9000 Btu/h,12000 Btu/h,18000 Btu/h,27000 Btu/h,45000 Btu/h |
| American Standards | 0.75 Ton (TR),1 Ton (TR),1.5 Ton (TR),2.25 Ton (TR),3.75 Ton (TR) |
| Cable Outer Diameter | 10mm-14mm,15mm-23mm |
| Security Level | IP66,WF2,Ex db eb ib mb IIB T4 Gb,Ex db eb ib mb IIC T4 Gb |
| Selling Units | Single item |
| Single Package Size | 150.00X120.00X120.00 cm |
| Single Gross Weight | 60.000 kg |
Product Details
Product Parameters
Model | BKFR-25 | BKFR-35 | BKFR-50 | BKFR-72 | BKLR-120 | ||||||
Rated voltage/frequency | 220V/380V/50Hz | 380V/50Hz | |||||||||
Rated cooling capacity (W) | 2600 | 3500 | 5000 | 7260 | 12000 | ||||||
Rated heat (W) | 2880 | 3900 | 5700 | 8100 | 12500 | ||||||
Input power (P number) | 1P | 1.5P | 2P | 3P | 5P | ||||||
Refrigeration input power/current (W/A) | 742/3.3 | 1015/4.6 | 1432/6.5 | 2200/10 | 3850/7.5 | ||||||
Heating input power/current (W/A) | 798/3.6 | 1190/5.4 | 1690/7.6 | 2600/11.8 | 3800/7.5 | ||||||
Applicable area (m ²) | 10~12 | 13~16 | 22~27 | 27~34 | 50~80 | ||||||
Noise (dB) | indoor | 34.8/38.8 | 36.8/40.8 | 40/45 | 48 | 52 | |||||
outdoor | 49 | 50 | 53 | 56 | 60 | ||||||
Overall dimension (mm) | Indoor unit | 265x790x170 | 275x845x180 | 298x940x200 | 326x1178x253 | 581x1780x395 | |||||
Outdoor unit | 540x848x320 | 596x899x378 | 700x955x396 | 790x980x440 | 1032x1250x412 | ||||||
Control box | 300x500x190 | 300x500x190 | 300x500x190 | 300x500x190 | 250x380x165 | ||||||
Weight (kg) | Indoor unit | 12 | 10 | 13 | 18 | 63 | |||||
Outdoor unit | 11 | 41 | 51 | 68 | 112 | ||||||
Control box | 10 | 7 | |||||||||
Length of connecting pipe | 4 | ||||||||||
Explosion proof sign | Ex db eb ib mb IIB T4 Gb,Ex db eb ib mb IIC T4 Gb | ||||||||||
Maximum outer diameter of incoming cable | Φ10~Φ14mm | Φ15~Φ23mm | |||||||||
Split explosion-proof air conditioning treatment

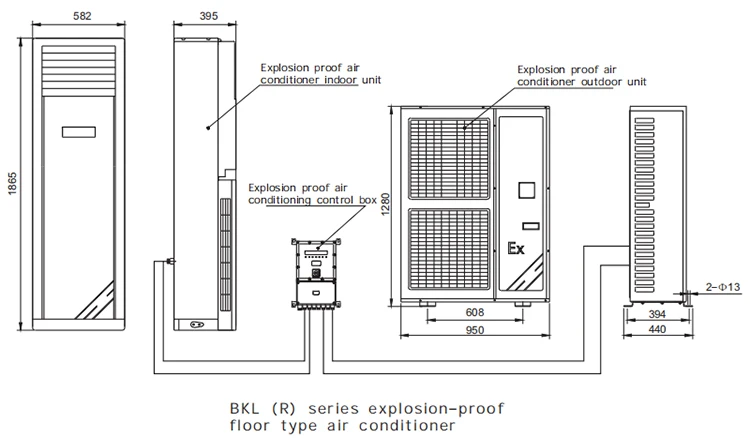

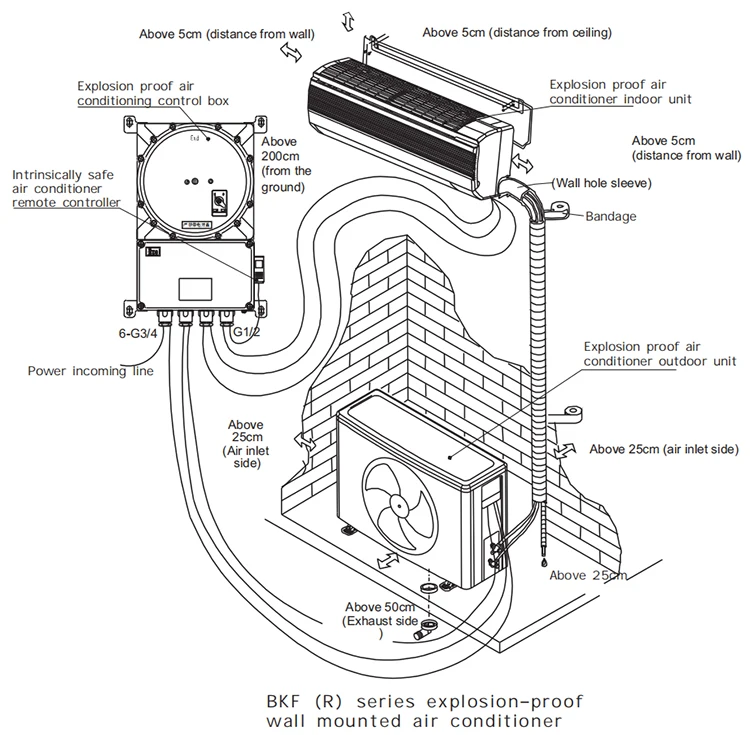

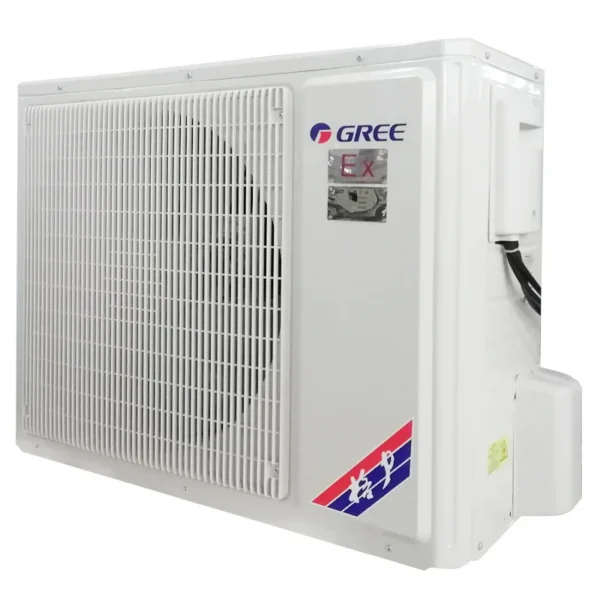

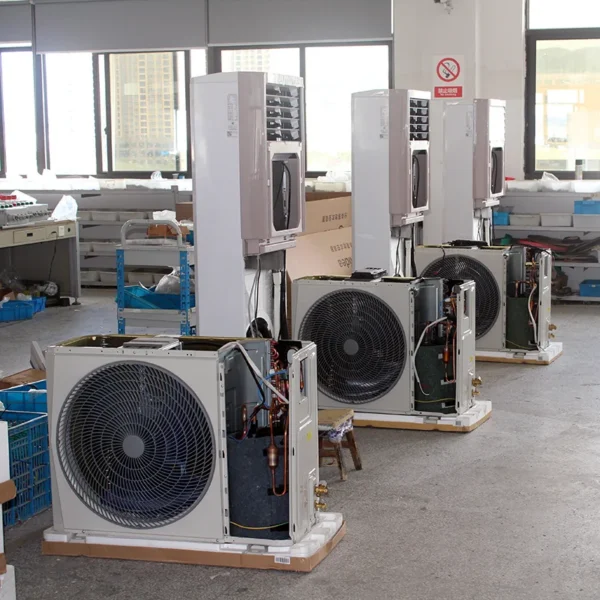

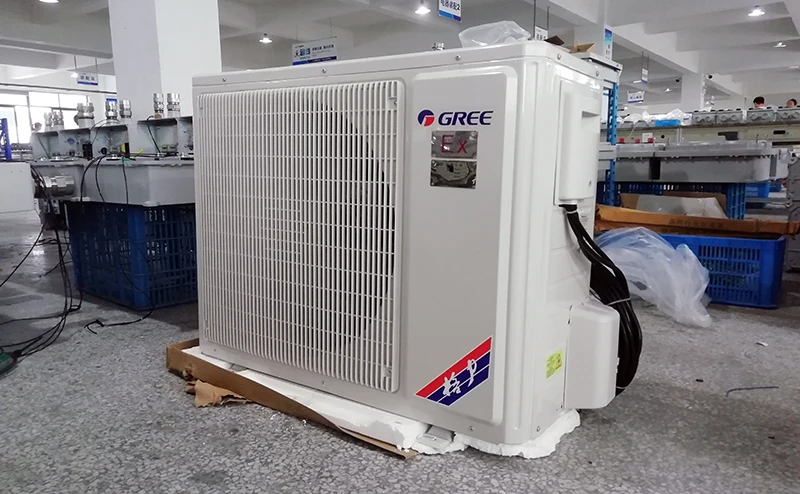

1. Wall mounted explosion-proof air conditioners and floor mounted explosion-proof air conditioners are mainly used for explosion-proof treatment of outdoor units and indoor units on the basis of ordinary air conditioners, as follows: (1) Outdoor unit: it is mainly used for internal electrical control part, compressor, outdoor fan, protection system, heat dissipation system and refrigeration system explosion proof treatment shall be carried out in a unified way. Its overall dimensions are the same as those of the external units of ordinary hanging air conditioners, and its installation method is also the same as that of the external units of ordinary hanging air conditioners. (2) Indoor unit: it mainly adopts special process treatment methods and manufacturing methods to decompose the internal electrical control part, and then re conduct explosion-proof design, manufacturing and processing to form an independent explosion proof control box, with manual control function, its hanging external dimension is the same as that of the ordinary hanging internal machine, and its installation method is also the same. But the explosion-proof indoor unit is increased a hanging explosion-proof control box is provided, and its dimensions are shown in the figure below. 2. A variety of explosion-proof forms are used outside the explosion-proof indoor unit and outdoor unit, and the intrinsically safe explosion-proof circuit is used for the weak current control part.
Product Description
1. Explosion proof air conditioner is made of explosion-proof treatment on the basis of ordinary air conditioner, with reliable explosion-proof performance and no impact on the performance of the original air conditioner. 2. Explosion proof air conditioners can be divided into: split wall mounted type and floor mounted type according to structure, and can be divided into: single cold type and cold and warm type according to function. 3. The connection of explosion-proof air conditioner pipeline is consistent with that of ordinary air conditioner. The electrical connection must be in accordance with the requirements of explosion-proof electrical installation process. The power supply must be introduced into the explosion-proof control box first, and then divided from the explosion-proof control box. Do not introduce the indoor unit and outdoor unit. 4. The explosion-proof control box is equipped with a power switch. 5. Steel pipe or cable wiring is acceptable.
1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment; 2. Suitable for IIA, IIB and IIC explosive gas environment; 3. Applicable to T1~T6 temperature groups; 4. It is applicable to dangerous environments such as oil exploitation, oil refining, chemical industry, gas station, offshore oil platforms, oil tankers and metal processing; 5. It is used for temperature regulation in workshops, control rooms, laboratories and other fields.
About Us
VR
FAQ
A: Are you factory or trading company?
A: Can I have a sample order?
Q: We are a factory and provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans, explosion-proof junction box and anti-corrosion & dustproof & waterproof lights.
A: What certificates do you have?
Q: We have passed ATEX, IECEx, and with a lot of National Patents.
A: What place are your products used in?
Q: They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, refinery, marine, wine-making, fire fighting, municipal, gas station and other industries.
A: Can I have a sample order?
Q: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
A: Can you accept customized?
Q: Yes. Please inform us and confirm the design firstly based on our sample.
Thanks for your visiting and hope to cooperate! ($10 free for the first order) |
contact us
WhatsApp/Skype: +86 159 5719 4752
Mailbox: aurorachen@shenhai-ex.com
Website: https://www.shenhai-ex.com/
Company: Shenhai Explosion-Proof Technology Co., Ltd.
Address: No. 318, Wei15 Road, Economic Development Zone, Wenzhou, Zhejiang, China
Website: https://www.shenhai-ex.com/
Company: Shenhai Explosion-Proof Technology Co., Ltd.
Address: No. 318, Wei15 Road, Economic Development Zone, Wenzhou, Zhejiang, China
Click to return to the home page |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $1018.72 / piece
- 10–49 piece: US $995.46 / piece
- 50+ piece: US $968.75 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this proof air conditioner?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenhai Explosion-Proof Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenhai Explosion-Proof Technology Co., Ltd. range on HVACR Nexus.
See more in Window Air Conditioners on HVACR Nexus.
